Exercises for next section
If available, answers can be checked by clicking on the exercise number.

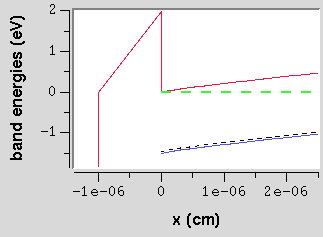

12.3.1 The figure shows the band energies and chemical potential near the insulator/semiconductor interface of an MIS-diode, biased into inversion. The dielectric constants of the insulator and semiconductor are 4 and 12 respectively. There are no interface states. What is the inversion layer charge density?
