By Daniel Selva, Brandon H. Suarez, and Edward F. Crawley

Space Architecture Systems Group
The unique nature of the space-based earth observation network that the Space Architecture Systems Group grad students (from left) Brandon Suarez and Daniel Selva, and Professor Ed Crawley are developing lies on its global coverage of the Earth. The system will offer an unprecedented ability to monitor climate, perform Earth science research, and forecast weather. (William Litant/MIT photo) (William Litant/MIT photo)

With the threat of climate change on the horizon and generating more public debate than ever, an MIT Aeronautics and Astronautics research group is architecting a system to monitor climate, perform Earth science research, and forecast weather for the United States. The Earth observation system will comprise a complex network of satellites working in conjunction with aircraft, weather balloons, and other observation platforms. As government agencies like NASA and the National Oceanic and Atmospheric Administration look to the future, they will make decisions to build new satellites and invest in new technology. The MIT Space System's Architecture Group is creating the tools and methodologies to inform these decisions and create a holistic system.


There is now evidence that if governments around the world take no action to combat climate change, the consequences of the increase in anthropogenic greenhouse gas emissions are likely to harm ecosystems, human health, and the world economy. Most governments now understand that this is a real problem that requires a response. Reducing global greenhouse gas emissions, and investing in energy efficiency and renewable energy technologies can offset some of the climate change impact. Yet, mitigating and adapting to the impacts of climate change will require investments that could prove unaffordable for many nations. Therefore, it is crucial to make the right decisions; that is, the most effective decisions in terms of societal benefits and lifecycle costs.

A major factor undermining the decision-making process is the large uncertainty regarding both the economic and the scientific nature of the problem. Because of this, policy makers are reluctant to commit to action plans that could represent significant portions of their gross domestic products.

To resolve this uncertainty, scientists need long series of high temporal and spatial resolution data as inputs into their climate models. The only system capable of providing this data is a large, coordinated model that includes weather balloons, aircraft, satellites, and a ground data network for data sharing and distribution. Improved and continued space-based observations and measurements of the Earth's atmosphere, land, oceans and ecosystems are essential to this endeavor. The unique nature of space-based measurements lies in their global coverage of the Earth including the poles, the oceans, and non-populated land.


At no point in the history of the U.S. Earth science program has its value to society been clearer than now. However, under the current tight budgetary conditions, the problem of designing a space-based Earth observation program that satisfies the needs of all the Earth science communities and other stakeholders is, indeed, challenging. This is why NASA and NOAA commissioned the National Research Council to conduct the Decadal (10-year) Survey as a means to provide recommendations for the implementation of next decade's Earth observation program. In 2007, after three years of deliberation, the National Research Council published a report summarizing the conclusions reached by an ad hoc committee of experts. In addition to general guidance and high-level recommendations, the report provides a detailed baseline architecture for a program consisting of 38 instruments flown in 17 missions to be launched between 2010 and 2020.

The Decadal Survey baseline architecture was designed to satisfy the needs of all the Earth sciences disciplines under a set of assumptions. However, only three years after the NRC report's publication, many of the committee's assumptions are no longer valid. According to NASA sources and mission websites, mission cost estimates have grown, on average, by roughly a factor of two, while NASA's yearly budget has been almost halved. As a consequence, under current conditions, the baseline architecture would take almost four decades to launch. Furthermore, precursor missions that the committee assumed would be flown during the decade such as GPM, NPOESS, and OCO, have been delayed or even cancelled. It is obvious that alternative architectures need to be explored. The question we are asking is: can we do better than this baseline architecture under current assumptions?


NASA-centric map

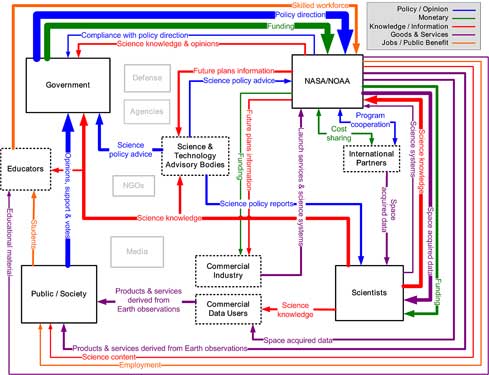

The NASA-centric stakeholder map for the Earth Science program. Boxes represent stakeholders; textures indicate importance of the stakeholder to NASA. Arrows represent assets traded by stakeholders; arrow color indicates type of asset; thickness is proportional to strength of the link.

For the last three years, we in the Space Systems Architecture Group have been developing a set of tools and methods that can help answer this question: stakeholder networks, campaign-level science traceability matrices, a mission scheduling algorithm, and an instrument packaging algorithm. These tools encompass a broad variety of disciplines including remote sensing, space systems engineering, engineering economics, project management, risk and reliability analysis, system design optimization under uncertainty, and artificial intelligence.

An outcome of a stakeholder analysis is a map in which all stakeholders — entities that put their assets at risk in the project — are represented as nodes and their relationships as arcs between these nodes. Based on the theory developed by Ed Crawley and Bruce Cameron (S.M. '07), and using data from a variety of sources including newspapers and transcripts from the hearings in the House of Representatives, Tim Sutherland (S.M. '09) created the stakeholder map for the NASA Earth Observation Program, which contains dozens of stakeholders and hundreds of flows.

Thus, stakeholder analysis provides an assessment of the relative importance of different scientific disciplines represented by their corresponding "panels" in the Decadal Survey. The campaign-level science traceability matrix takes the output of the stakeholder analysis, a set of panel weights, and traces this value back into objectives, measurements, instruments and finally missions. Hence, this tool allows a systematic comparison of the relative importance of heterogeneous instruments and missions in the Decadal Survey. Based on careful reading of the NRC report and data from the NASA Goddard Space Flight Center, Theo Seher (S.M.'09) developed this simple and powerful tool, which has since been used to generate inputs for scheduling and packaging models.

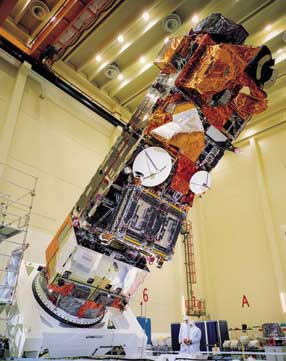

Launched in 2002, the European Space Agency's Envisat is the largest Earth observation satellite ever built. With 10 instruments and a mass of more than eight metric tons, it is expected to operate at least until 2013. This type of huge multi-instrument platform is of great use to scientists as it facilitates data cross-registration between instruments. However, multiple interferences among instruments made the development of this satellite an engineering nightmare. (NASA image)

The packaging tool takes a set of instruments as an input and explores different assignments of instruments into satellites. In other words, the tool compares architectures using small satellites carrying few instruments, with larger multi-instrument platforms. The flagship example of a large scientific observatory containing multiple instruments is the Envisat satellite. Because of scientific synergies among measurements, some of the instruments are great candidates for sharing a common satellite platform, thus achieving lifecycle cost reductions. Other instruments are less compatible for a variety of reasons such as electromagnetic, optical, mechanical, or thermal interference between instruments or very different technology maturity levels. All this is factored into this multidisciplinary tool developed by Ph.D. candidate Daniel Selva, which includes a complexity-based cost model, a schedule model based on Technology Readiness Levels, a risk model and a knowledge-based scientific model that embeds dozens of "synergy rules."

Finally, the scheduling tool orders the launches of the proposed satellites so that constraints for the estimated yearly budget allocated to NASA for Earth Science missions and earliest launch dates for each instrument are not violated. The scheduling tool is key to study the data continuity problem, since under tight budgets it will determine which measurements are guaranteed continuity and which are not. Brandon Suarez (M.S. '11) has developed a scheduling algorithm based on a multi-objective genetic algorithm that allows identification of architectures optimizing value delivery across disciplines and minimizing data gaps under different scenarios.
Tools like the ones we developed can help decision makers make the right decisions when architecting our space-based Earth observation program for the next decade, an essential component in the large system-of-systems that will provide the information that we need to design the policies that will combat global climate change.

NASA A-train

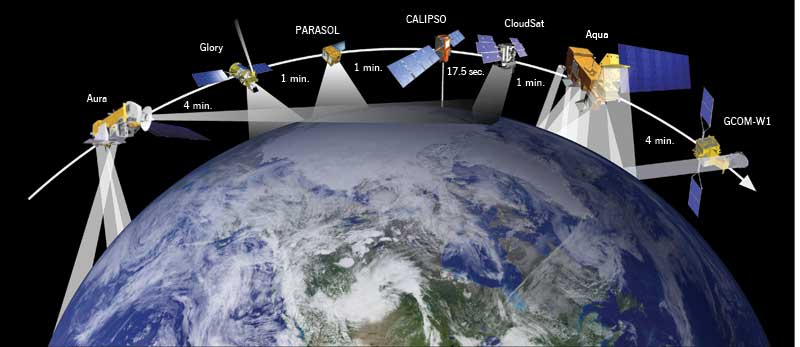

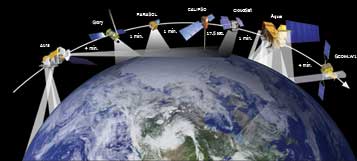

The NASA A-train. This kind of formation makes data cross-registration among instruments very easy while avoiding the engineering and programmatic issues of having many instruments on the same platform. (click to enlarge)
