Openfire Plugin Developer Guide

Introduction

Plugins enhance the functionality of Openfire. This document is a developer's guide for creating plugins.

Structure of a Plugin

Plugins live in the plugins directory of openfireHome. When a plugin is deployed as a JAR or WAR file, it is automatically expanded into a directory. The files in a plugin directory are as follows:

myplugin/
 |- plugin.xml      <- Plugin definition file
 |- readme.html     <- Optional readme file for plugin, which will be displayed to end users
 |- changelog.html  <- Optional changelog file for plugin, which will be displayed to end users
 |- icon_small.gif  <- Optional small (16x16) icon associated with the plugin (can also be a .png file)
 |- icon_large.gif  <- Optional large (32x32) icon associated with the plugin (can also be a .png file)
 |- classes/        <- Resources your plugin needs (i.e., a properties file)
 |- database/       <- Optional database schema files that your plugin needs
 |- i18n/           <- Optional i18n files to allow for internationalization of plugins.
 |- lib/            <- Libraries (JAR files) your plugin needs
 |- web             <- Resources for Admin Console integration, if any
     |- WEB-INF/
         |- web.xml           <- Generated web.xml containing compiled JSP entries
         |- web-custom.xml    <- Optional user-defined web.xml for custom servlets
     |- images/

The web directory exists for plugins that need to add content to the Openfire Admin Console. Further details are below.

The plugin.xml file specifies the main Plugin class. A sample file might look like the following:

<?xml version="1.0" encoding="UTF-8"?>
<plugin>
    <!-- Main plugin class -->
    <class>org.example.ExamplePlugin</class>

    <!-- Plugin meta-data -->
    <name>Example Plugin</name>
    <description>This is an example plugin.</description>
    <author>Jive Software</author>

    <version>1.0</version>
    <date>07/01/2006</date>
    <url>http://www.igniterealtime.org/projects/openfire/plugins.jsp</url>
    <minServerVersion>3.0.0</minServerVersion>
    <licenseType>gpl</licenseType>

    <!-- Admin console entries -->
    <adminconsole>
        <!-- More on this below -->
    </adminconsole>
</plugin>

The meta-data fields that can be set in the plugin.xml file:

• name -- the name of the plugin.
• description -- the description of the plugin.
• author -- the author of the plugin.
• version -- the version of the plugin.
• date -- the date the plugin was released. The date must be in the form MM/dd/yyyy, such as 07/01/2006.
• url -- a URL where additional information about the plugin is available.
• minServerVersion -- the minimum version of Openfire required to run the plugin (supported by Openfire 2.1.2 and later). If the server version is less than the required value, the plugin will not be started.
• databaseKey -- if the plugin requires it's own database tables, the databaseKey element should be set with a schema key name (often the same name as the plugin). Database schema files for each supported database should then be placed in the database directory of the plugin. For example, given the key "foo", schema files would be called "foo_mysql.sql", "foo_oracle.sql", etc. The scripts should make an entry into the jiveVersion table using the key so that schema version information can be tracked, e.g.:

  INSERT INTO jiveVersion (name, version) VALUES ('foo', 0);


• databaseVersion -- the database schema version (if a database schema is defined). New plugins with a database schema should start at version 0. If future versions of the plugin require updates to the schema, those updates can be defined by creating sub-directories in the database/upgrade directory for each version number. For example, the directories database/upgrade/1 and database/upgrade/2 would contain scripts such as "foo_mysql.sql" and "foo_oracle.sql" that contain the relevant database changes for each version. Each script should update version information in the jiveVersion table, e.g.:

  UPDATE jiveVersion set version=1 where name='foo';


• parentPlugin -- the name of the parent plugin (given as "foo" for the "foo.jar" plugin). When a plugin has a parent plugin, the parent plugin's class loader will be used instead of creating a new class loader. This lets plugins work together more closely. A child plugin will not function without its parent present.
• licenseType -- indicates the license agreement that the plugin is governed by. Valid values are:
  • "commercial": the plugin is released under a commercial license agreement.
  • "gpl": the plugin is released under the GNU Public License (GPL).
  • "apache": the plugin is released under the Apache license.
  • "internal": the plugin is for internal use at an organization only and will not be re-distributed.
  • "other": the plugin is released under a license agrement that doesn't fall into one of the other categories. The license agreement should be details in the plugin's Readme.
  If the license type is not set, it is assumed to be other.

• readme.html -- Optional readme file for plugin, which will be displayed to end users.
• changelog.html -- Optional changelog file for plugin, which will be displayed to end users.
• icon_small.png -- Optional small (16x16) icon associated with the plugin. It can also be a .gif file.
• icon_large.png -- Optional large (32x32) icon associated with the plugin. It can also be a .gif file.

Your plugin class must be implement the Plugin interface from the Openfire API as well as have a default (no argument) contructor. The Plugin interface has methods for initializing and destroying the plugin.

package org.example;

import org.jivesoftware.openfire.container.Plugin;
import org.jivesoftware.openfire.container.PluginManager;

import java.io.File;

/**
 * A sample plugin for Openfire.
 */
public class ExamplePlugin implements Plugin {

    public void initializePlugin(PluginManager manager, File pluginDirectory) {
        // Your code goes here

    }

    public void destroyPlugin() {
        // Your code goes here
    }
}

Modifying the Admin Console

Plugins can add tabs, sections, and pages to the admin console. There are a several steps to accomplishing this:

• An <adminconsole/> section must be added to the plugin.xml file.
• JSP files must be compiled and put into the classpath of the plugin. A web.xml file containing the compiled JSP servlet entries must be put into the web/ directory of the plugin. Note: the Openfire build script can assist with compiling JSPs and creating the web.xml. This is detailed below.
• Any images required by your JSP pages must live in web/images/ directory. Only GIF and PNG images are supported.

The <adminconsole /> section of plugin.xml defines additional tabs, sections and entries in the Admin Console framework. A sample plugin.xml file might look like the following:

<?xml version="1.0" encoding="UTF-8"?>
<plugin>
    <!-- Main plugin class -->
    <class>org.example.ExamplePlugin</class>

    <!-- Admin console entries -->

    <adminconsole>
        <tab id="mytab" name="Example" url="my-plugin-admin.jsp" description="Click to manage...">
            <sidebar id="mysidebar" name="My Plugin">
               <item id="my-plugin" name="My Plugin Admin"
                   url="my-plugin-admin.jsp"
                   description="Click to administer settings for my plugin" />
            </sidebar>
        </tab>

    </adminconsole>
</plugin>

In this example, we've defined a new tab "Example", a sidebar section "My Plugin" and a page "My Plugin Admin". We've registered my-plugin-admin.jsp as the page. You can override existing tabs, sections, and items by using the existing id attribute values in your own <adminconsole> defintion.

Admin Console Best Practices

• Integrate into existing tabs and sidebar sections whenever possible instead of creating your own. Only create new tabs for very significant new functionality.
• Don't use the word "plugin" in names of tabs, sidebars and items. For example, instead of having an item called "Gateway Plugin", it could be called "Gateway Settings".
• Try to match the UI of the existing admin console in your custom plugin pages.
• There is no need to create an admin console entry to show plugin meta-data. Instead, let Openfire inform the user about which plugins are installed and provide plugin management.

Writing Pages for the Admin Console

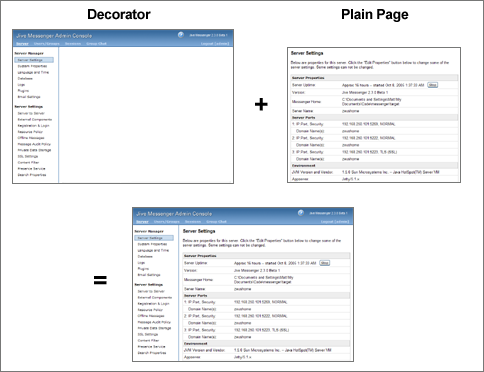

Openfire uses the Sitemesh framework to decorate pages in the admin console. A globally-defined decorator is applied to each page in order to render the final output, as in the following diagram:

Creating pages that work with Sitemesh is easy. Simply create valid HTML pages and then use meta tags to send instructions to Sitemesh. When rendering the output, Sitemesh will use the instructions you provide to render the decorator along with any content in the body of your HTML page. The following meta tags can be used:

• pageID -- the ID of the page, which must match an entry in the admin console XML described above. Either a pageID or subPageID must be specified.
• subPageID -- the ID of the sub-page, which must match an entry in the admin console XML described above. Sub-pages are used for administrative actions related to a parent page ID. For example, editing or deleting a particular group. Either a pageID or subPageID must be specified.
• extraParams (Optional) -- extra parameters that should be passed in to the page. For example, on a page to delete a group it might be the ID of the group. Parameters must be URL encoded.
• decorator (Optional) -- overrides the Sitemesh decorator to use for the page. A decorator named none is available that will simply render the page without a decorator.

   <html>
   <head>
       <title>My Plugin Page</title>

       <meta name="pageID" content="myPluginPage"/>
   </head>
   <body>
        Body here!
   </body>
   </html>

Using i18n in your Plugins

It's possible to translate your plugin into multiple languages (i18n). To do so, use the following procedure:

• Create a "i18n" directory in the root directory of your plugin.
• Add each resource file using the %[plugin_name]%_i18n "_" language ".properties" naming convention, where [plugin_name] is the name of the plugin directory. See the translator guide for more information about resource bundles.
• Convert Strings in your JSP files to refer to the internationalized keys. For example:

          <%@ taglib uri="http://java.sun.com/jstl/core_rt" prefix="c" %>
          <%@ taglib uri="http://java.sun.com/jstl/fmt_rt" prefix="fmt" %>
          ...
          <fmt:message key="some.key.name" />


• Internationalize Strings in your Java files using the LocaleUtils class:
  org.jivesoftware.util.LocaleUtils.getLocalizedString("some.key.name", "[plugin_name]");
• Internationalize Strings in your plugin.xml file using the ${var} format:
  <sidebar id="gateways" name="${plugin.sidebar.name}" description="${plugin.sidebar.description}">
  <description>${plugin.description}</description>

Using the Openfire Build Script

The Openfire build script will help you build and develop plugins. It looks for plugin development directories in the following format:

myplugin/
 |- plugin.xml      <- Plugin definition file
 |- readme.html     <- Optional readme file for plugin
 |- changelog.html  <- Optional changelog file for plugin
 |- icon_small.gif  <- Optional small (16x16) icon associated with the plugin (can also be a .png file)
 |- icon_large.gif  <- Optional large (32x32) icon associated with the plugin (can also be a .png file)
 |- classes/        <- Resources your plugin needs (i.e., a properties file)
 |- lib/            <- Libraries your plugin needs
 |- src/
     |- database    <- Optional database scripts for your plugin
     |- java        <- Java source code for your plugin
     |   |- com
     |       |- mycompany
     |           |- *.java
     |- web
         |- *.jsp      <- JSPs your plugin uses for the admin console
         |- images/    <- Any images your JSP pages need (optional)
         |- WEB-INF
             |- web.xml    <- Optional file where custom servlets can be registered

The build script will compile source files and JSPs and create a valid plugin structure and JAR file. Put your plugin directories in the src/plugins directory of the source distribution and then use ant plugins to build your plugins.

Any JAR files your plugin needs during compilation should be put into the lib directory. These JAR files will also be copied into the plugin's generated lib directory as part of the build process.

If you create a src/web/WEB-INF/web.xml file, any servlets registered there will be initialized when the plugin starts up. Only servlet registrations and servlet mappings will be honored from the web.xml file. Note: this feature is implemented by merging your custom web.xml file into the web.xml file generated by the JSP compilation process.

Implementing Your Plugin

Plugins have full access to the Openfire API. This provides a tremendous amount of flexibility for what plugins can accomplish. However, there are several integration points that are the most common:

1. Register a plugin as a Component. Components receive all packets addressed to a particular sub-domain. For example, test_component.example.com. So, a packet sent to joe@test_component.example.com would be delivered to the component. Note that the sub-domains defined as components are unrelated to DNS entries for sub-domains. All XMPP routing at the socket level is done using the primary server domain (example.com in the example above); sub-domains are only used for routing within the XMPP server.
2. Register a plugin as an IQHandler. IQ handlers respond to IQ packets with a particular element name and namespace. The following code snippet demonstrates how to register an IQHandler:


     IQHandler myHandler = new MyIQHander();
     IQRouter iqRouter = XMPPServer.getInstance().getIQRouter();
     iqRouter.addHandler(myHandler);


3. Register a plugin as a PacketInterceptor to receive all packets being sent through the system and optionally reject them. For example, an interceptor could reject all messages that contained profanity or flag them for review by an administrator.
4. You can store persistent plugin settings as Openfire properties using the JiveGlobals.getProperty(String) and JiveGlobals.setProperty(String, String) methods. Make your plugin a property listener to listen for changes to its properties by implementing the org.jivesoftware.util.PropertyEventListener method. You can register your plugin as a listener using the PropertyEventDispatcher.addListener(PropertyEventListener) method. Be sure to unregister your plugin as a listener in your plugin's destroyPlugin() method.

Plugin FAQ

No, all plugins must be deployed as JAR or WAR files. When a JAR or WAR is not present for the plugin, Openfire assumes that the file has been deleted and that the users wants to destroy the plugin, so it also deletes the directory.

Because Openfire is released under the Open Source GPL license, any plugins developed must also be released under the GPL or a compatible Open Source license if you distribute the plugins outside your organization. It is a violation of the license agreement to create plugins for distribution that are not Open Source. Please visit Jive Software if you need different licensing terms for Openfire, including the right to create commercial plugins.
