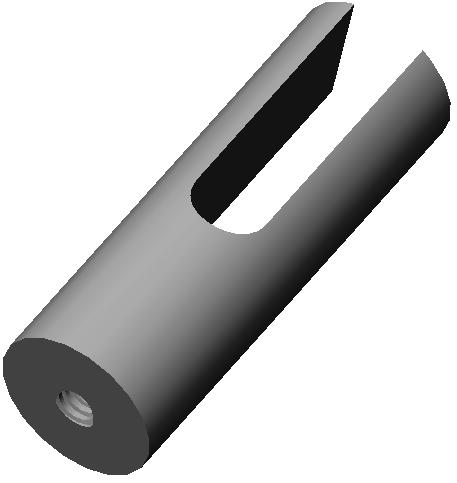

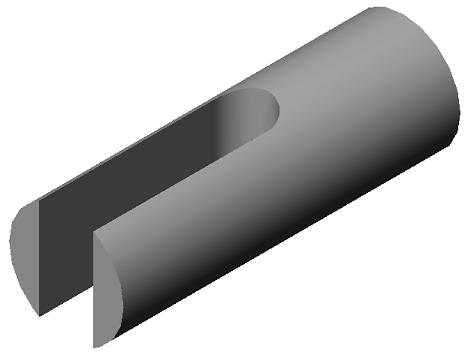

Isometric View The view of the tuning fork here shows most of the important elements, except for the threaded hole (1/4-20) through the middle which can be used to insert a handle. The piece has a diameter of 0.85" and is 2.5" long overall. The shaft between the two prongs is 1.5" deep and 0.375" in diameter. |
|
|

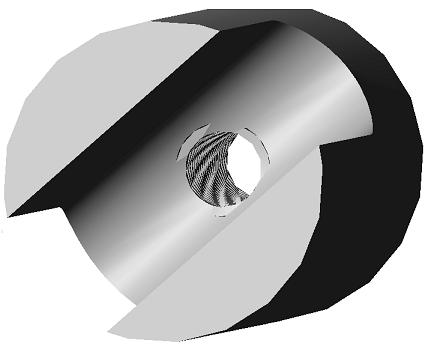

View from below Here the threads can be seen in relation to the top of the tuning fork. All rendering here was done in Solidworks 2001. To see an animated guide to this tuning fork (1.88 MB, .avi), click here. |
|
|
Updates? I haven't gotten a chance to figure out ANSYS, but hope to add the fundamental mode and resonant frequency Real Soon Now ™. Failing finding ANSYS, 8.01 says the resonant frequency should be 1300 Hz. (Freq=v/4L, where v=331 m/s and L=2.5 in). Tone matching with a computer gave about 1166 Hz, a 10% error. |
