Ice553: 100:0 by vol OK#1:ice

Conditions:
P = 60 MPa, T = 223 K, s = 30 MPa step (1)

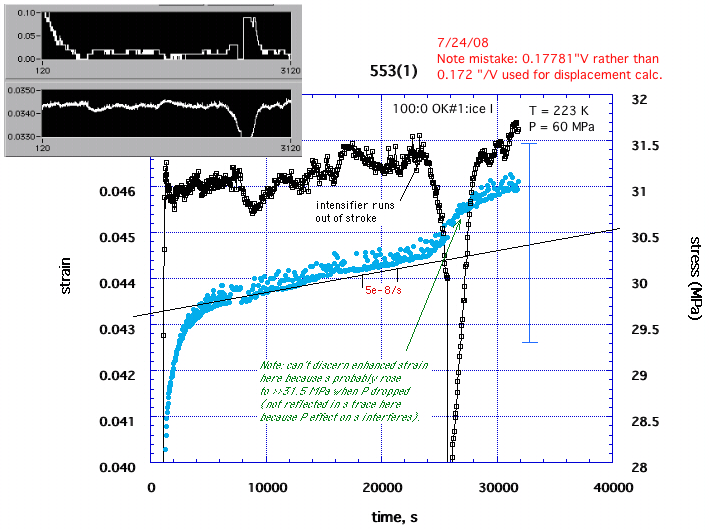

run summary (one step only)

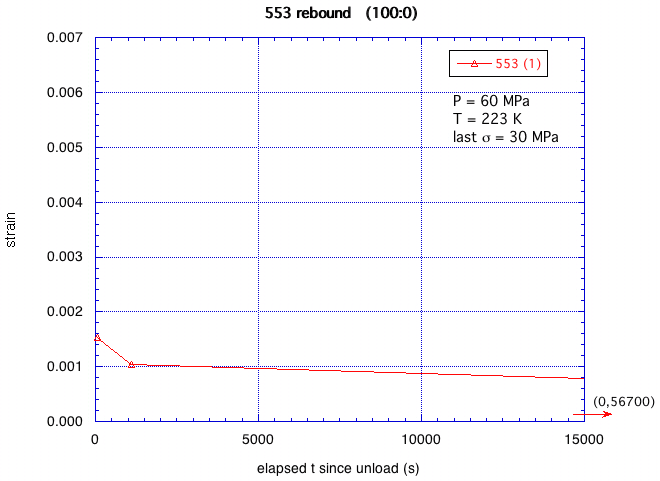

rebound

micrograph

(not yet)

other resources: run log

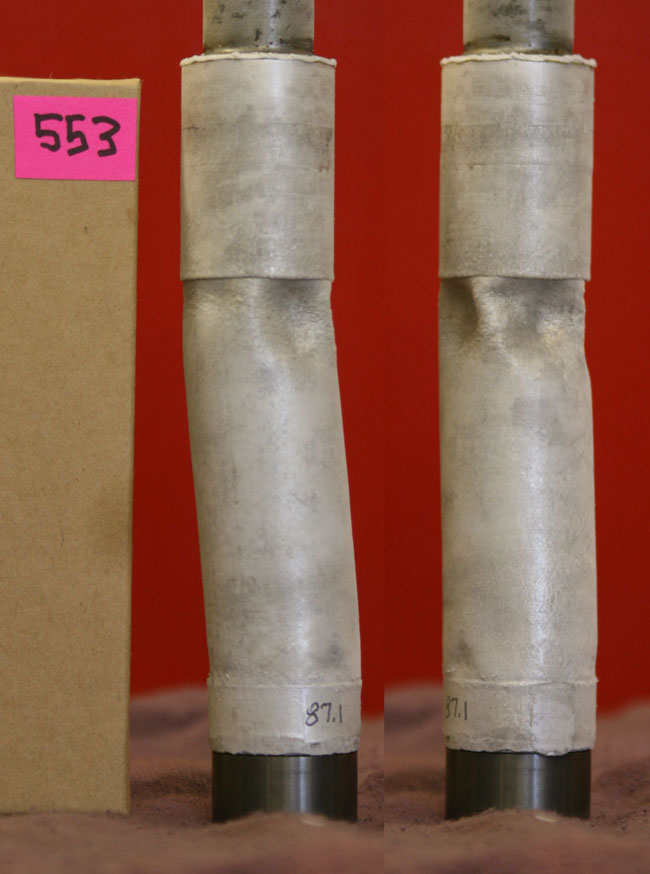

Poor operator judgement led to inadvertent P = 0 compaction inside the jacket--almost lost sample during pressurization, one sees after the fact.

But run went ok. edot turned a very sharp corner, although you might not perceive that from plot. Wait til I put it in the compilation plot.
