| Ice611: 3 x P-drop fine-grained ice |
| Back to Ice609 | Forward to Ice613 |
| P = 100 MPa, T = 210 K, s = 13 mV | step (1) |
| P = 100 MPa, T = 210 K, s = 18 mV | step (2) |
| P = 100 MPa, T = 200 K, s = 23 mV | step (3) |
| P = 100 MPa, T = 200 K, s = 23 mV | step (4) |
| P = 100 MPa, T = 200 K, s = 29 mV | step (5) |
Legend: Upper graph of each pair is motor speed V (proportional to edot); lower graph is load (in volts). Translate motor V to edot thus: for 100:1 gearing, V0.05 ≈ 3e-8/s; for 10:1 gearing, V0.05≈3e-7/s. Load to stress translation for ice601 is 0.206 MPa/mV, with a few mV zero offset. Horizontal scale is time. 5000≈14 hrs. |
||
.png) |

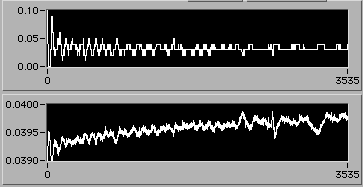

e=0.160 | 0108 hrs 7/26. Start of step (5) |
.png) |

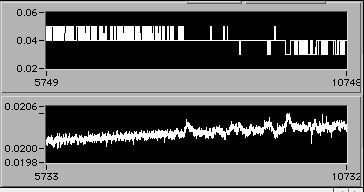

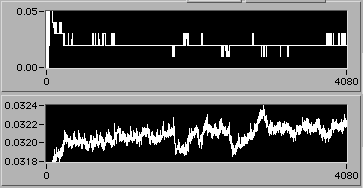

e=0.149 | 1246 hrs. End of step (4). |
.png) |
e=0.144 | 0558 hrs 7/25. Start of step (4). |
.png) |

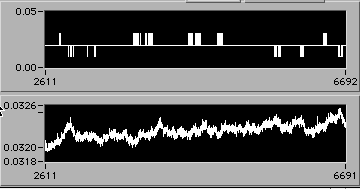

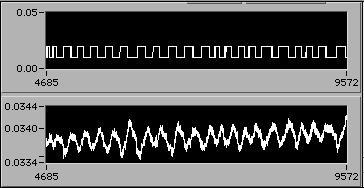

e=0.137 | 1633 hrs 7/24. Step (3) end. |
.png) |

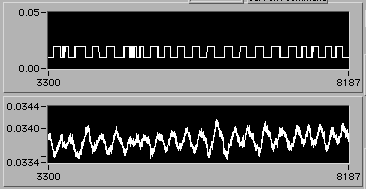

e=0.135 | 1300 hrs 7/24. Step (3) continues. |
.png) |

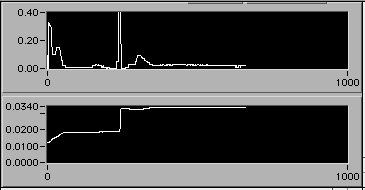

e=0.129 | 0052 hrs 7/24. Start of step (3), finer vertical scales. Note how promptly stress rises to the control point--shows great operator skill. Note also how little tran |
.png) |
Start of step (3), coarse vertical scales. | |
.png) |
e=0.123 | 2037 hrs 7/22. Step (2) continues. |
.png) |

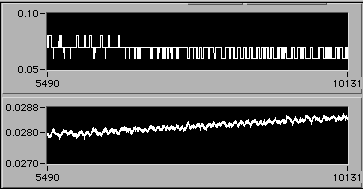

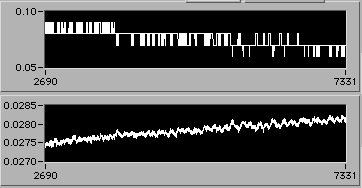

e=0.107 | 1313 hrs 7/22. Step (2) continues. |
.png) |

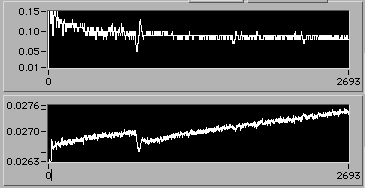

e=0.078 | 0052 hrs 7/22. Start step (2) |
.png) |

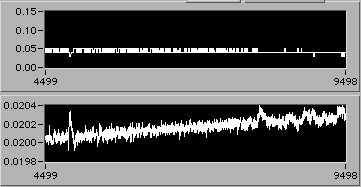

e=0.059 | 1703 hrs 7/21. End step (1) |
.png) |

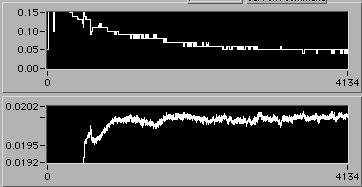

e=0.052 | 1347 hrs 7/21. Continue step (1). |
.png) |

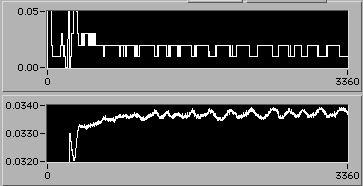

e=0.033 | 2331 hrs 7/20. Start of step (1) |
