Ice638: 95:5 by volume ice I:MPCH

Cold press at 190 K to P≥100 MPa
T = 190 K, P = 50 MPa, s = 15 mV step (1)
T = 190 K, P = 50 MPa, s = 12 mV step (2)
T = 190 K, P = 50 MPa, s = 9 mV step (3)
T = 200 K, P = 50 MPa, s = 3 mV step (4)
T = 200 K, P = 50 MPa, s = 6 mV step (5)
T = 200 K, P = 50 MPa, s = 9 mV step (6)
T = 200 K, P = 50 MPa, s = 7.5 mV step (7)
T = 200 K, P = 50 MPa, s = 12 mV step (8)

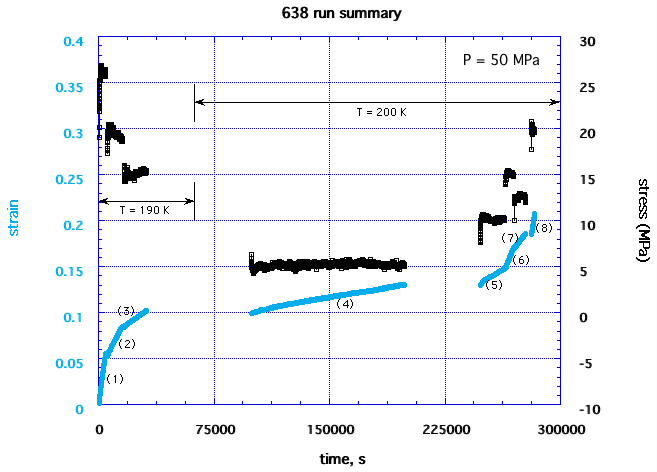

run summary

micrographs

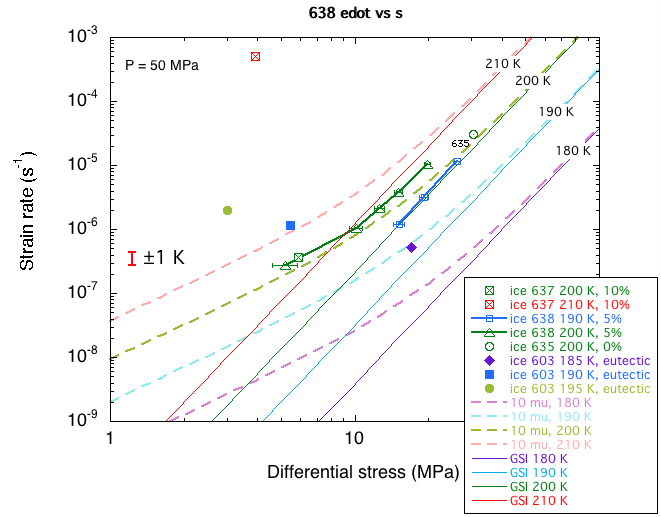

master plot, MPCH runs 603-639
after compaction

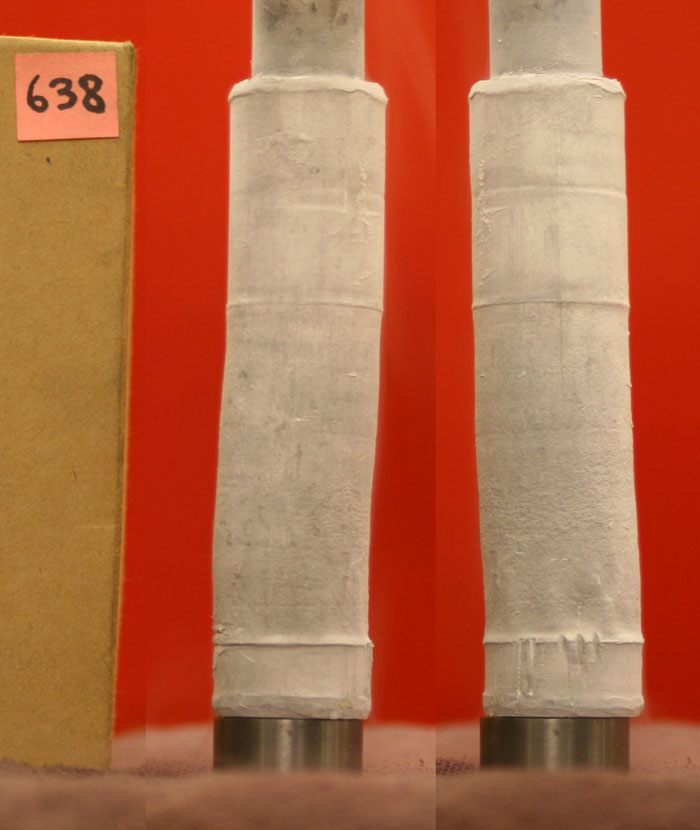

after deformation (2 views)

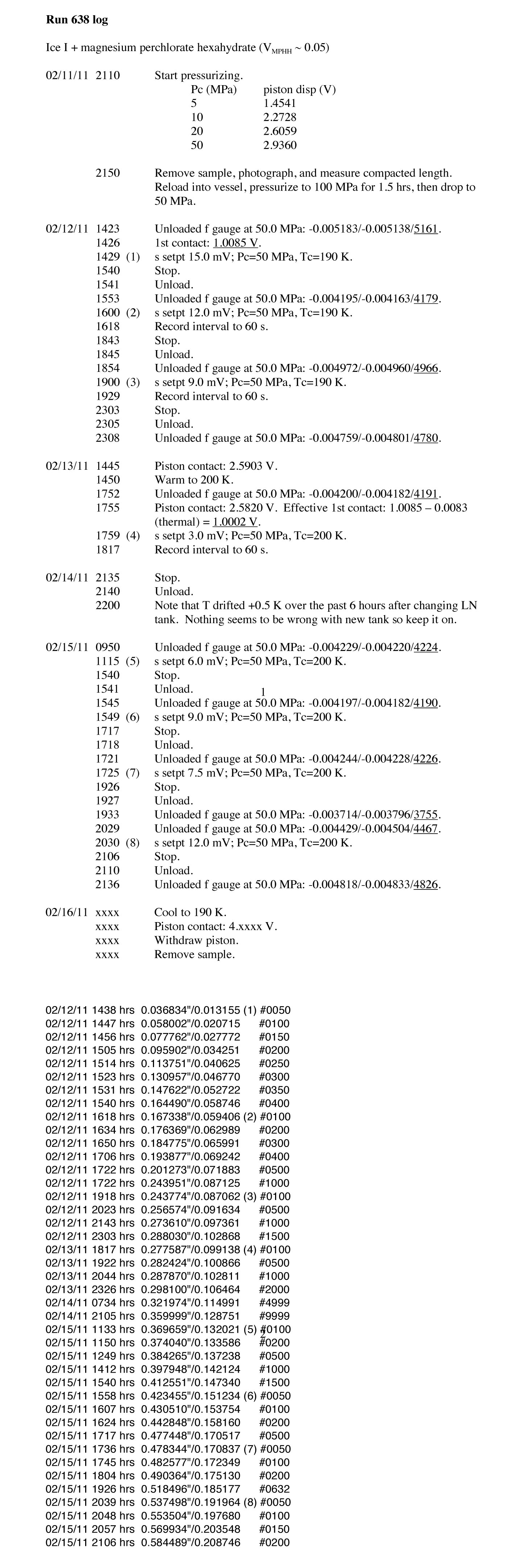

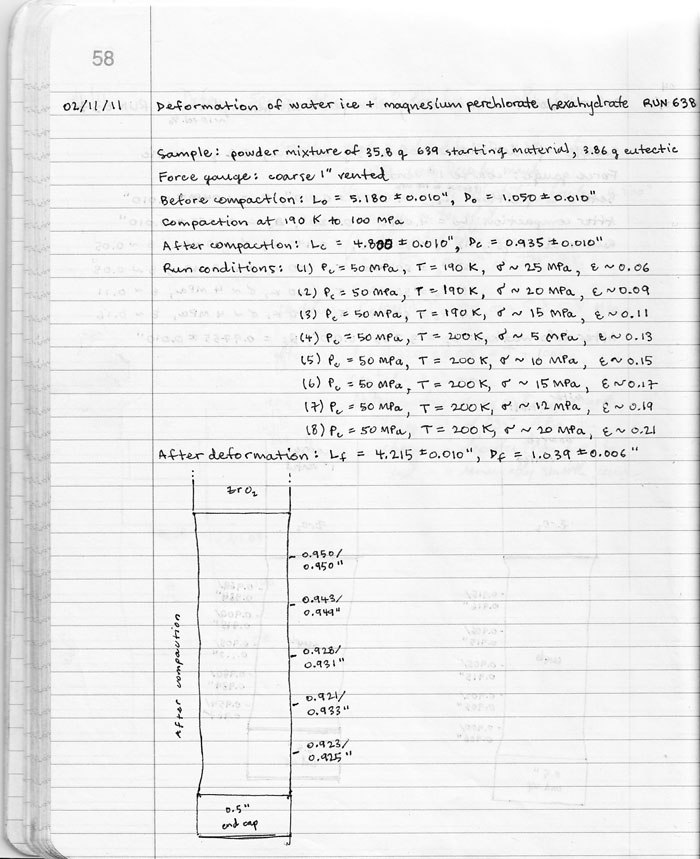

other resources: run log, live updates (archived), lab book page

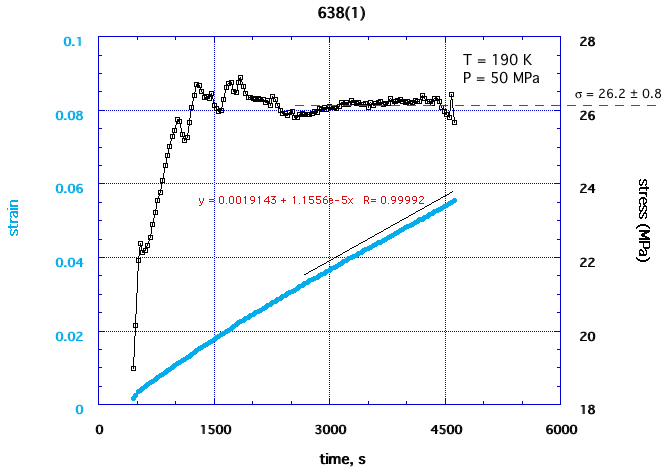

step (1)

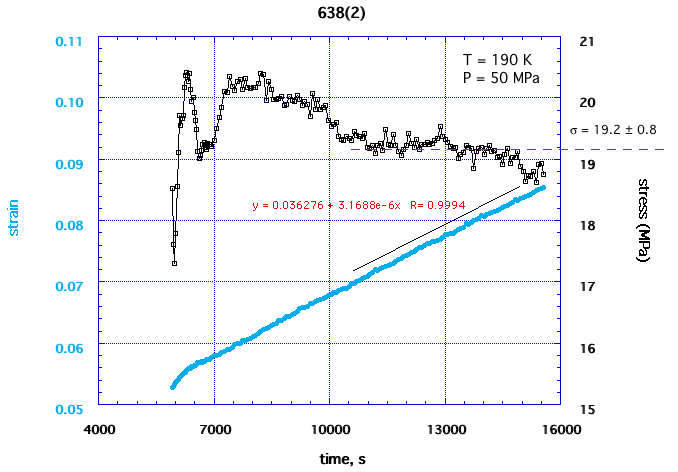

step (2)

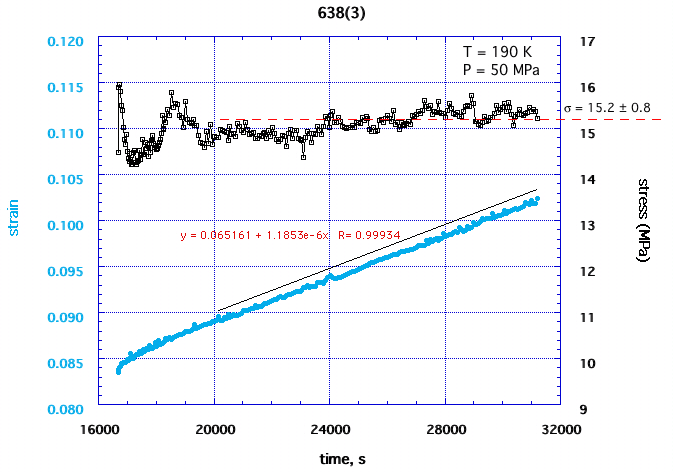

step (3)

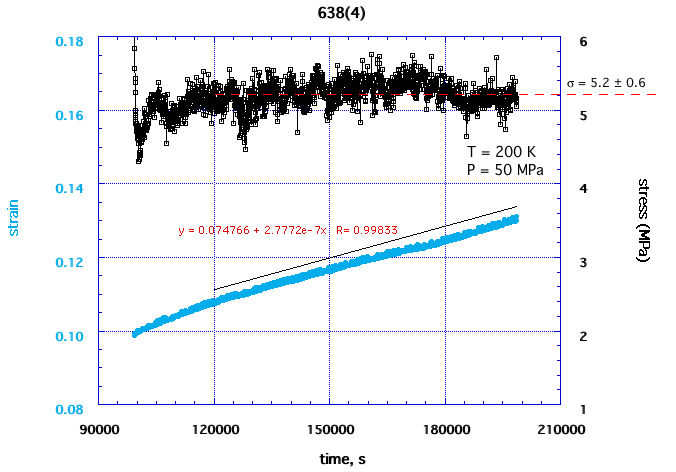

step (4)

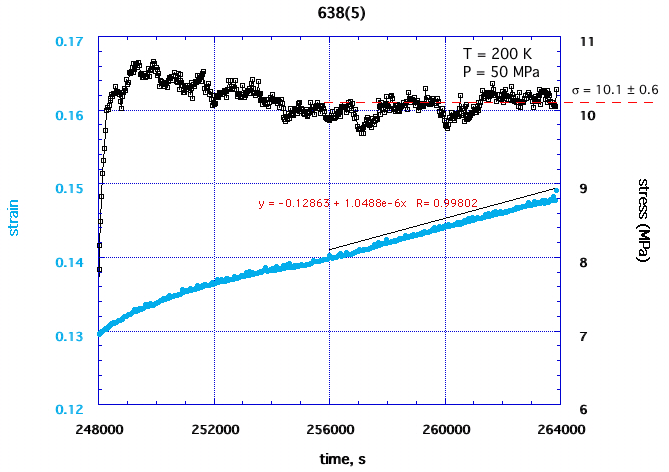

step (5)

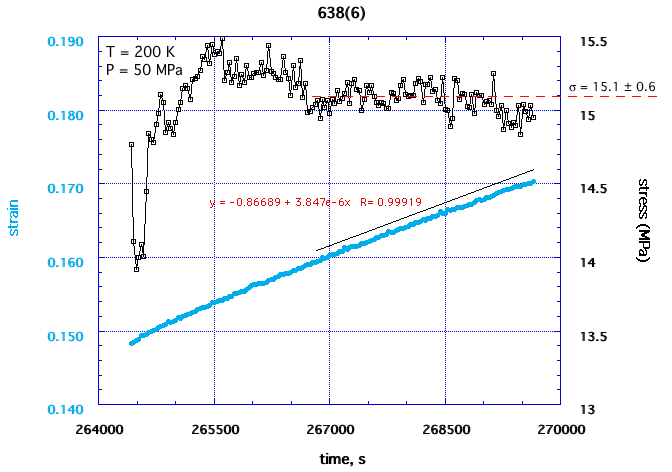

step (6)

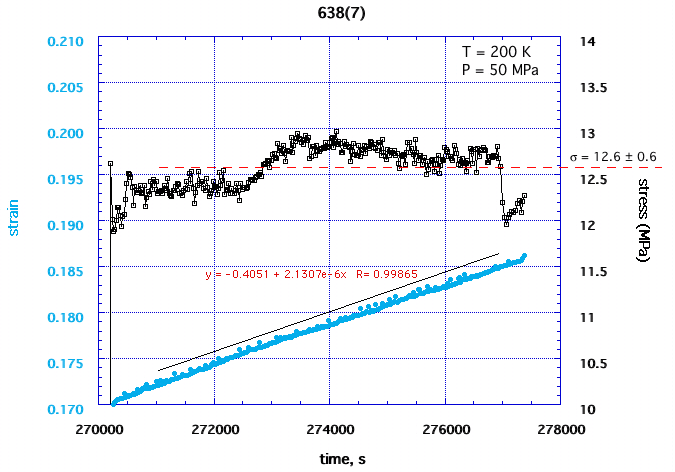

step (7)

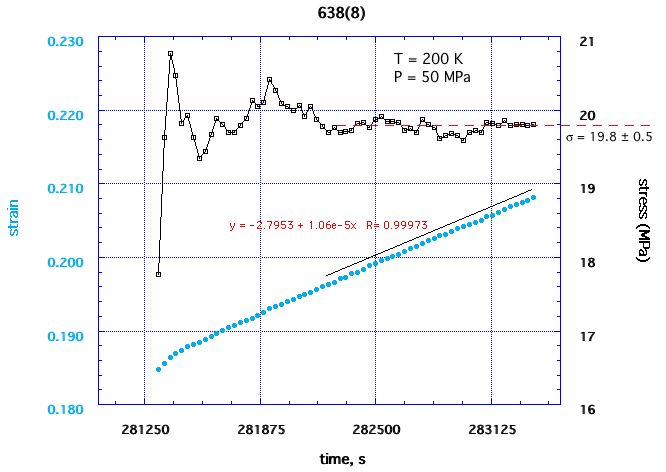

step (8)
