micrographs
(not yet)

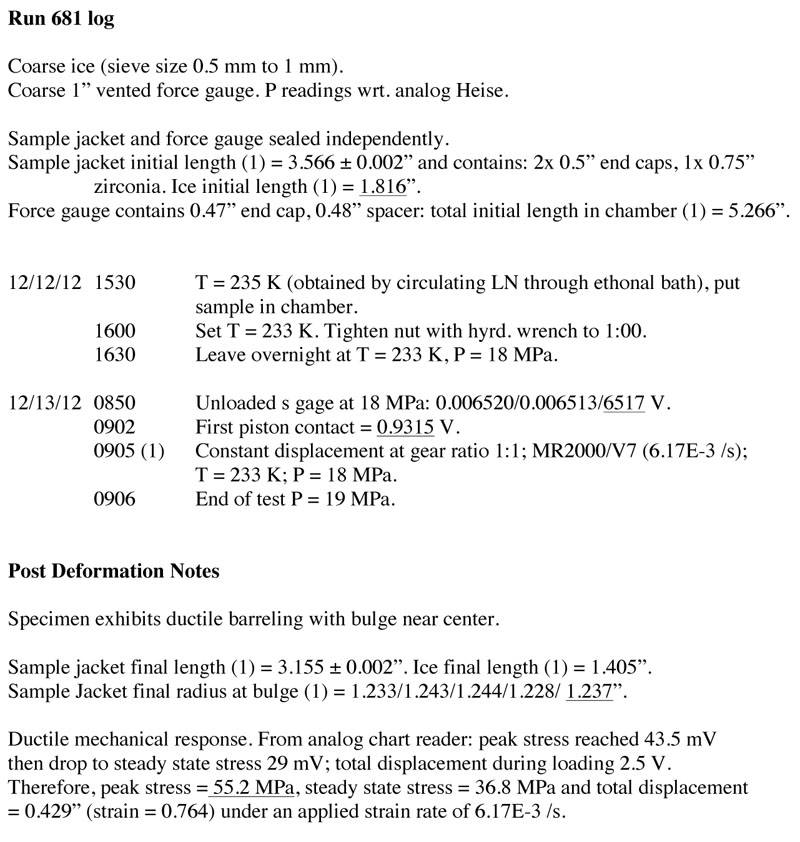

other resources: run log
Categories |
| Prev in faulting series (680) | Next in faulting series (686) |

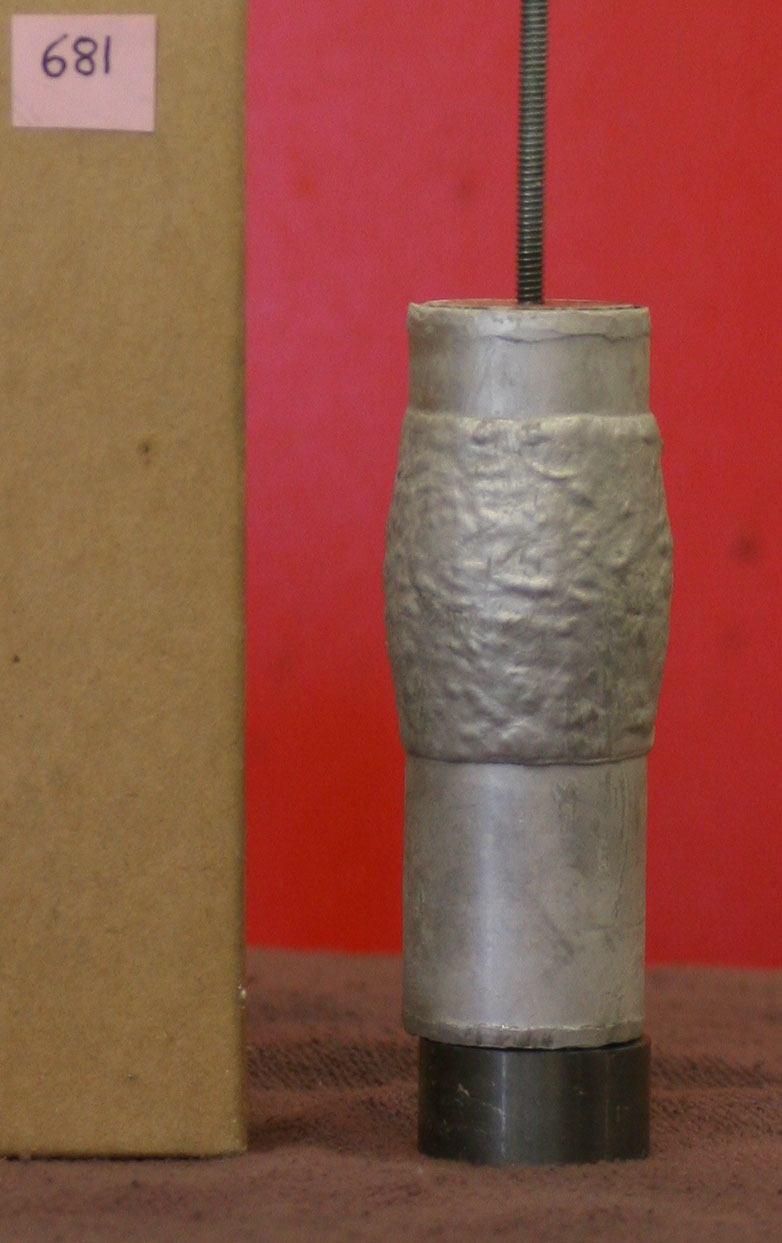

Ice681: coarse-grained ice I (sieve size 0.5 - 1 mm) ductile faulting
| T = 233 K, P = 18 MPa, 1:1 gearing, udot=MR2000/V7 | edot = 6.17e-3/s; s max= 55.2 MPa; s ss= 36.8 MPa; total e = 0.236 |
|
|
micrographs (not yet) |
other resources: run log |
||
