Ice695: coarse-grained ice I (sieve size 0.5 - 1 mm)

T = 180 K, P = 50 MPa, 1:1 gearing, udot=MR2000/V0.8 edot = 5.76e-4/s; s max= 105.4 MPa

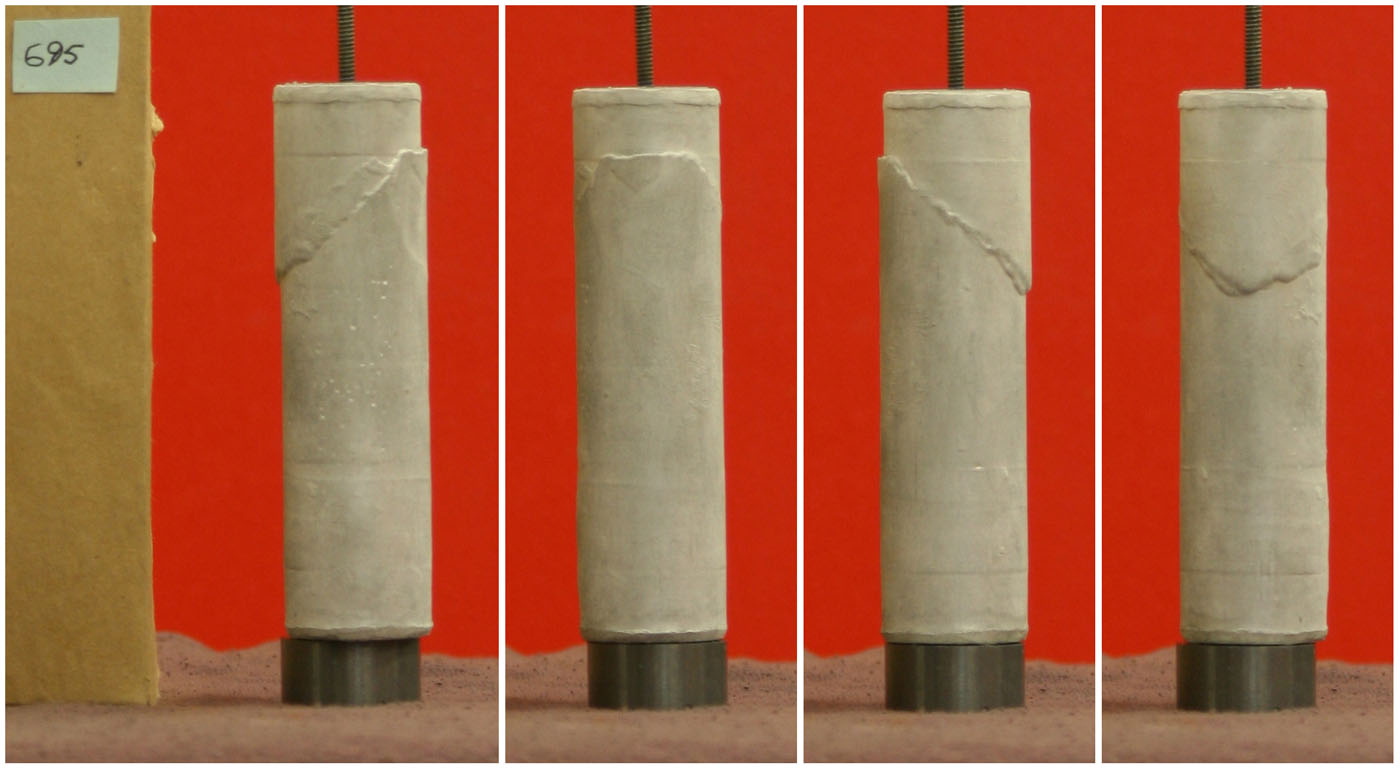

after faulting



micrographs

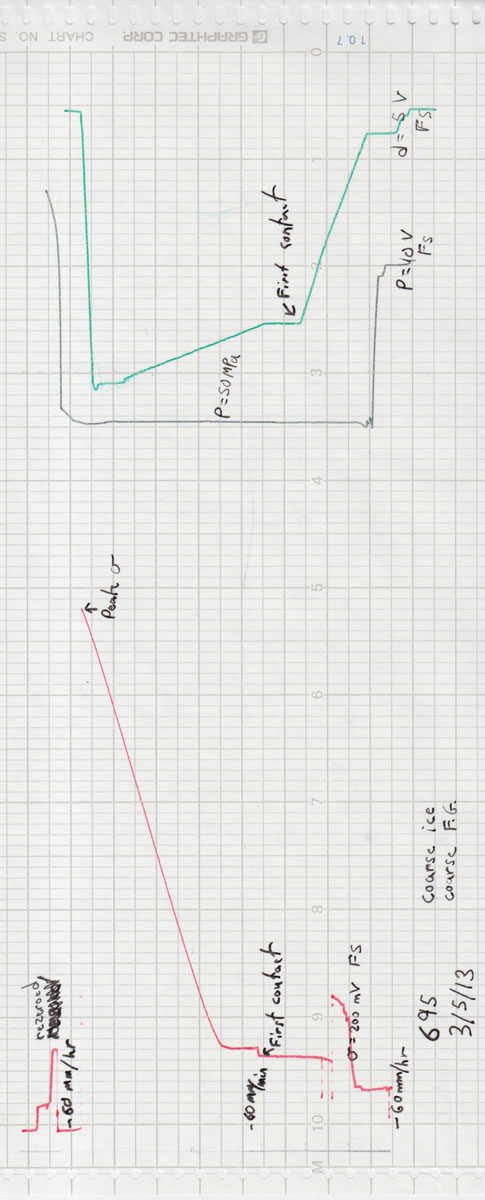

chart record

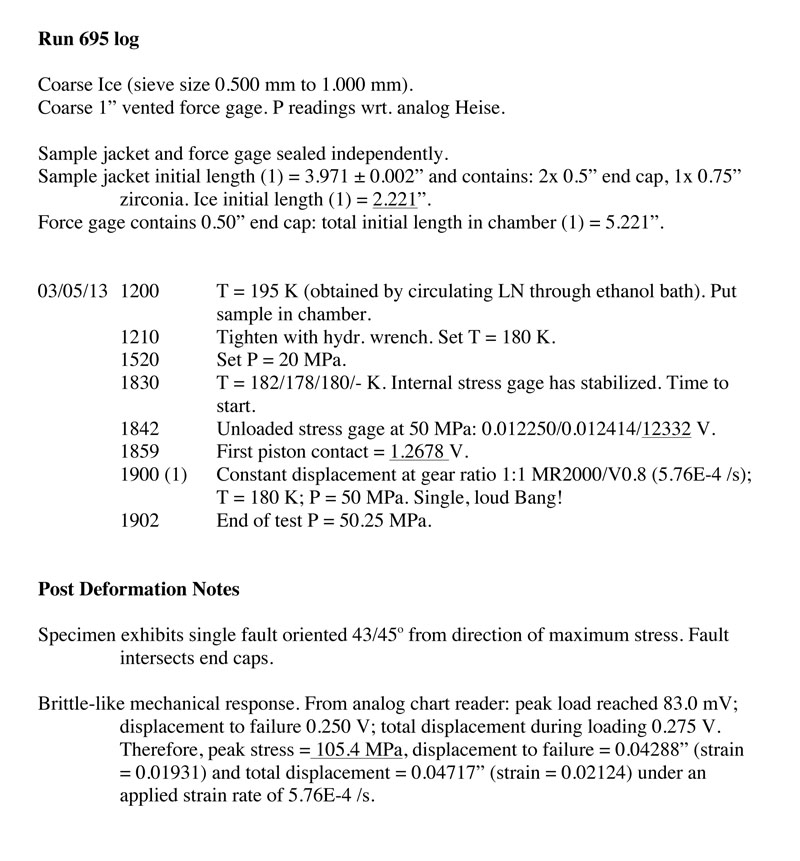

run log
