Ice697: coarse-grained ice I (sieve size 0.5 - 1 mm)

T = 180 K, P = 20 MPa, 1:1 gearing, udot=MR2000/V0.8 edot = 5.70e-4/s; s max= 99.1 MPa

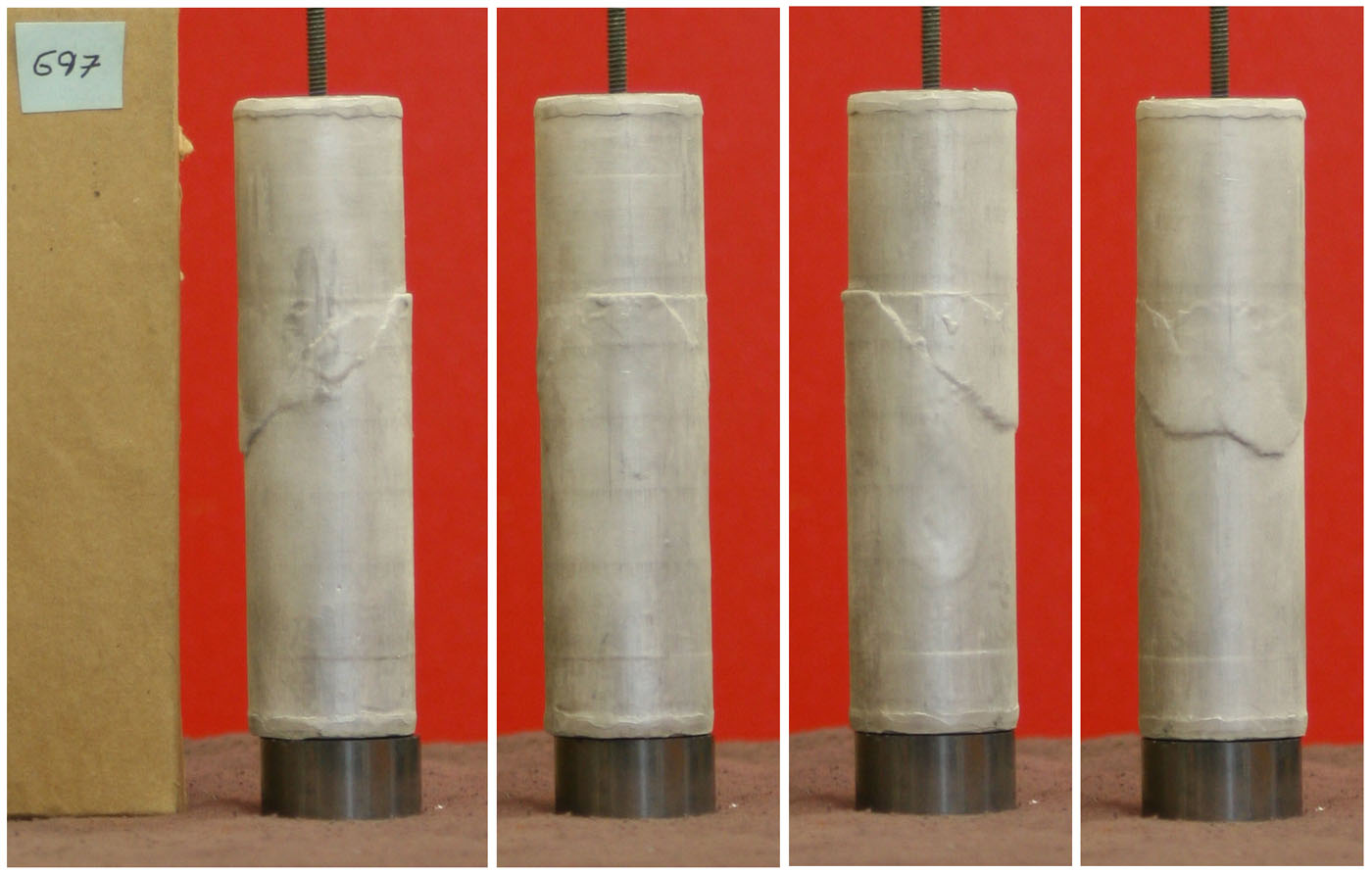

after faulting

micrographs

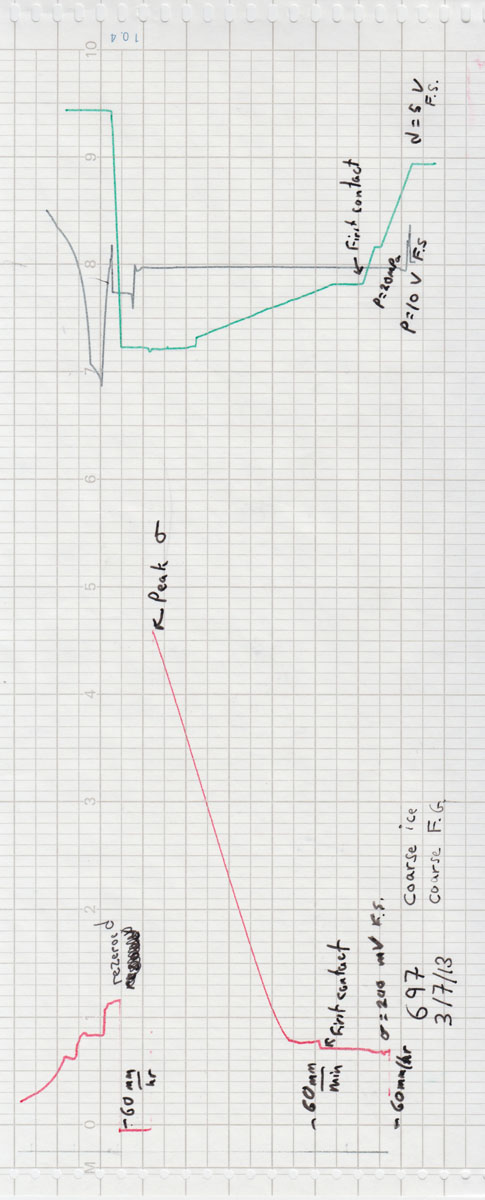

chart record

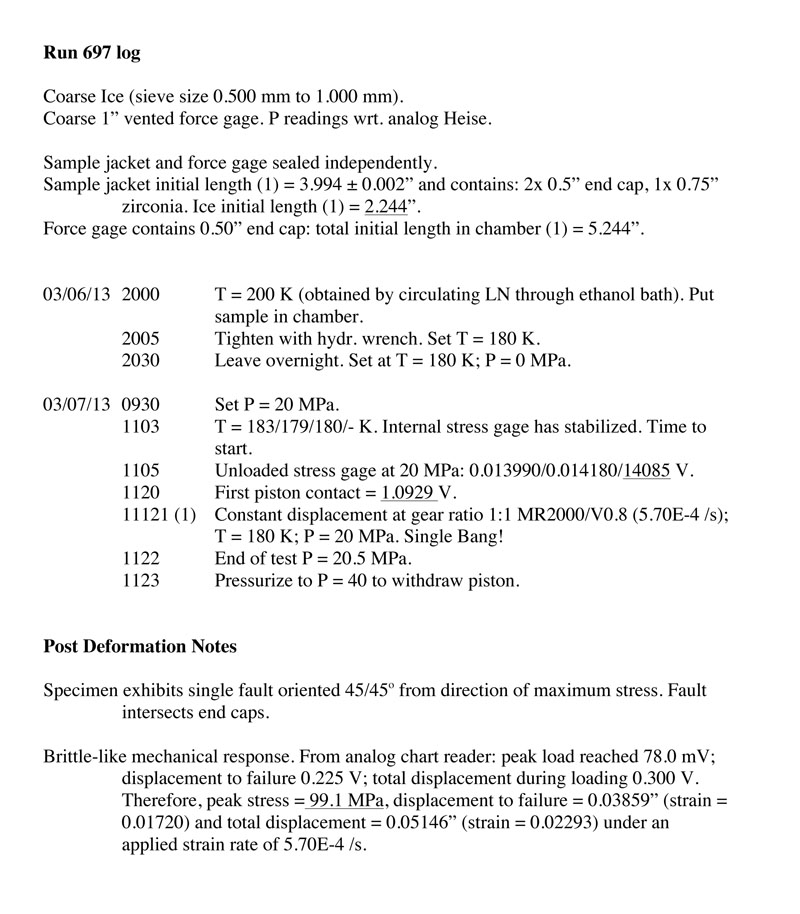

run log
