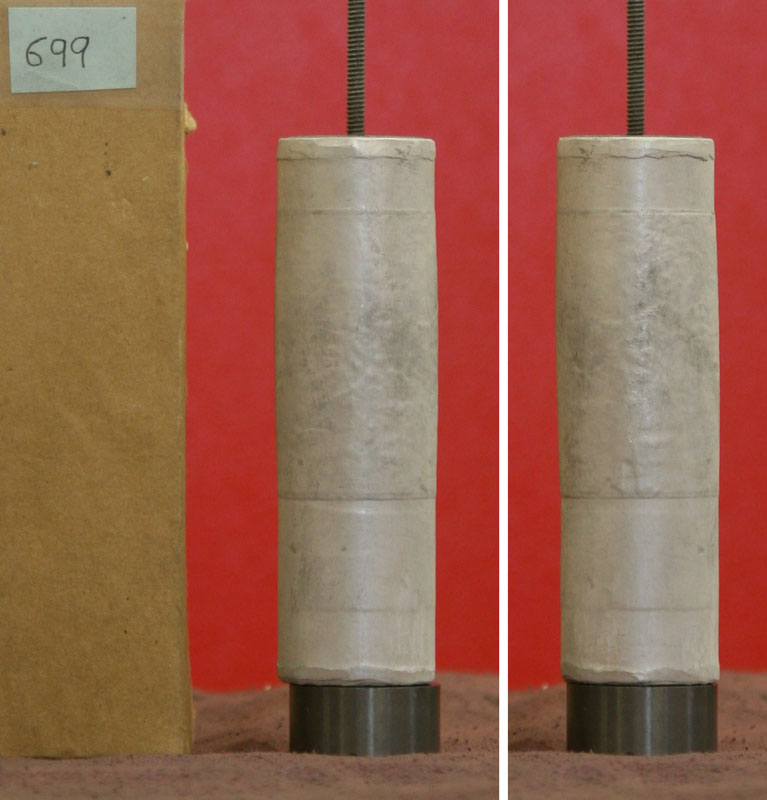

after deformation 5.thb.jpg)
micrographs
Categories |
| Prev in faulting series (698) | Next in faulting series (700) |
Ice699: coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 100 MPa, 1:1 gearing, udot=MR2000/V0.7 | edot = 5.72e-4/s; s max= 112.4 MPa; s steady state = 97.2 MPa; total e = 0.071 |
|
|

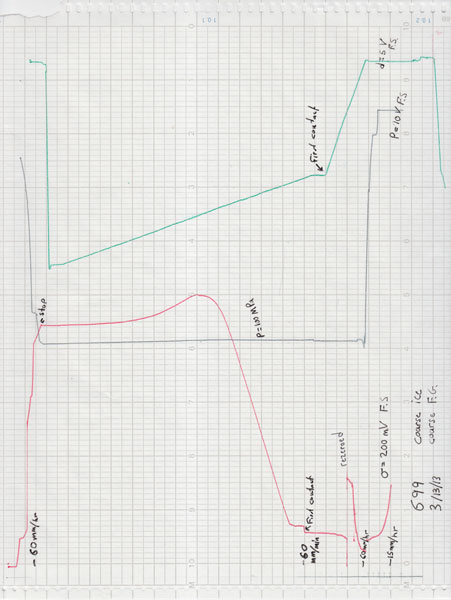

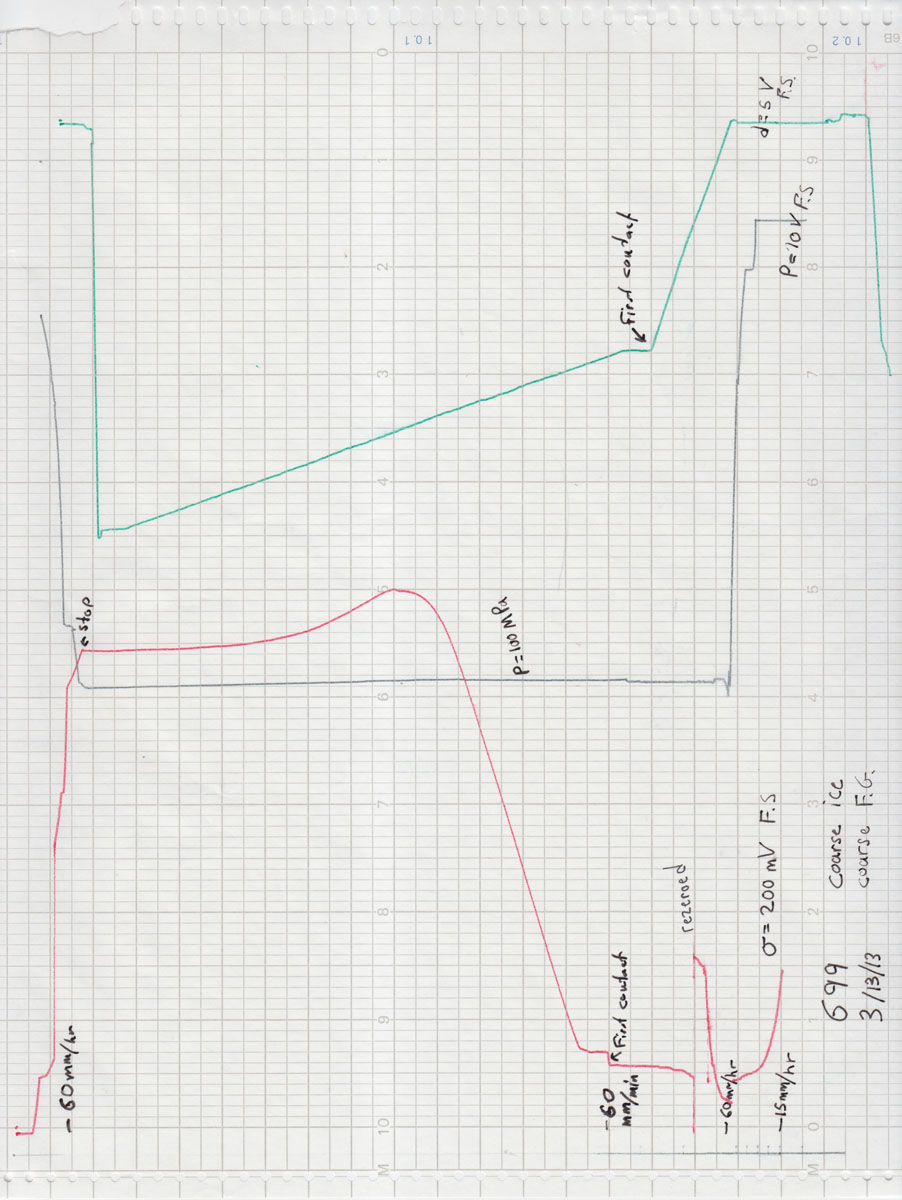

chart record

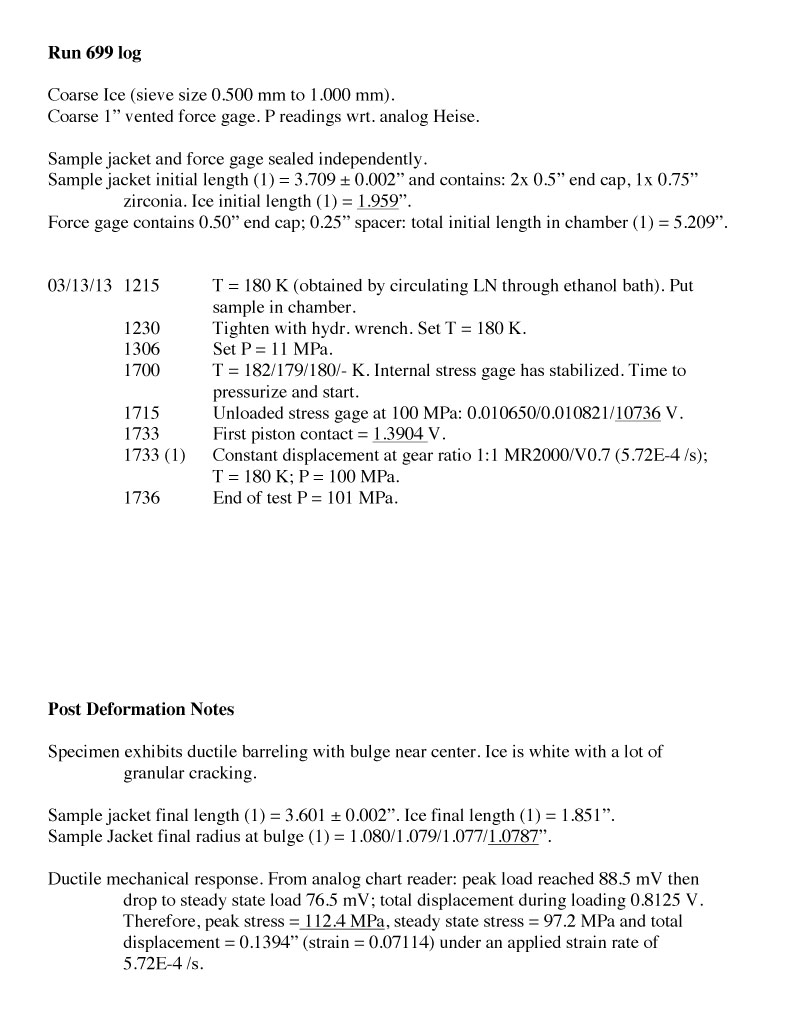

run log
