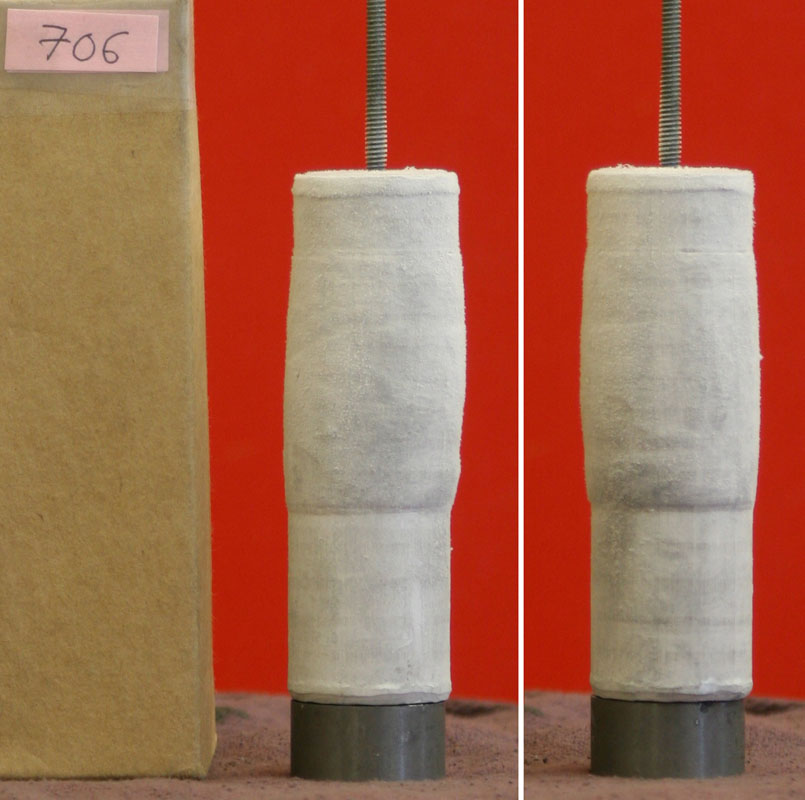

after
(not yet)
micrographs
Categories |
| Prev in faulting series (705) | Next in faulting series (707) |
Ice706: coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 200 MPa, 1:1 gearing, udot=MR2000/V8; edot = 6.93e-3/s | steps (1), (2) ; blew fuse twice |
| T = 180 K, P = 200 MPa, 1:1 gearing, udot=MR2000/V4; edot = 3.47e-3/s | step (3); chart => bulk Xform to ice II; tot e = 0.222 |
|
(not yet) micrographs
|

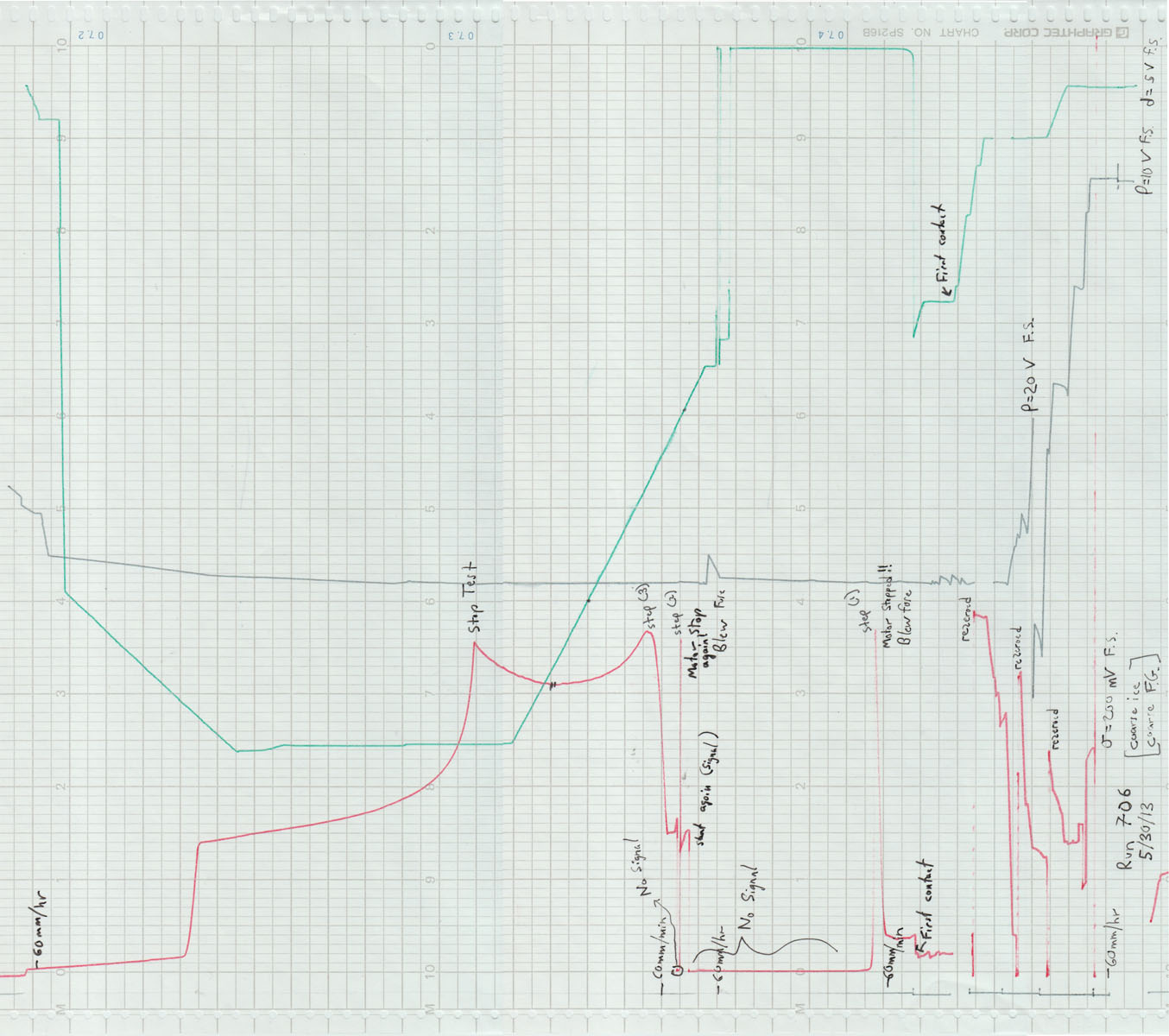

chart record

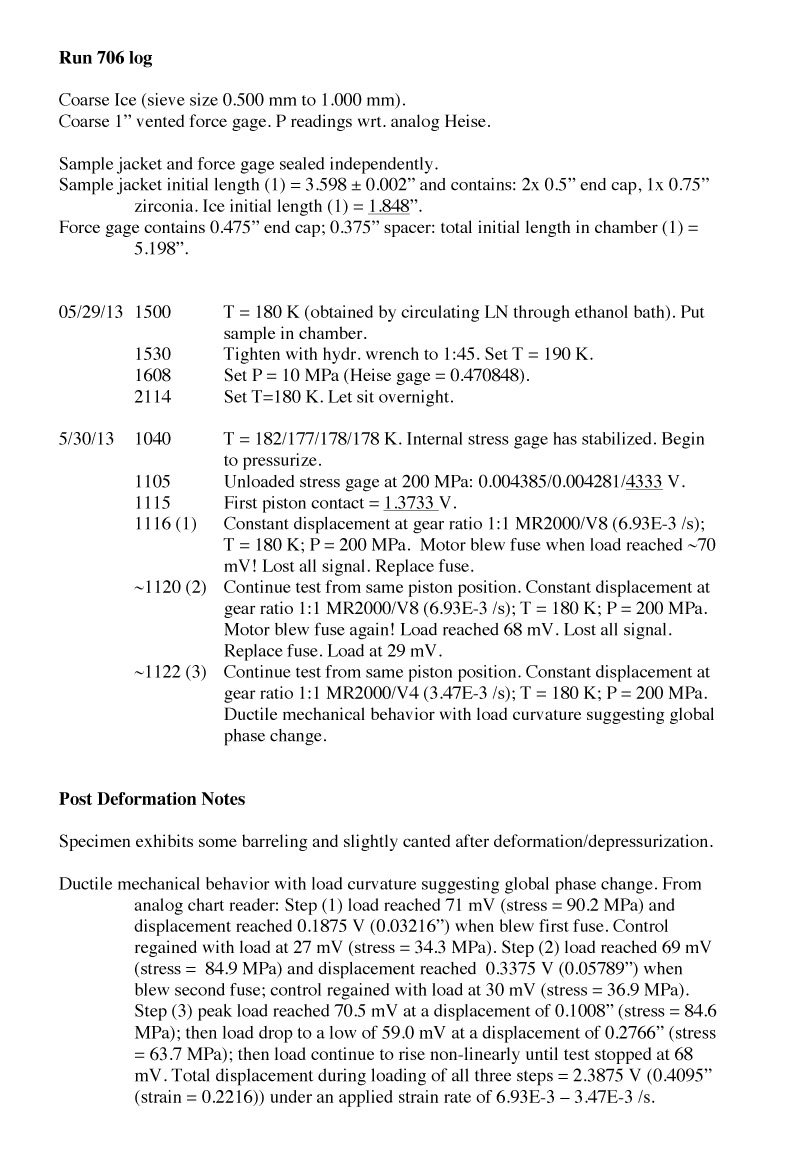

run log
