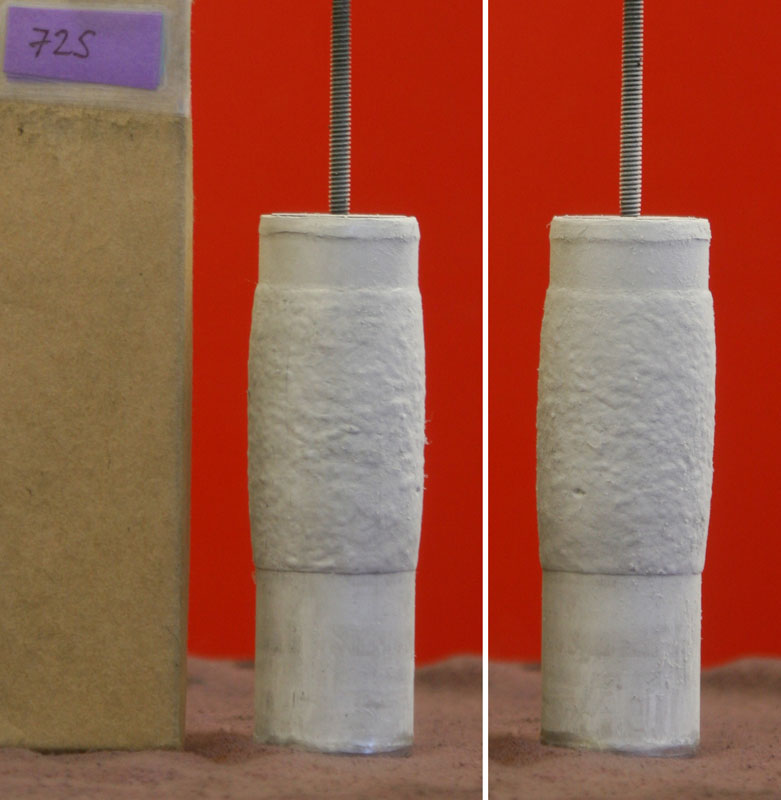

after failure
(not yet)
micrographs
Categories |
| Prev in faulting series (724) | Next in faulting series (726) |
Ice725: coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 50.0 MPa, 10:1 gearing, udot=MR2000/V0.71 | edot = 5.35e-5/s; s max= 91.8 MPa |
|
(not yet) micrographs
|

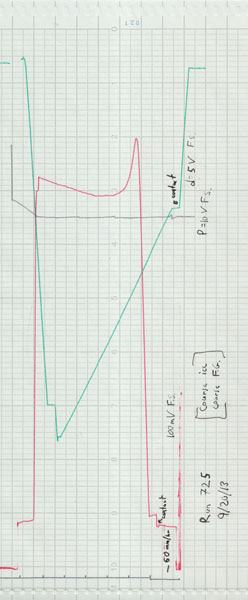

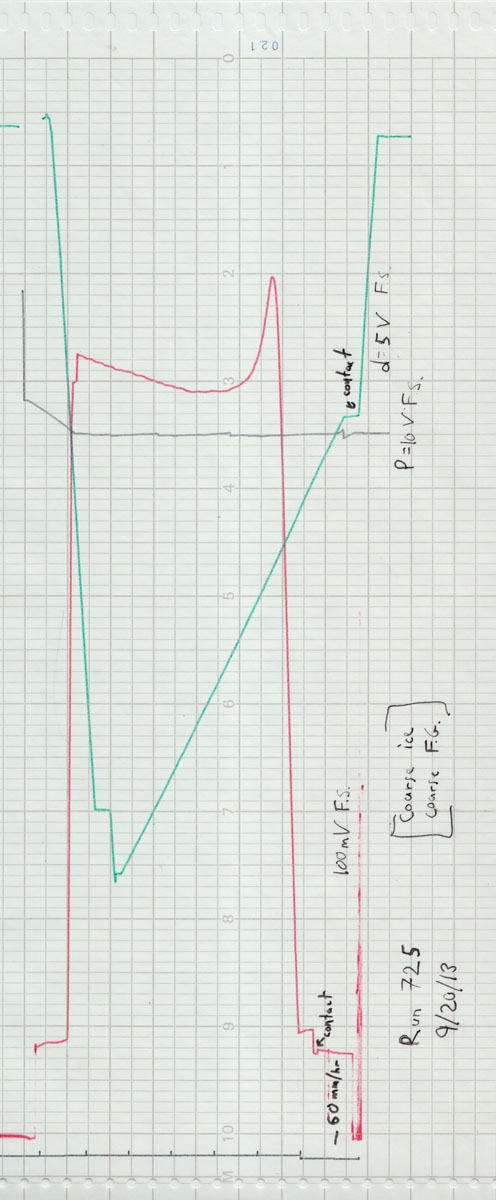

chart record

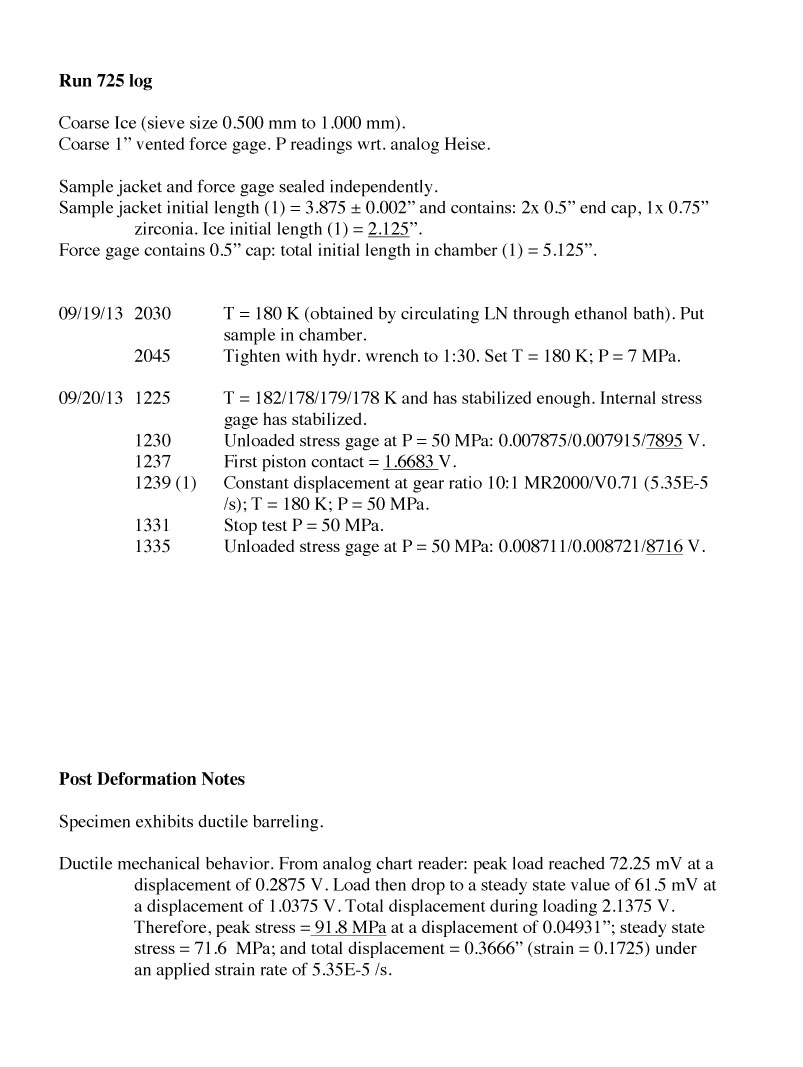

run log
