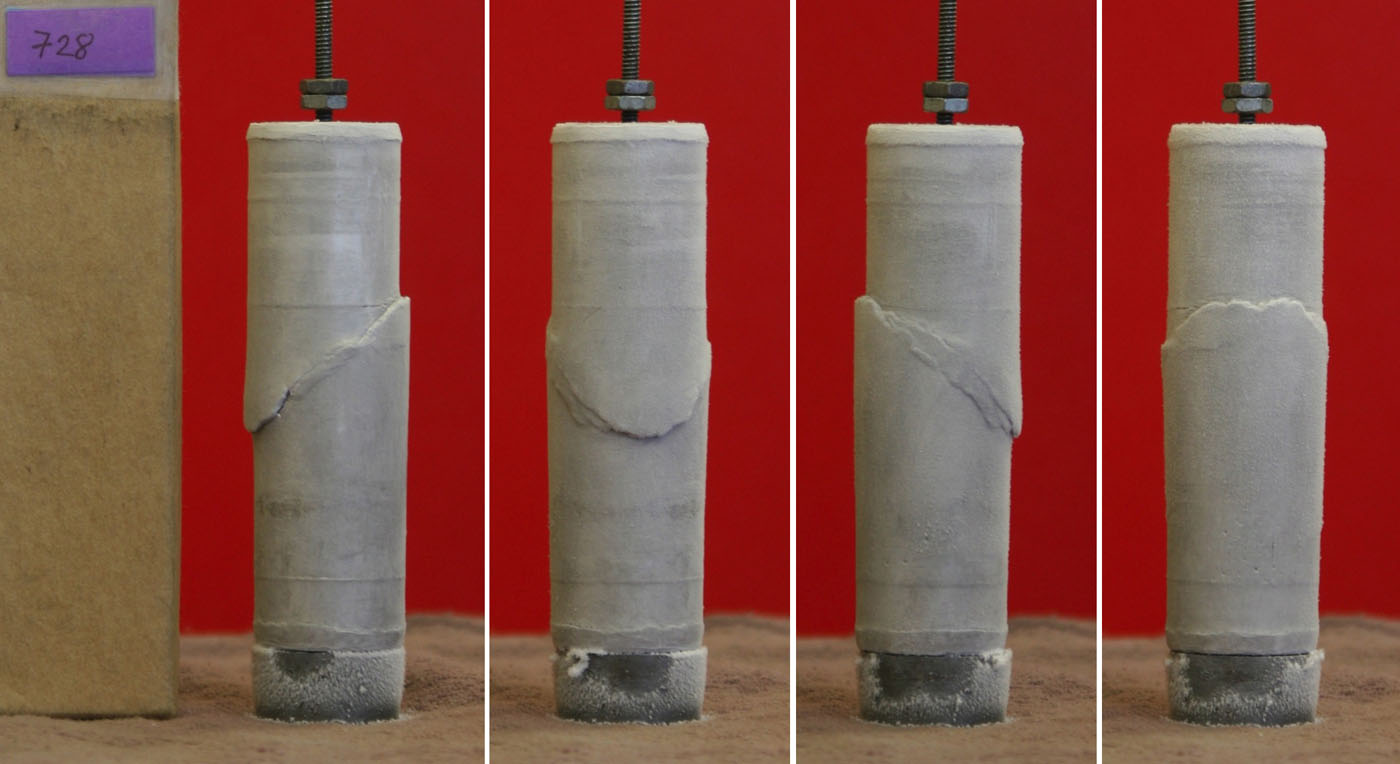

after failure
(not yet)
micrographs
Categories |
| Prev in faulting series (727) | Next in faulting series (729) |
Ice728: coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 150.0 MPa, 1:1 gearing, udot=MR2000/V2.44 | edot = 1.97e-3/s; s max= 115.6 MPa |
|
(not yet) micrographs
|

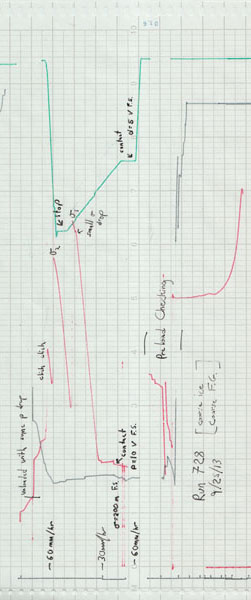

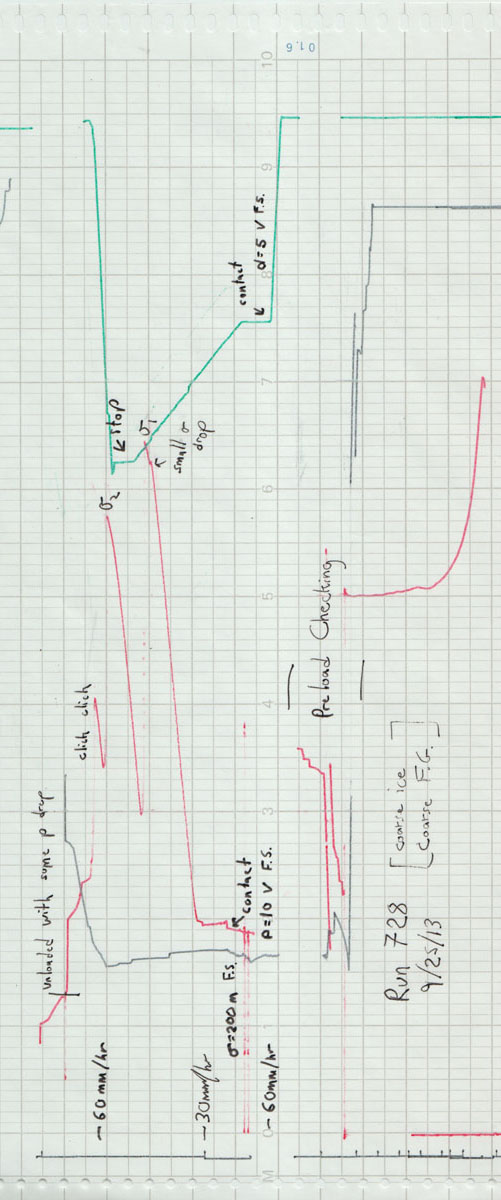

chart record

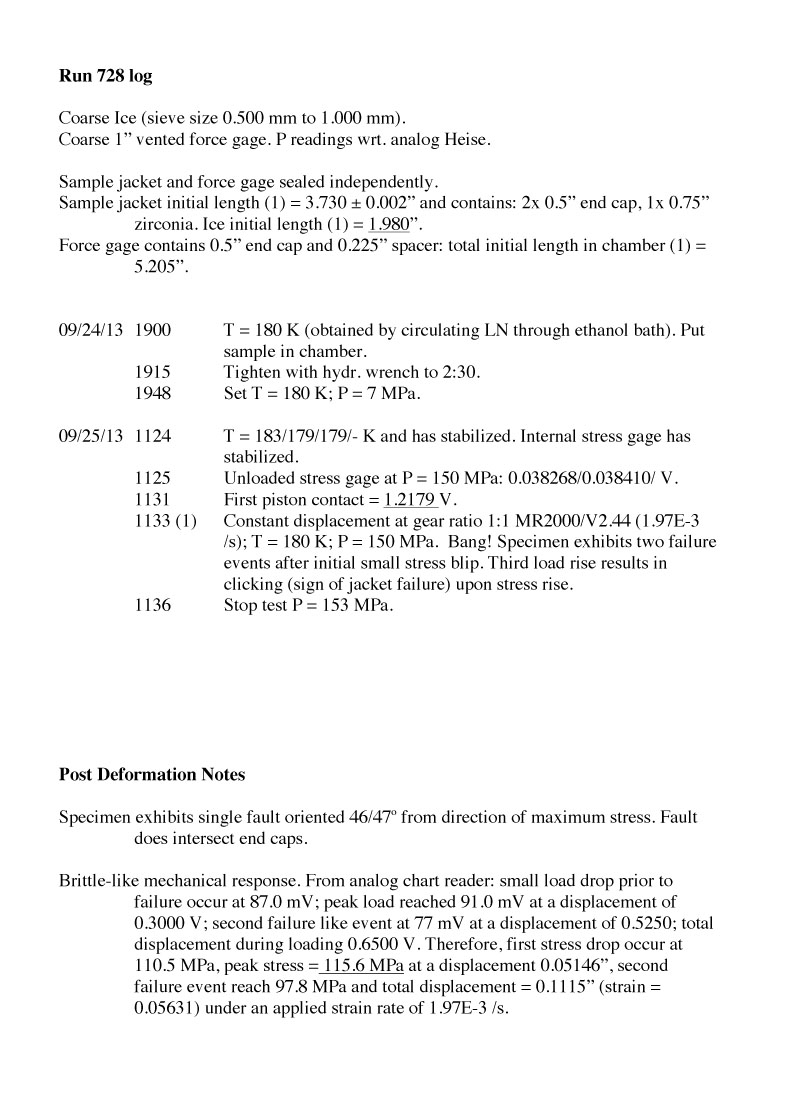

run log
