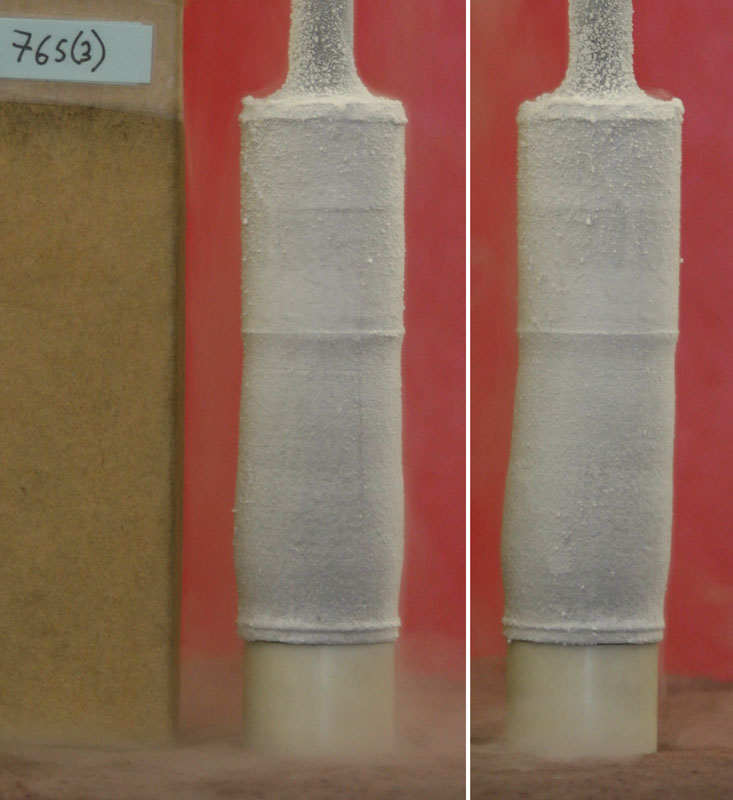

after deformation
run log detailed.jpg)

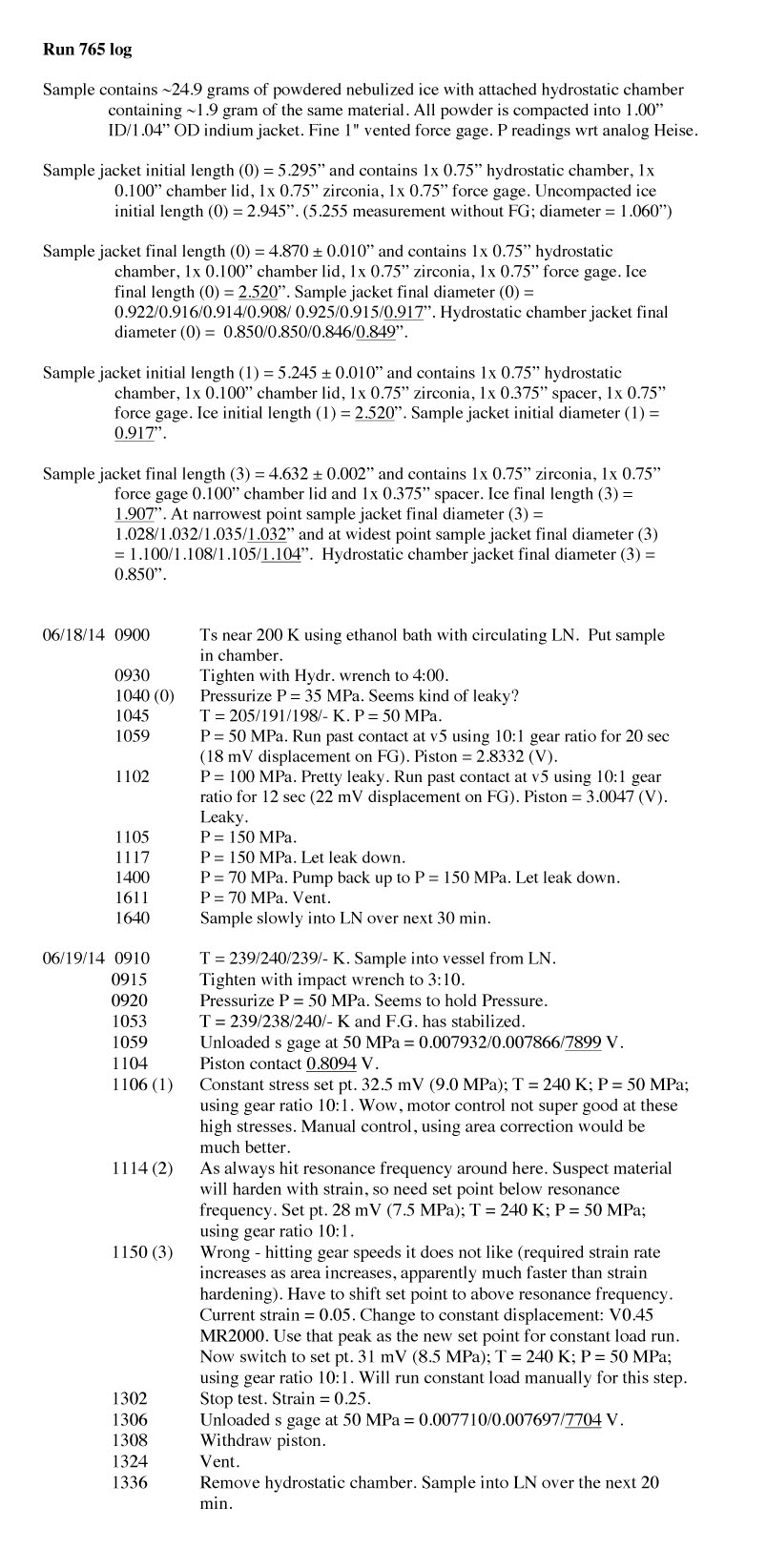

full run
Full run
6/19/14 1312 hrs
Categories |
| Prev in series (764) | Next in series (766) |
Ice765 (NG71) : nebulized f.g. ice I; with hydrostatic chamber
| T = 200 K, P = 150<-->70 MPa, ~5 hrs | step (0) |

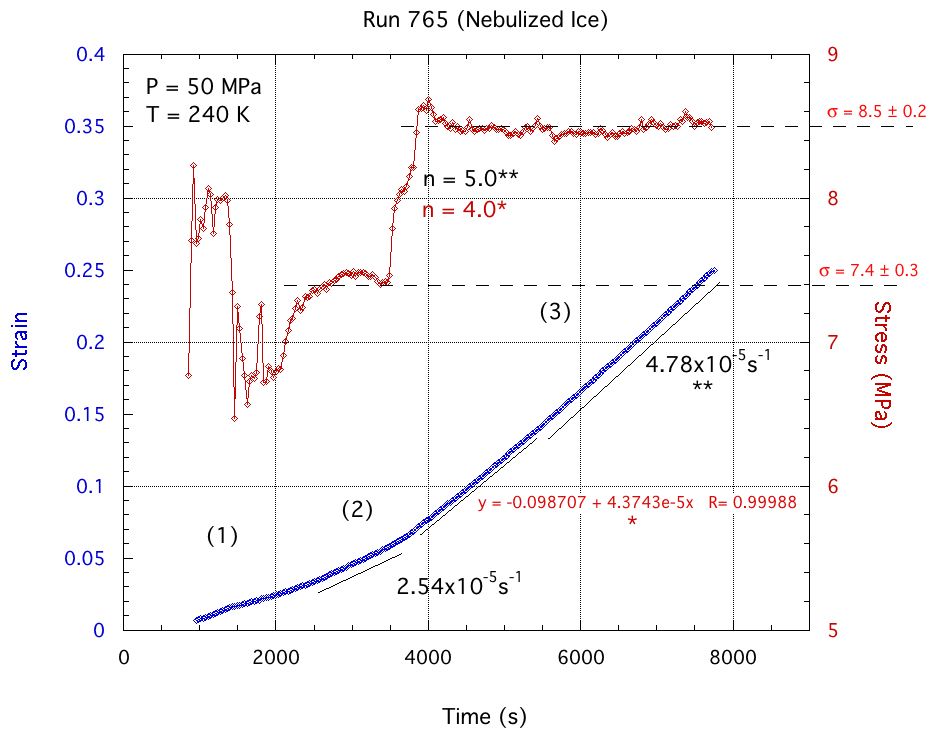

| T = 240 K, P = 50 MPa, σ = 8.1 MPa | step (1) |
| T = 240 K, P = 50 MPa, σ = 7.0 MPa | step (2) |
| T = 240 K, P = 50 MPa, σ = 7.7 MPa | step (3) |

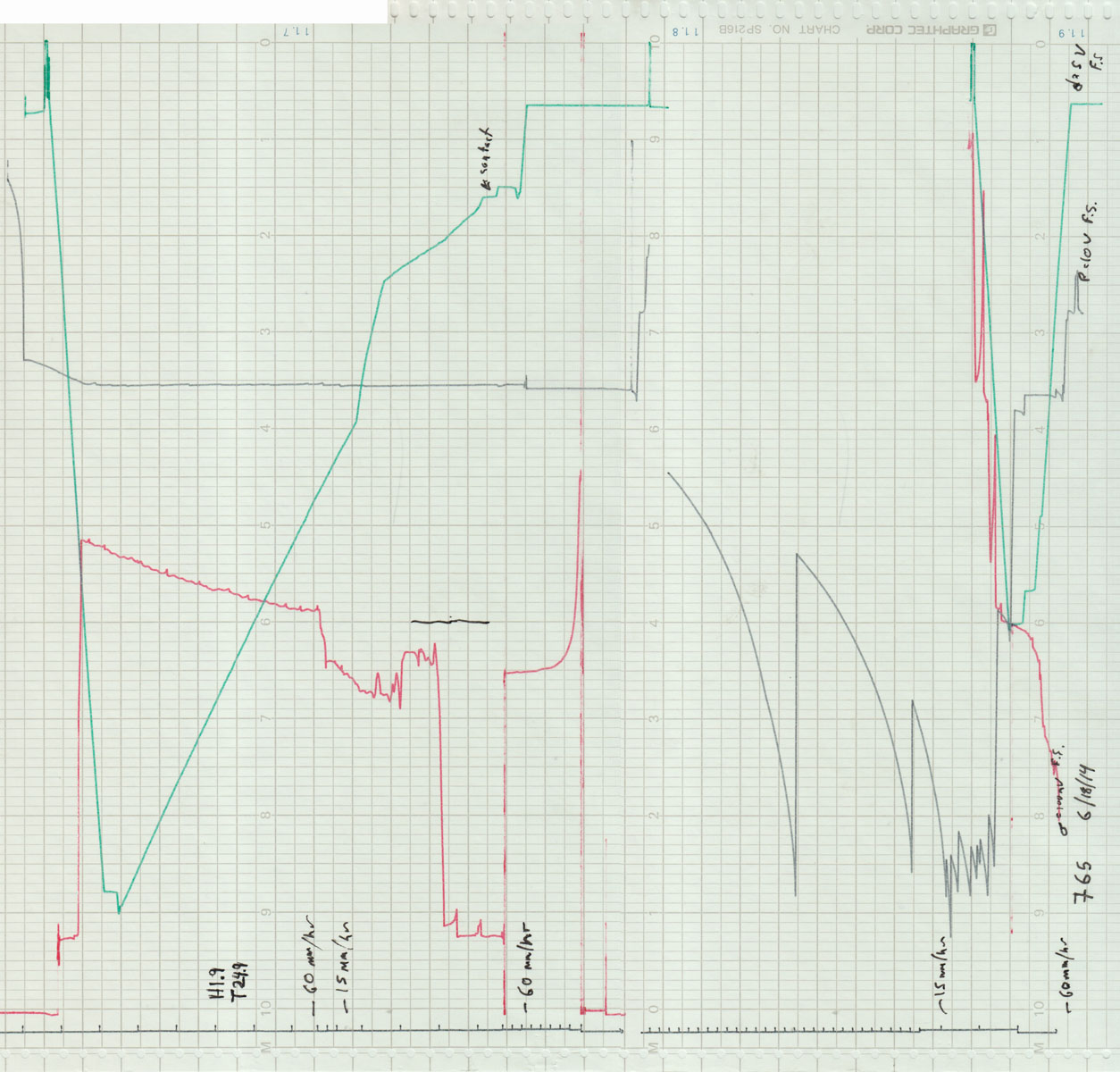

| other resources: chart record | ||||
| Legend: Upper graph of each pair is motor speed V (proportional to edot); lower graph is load (in volts). Translate motor V to edot thus: V1.00 ≈ 6e-6/s ≈ 2%/hr. Load to stress translation for ice767 is roughly ____ MPa/mV, with a __ mV zero offset. Horizontal scale is time. 5000 ≈ 14 hrs. | ||||
|
e = 0.245 |
Full run
6/19/14 1312 hrs |
||
