E5. Dielectrics between Capacitor Plates

CAPACITANCE & DIELECTRICS - Dielectrics

---

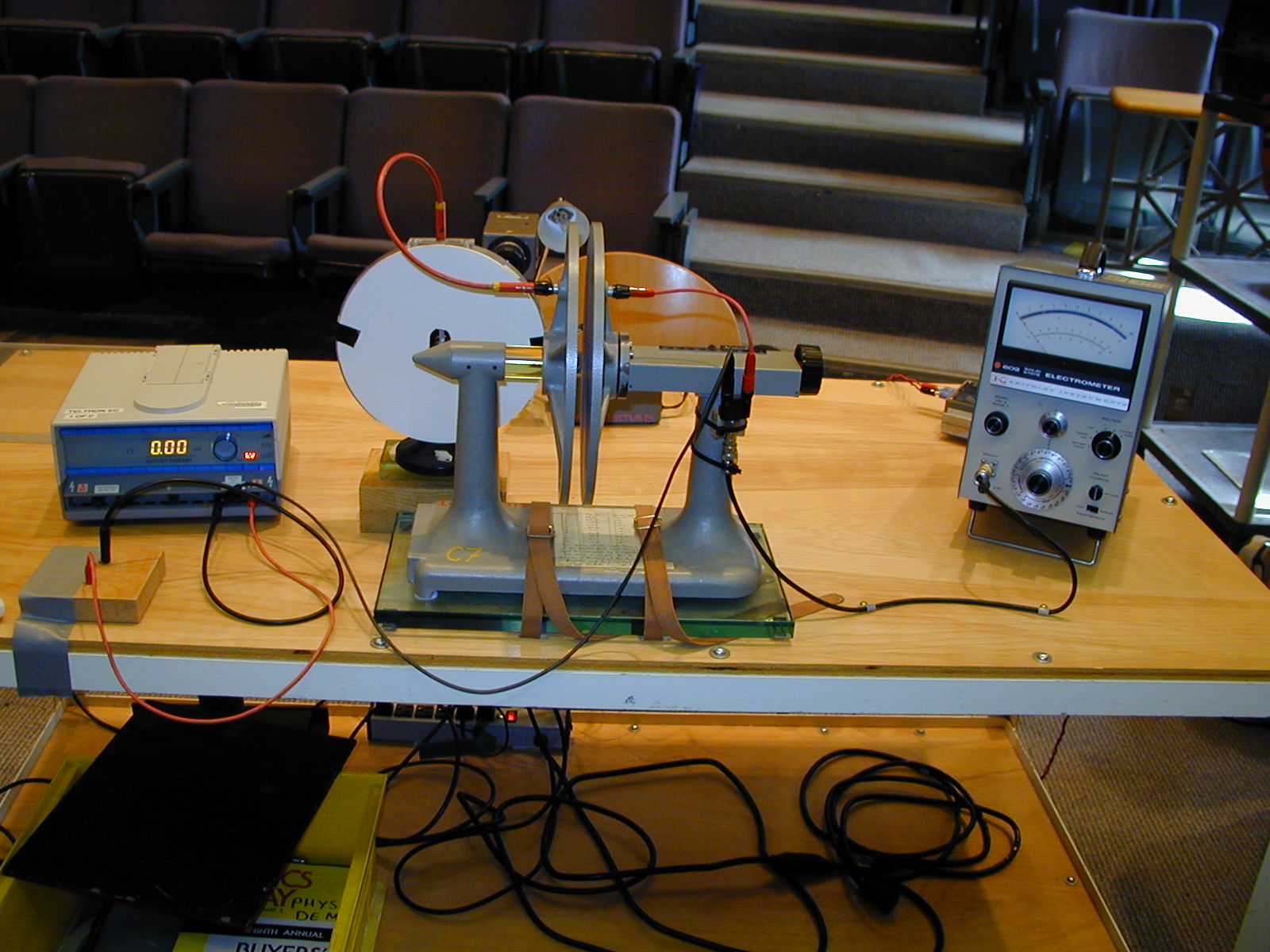

A glass dielectric is placed between the plates of a charged parallel plate capacitor. The Keithey Electrometer is used to observe the current. The Braun electroscope is across the plates to observe the change in potential difference as the plate spacing is varied.

See also E5a.

Location: Room 26-001, Loft
