H2. Copper Coil with a Magnetron Magnet (Electrometer)

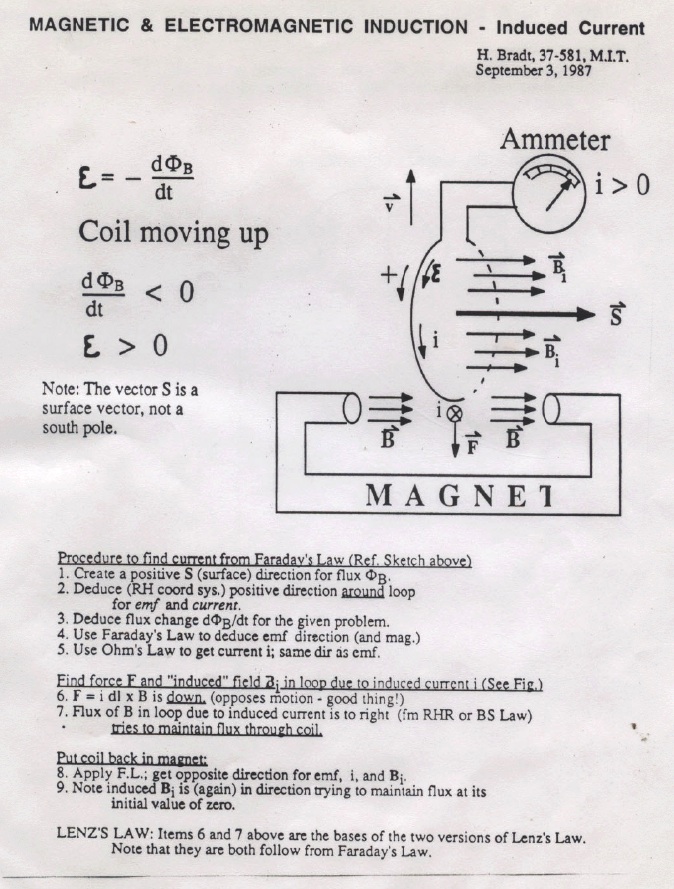

MAGNETIC & ELECTROMAGNETIC INDUCTION - Induced Current

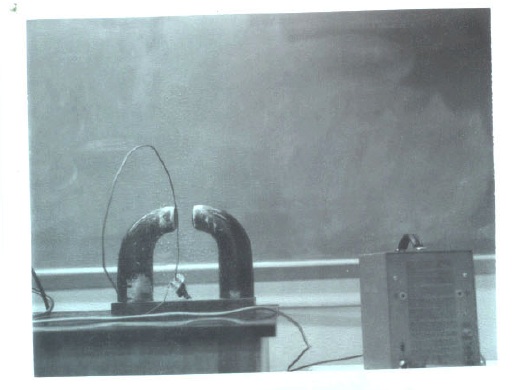

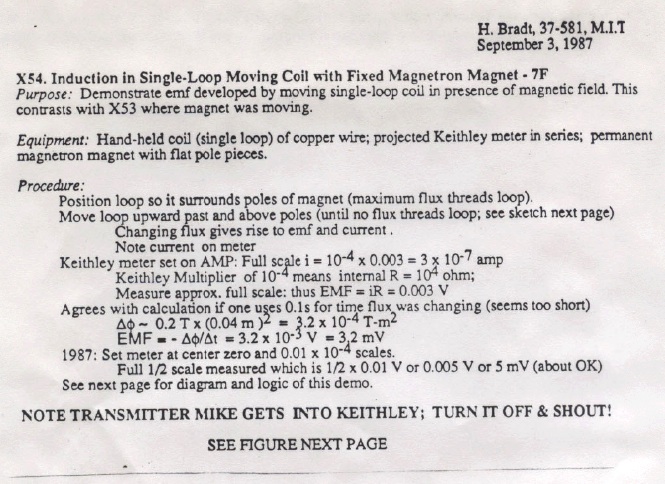

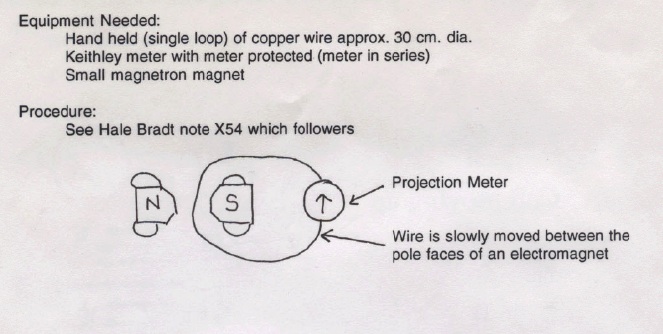

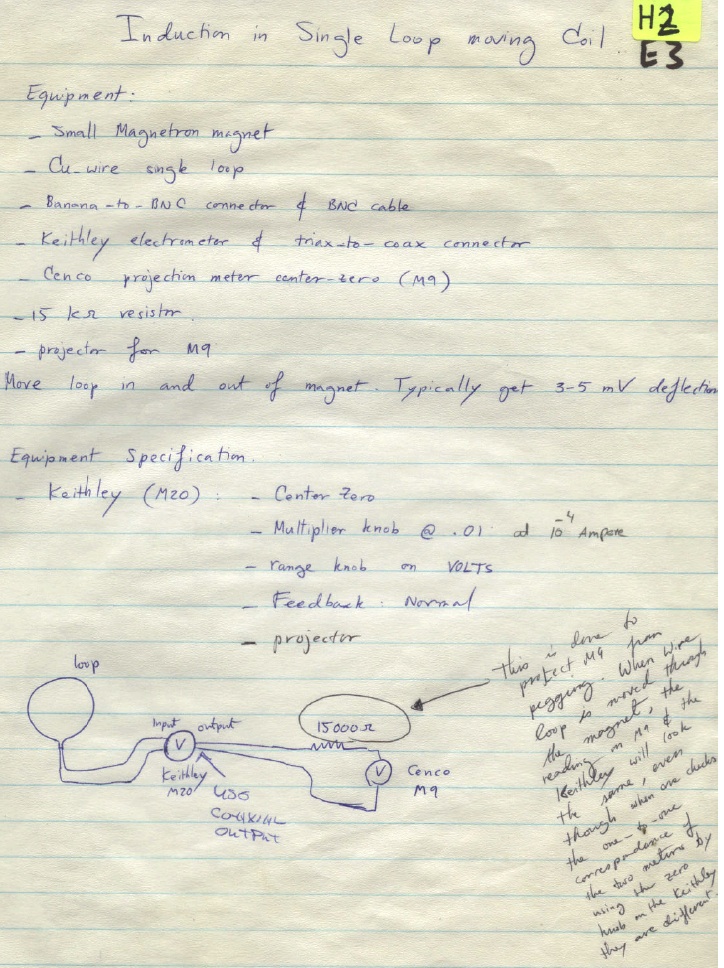

A single-turn copper coil is connected to the Keithley Electrometer. When the coil is moved through the magnetic field of a magnetron magnet the electrometer will deflect, giving a reading of approximately 3mV.
