L2. Damped RLC Circuit

LC & RLC CIRCUITS - Damped Oscillations

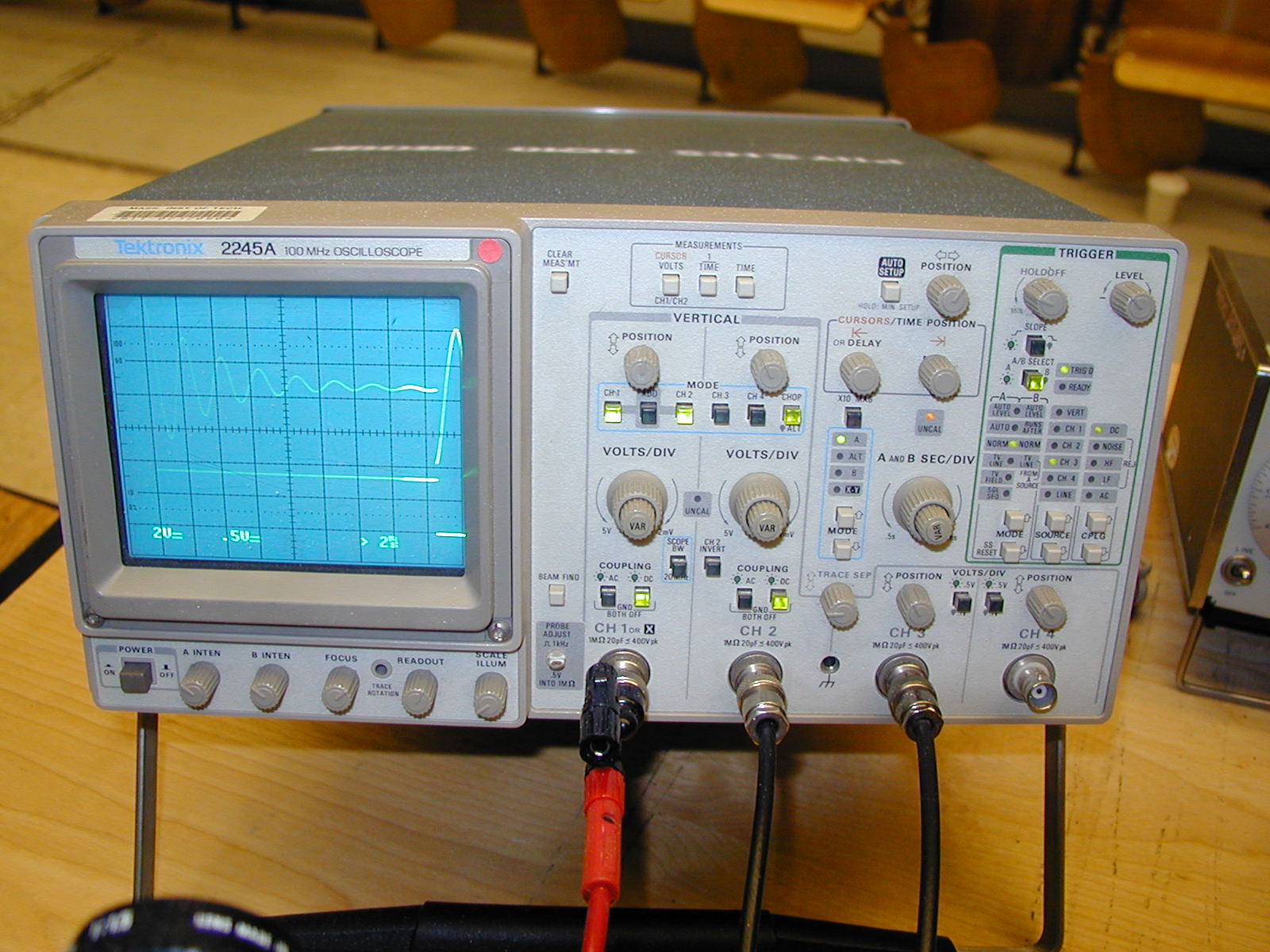

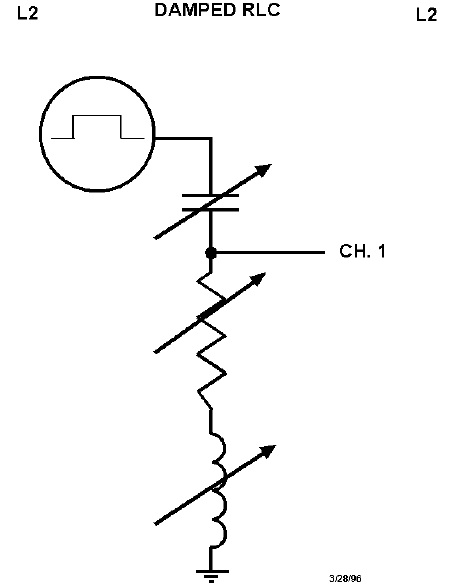

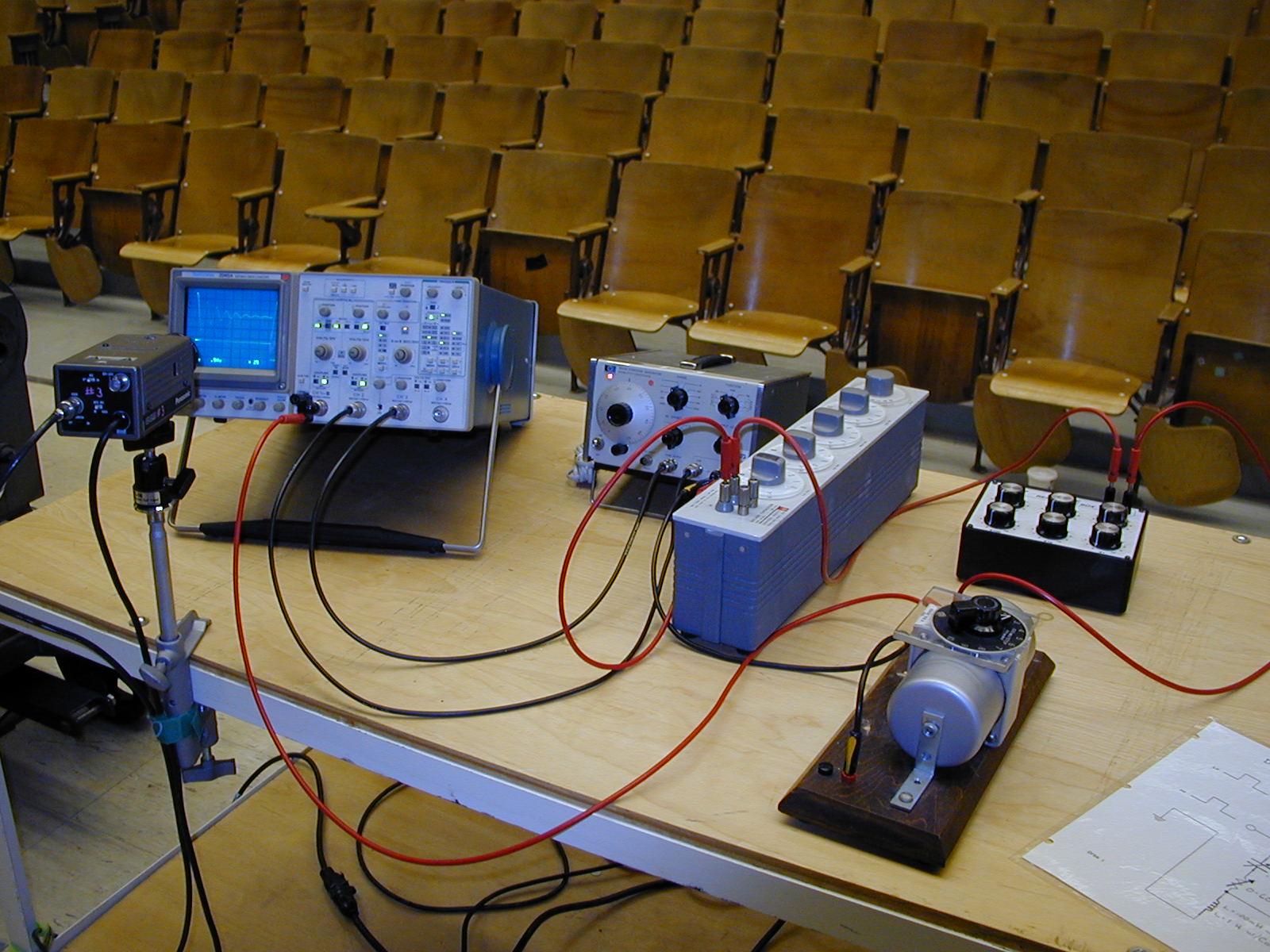

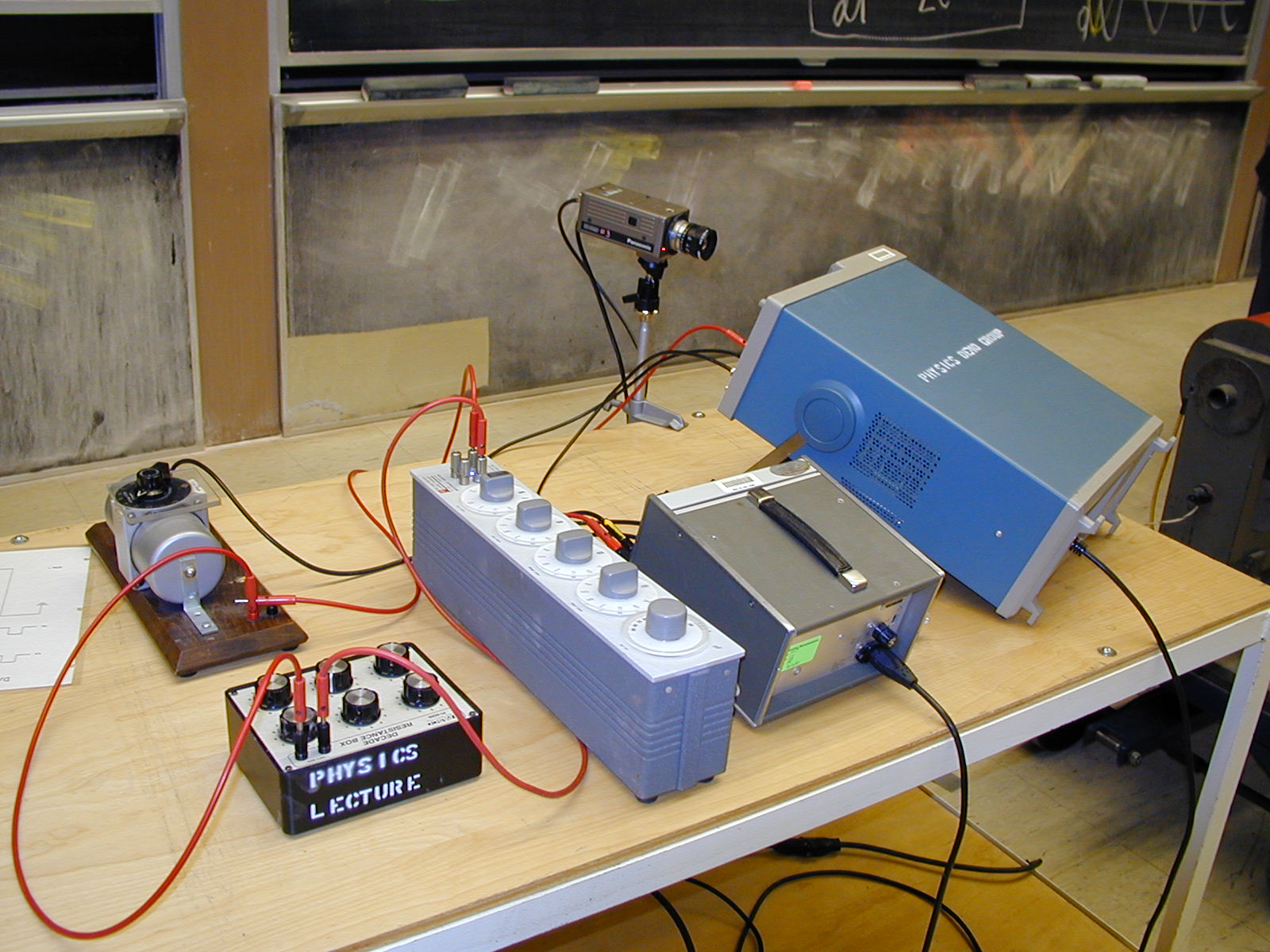

A series circuits consisting of a decade resistor, a decade capacitor, and a variable inductor are driven by a square wave generator. The damped signal across any of the circuit's components can be displayed on a oscilloscope.

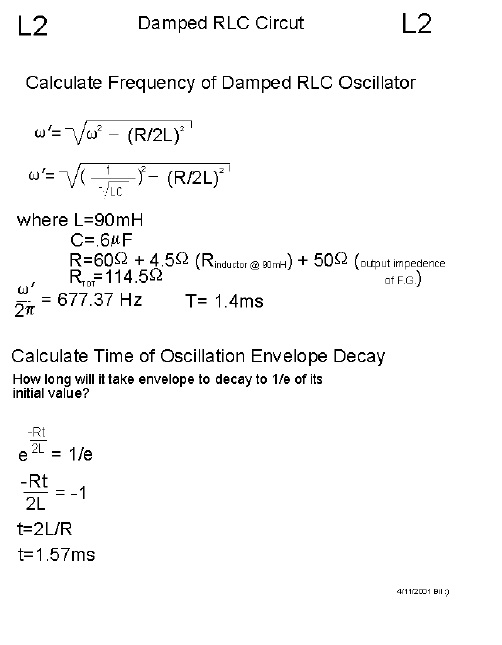

for additional notes see this [PDF]
