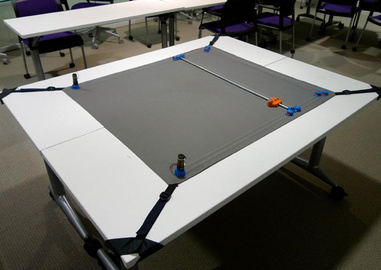

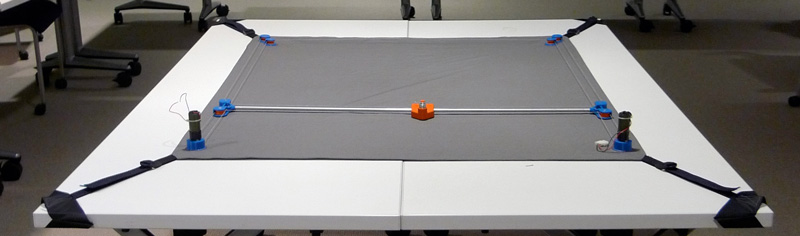

| This CNC machine borrows structure from your table. |
It folds! Also note the collapsing tent-pole construction of the cross beam. |
|
|
| The BOC fits perfectly inside a Sandvik Coromant bag from IMTS 2010. |

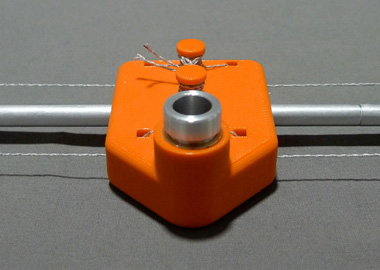

A marker mounts in the shuttle, with the eventual goal of actuating it with a servo motor. |
|
|

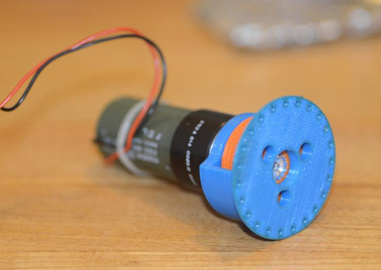

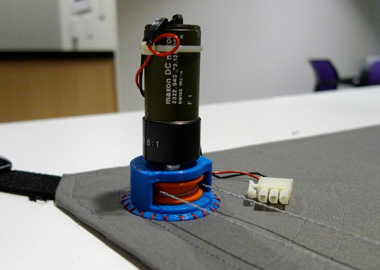

| A DC motor is adapted to the fabric using a 3D printed part. |

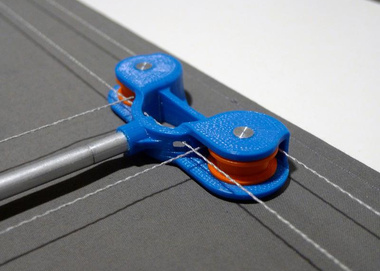

The path of the cable makes the mechanism self-stabilizing. |
|
|
| One of the most personally interesting aspects of this project was sewing 3D printed components onto fabric. |

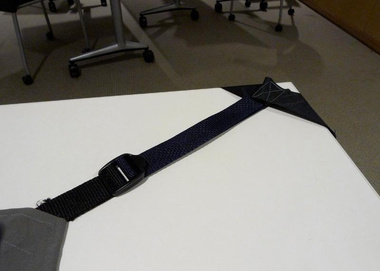

Tension is imparted on the fabric using nylon webbing and buckles. |
|
|

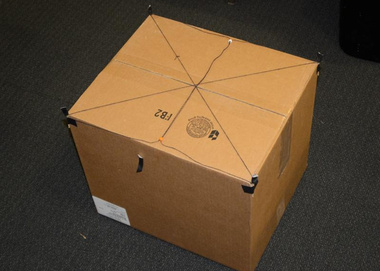

| The mechanism (later named CoreXY) was first prototyped using thumbtacks and a cardboard box. |
An initial sketch of the Bot-of-the-Cloth. |
|
|

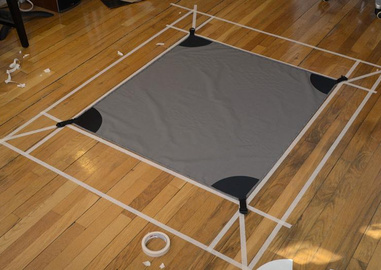

| The fabric was laid out on my apartment floor. |

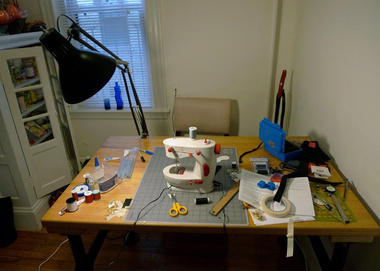

This cheesy little machine did all of the sewing work. |
|
|

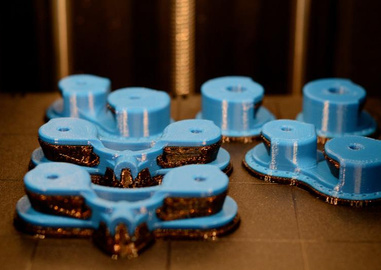

| Many parts were 3D printed at the MIT Edgerton Student Shop. |

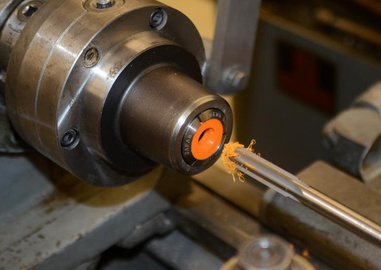

Printed pulleys were post-machined to seat bearings. |
|
|

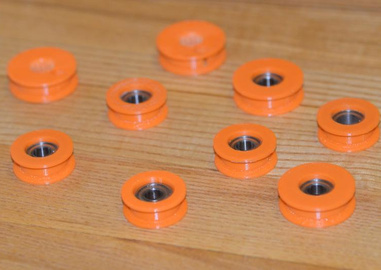

| A collection of 3D printed idler and drive pulleys. |
The motors came with gears attached to their shafts, which are press-fit into the drive pulleys. |
