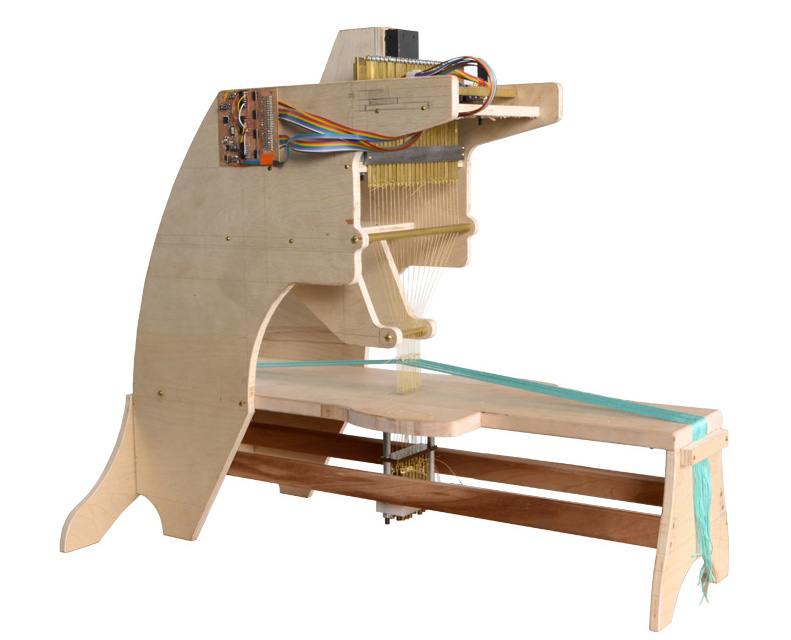

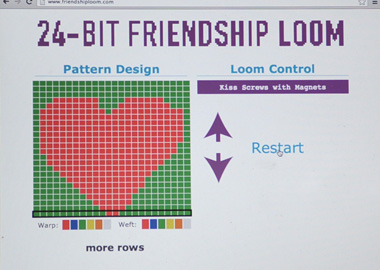

| A browser-based interface allows the user to design patterns and interact with the loom. |

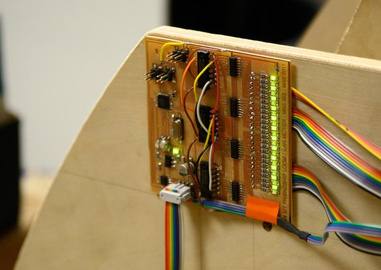

The loom's 24 electromagnets are energized by a Gestalt-based control board. |
|
|

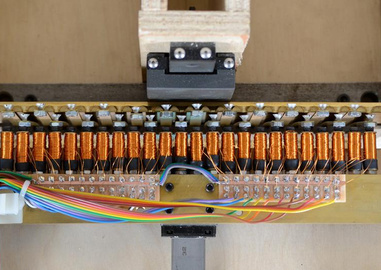

| The electromagnets are mounted on a slider that is retracted once the magnets are energized. |

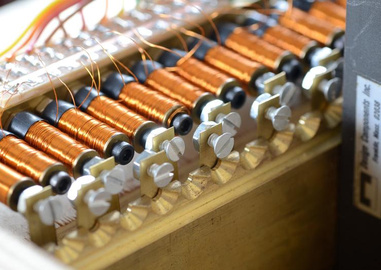

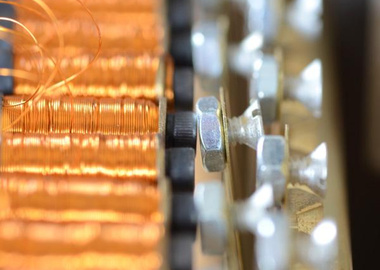

Flexures become attached to and pulled back with the active electromagnets. |
|
|

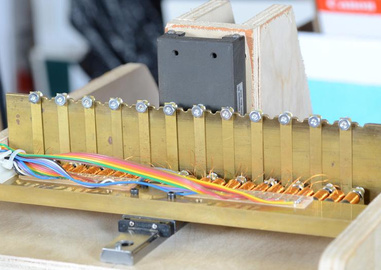

| Screw-heads on the unattached flexures are in the path of a lift knife. |
The lift knife pulls up any flexures that were not selected and retracted by the electromagnets. |
|
|
| Control cables are connected to the bottoms of the flexures. When a flexure is lifted, so is the cable. |
Each control cable ends in a loop through which one of the warp threads passes. The lifted threads create a shed for weaving. |
|
|

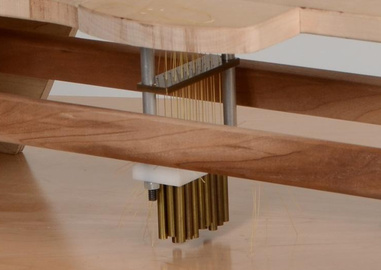

| A weight box maintains constant tension on the control cables so that they stay straight. |
The beginnings of a friendship bracelet! |
|
|

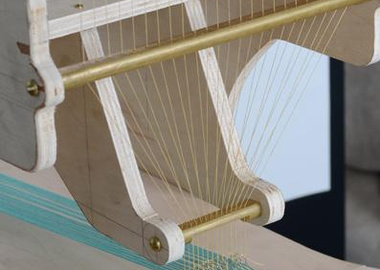

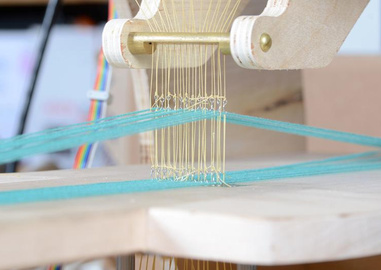

| The pitch of the control threads is reduced significantly between the flexures and the shed. |

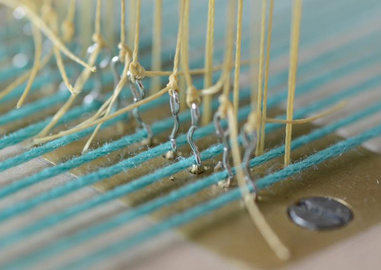

Each steel loop is biased against a brass baseplate by a second set of cables going into the weight box. |
|
|

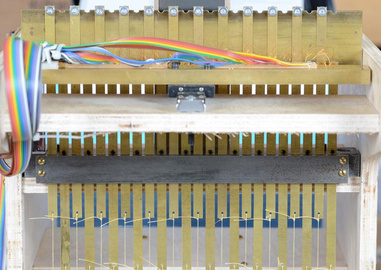

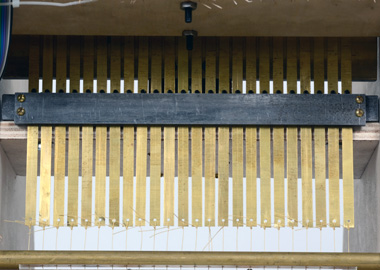

| The flexures are constrained by a steel guide. Pins in each flexure keep it from falling thru the guide. |

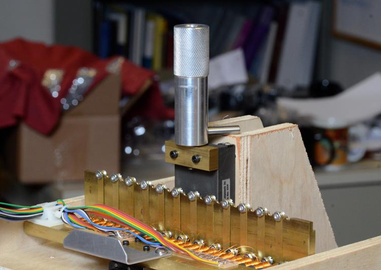

A set of handles let's the user manually actuate the two sliding mechanisms of the loom: the electromagnet slider and the lift knife. |
|
|

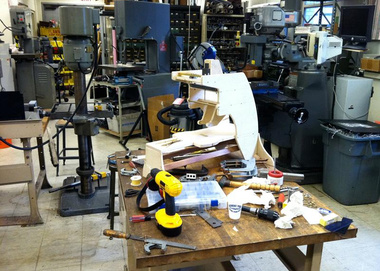

| Much of the loom was constructed at the Edgerton Student Shop. |
Many thanks to Mark Belanger, the Edgerton Student Shop's manager, for all of his help! |
|
|

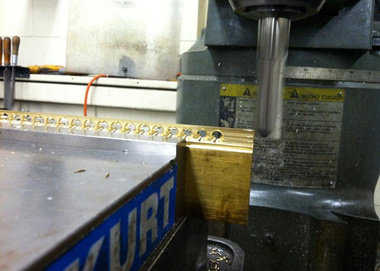

| The features of the knife that engage with the flexure screw-heads were created by removing the top of a row of countersunk holes. |

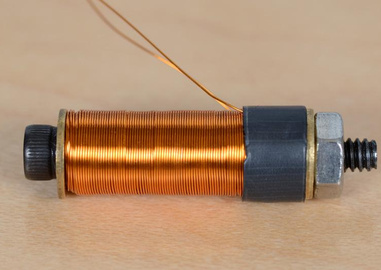

All 24 electromagnetic coils needed to be very consistent to achieve maximum system efficiency. |
|
|

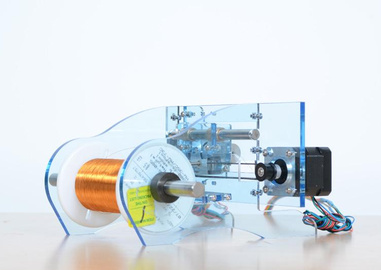

| A coil-winder was built to precisely wind each of the electromagnets. |

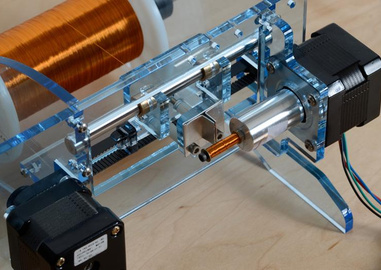

Magnet wire passes through a moving aperture and is wound up on a spinning core. |
|

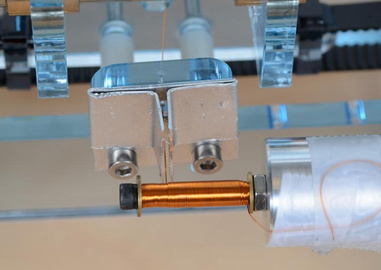

| A close-up of the winding process. |
