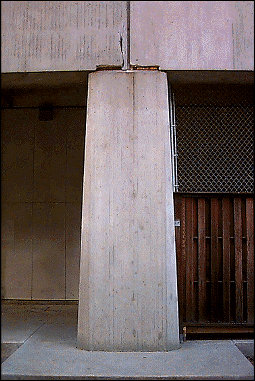

Problem 1: FBD
Given the column indicated
Draw a complete FBD.
Assume that each beam imparts a vertical concentrated load of 200KN on the 3 meter tall column.

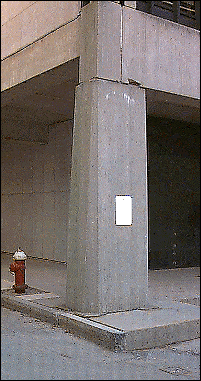

Problem 2: FBD
Given the column indicated
Draw a complete FBD.
Assume that each beam imparts a vertical concentrated load of 200KN on the 3 meter tall column.
Problem 3: FBD
Given the blinking light indicated
Draw a complete free body diagram of the structural system.
Assume that the lamp weighs 30 pounds and that the "point of application" is in the center of the lamp.

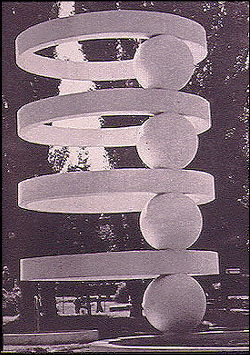

Problem 4: FBD
Given the sculpture indicated (located in Como, Italy)
Draw a complete free body diagram.
Assume each ring weighs W and the weight of the spheres is S.
Assume that the sphere has a diameter of 1 m and each ring has a height of 50 cm.

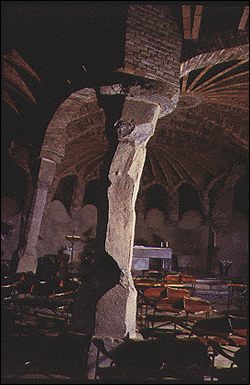

Problem 5: FBD
Given Gaudi's column indicated
Draw a free body diagram of the column.
Explain the type(s) of connection(s) that you assume at each end.
Problem 6: FBD
Draw a complete free body diagram for the entire system indicated on the street sign.
