Ice688: coarse-grained ice I (sieve size 0.5 - 1 mm)

T = 210 K, P = 20 MPa, 1:1 gearing, udot=MR2000/V8 edot = 5.65e-3/s; s max= 79.7 MPa

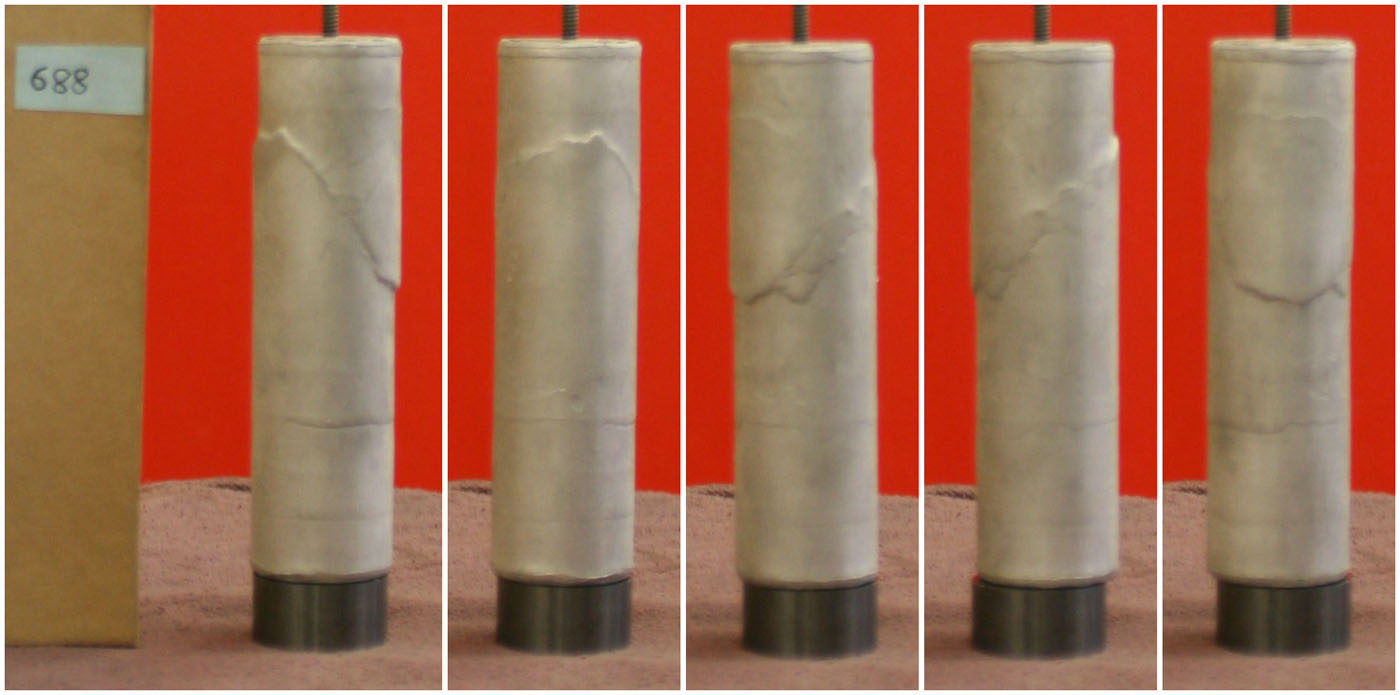

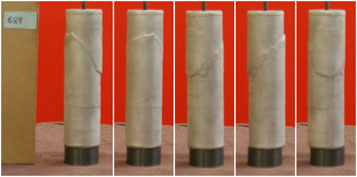

after faulting



micrographs

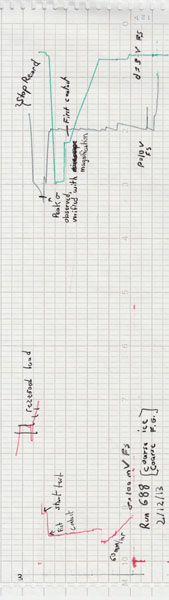

chart record

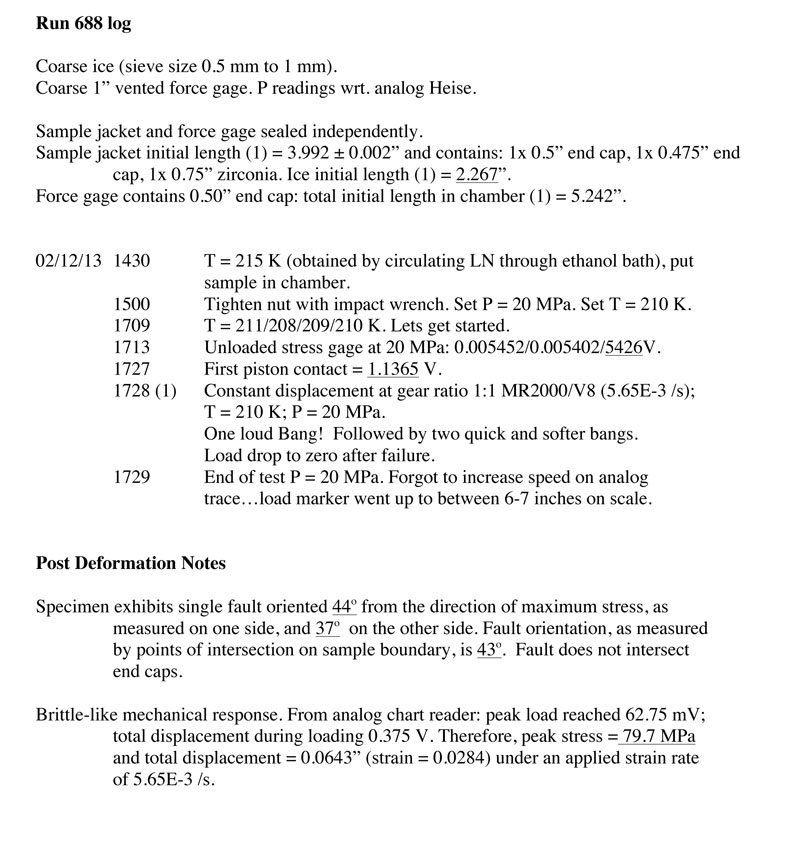

run log
