Ice687: 3 x P-drop f.g. ice I + 10% by vol 0.3-micron Al2O3

T = 210 K, P = 50 MPa, s = 4 MPa step (1)
T = 210 K, P = 50 MPa, s = 6 MPa step (2)
T = 220 K, P = 50 MPa, s = 4 MPa step (3)
T = 220 K, P = 50 MPa, s = 6 MPa step (4)
T = 232 K, P = 50 MPa, s = 0.8 MPa step (5)
T = 232 K, P = 50 MPa, edot ~1.7e-7/s step (6)
T = 232 K, P = 50 MPa, s = 8 MPa step (7)

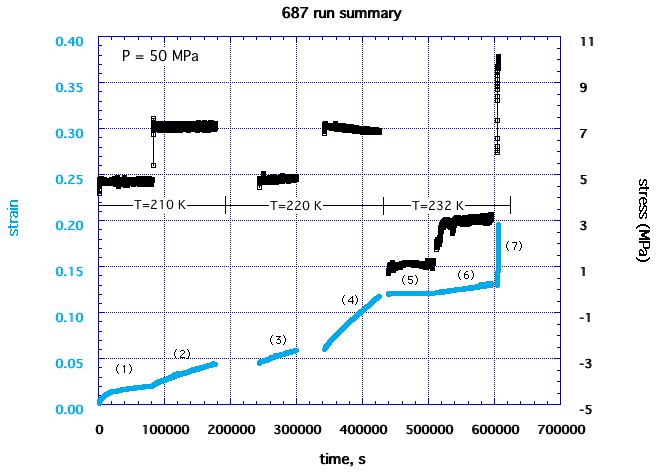

run summary

micrographs

(not yet)

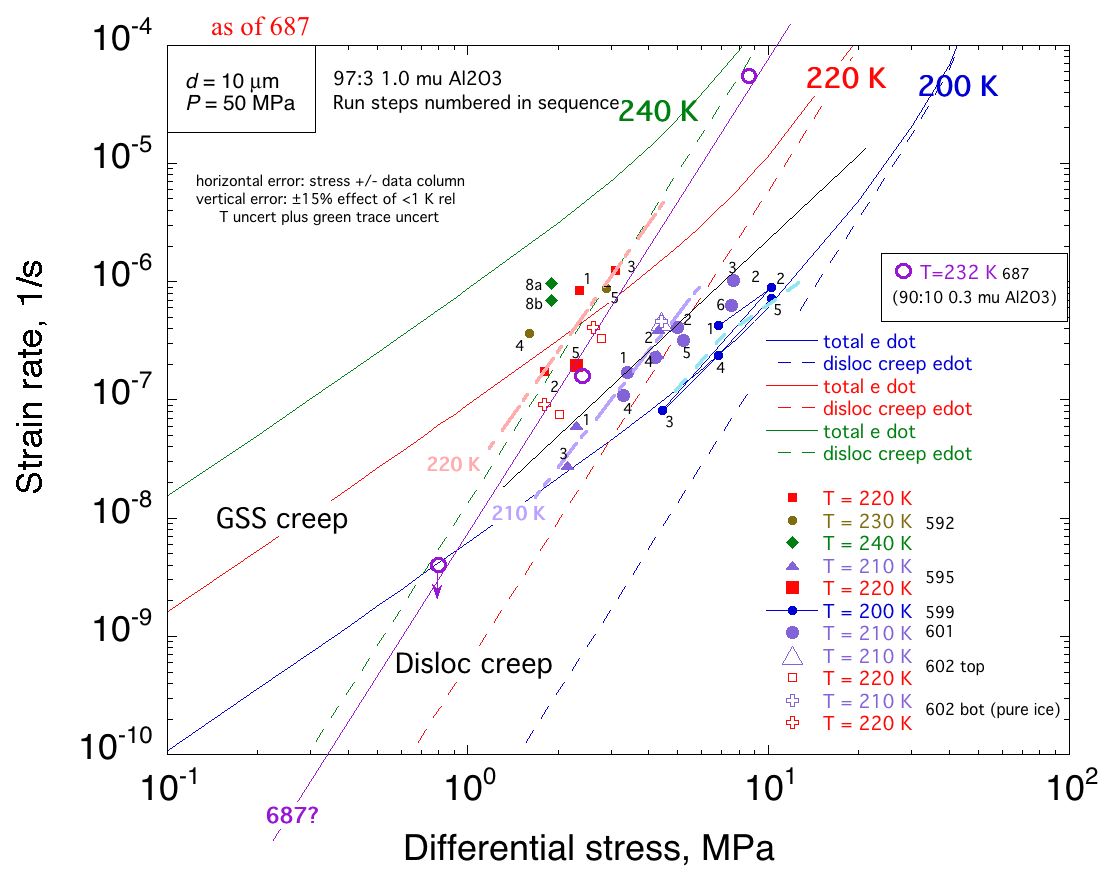

working plot to 602

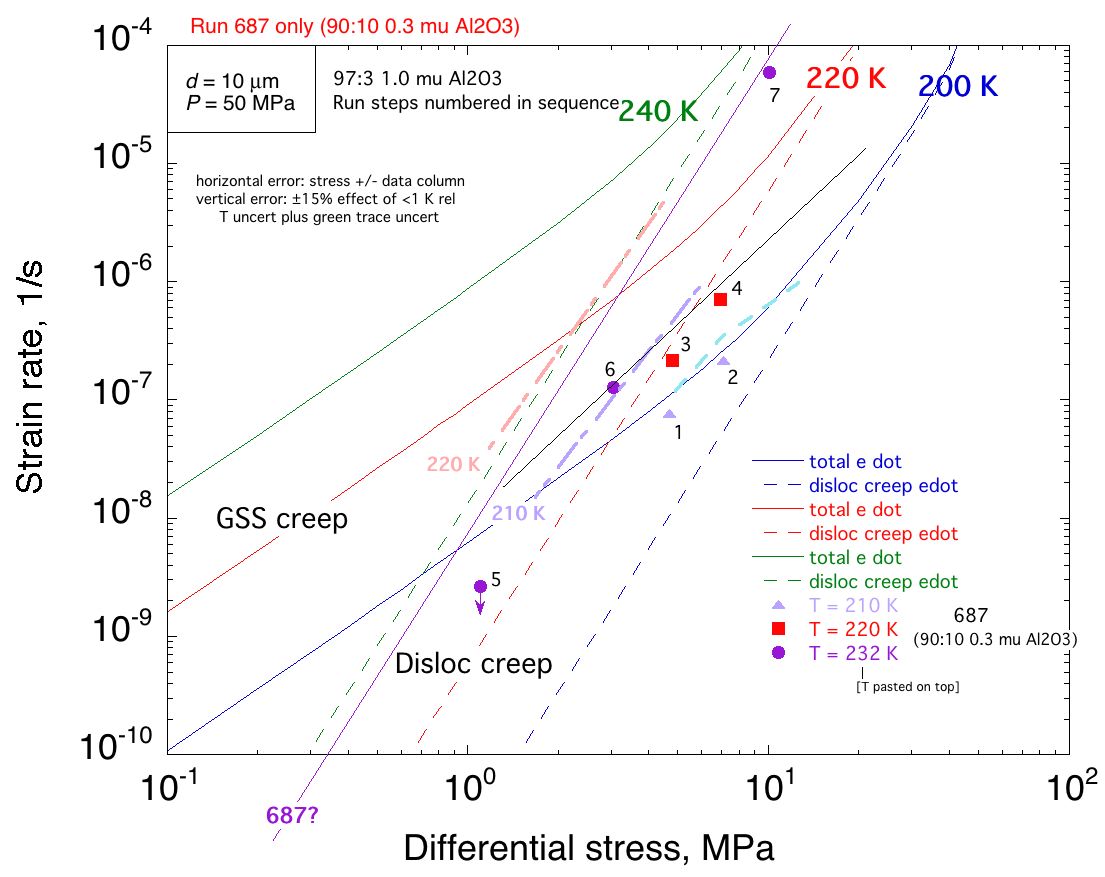

687 final results

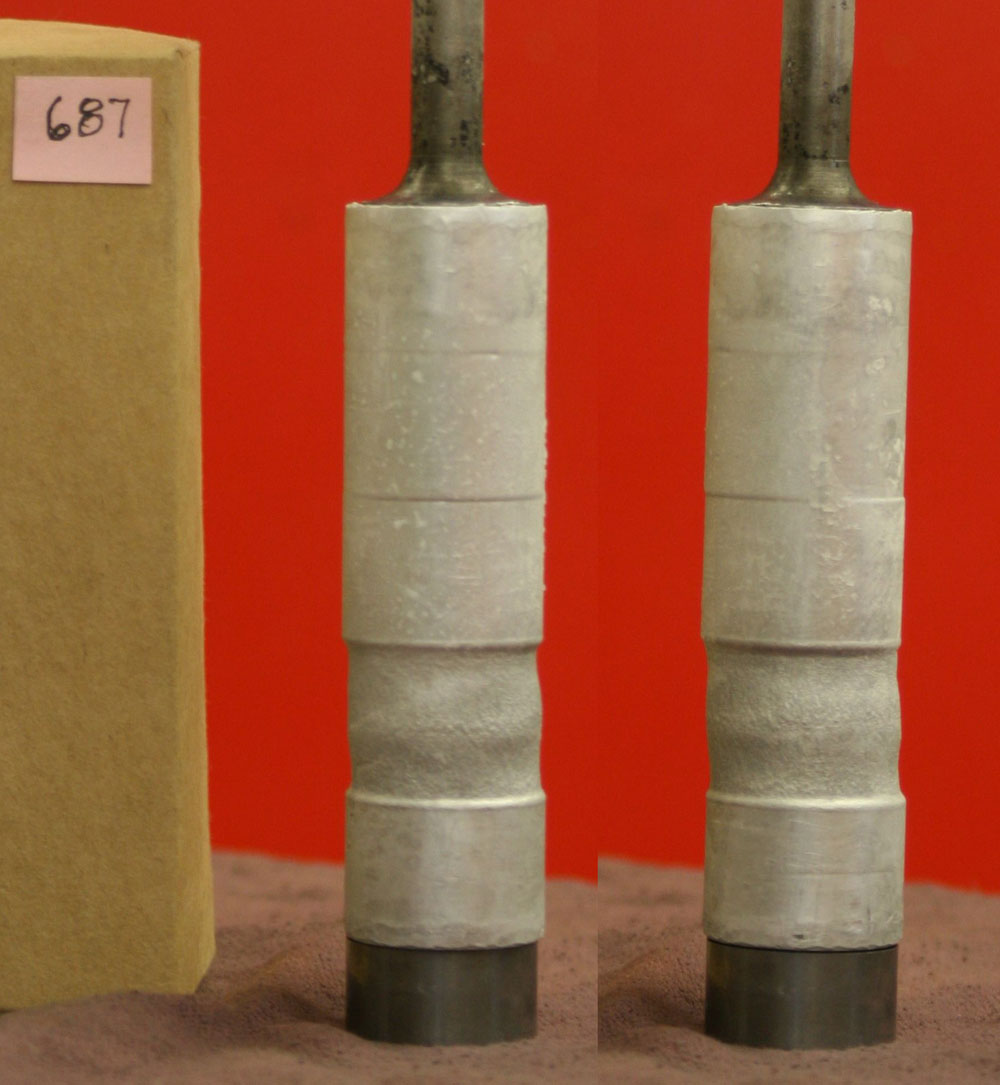

after deformation (2 views)

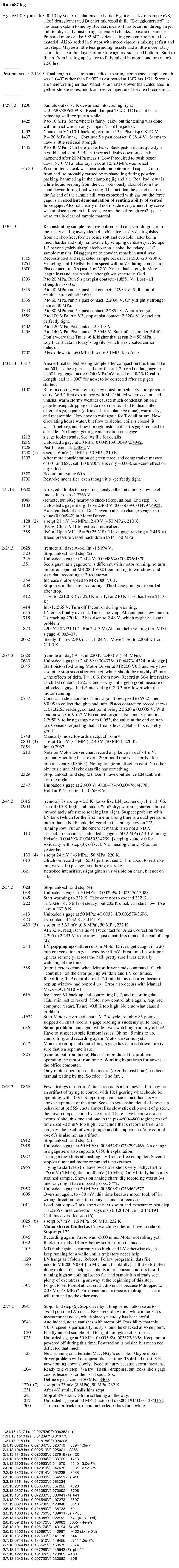

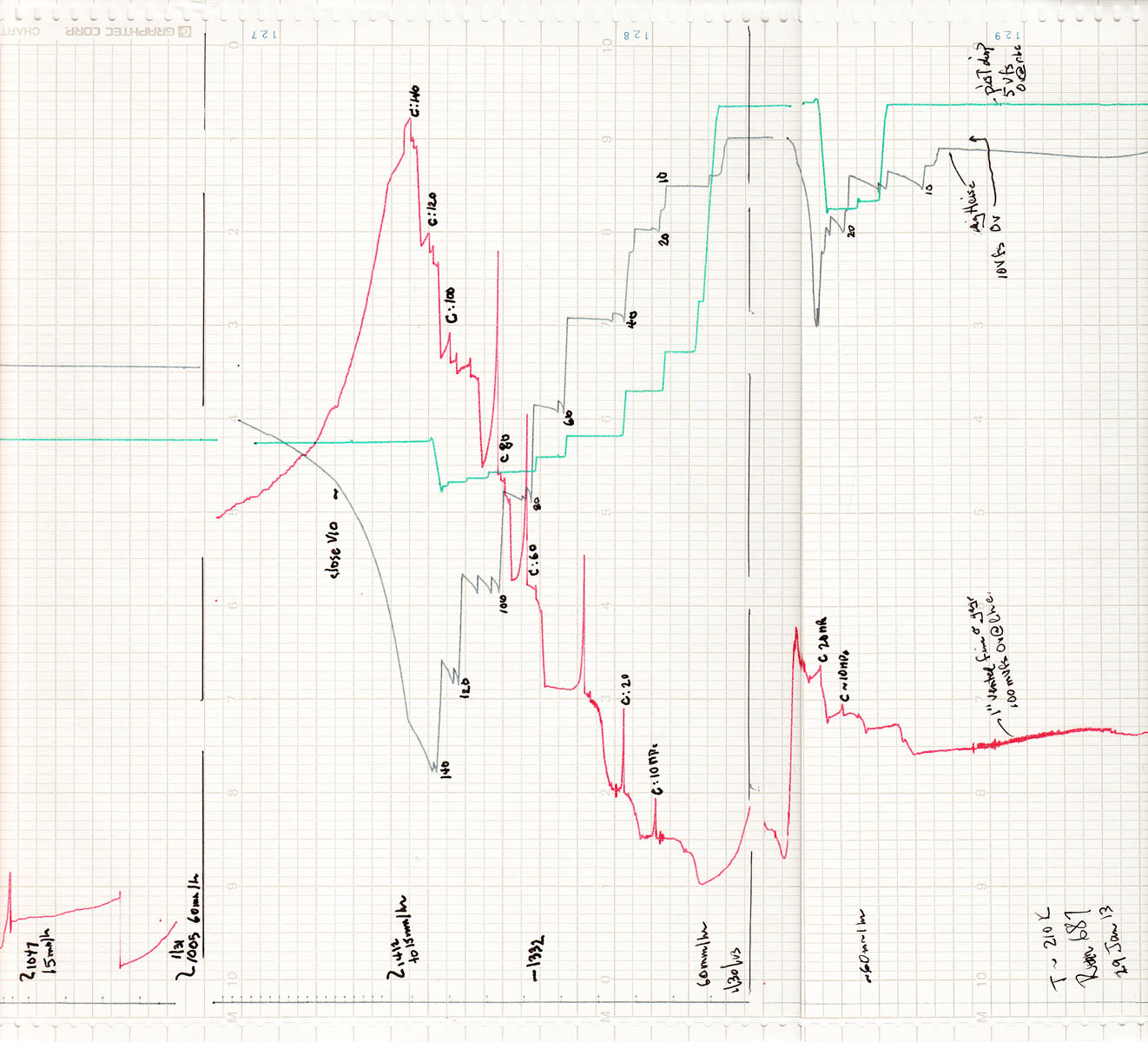

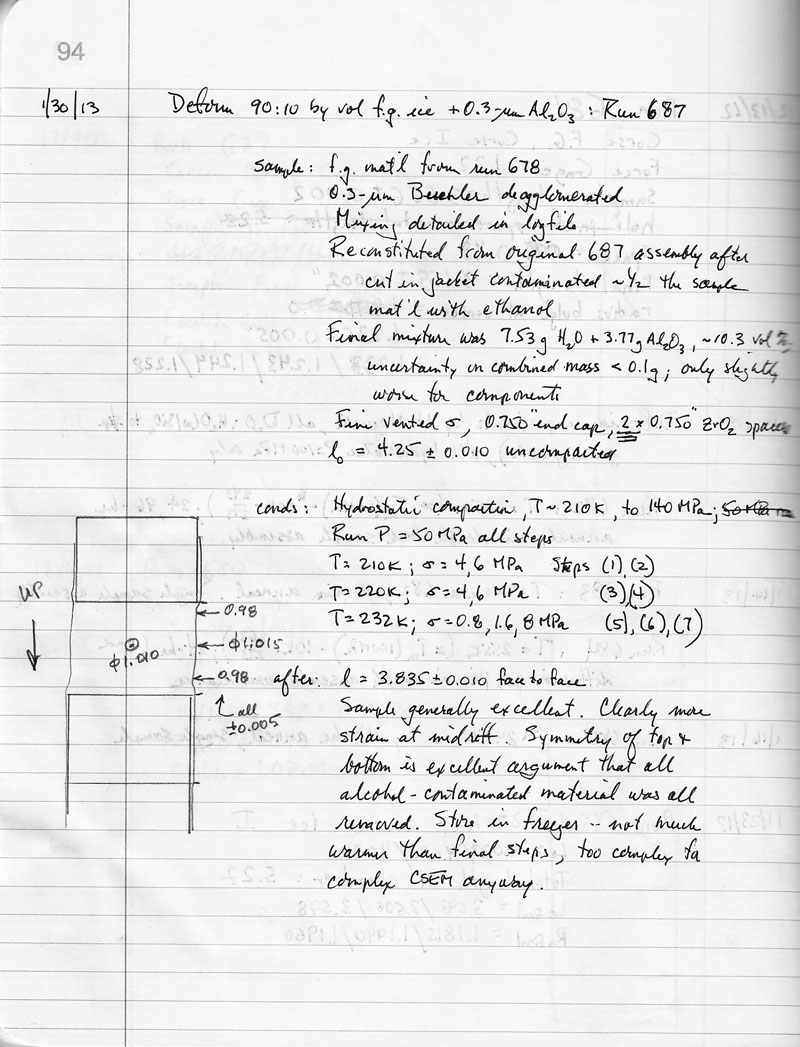

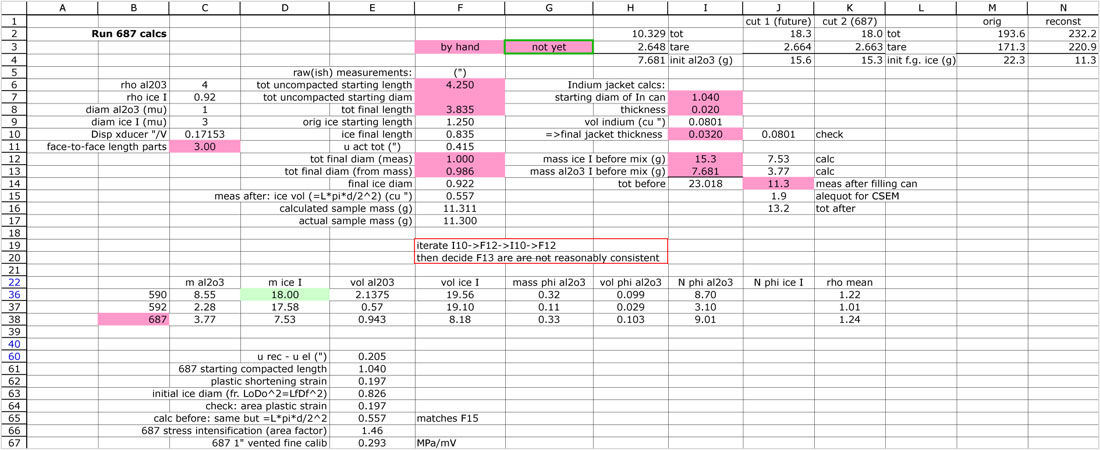

other resources: run log, live updates (archived), lab book page, sample prep calcs, chart record (start)

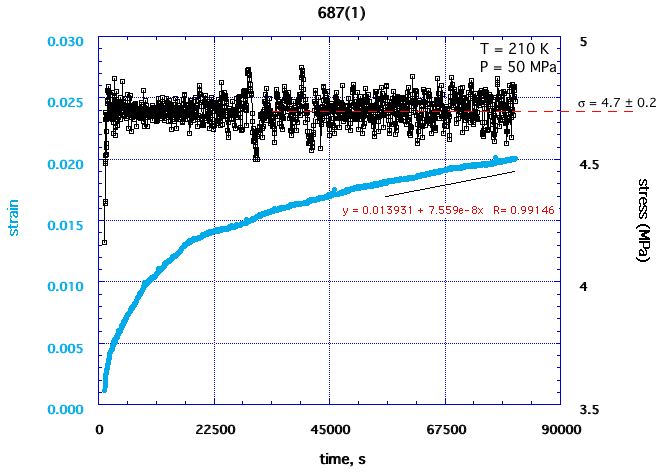

step (1)

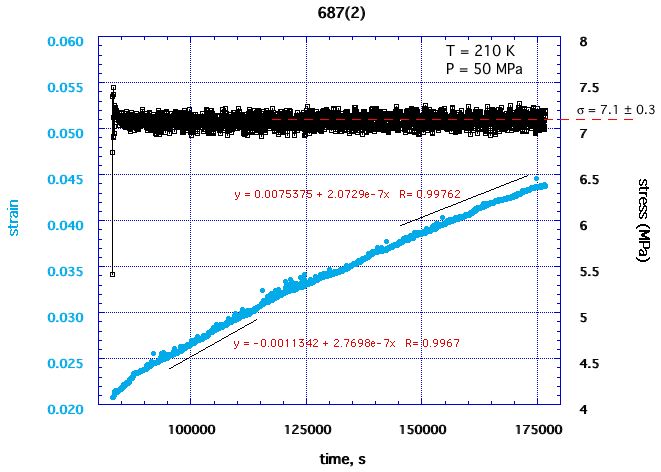

step (2)

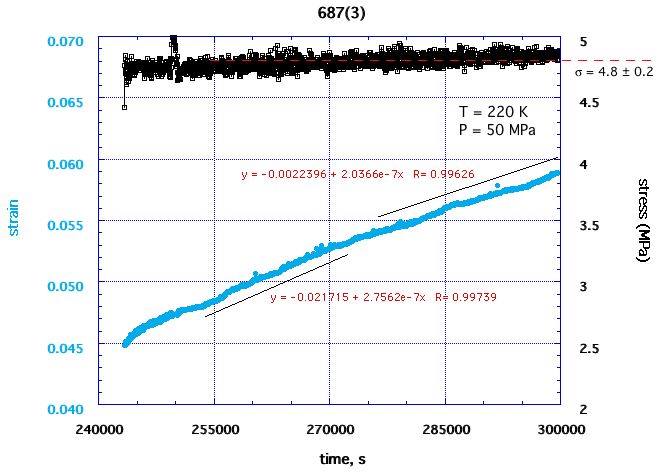

step (3)
step (4)

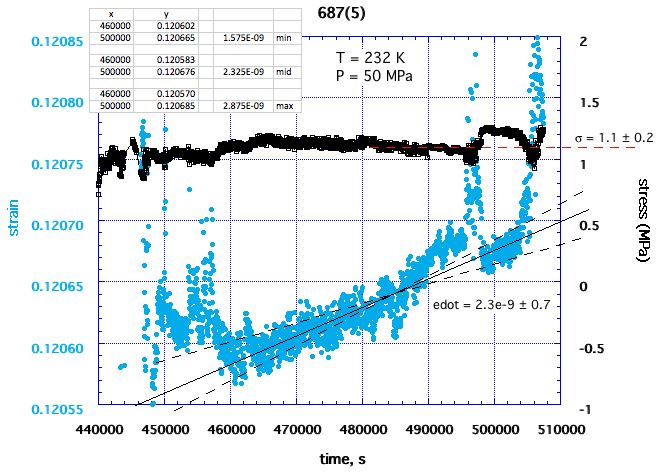

step (5)

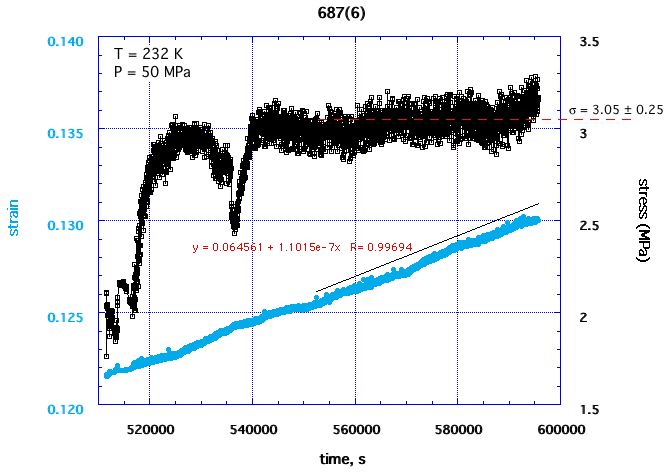

step (6)

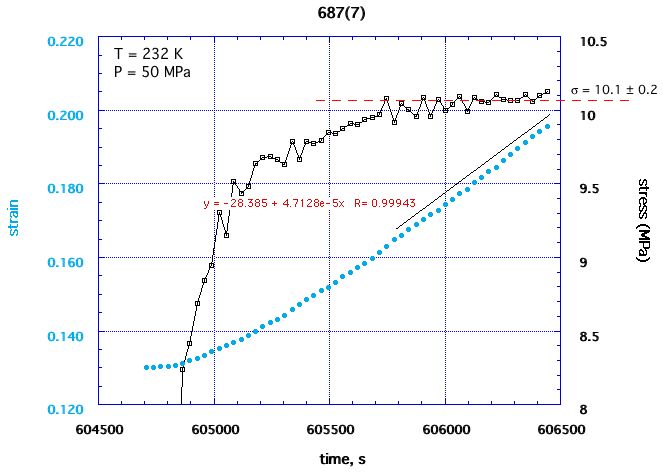

step (7)
