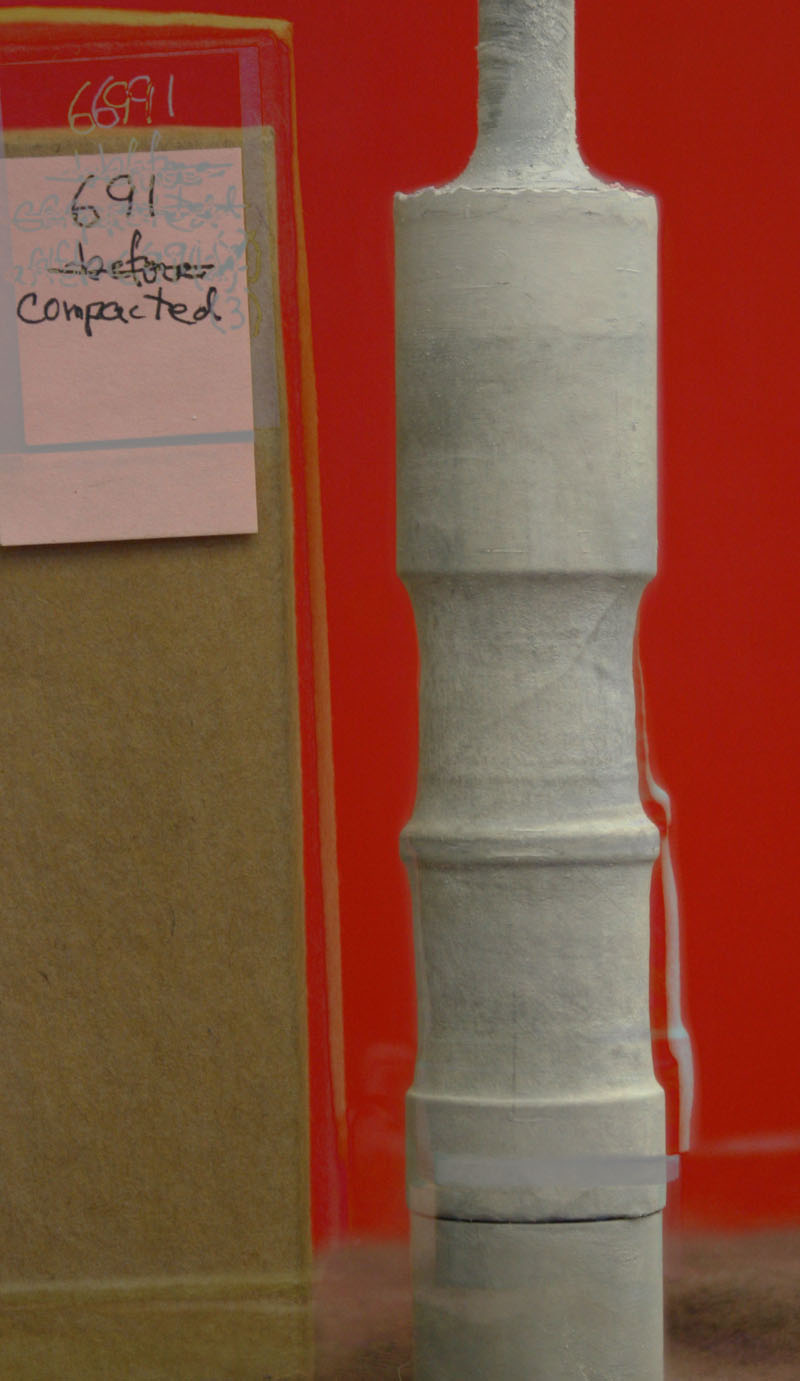

before compaction
after compaction, before def, 0,90 degree views 0,90 deg.jpg)

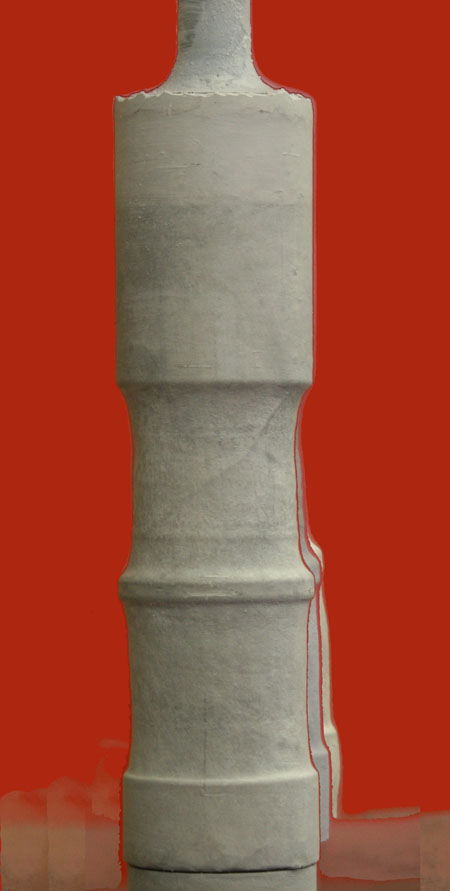

after step (2), 0, 90 deg 0,90 deg.jpg)
after step (3), 0, 90 deg
Categories |
| Prev in GSS+dust series (687) | Next in GSS+dust series (704) |
| Ice691: double sample, 3 x P-drop f.g. ice I + 10% by vol 0.3-micron Al2O3 | |
| Top piece: WBD method | |
| Bottom piece: DLG method | |
| Cold press 2 hrs at 120 MPa, 210 K | |
| T = 210 K, P = 50 MPa, s = 6 MPa | step (1) |
| T = 210 K, P = 50 MPa, s = 8 MPa | step (2) |
| T = 210 K, P = 50 MPa, s = 12 MPa | step (3) |
|
|
micrographs (not yet) (but they do exist!) |
|
|||

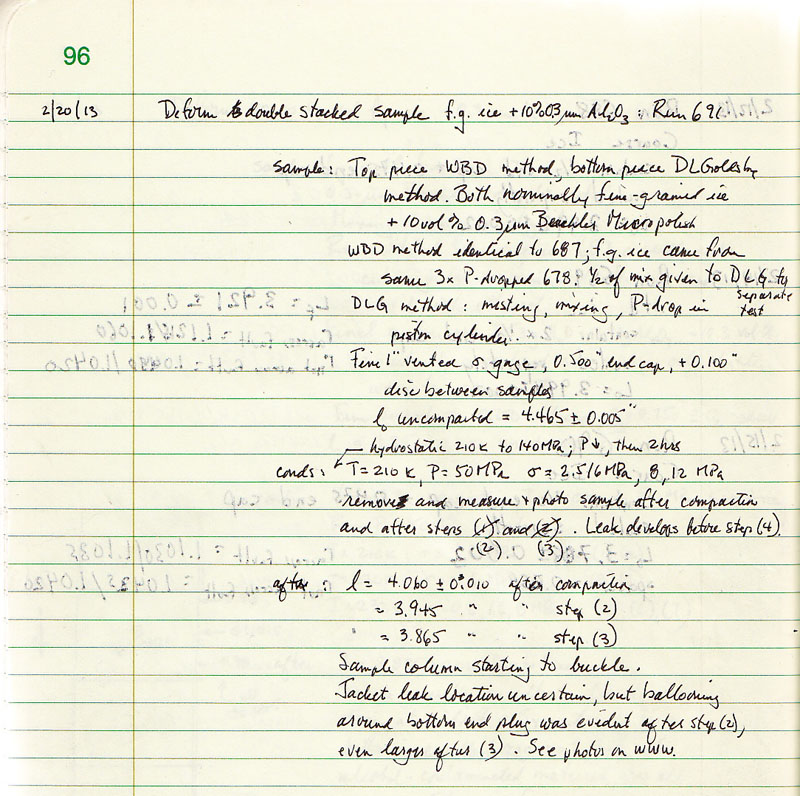

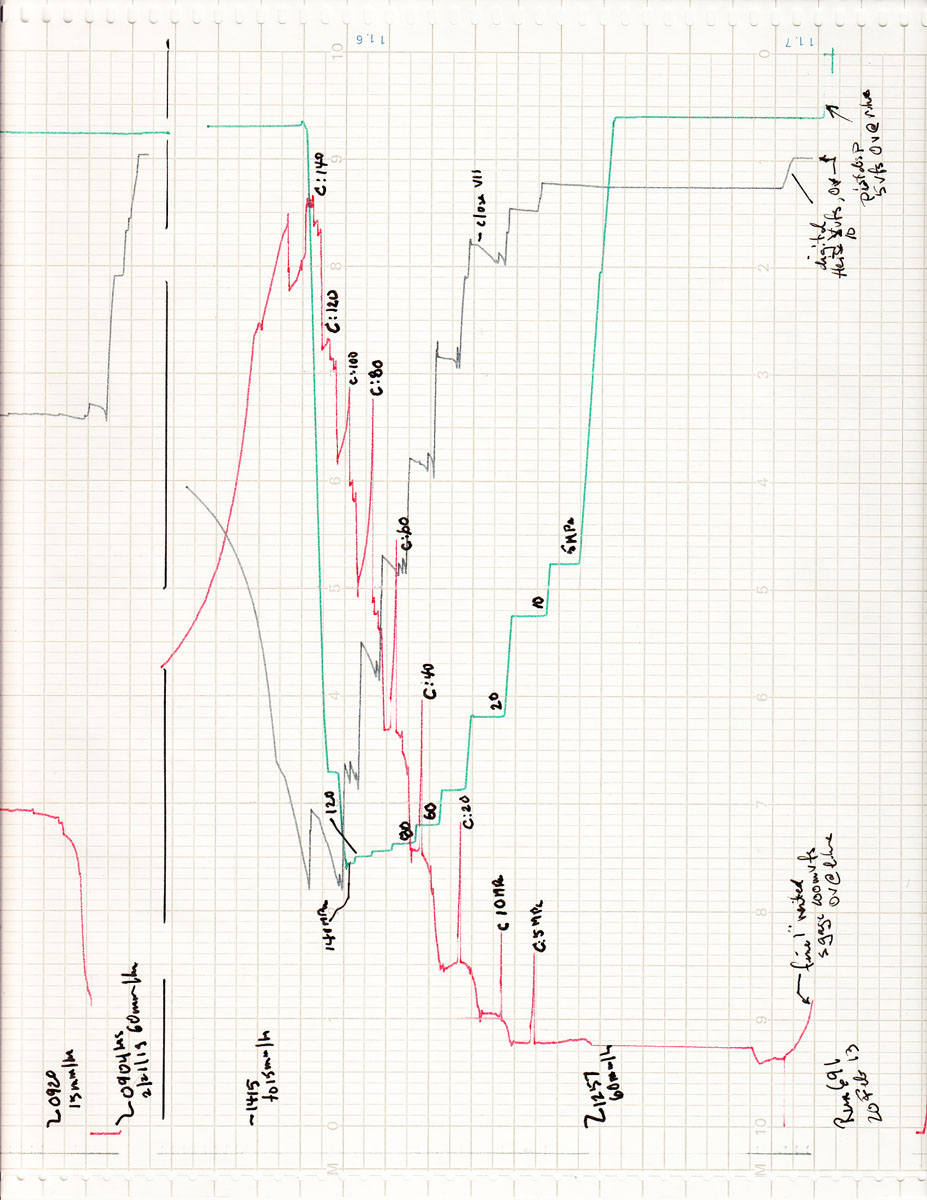

other resources: run log, live updates (archived), lab book page, sample prep calcs, chart record (start) |
|||||

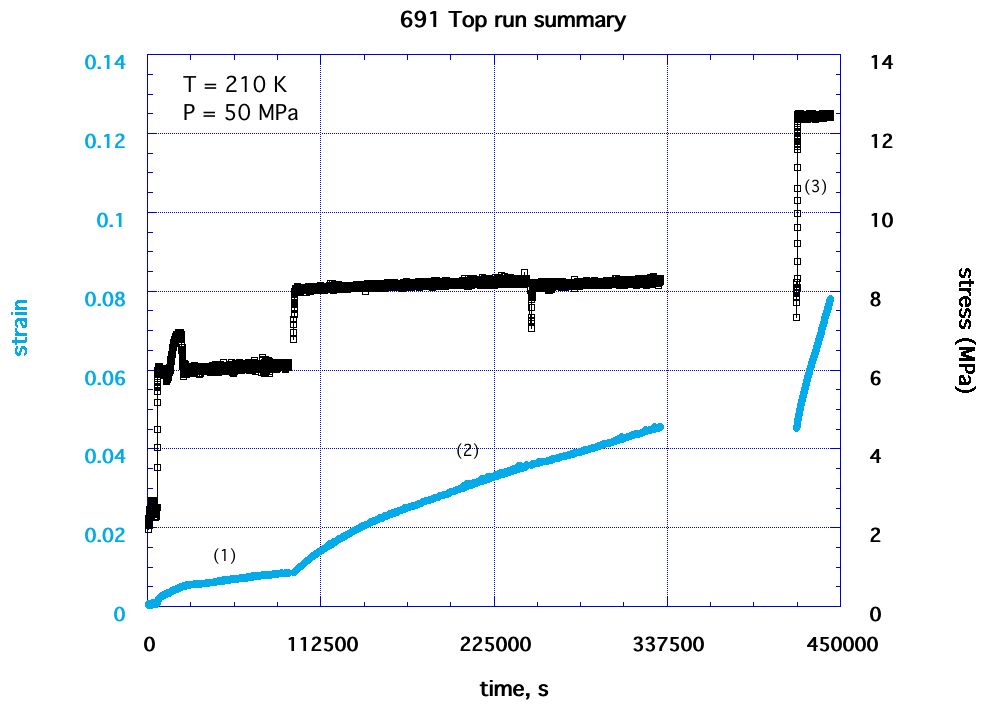

run summary (Top)

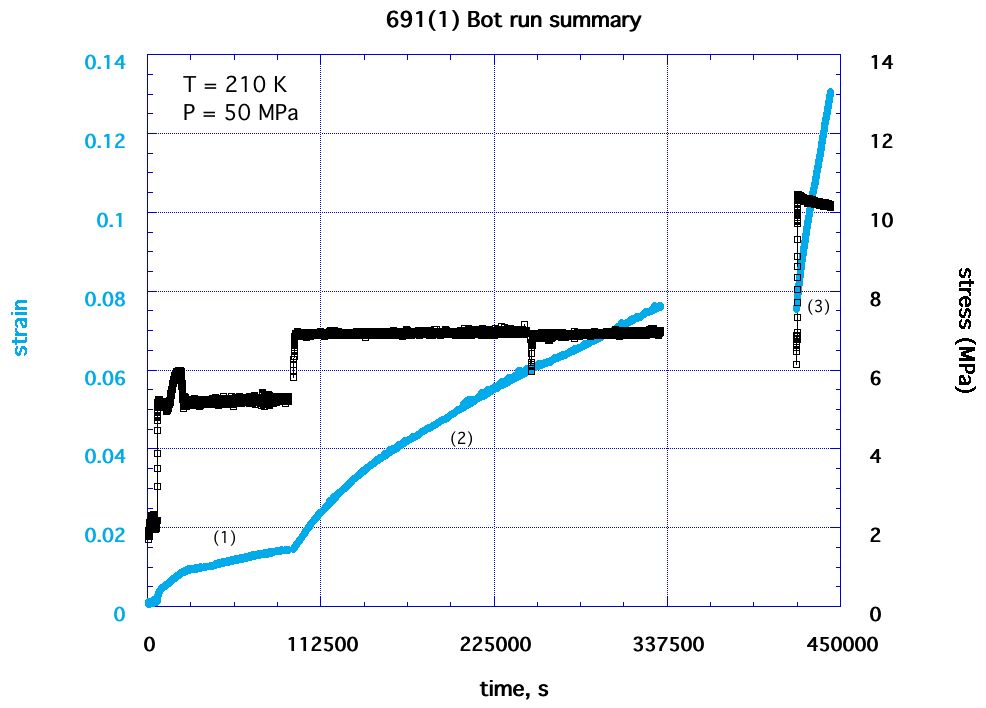

run summary (Bot)
