Ice692: standard ice I (sieve size 0.180 - 0.250 mm)

T = 180 K, P = 40 MPa, 1:1 gearing, udot=MR2000/V8 edot = 5.76e-3/s; s max= 101.0 MPa

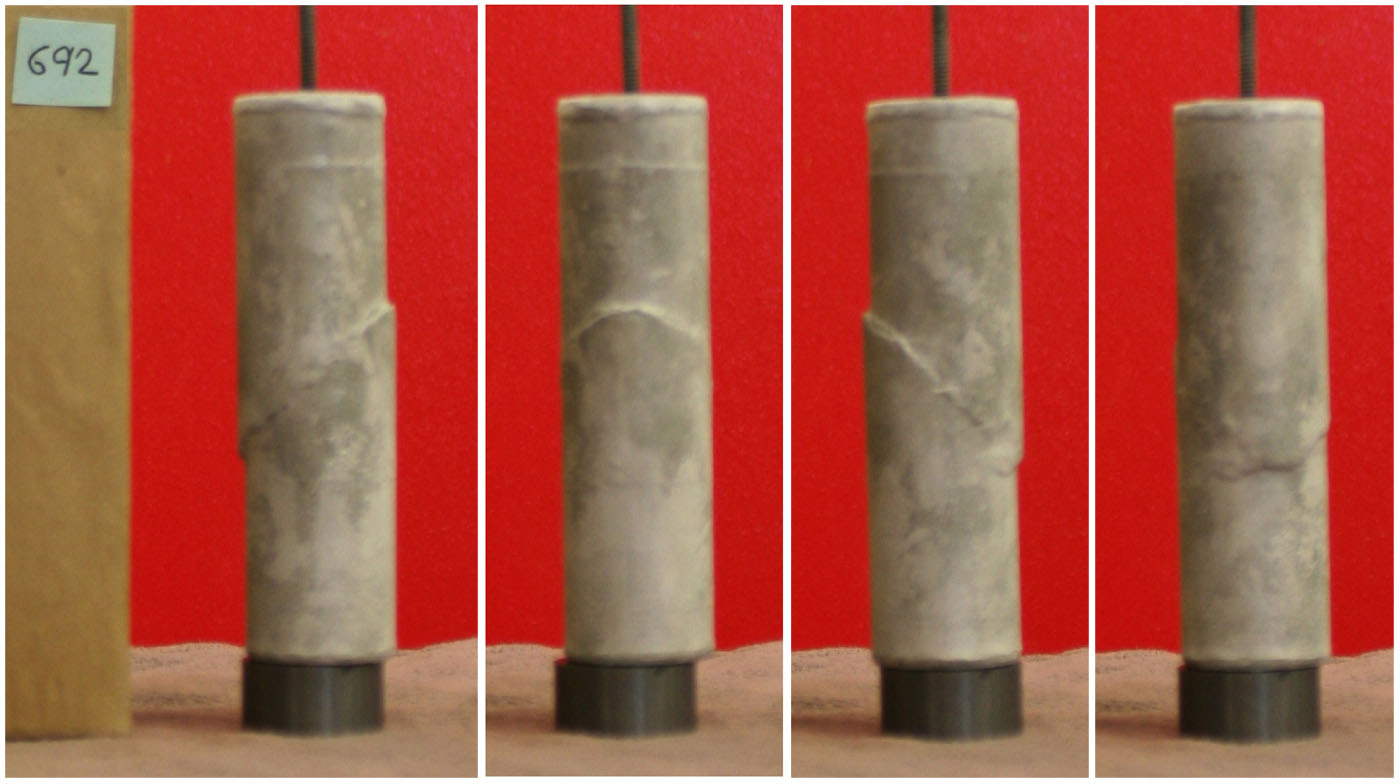

after faulting



micrographs

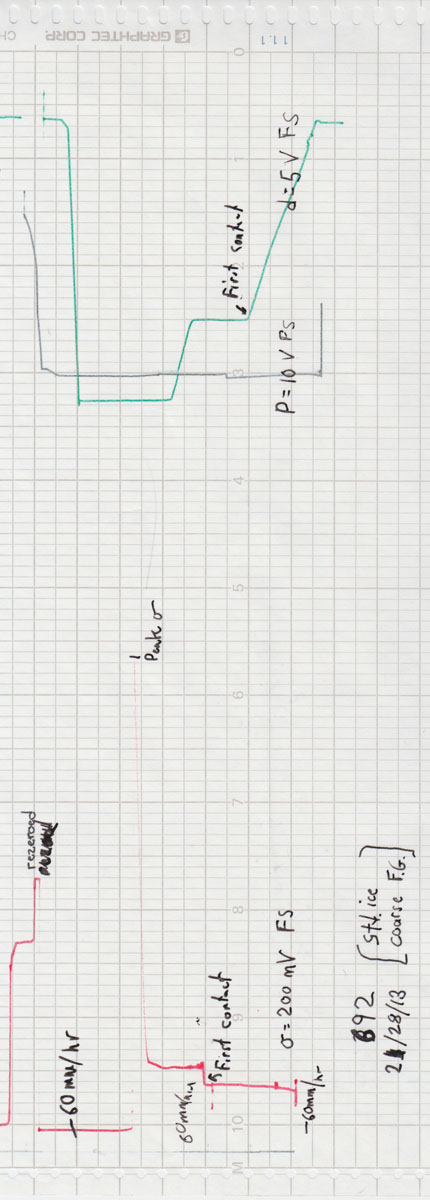

chart record

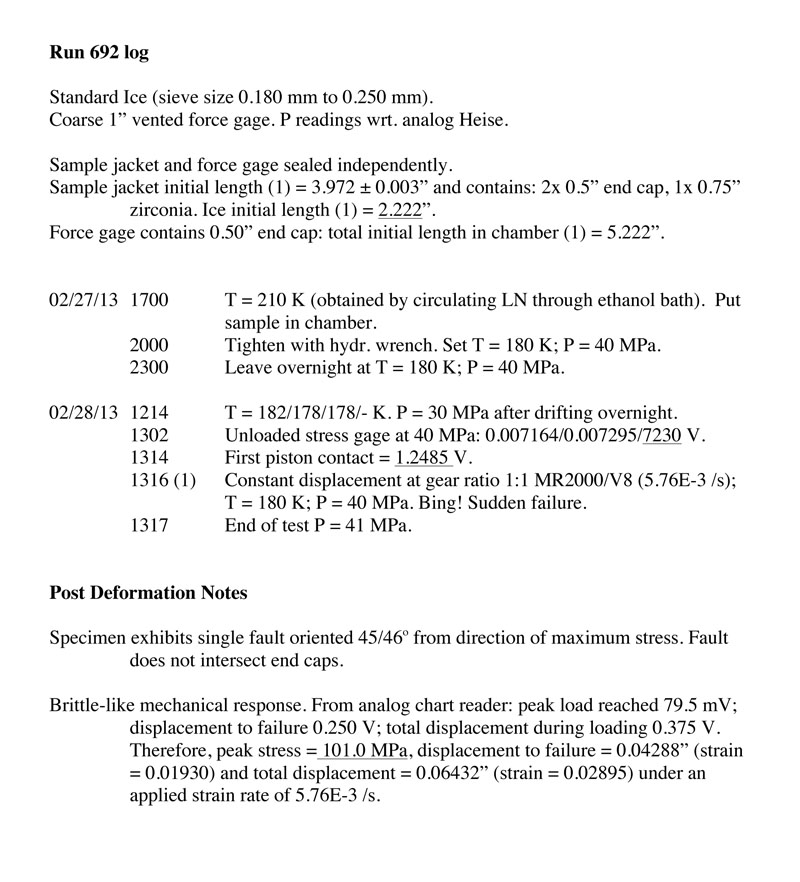

run log
