Ice704: 3 x P-drop f.g. ice I + 10% by vol 0.3-micron Al2O3

T = 210 K, P = 50 MPa, s = 4, then 5 MPa step (1)
T = 210 K, P = 50 MPa, s = 7 MPa step (2a), (2b), (2c), [depressurize], (2d, (2e), [depressurize], (2f), (2g), (2h)

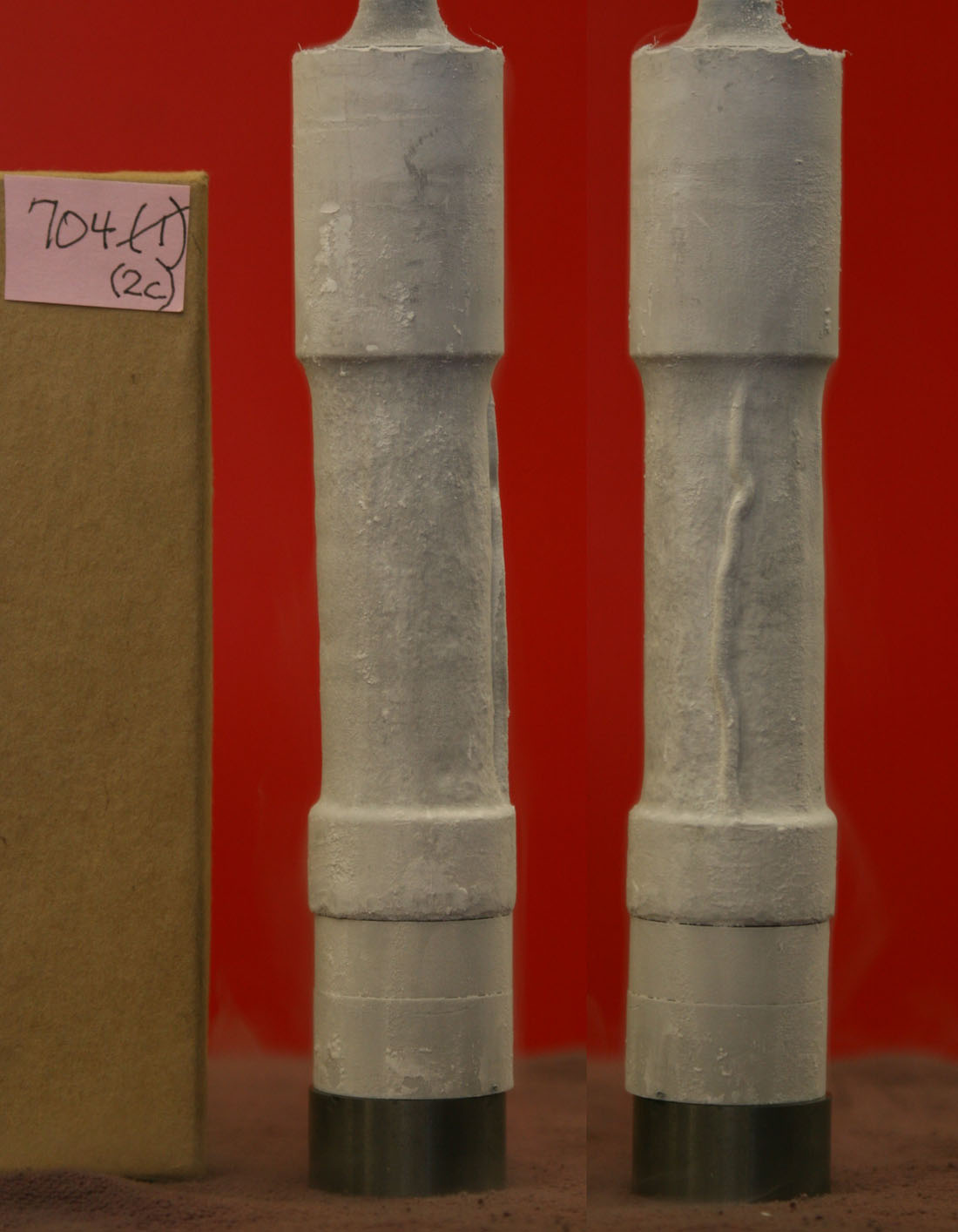

After step (2c), views at 45, 135 deg

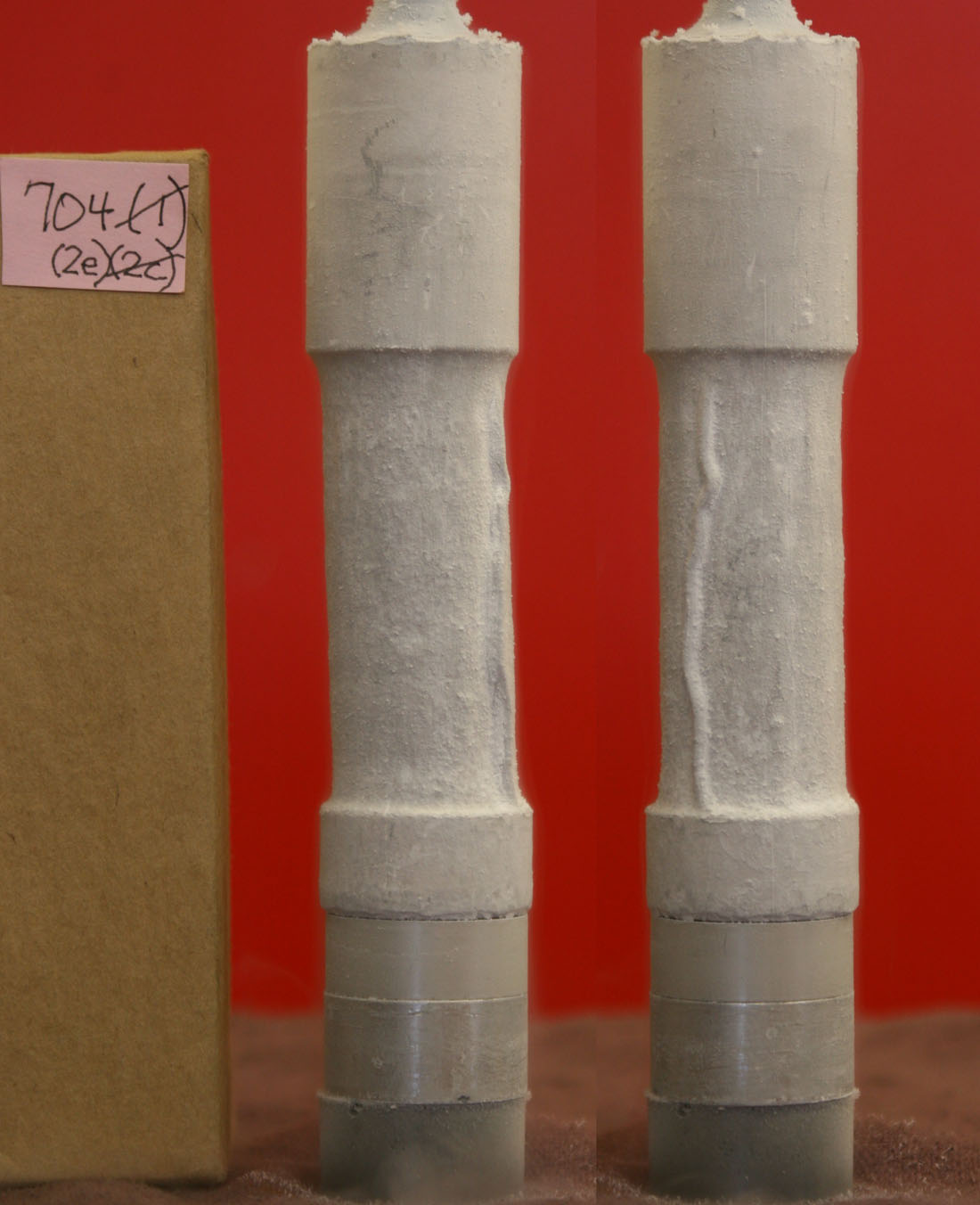

After step (2e), views at 45, 135 deg

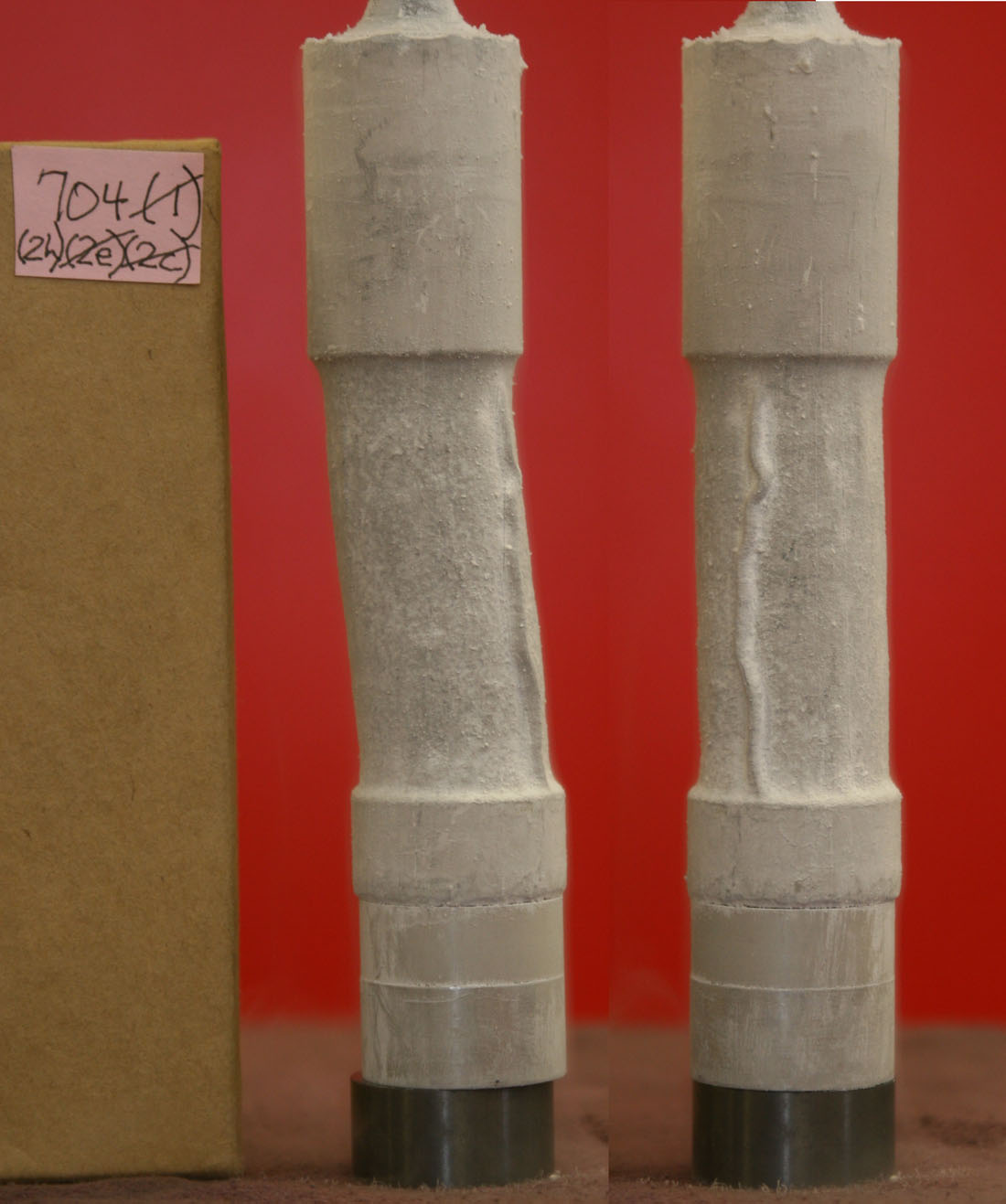

After step (2h), views at 45, 135 deg

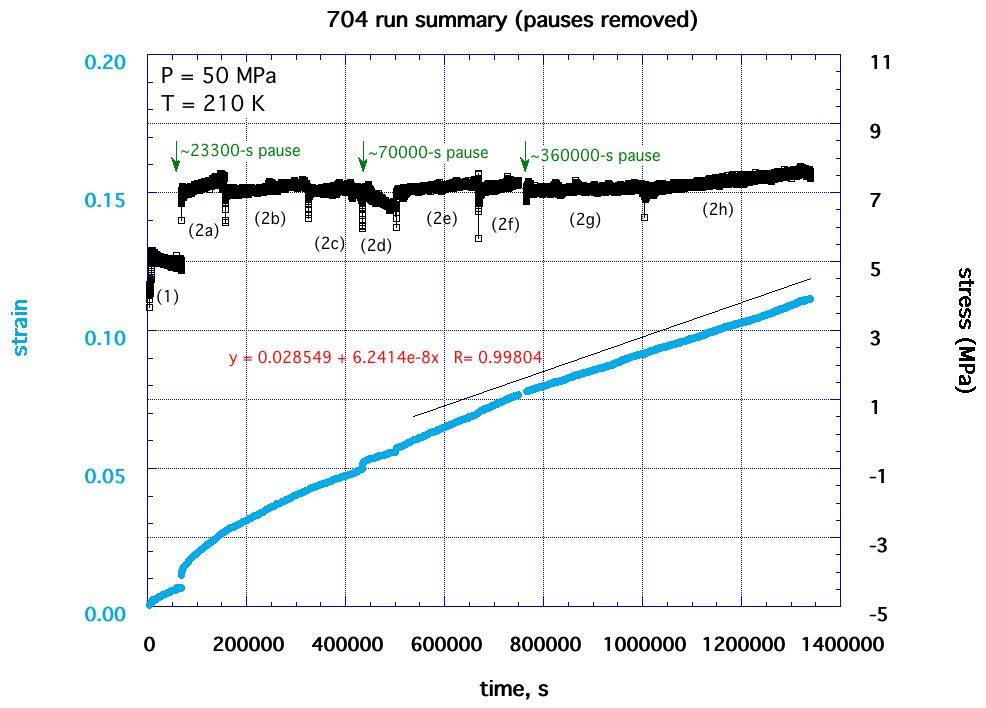

run summary

micrographs

(not yet)

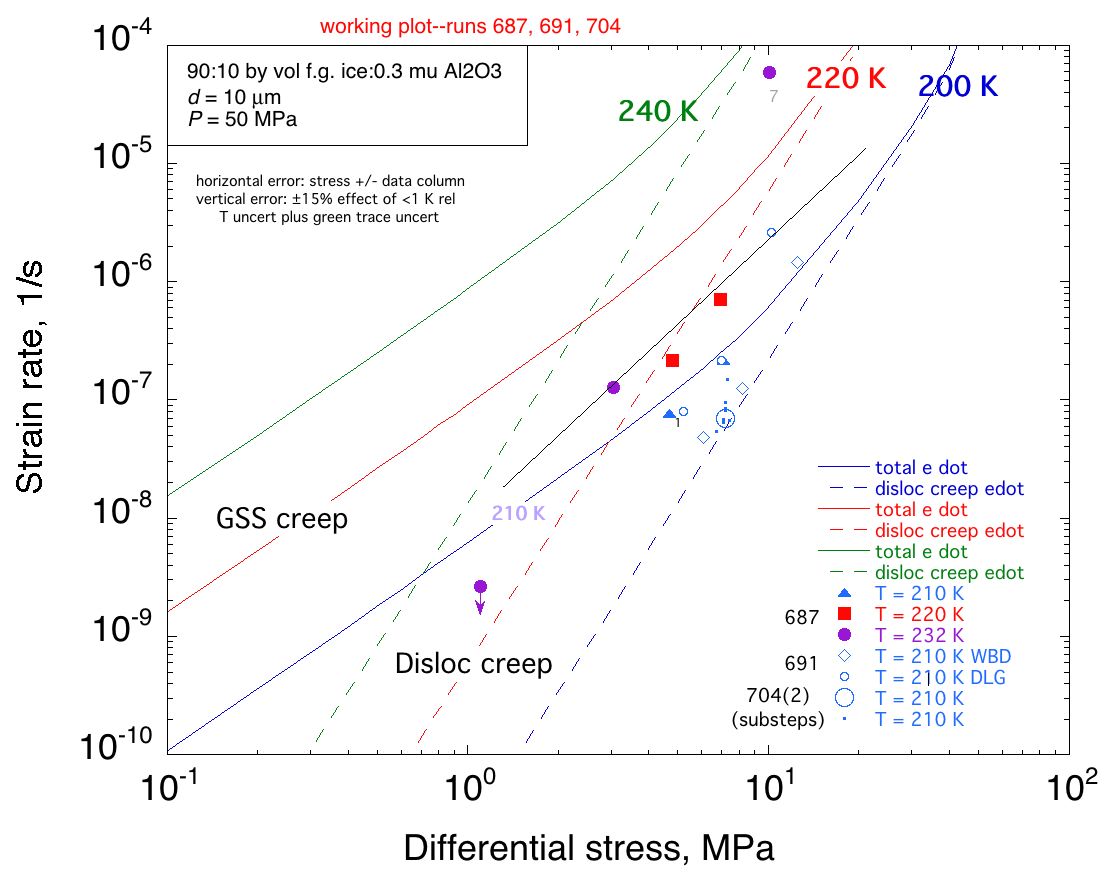

704 working plot (with 687, 691)

704(2) detail of indiv steps

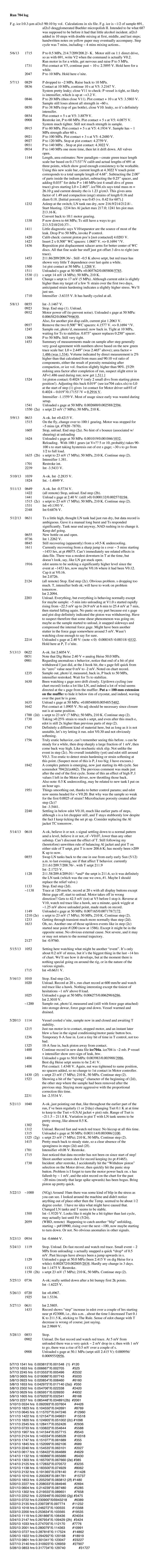

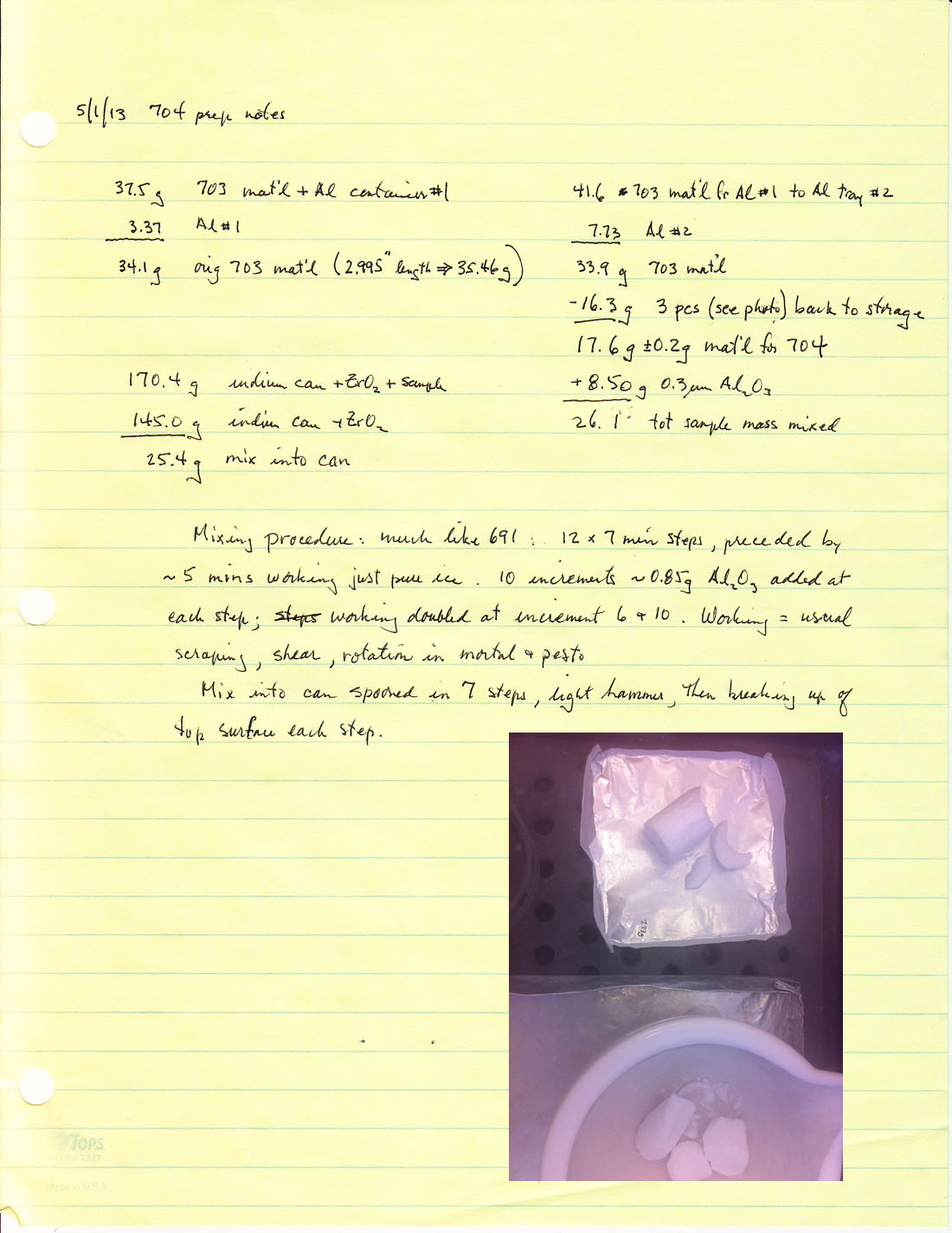

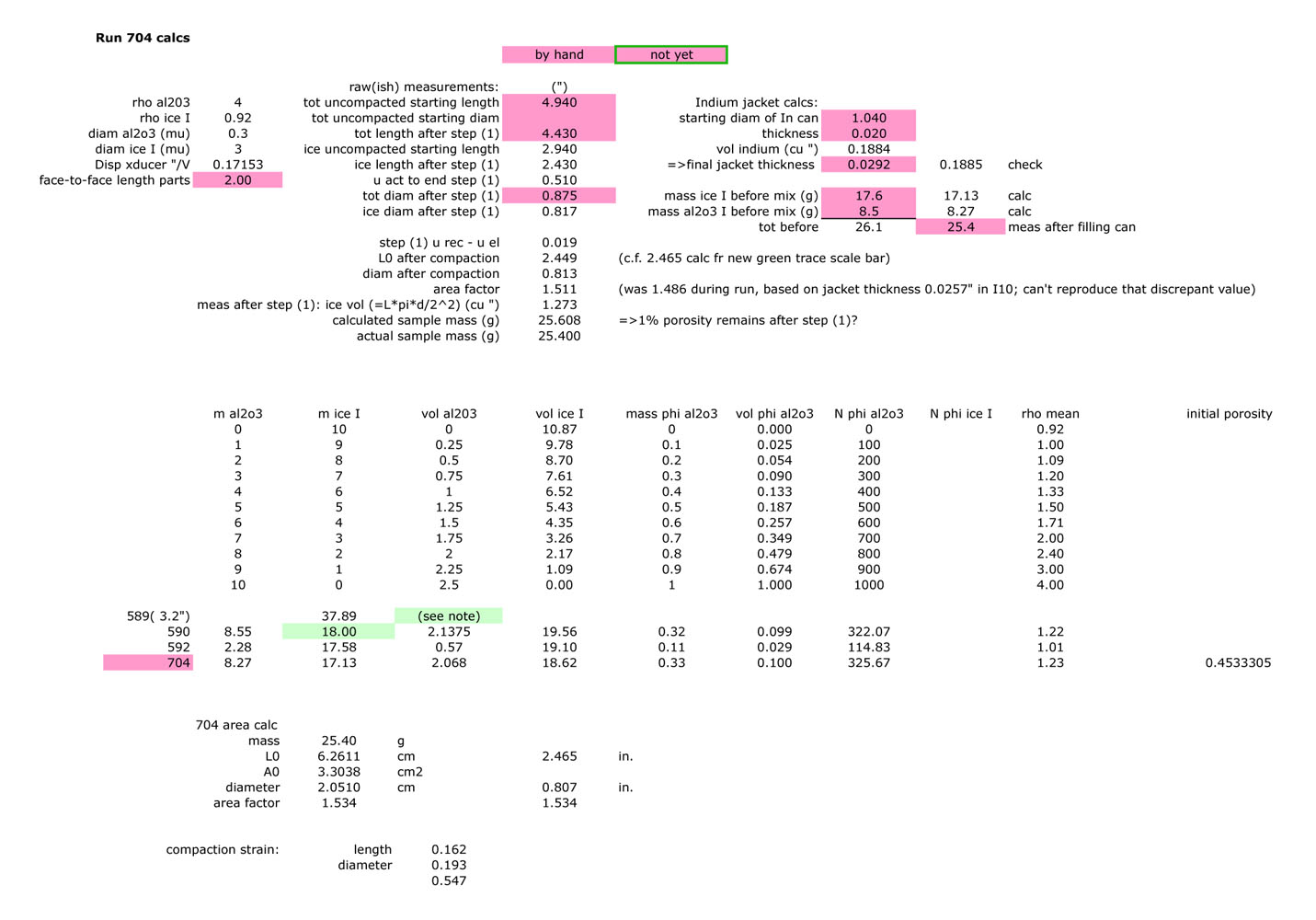

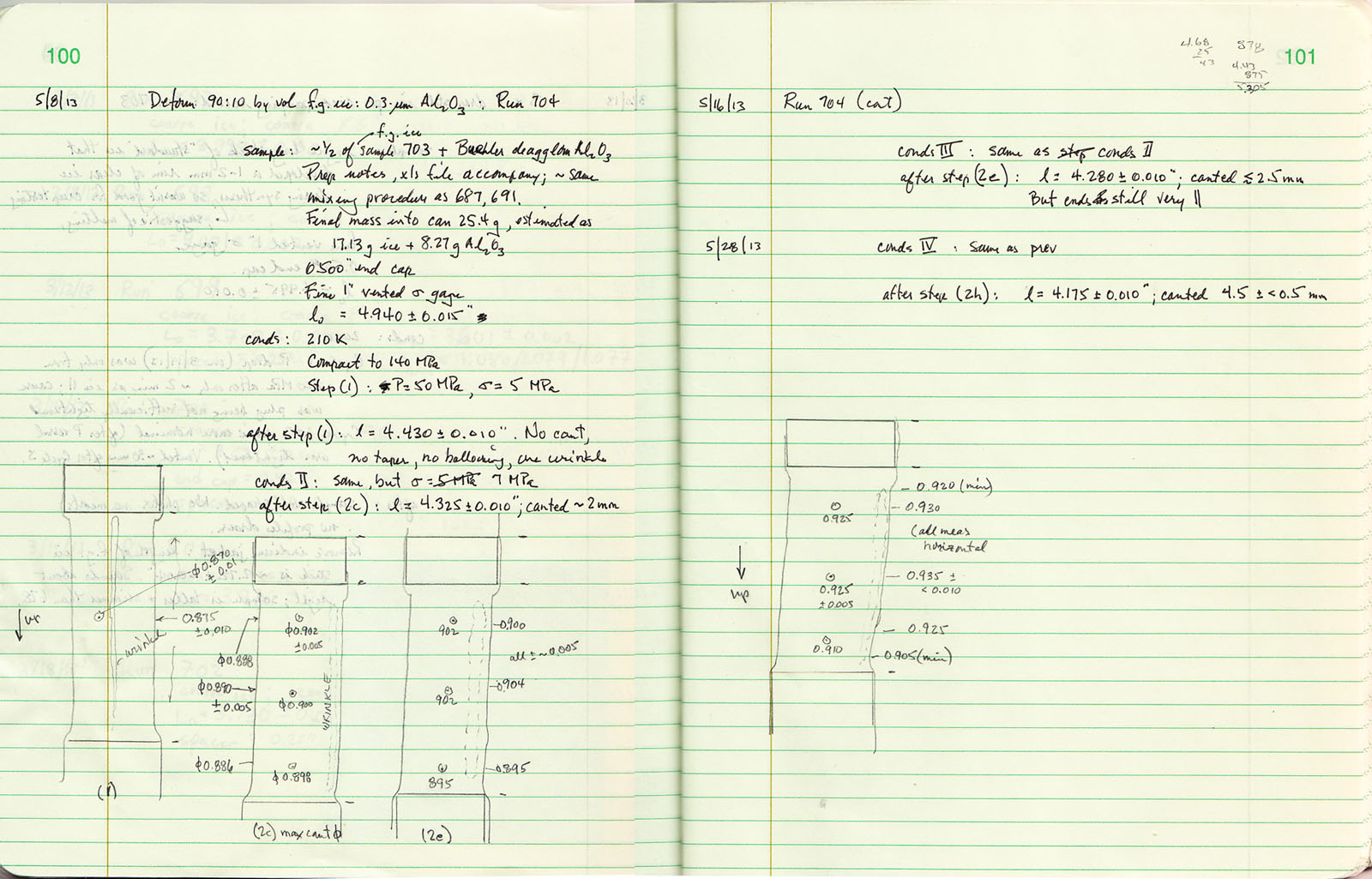

other resources: run log, live updates (archived), lab book page, sample prep notes, ice704 calcs

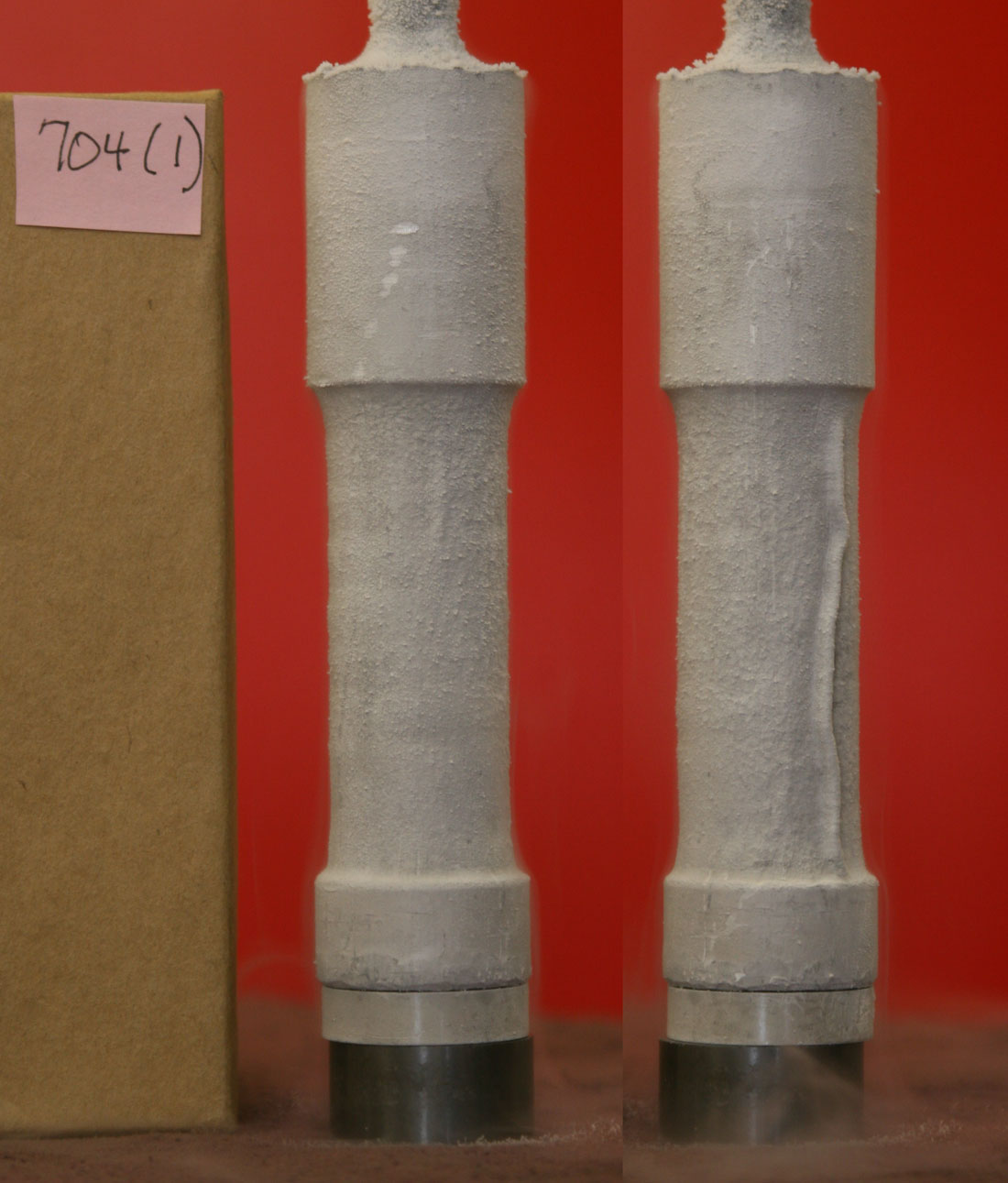

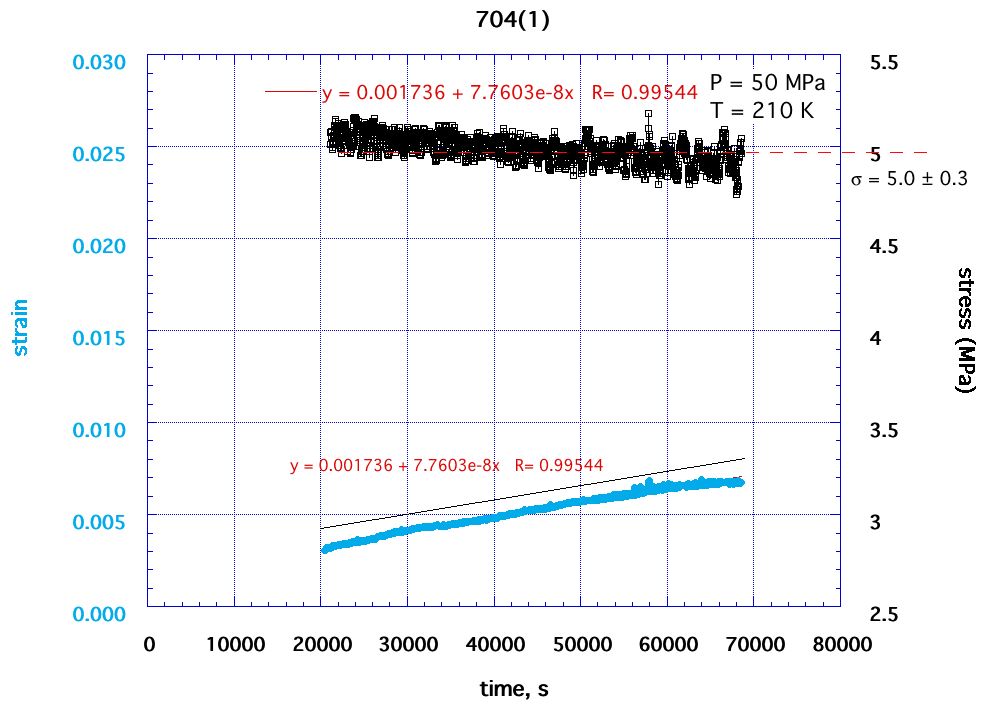

step(1)

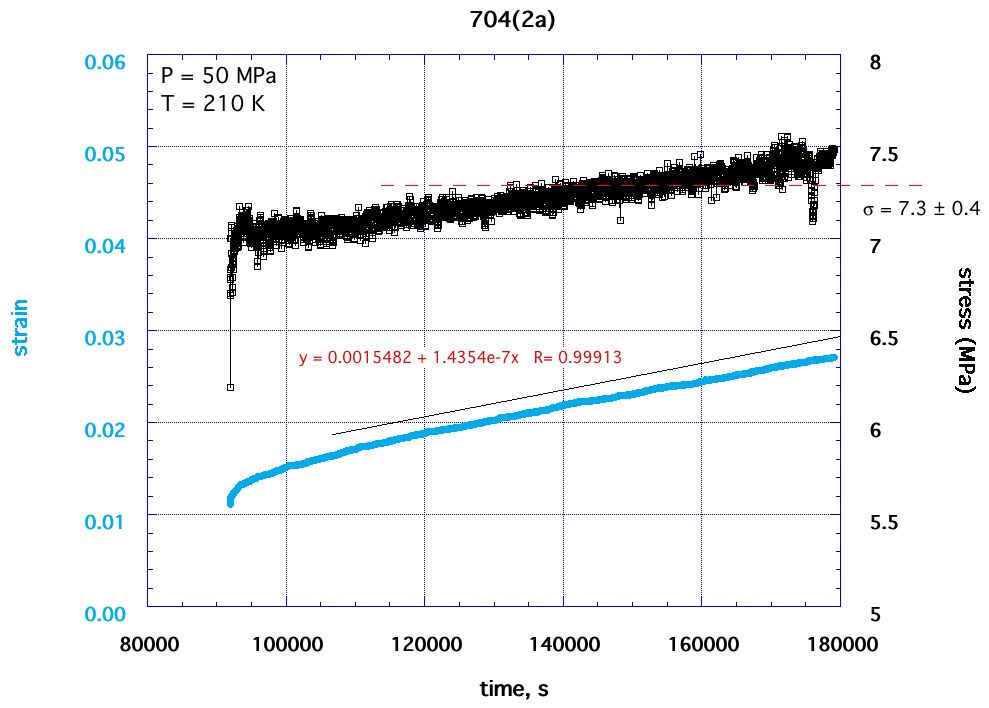

step (2a)

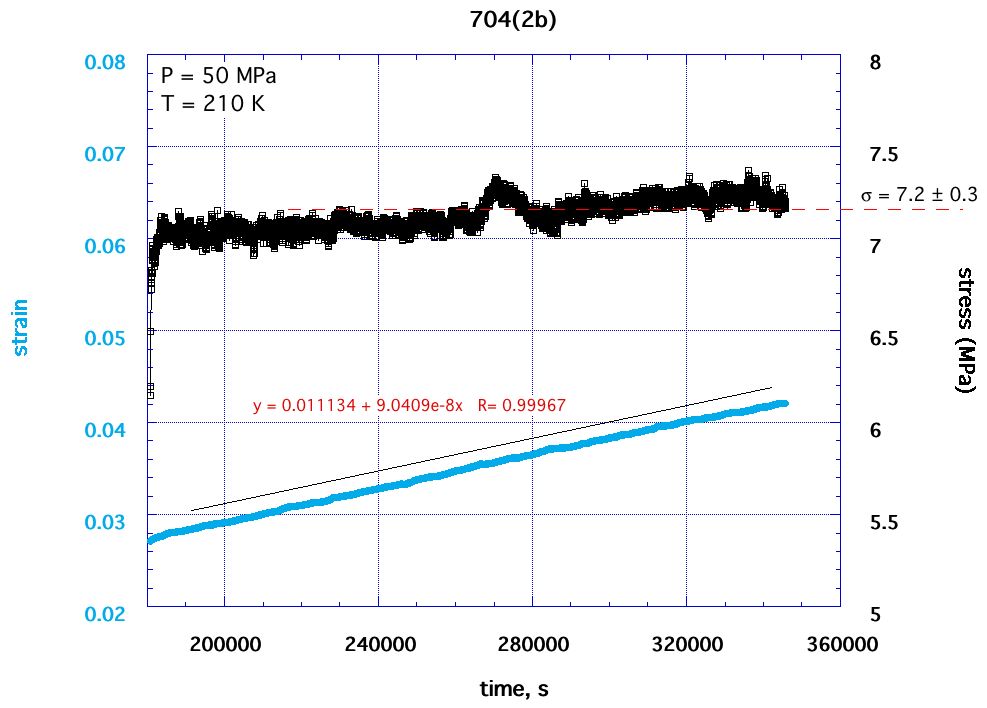

step (2b)

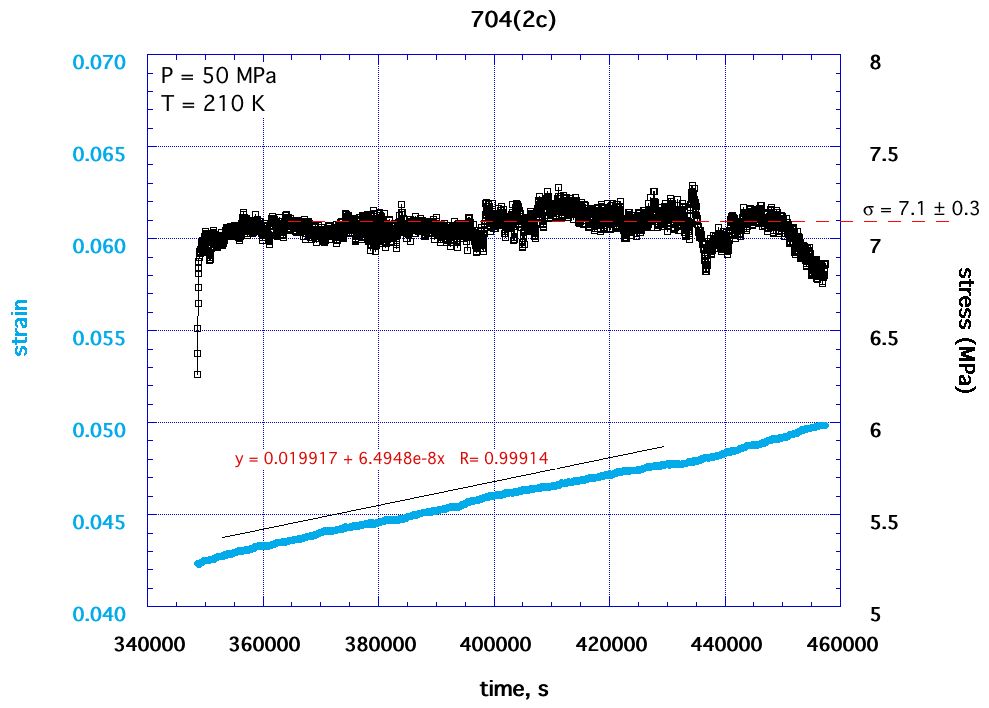

step (2c)

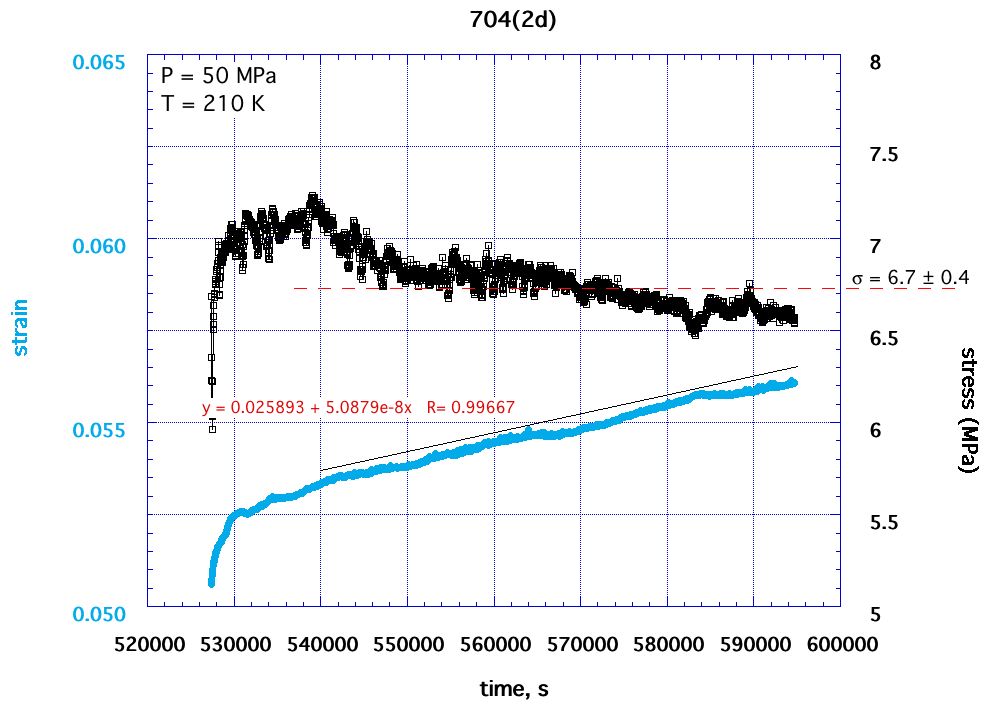

step (2d)

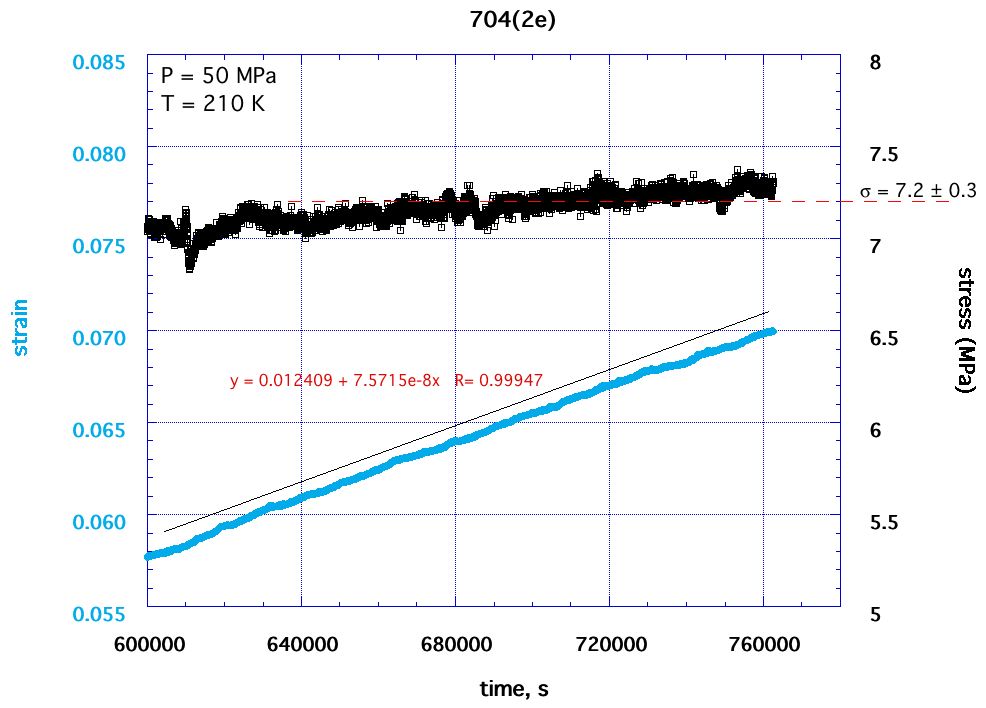

step (2e)

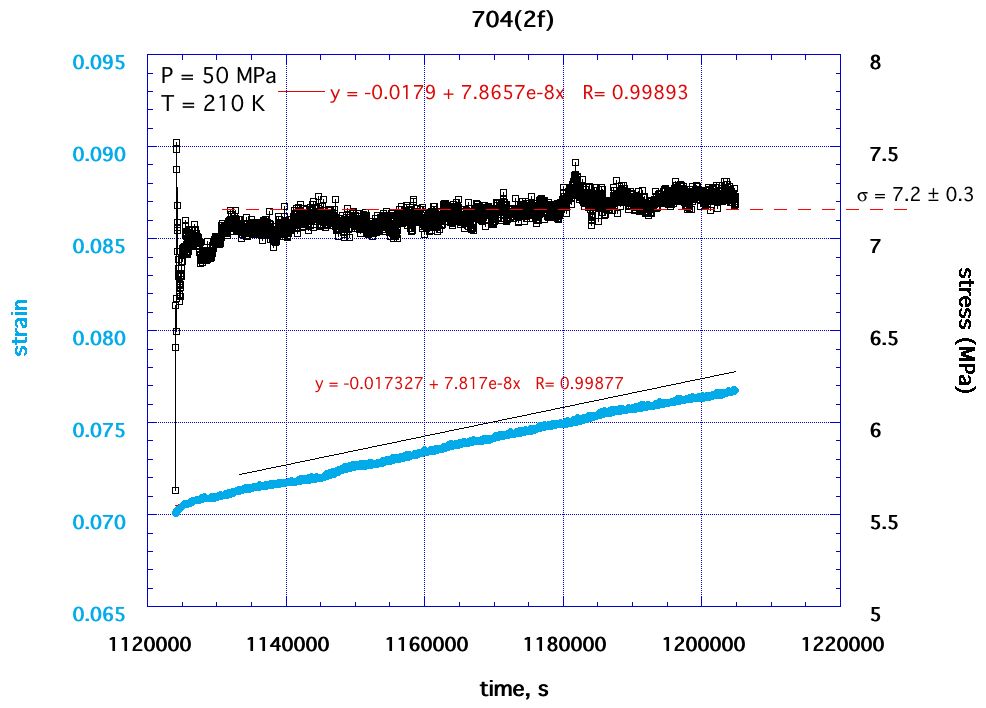

step (2f)

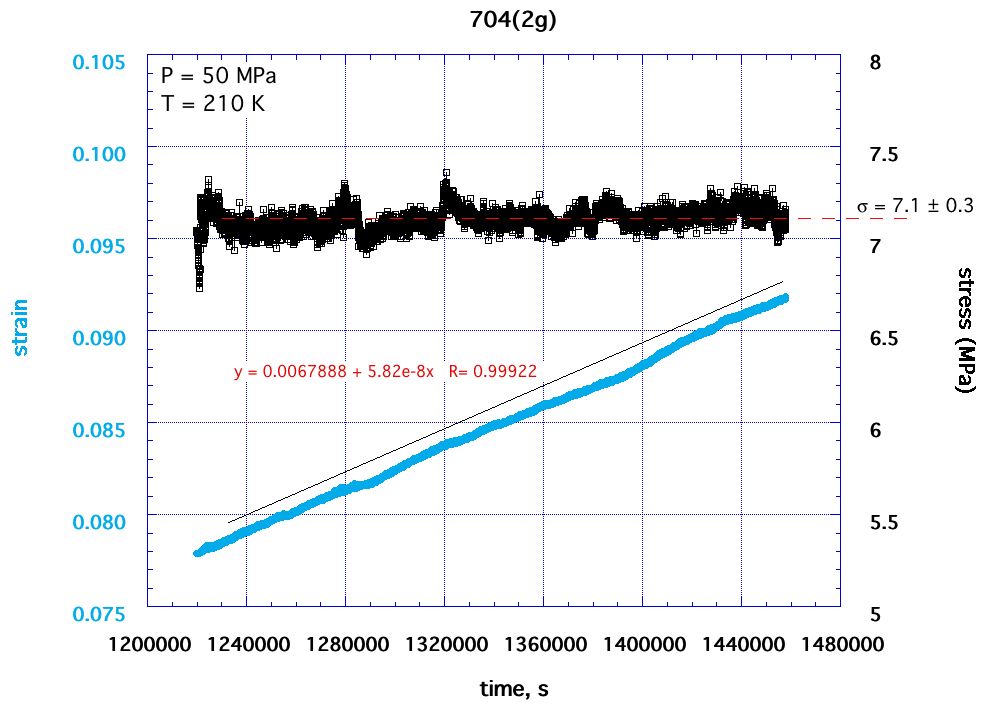

step (2g)

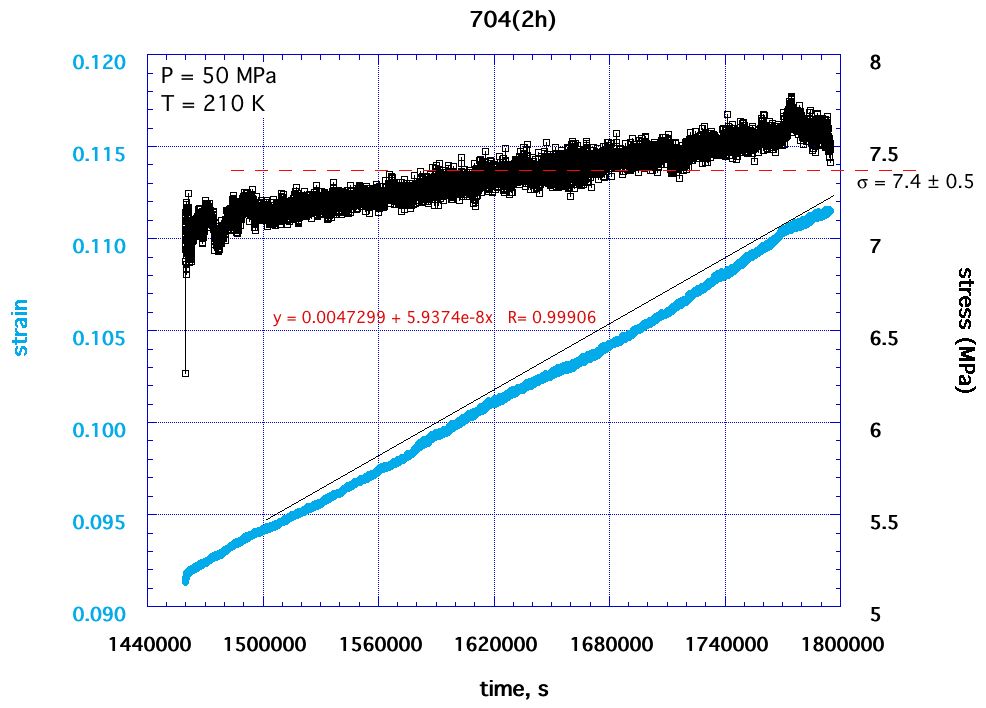

step (2h)
