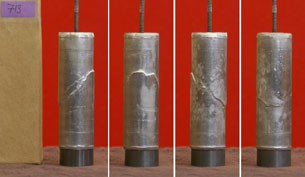

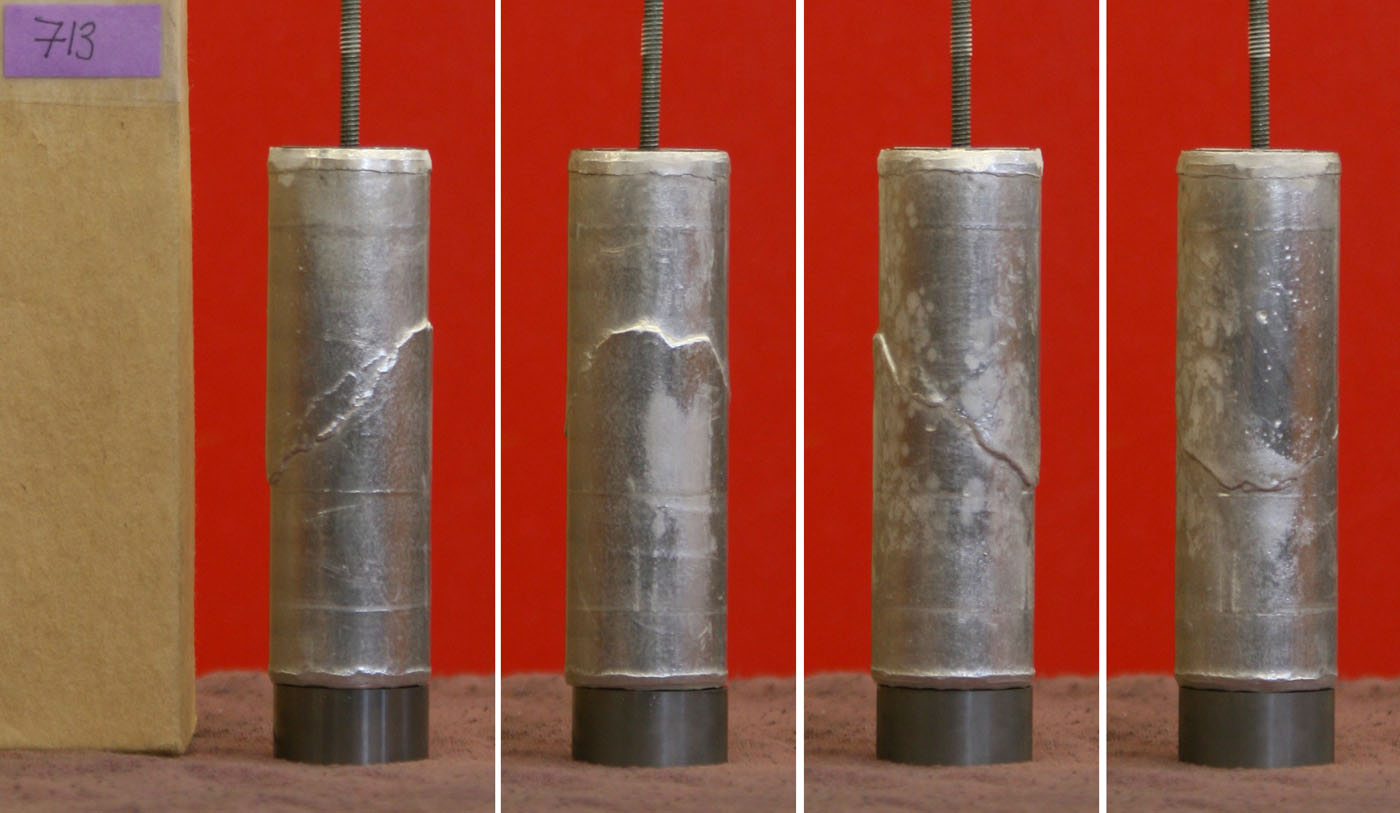

after failure
(not yet)
micrographs
Categories |
| Prev in faulting series (712) | Next in faulting series (714) |
Ice713: coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 50.0 MPa, 10:1 gearing, udot=MR2000/V4.35 | edot = 4.03e-3/s; s max= 110.5 MPa |
|
(not yet) micrographs
|

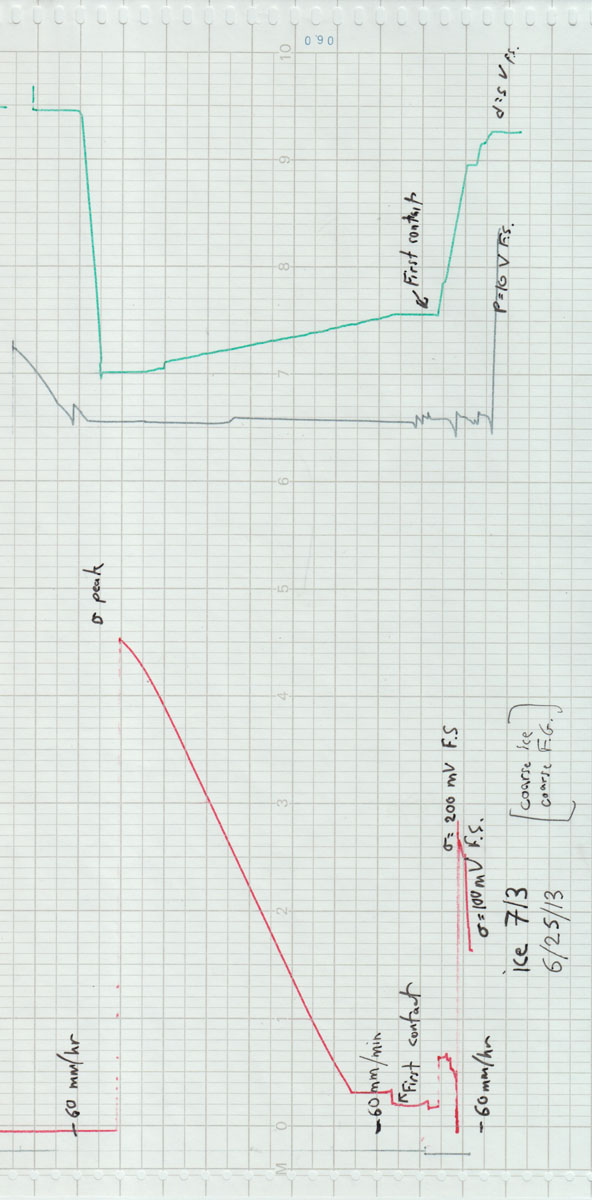

chart record

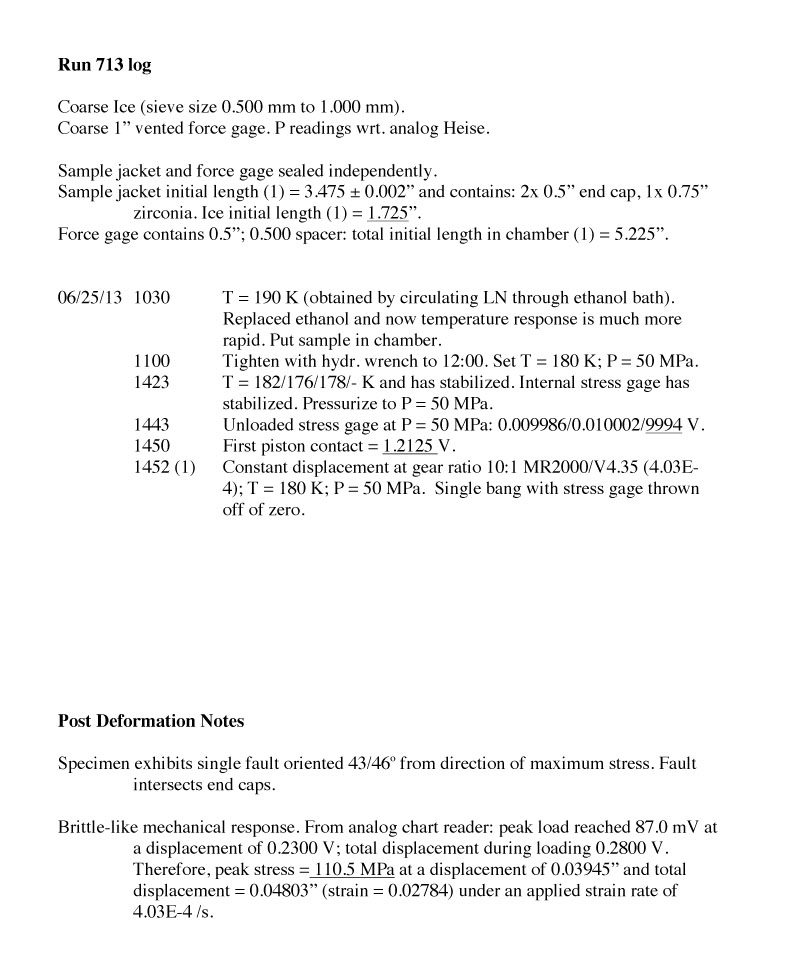

run log
