Ice712: coarse-grained ice I (sieve size 0.5 - 1 mm)
T = 180 K, P = 100.0 MPa, 1:1 gearing, udot=MR2000/V0.9 | edot = 7.08e-4/s; s max= 111.1 MPa; s ss = 94.9 MPa; total e = 0.145 |
(not yet) micrographs
|
|||

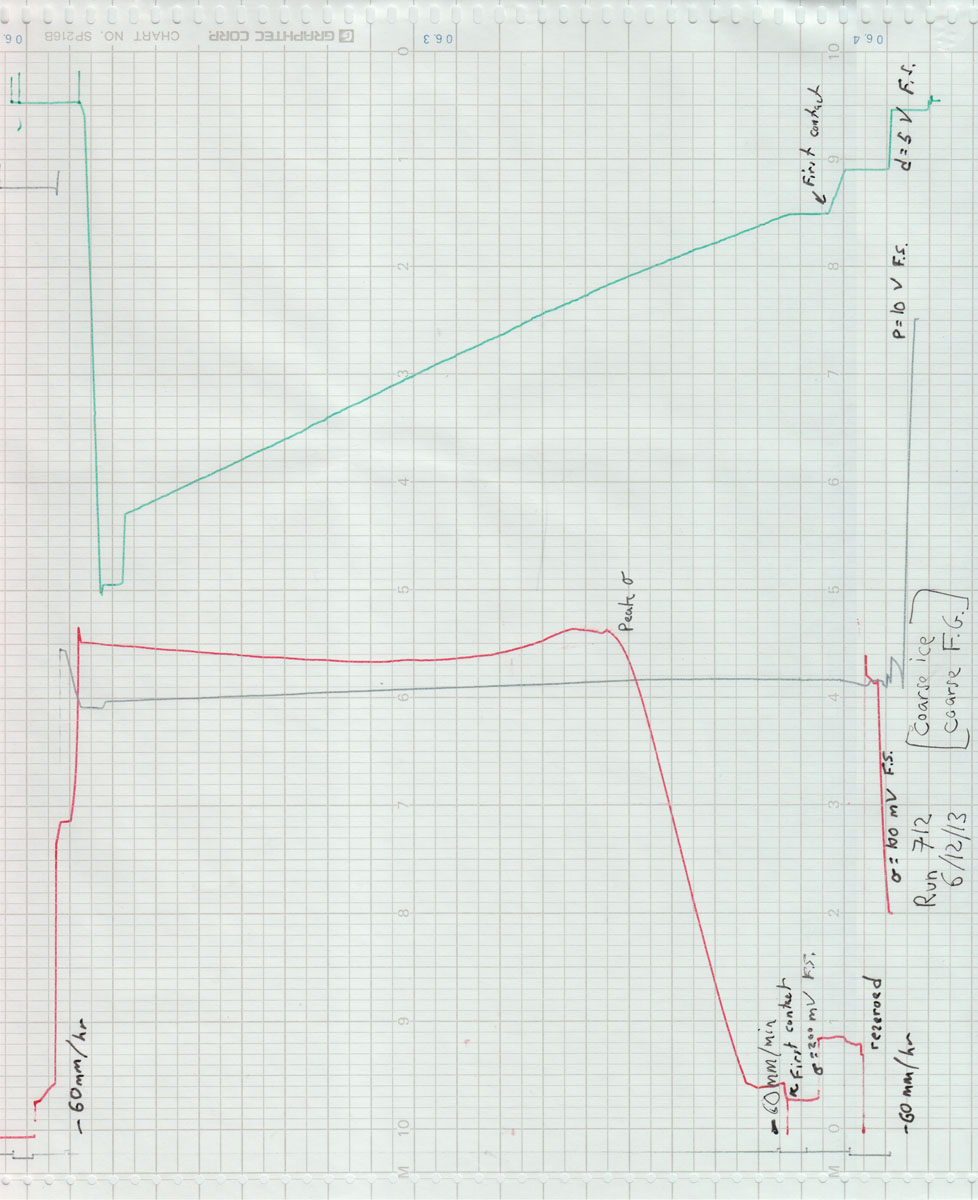

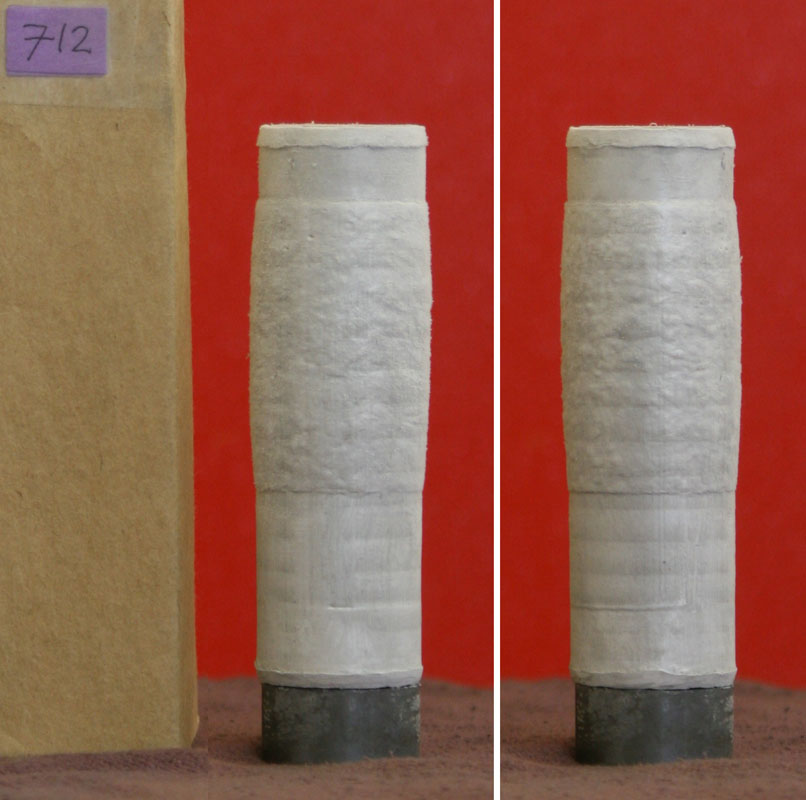

Note: rumpled jacket and more conventional red vs. green curve behavior => little (if any) ice I->II transformation (cf. Ice710) |
