Ice711: coarse-grained ice I (sieve size 0.5 - 1 mm)
T = 180 K, P = 100.0 MPa, 10:1 gearing, udot=MR2000/V0.7 | edot = 5.36e-5/s; s max= 85.5 MPa; s ss = 65.6 MPa; total e = 0.222 |

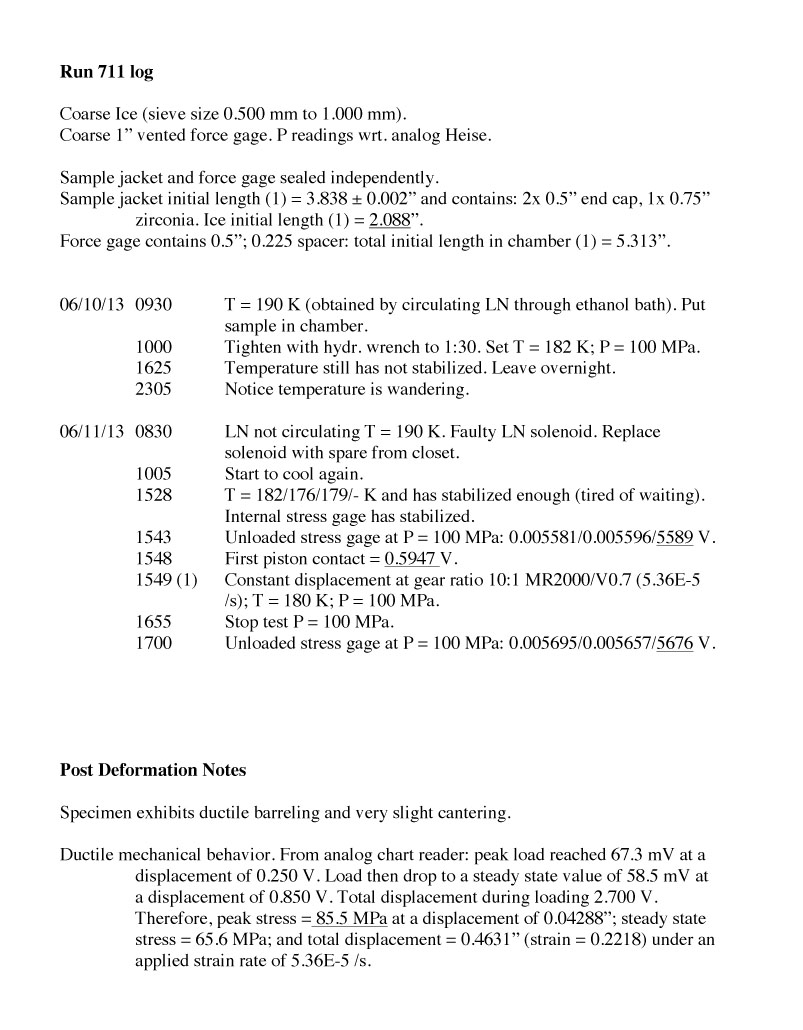

(not yet) micrographs
|
|||

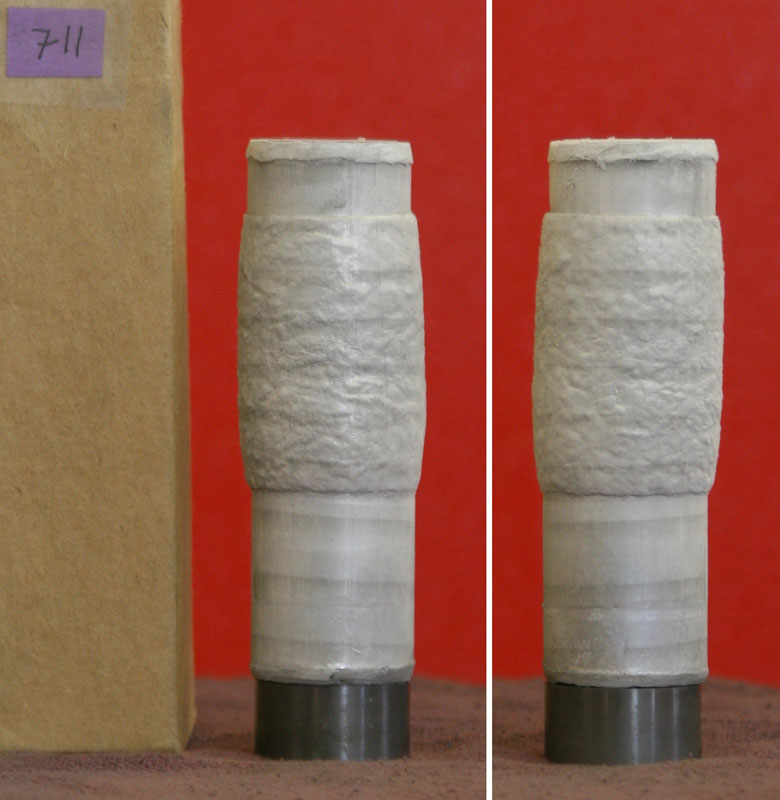

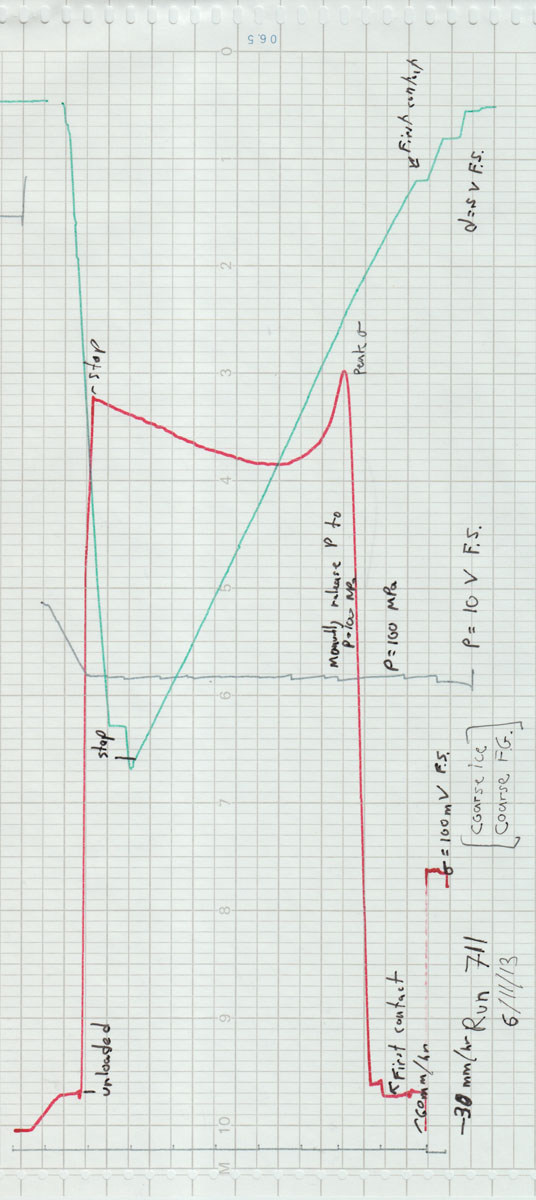

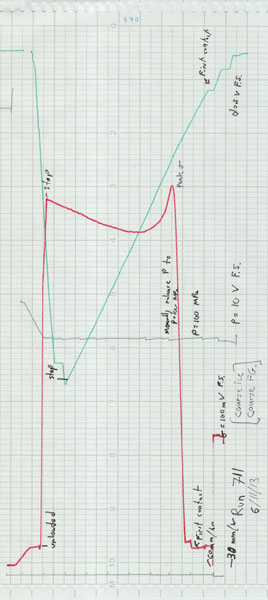

Note: rumpled jacket and more conventional red vs. green curve behavior => little (if any) ice I->II transformation (cf. Ice710) |
