Ice710: coarse-grained ice I (sieve size 0.5 - 1 mm)

T = 180 K, P = 200.0 MPa, 1:1 gearing, udot=MR2000/V4 edot = 2.85e-3/s; s max= 104.8 MPa (at start of ice I->II transformation);
    s min = 64.4 MPa; total e = 0.224

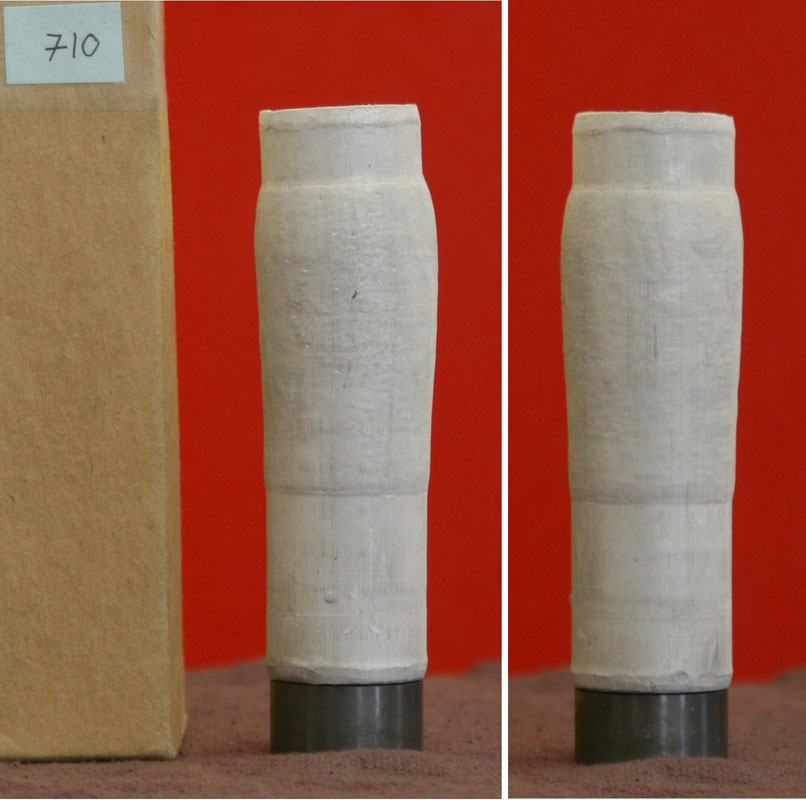

after





(not yet)

micrographs

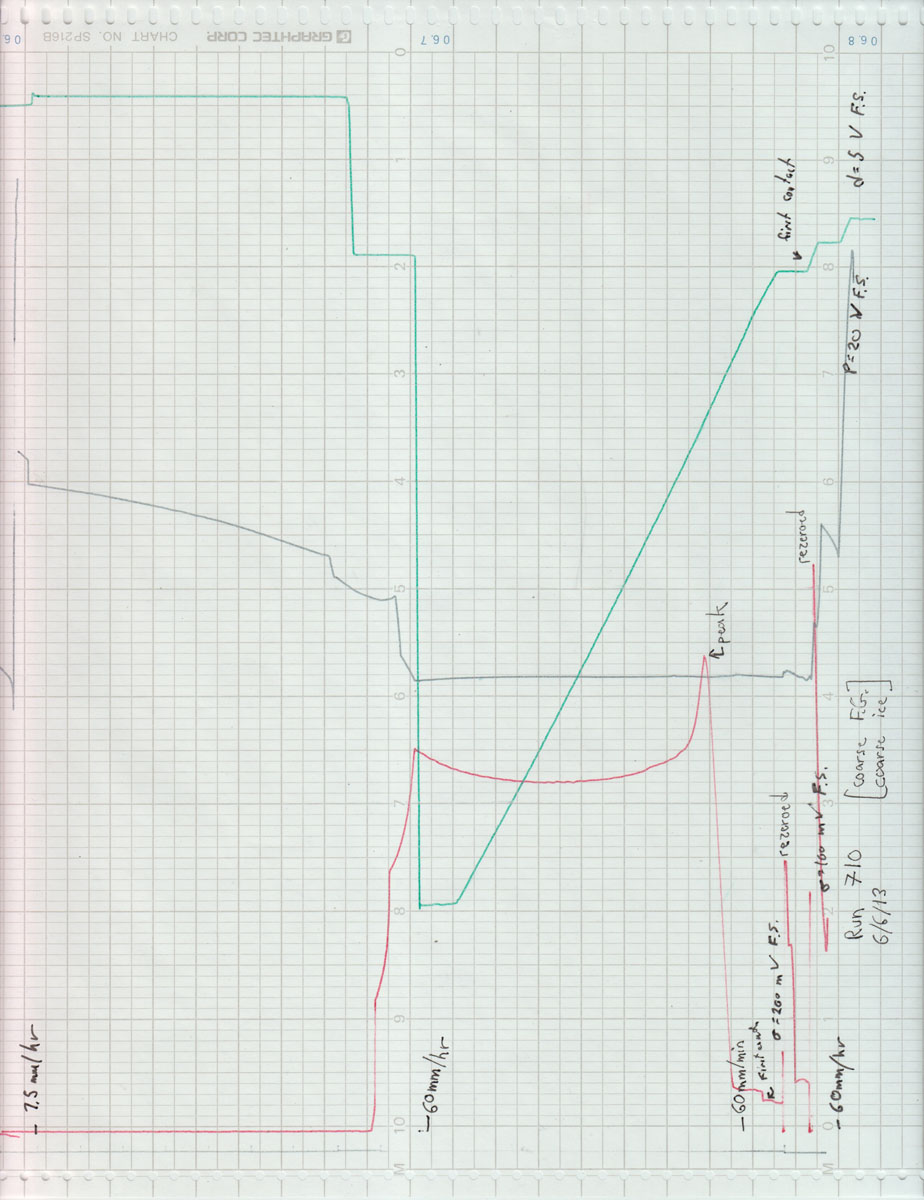

chart record

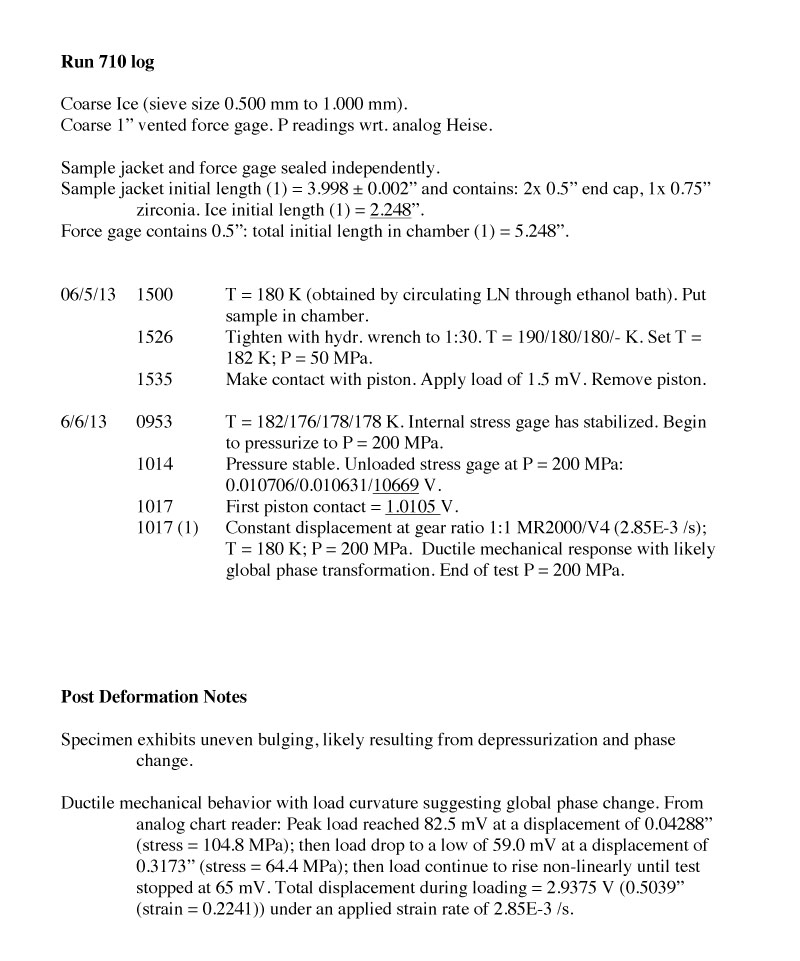

run log
Compare the smooth indium jacket and relationship of red vs. green curves to those of Ice711 and 712, where I->II probably did not occur.
