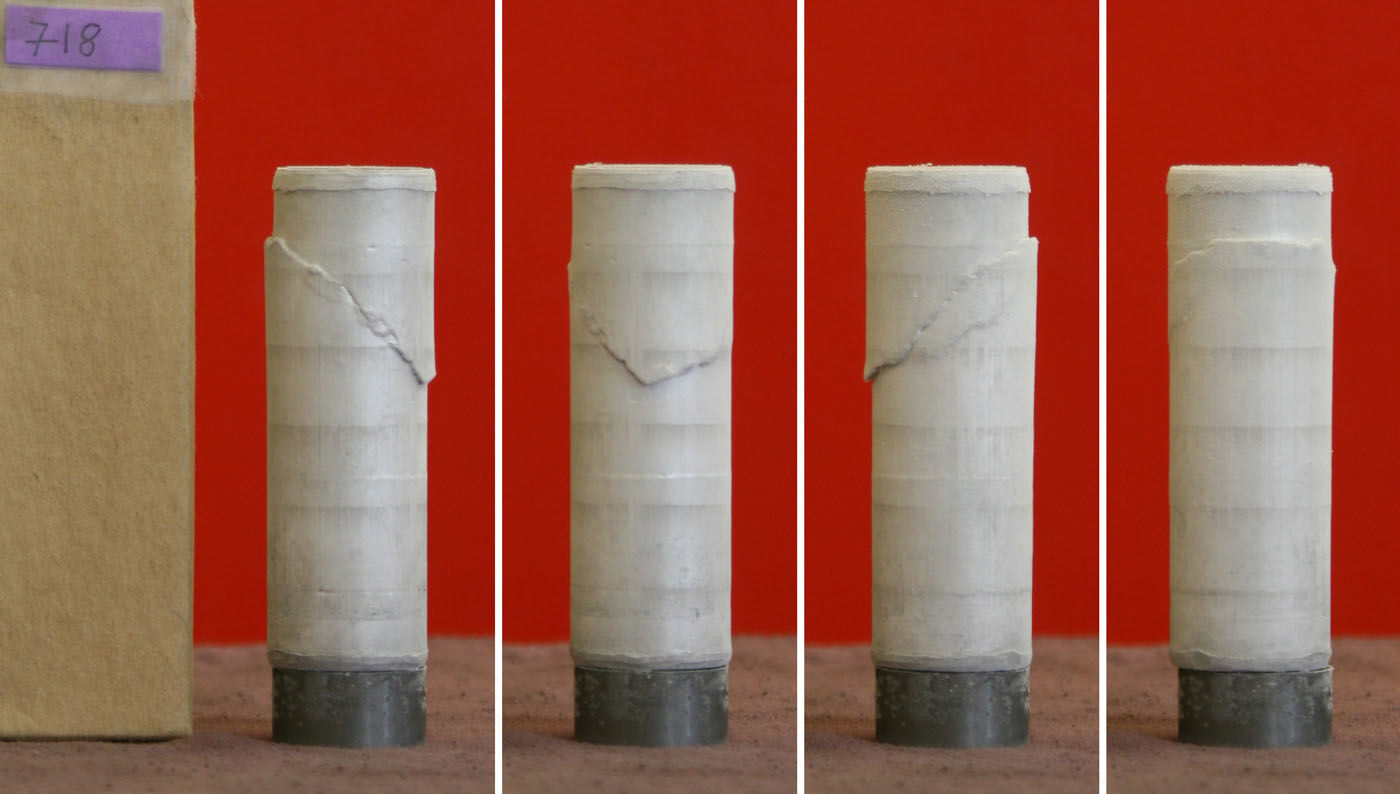

after failure
(not yet)
micrographs
Categories |
| Prev in faulting series (717) | Next in faulting series (723) |
Ice718: standard ice I (sieve size 0.180 - 0.250 mm)
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V0.77 | edot = 7.96e-4/s; s max= 120 MPa |
|
(not yet) micrographs
|

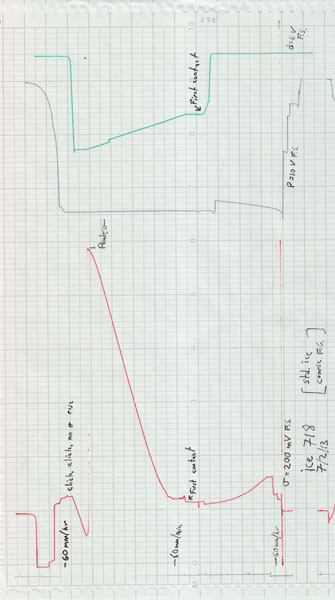

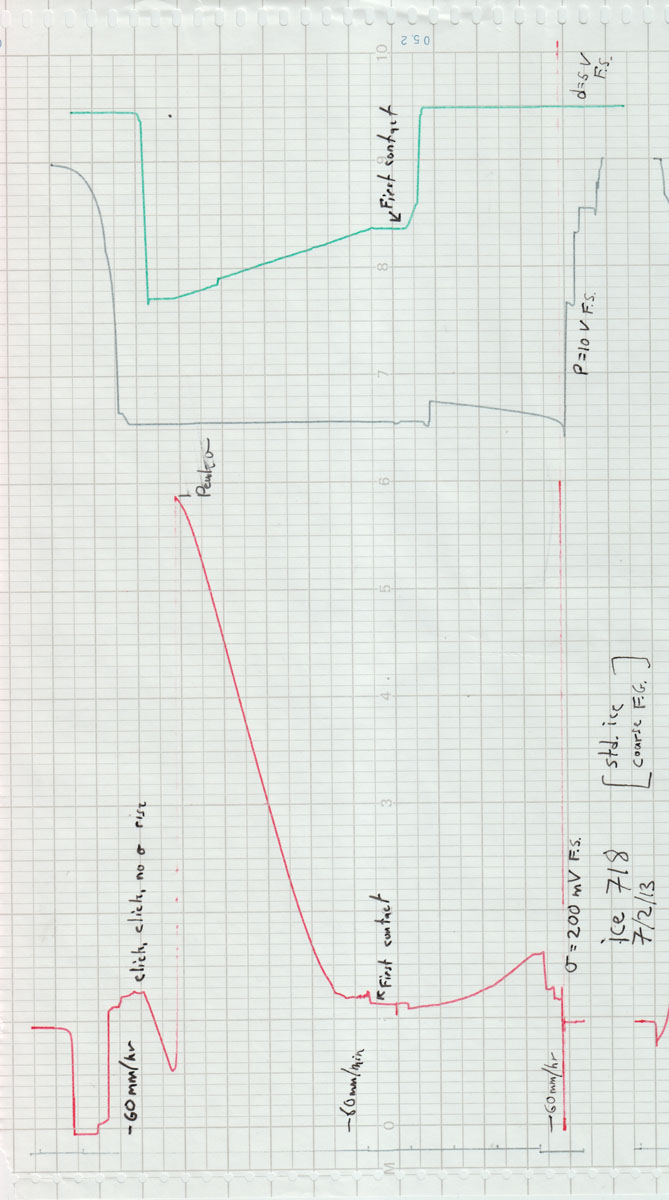

chart record

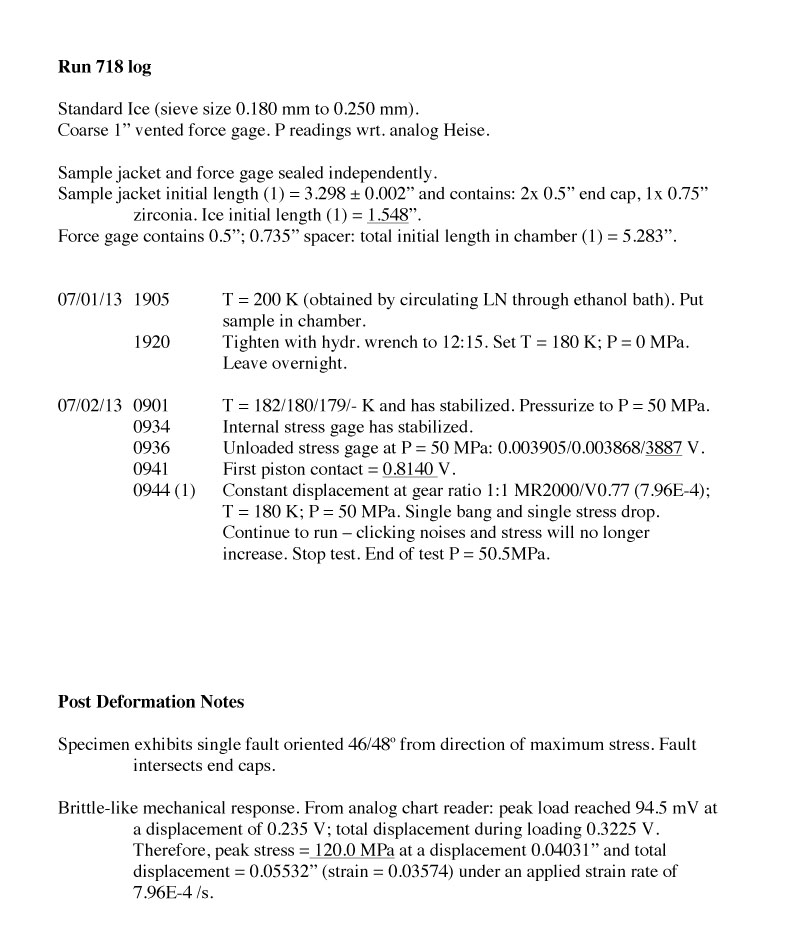

run log
