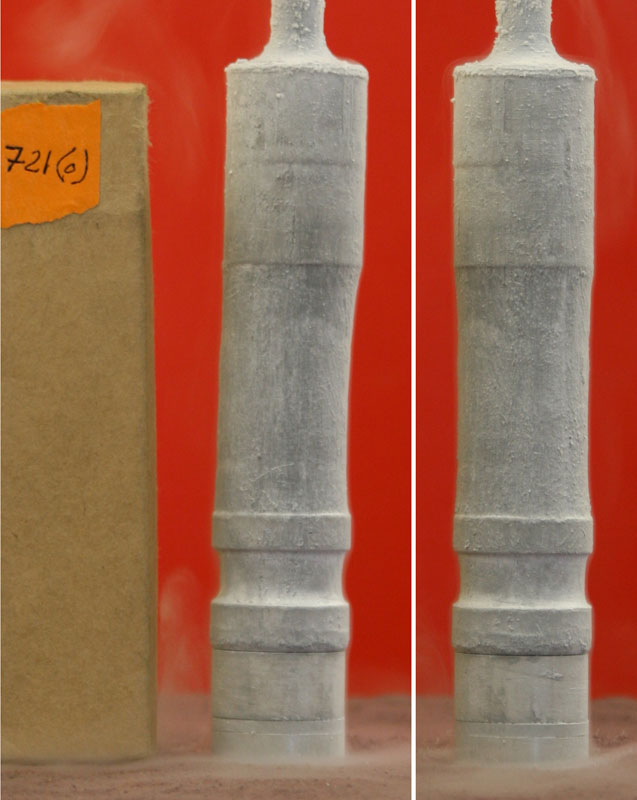

after compaction.jpg)

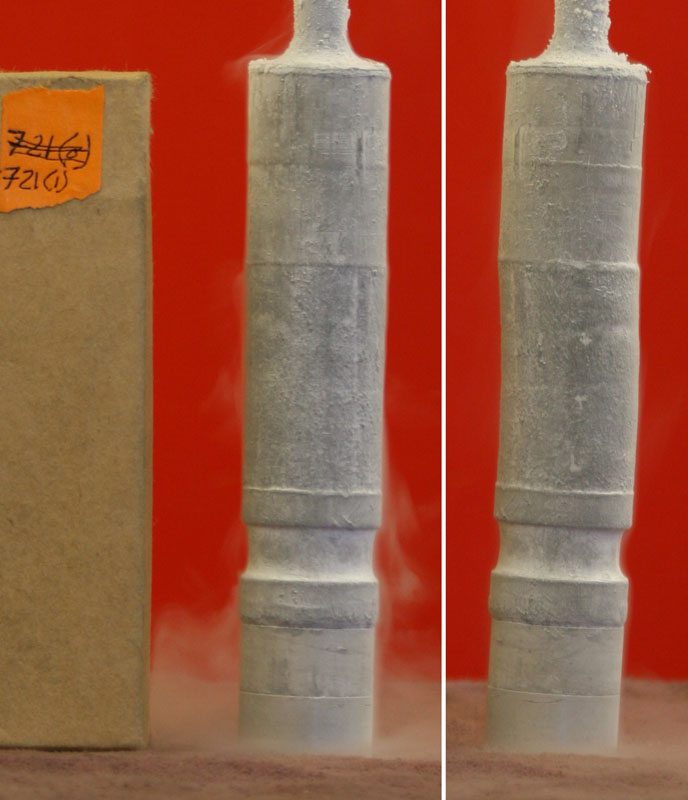

after def step (1a).jpg)

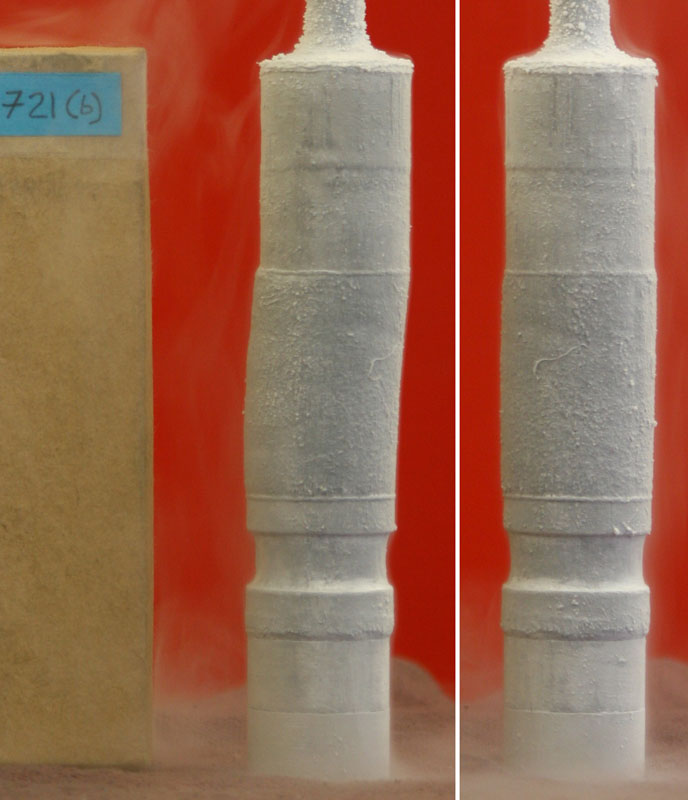

after step (1b).jpg)

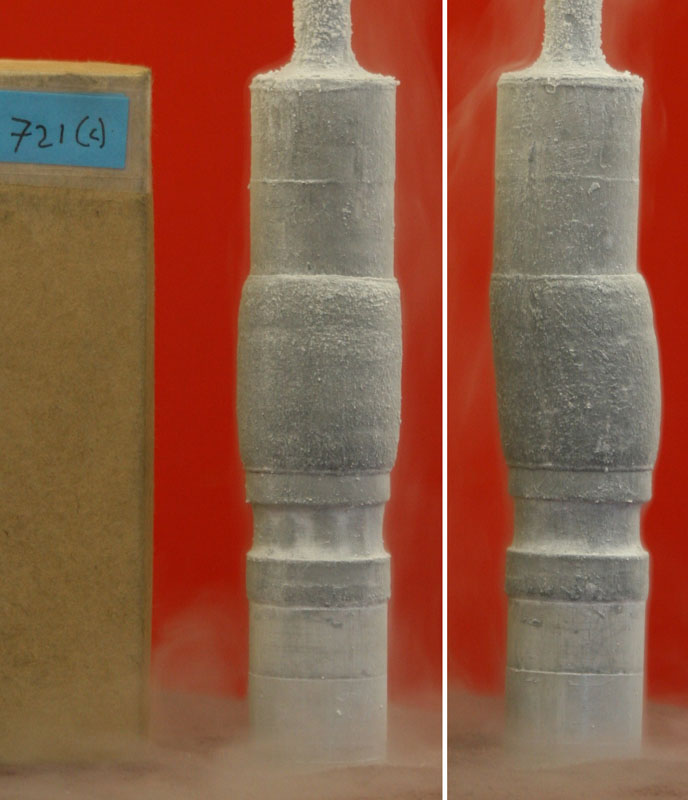

after step (1c)run summary
micrographs

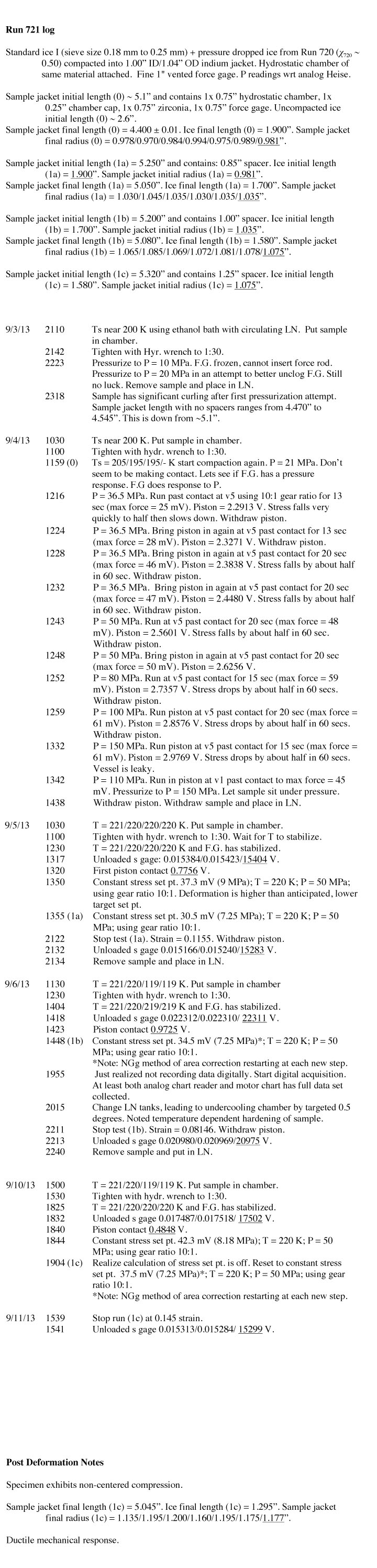

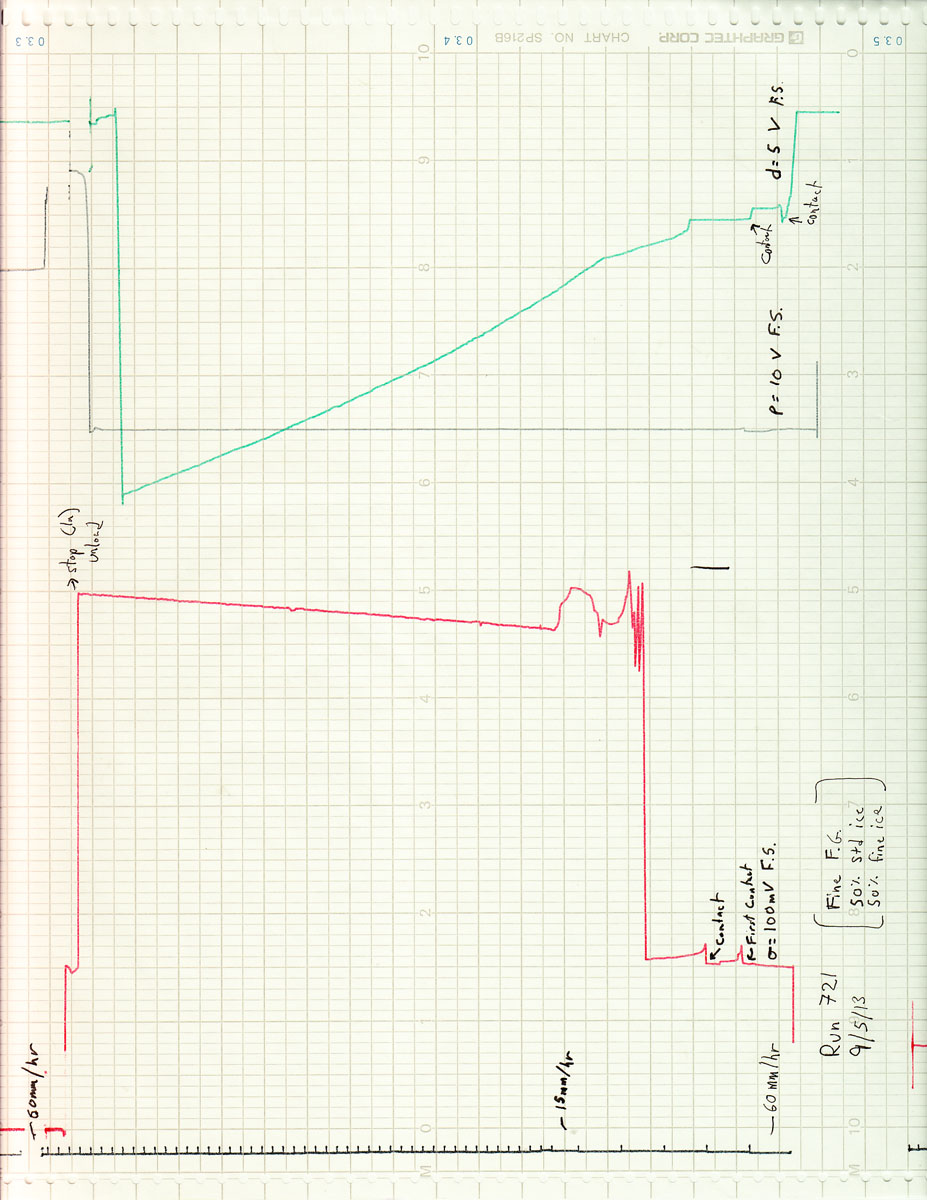

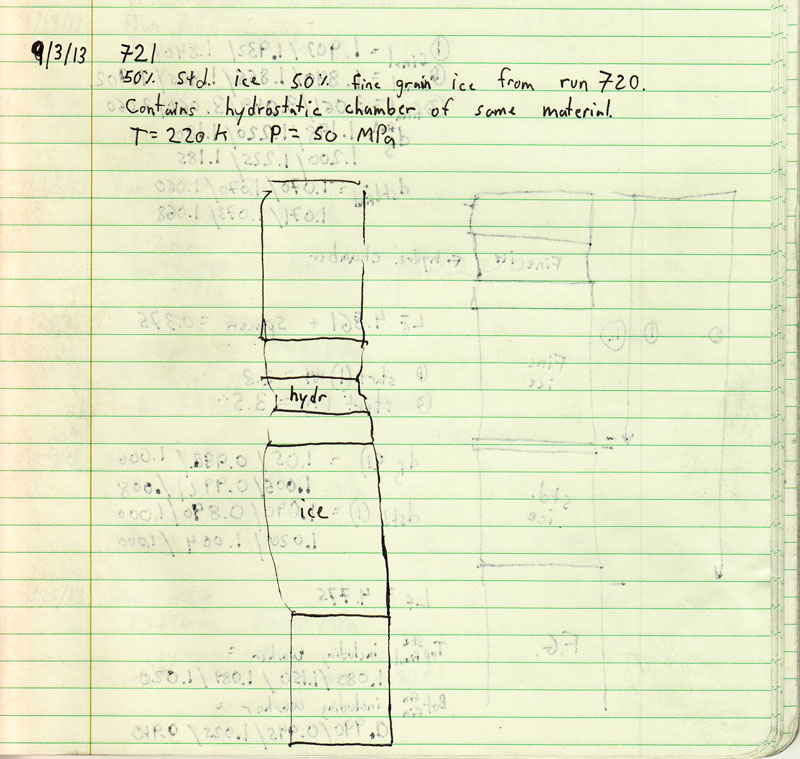

chart recordother resources: run log, live updates (archived), lab book page
Categories |
| First in GSS/GSI in series (721) | Next in series (722) |
| Ice721: 50:50 mix std ice seed: 3 x P-drop f.g. ice; with hydrostatic chamber | |
| Standard ice seed 0.18-0.25 mm | |
| 3 x P drop fine-grain ice from Ice720 | |
| T= 200 K, 150 MPa ≥ P ≥ 110 MPa, 1 hr | step (0) hydrostatic compaction |
| T = 220 K, P = 50 MPa, s = 7.25 MPa | step (1) |
run summary
|
|
chart record |
||||
other resources: run log, live updates (archived), lab book page |
||||||
