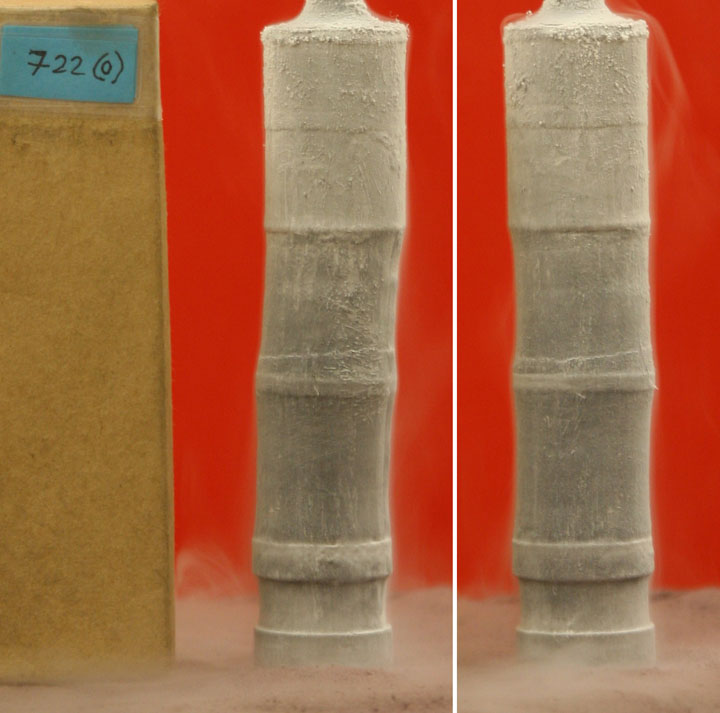

after compaction

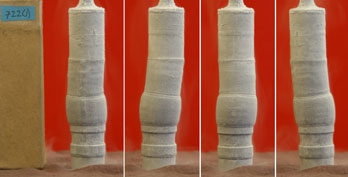

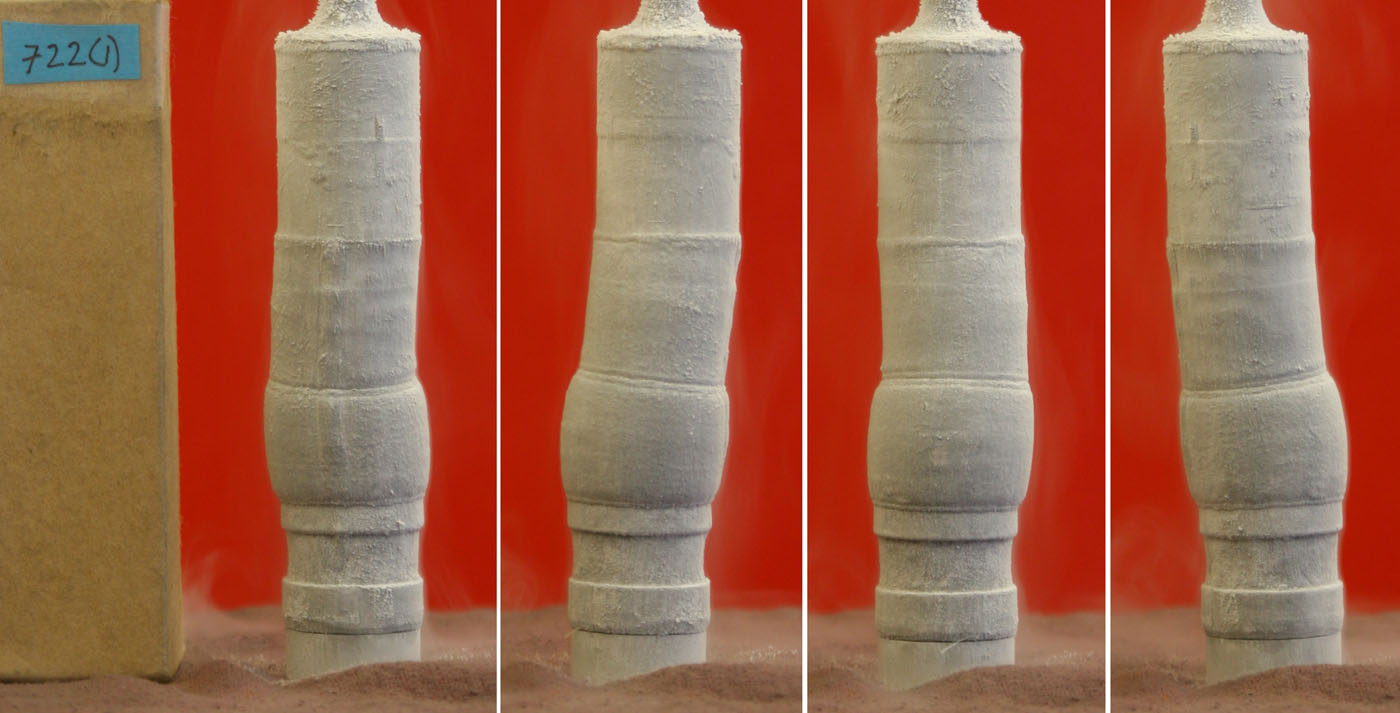

after deformation.jpg)
run summary
micrographs

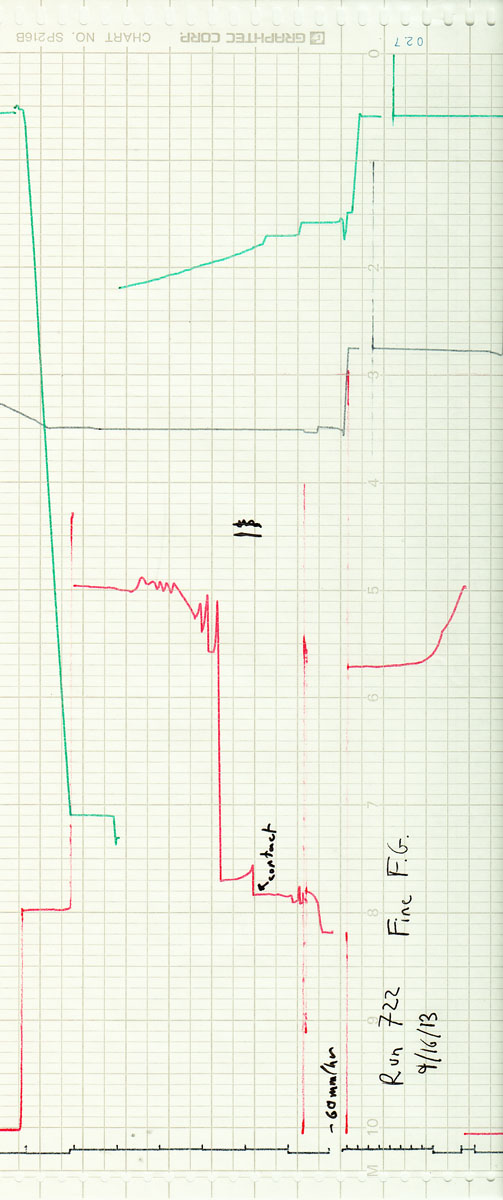

chart record

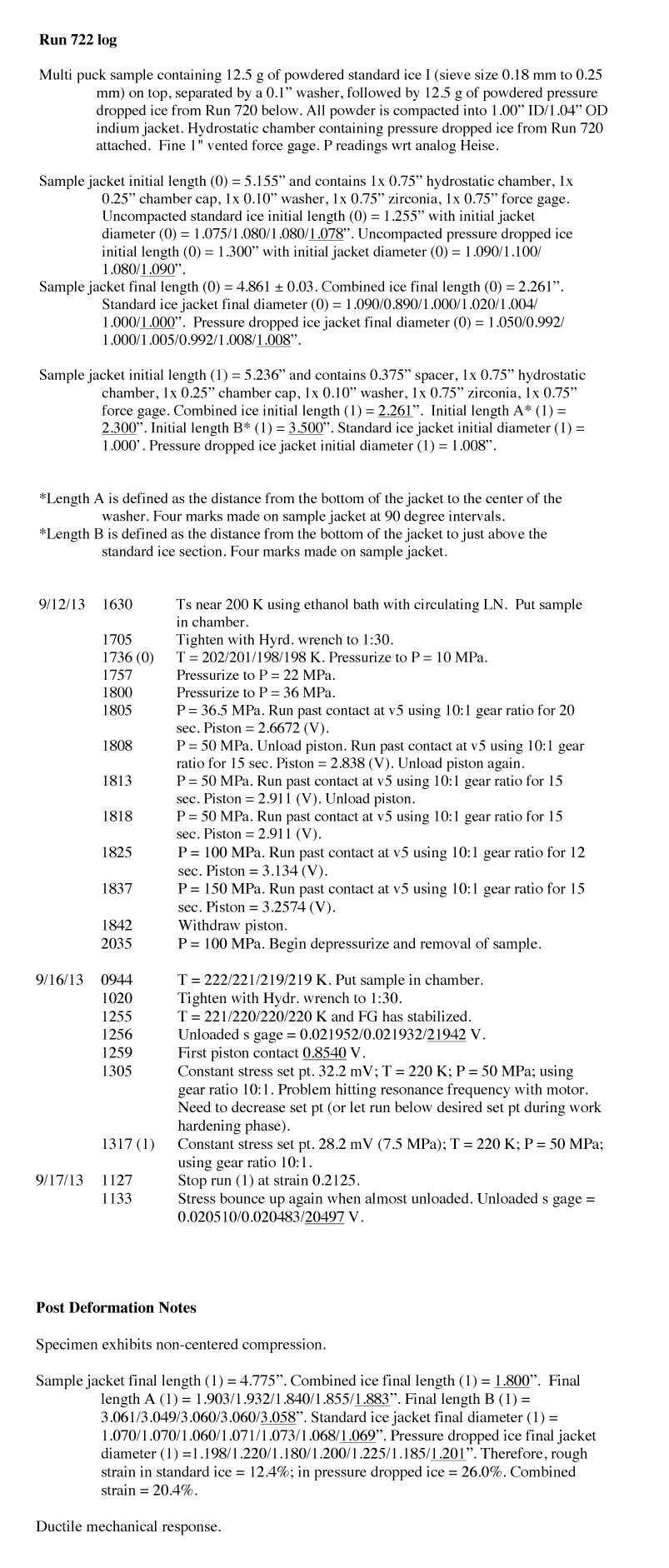

other resources: run log, live updates (archived)
Categories |
| Prev in series (721) | Next in series (748) |
| Ice722: Stack f.g ice, std ice; with hydrostatic chamber | |
| Top piece: standard ice seed (0.18-0.25-mm seed), 12.5 g | |
| Bottom piece: 3 x P-drop f.g. ice from Ice720, 12.5 g | |
| Hydro chamber: 3 x P-drop f.g. ice from Ice720 | |
| T= 200 K, 150 MPa ≥ P ≥ 100 MPa, 2 hrs | step (0) hydrostatic compaction |

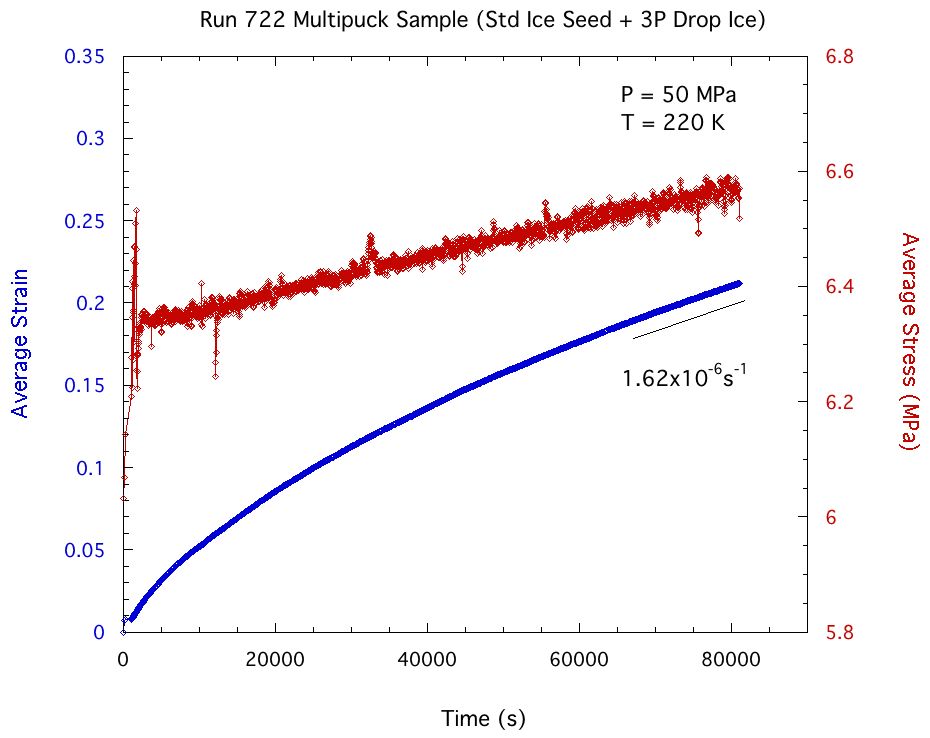

| T = 220 K, P = 50 MPa, s = 7.5 MPa | step (1) |
|
|
||||
other resources: run log, live updates (archived) |
|||||
