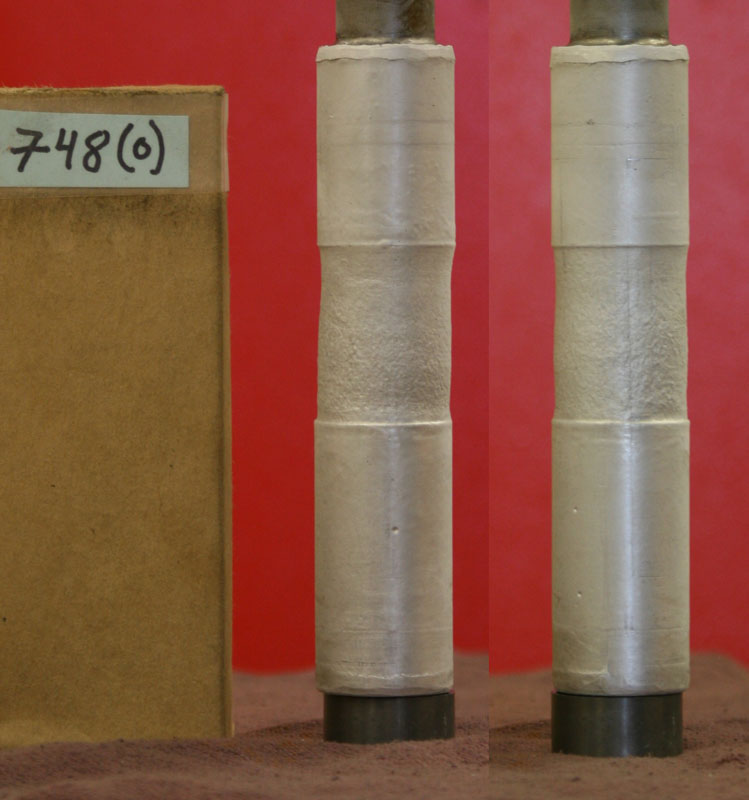

after compaction

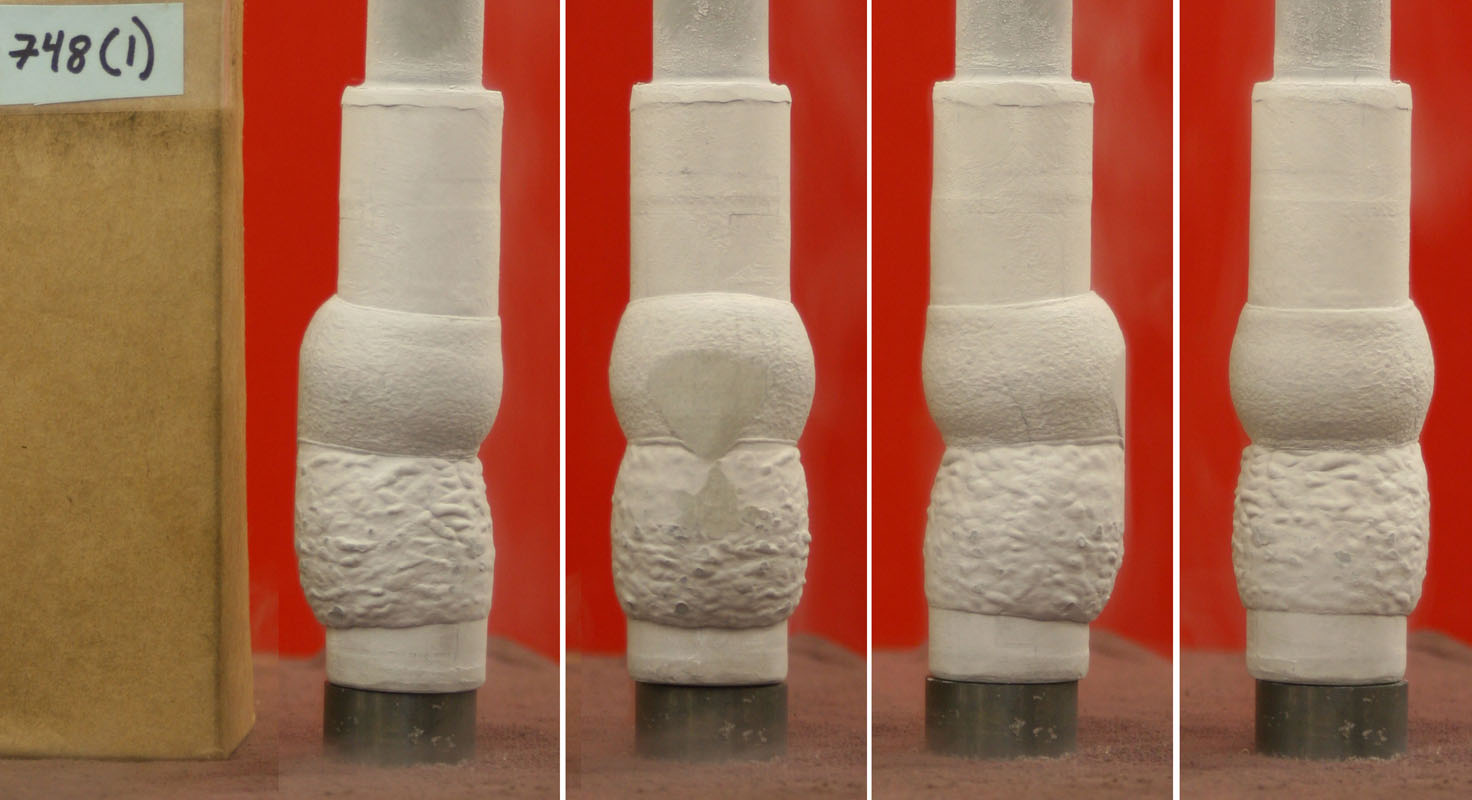

after deformation
run summary

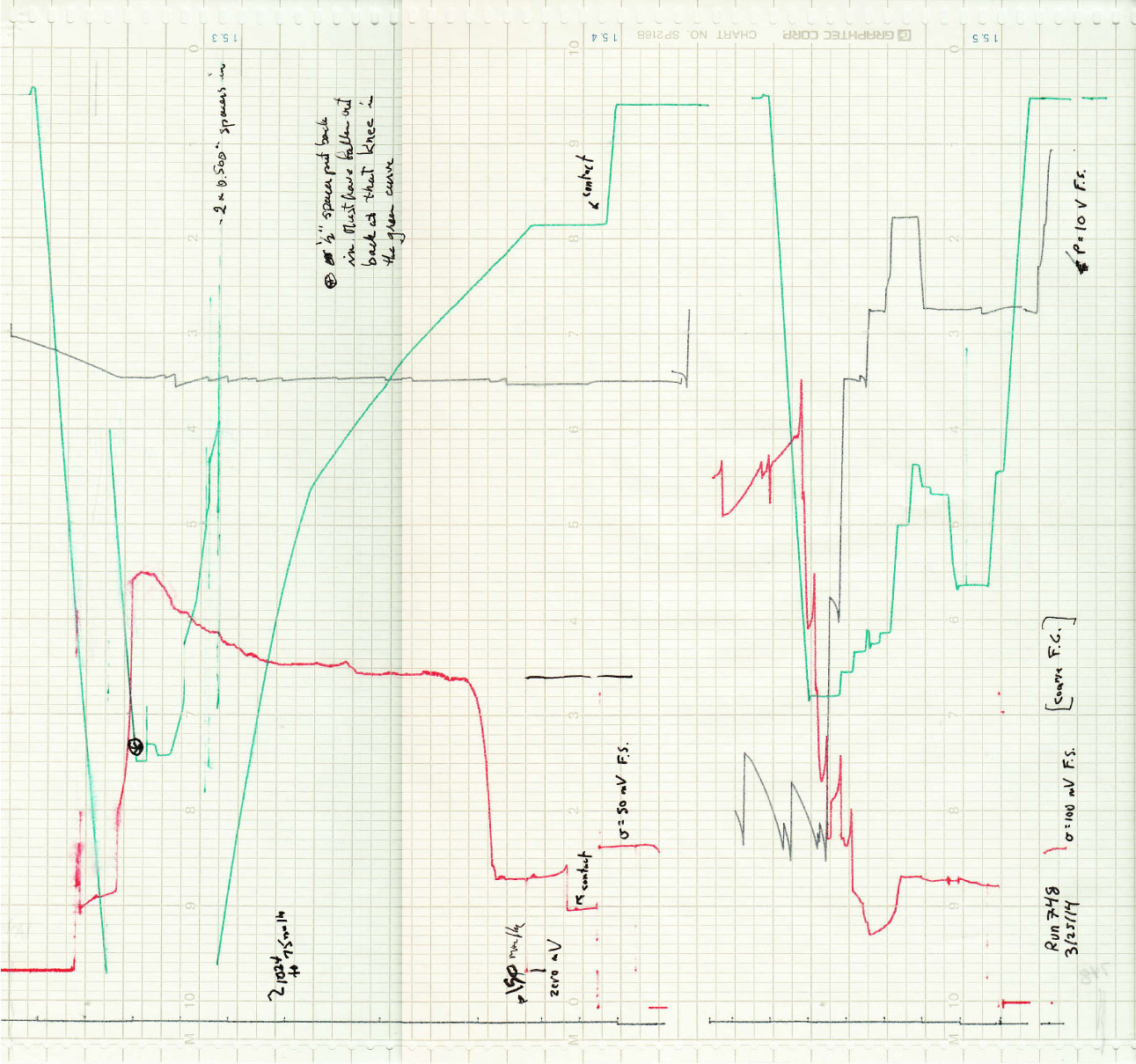

chart record
dimensioned
(dimensioned)
Categories |
| Prev in series (722) | Next in series (749) |
| Ice748: Stack std ice seed, std ice | |
| Top piece: standard ice seed (0.18-0.25-mm seed) | |
| Bottom piece: standard ice I | |
| T = 230 K, 150 MPa ≥ P ≥ 100 MPa, 1.2 hrs | step (0) hydrostatic compaction |
| T = 230 K, P = 50 MPa, s = 15.2 MPa | step (1) |

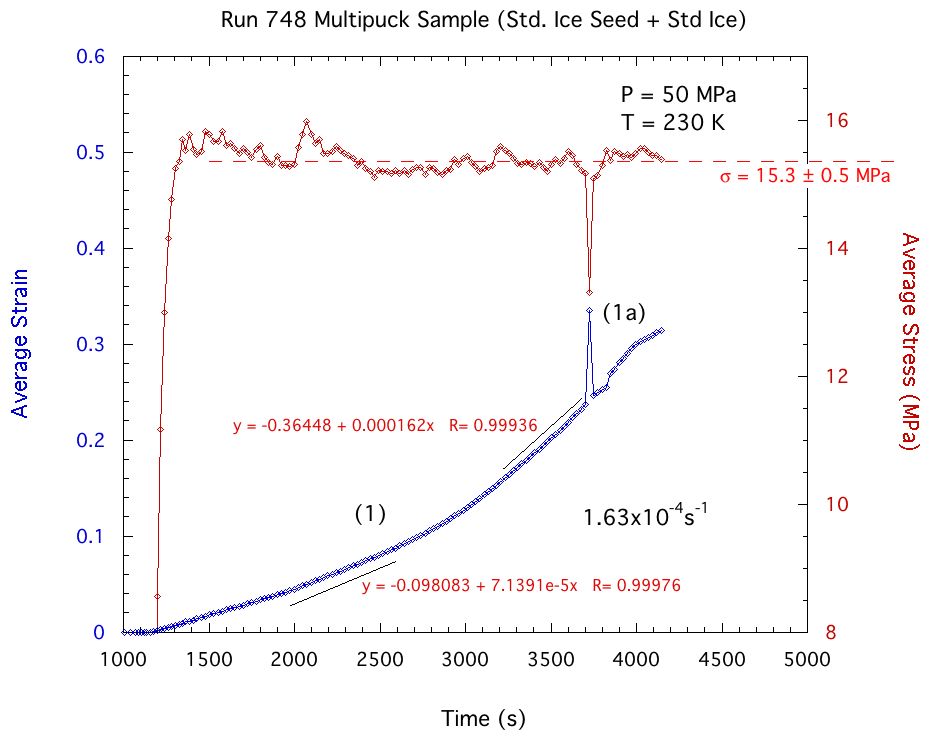

| run summary |
|
||||||

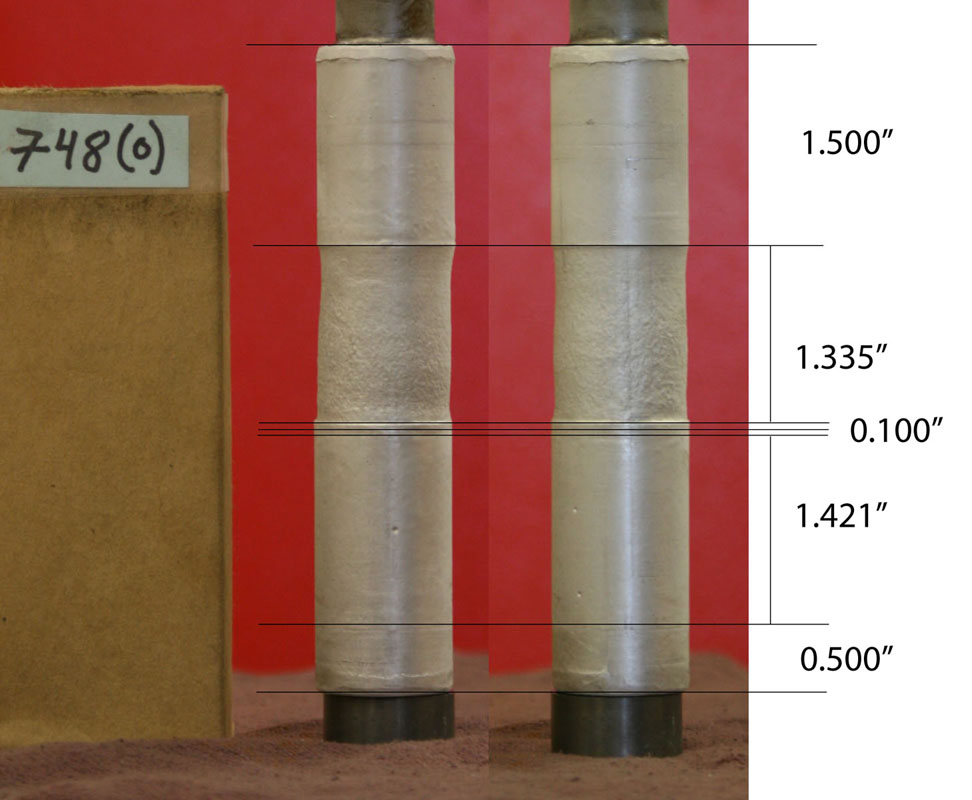

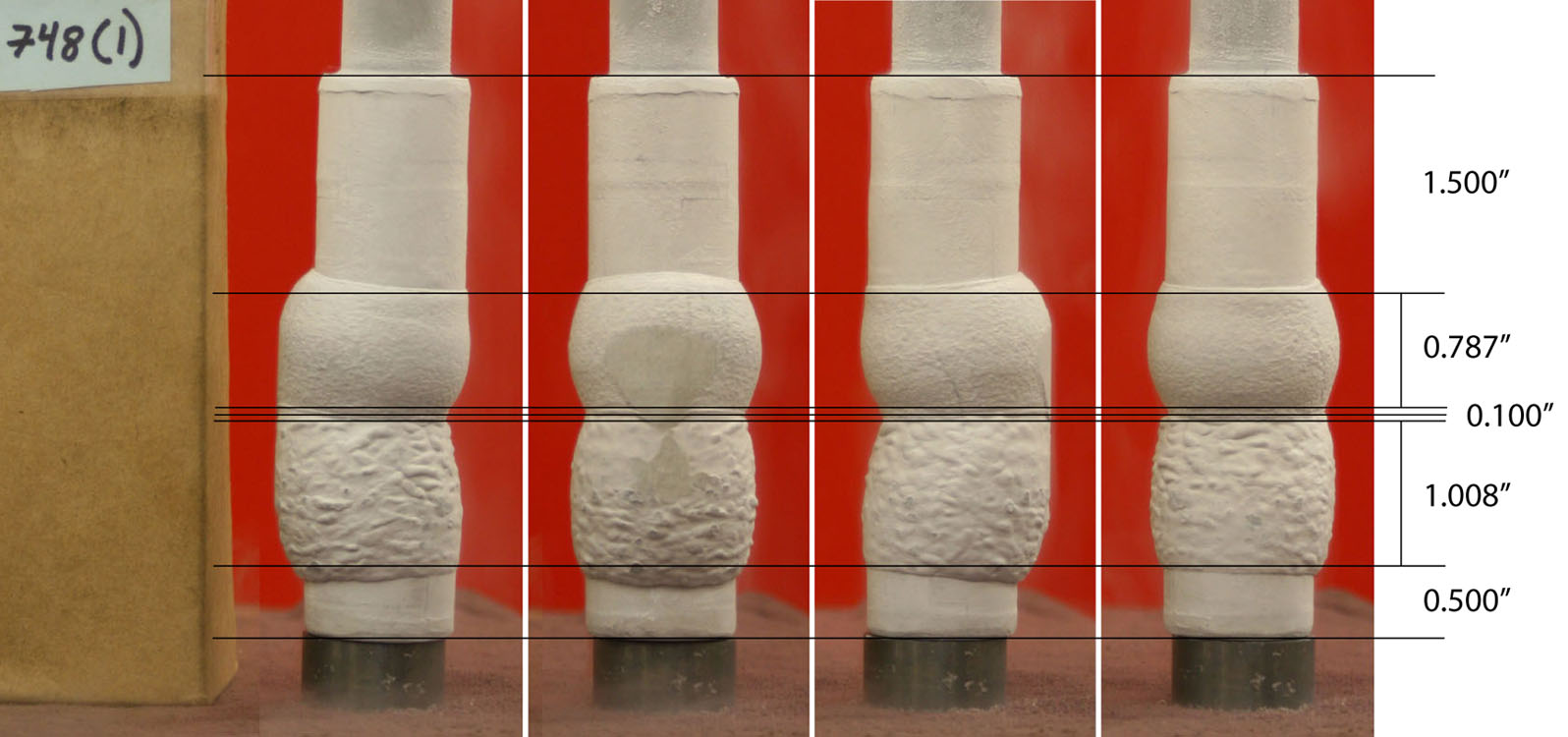

| dimensioned |
|
L0 | Lf | e | mean edot |
|
|
| Top | 1.335 | 0.787 | 0.410 | 1.18e-4 | |||
| Bot | 1.421 | 1.008 | 0.291 | 8.35e-5 | |||
| T-B avg | 2.756 | 1.795 | 0.349 | 1.00e-4 | |||

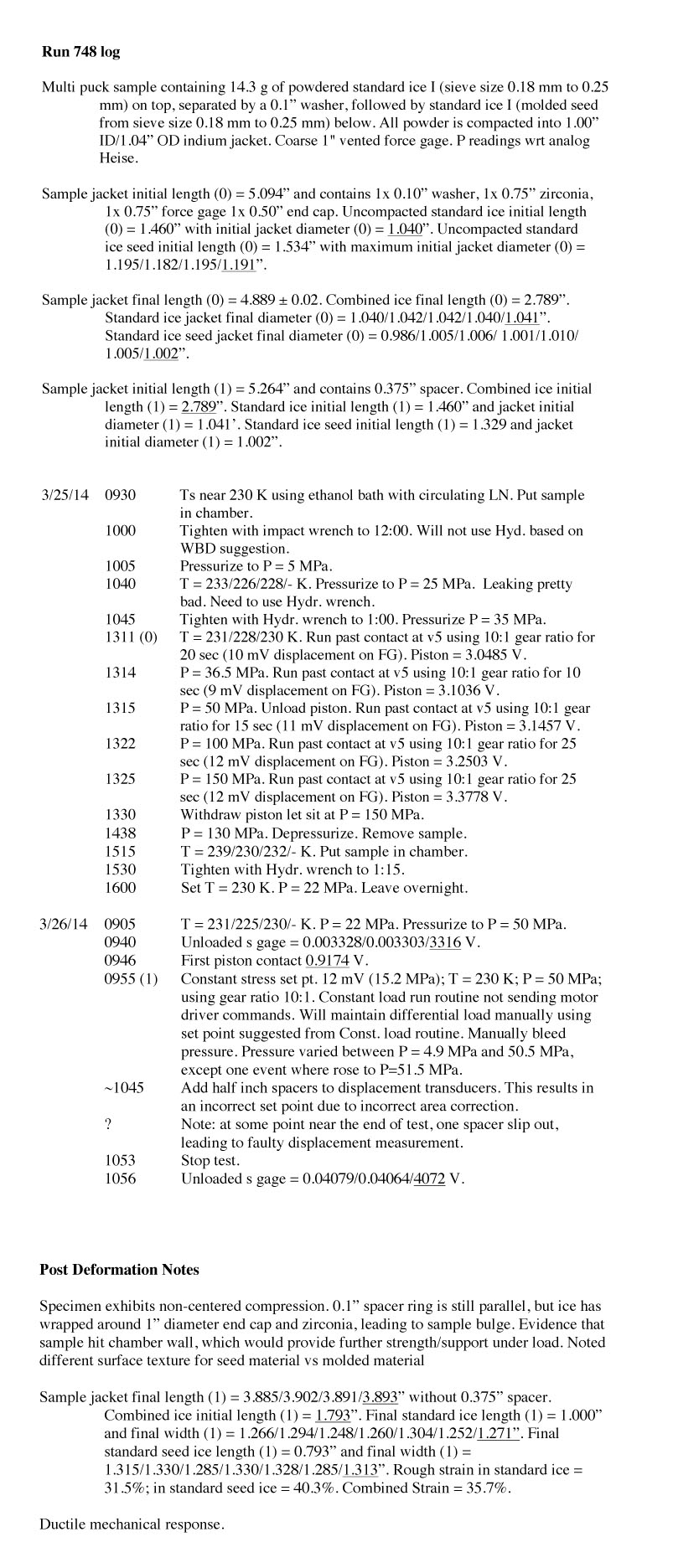

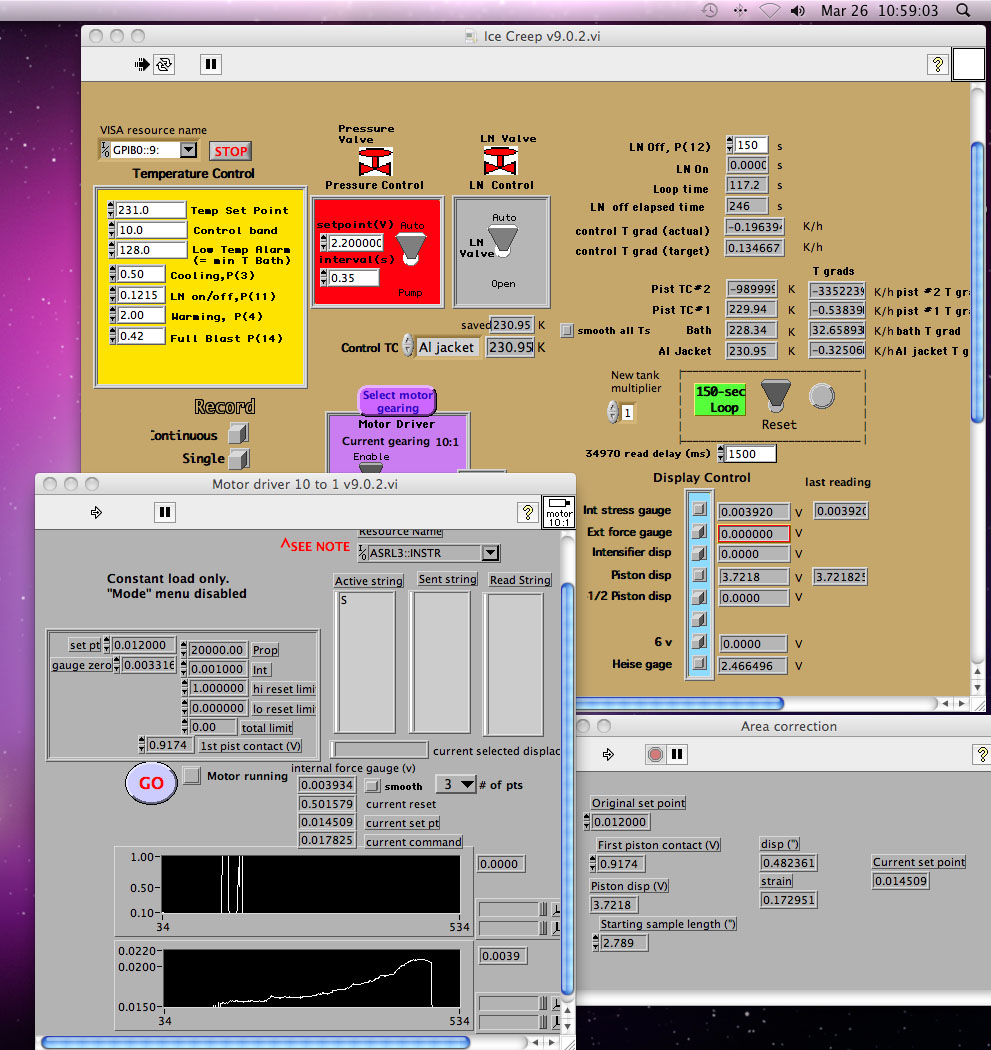

| other resources: run log, live updates (archived) | |||||||
