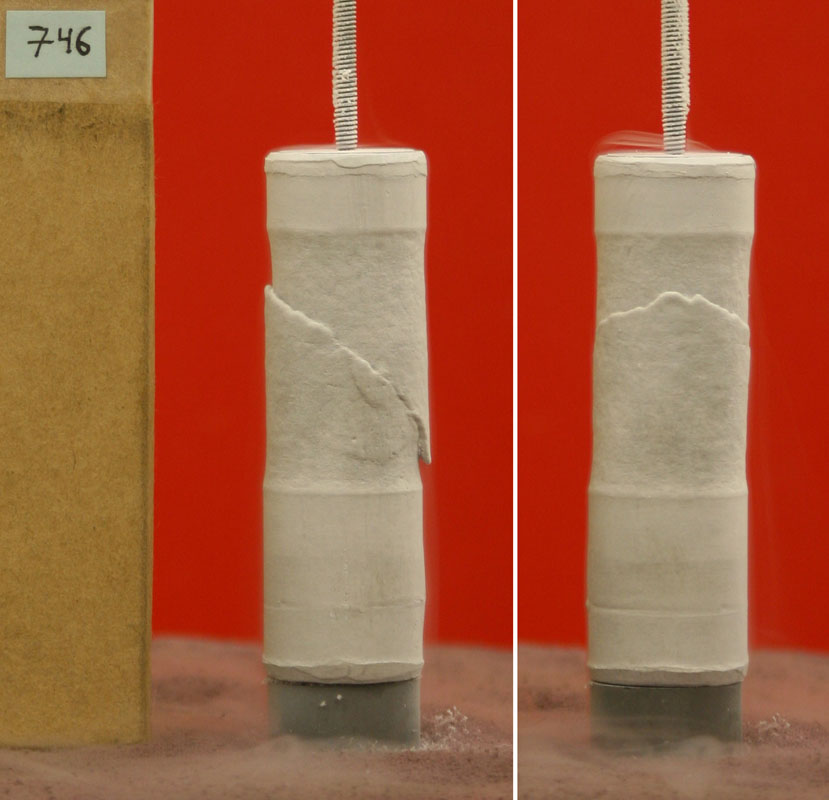

after_failure
(not yet)
micrographs
Categories |
| Prev in faulting series (743) | Next in faulting series (781) |
Ice746 (NG65): Ice II, from coarse-grained ice I (sieve size 0.5 - 1 mm)
| T ≈ 203 K, P to 285 MPa to form ice II | (0) ice I->II at P ~235 MPa |
| T ≈ 105-110 K, P = 150.0 MPa, 1:1 gearing, udot=MR2000/V2.0; edot = 1.55e-3/s | (1) s max= 300.4 MPa [new world record] |
|
(not yet) micrographs
|

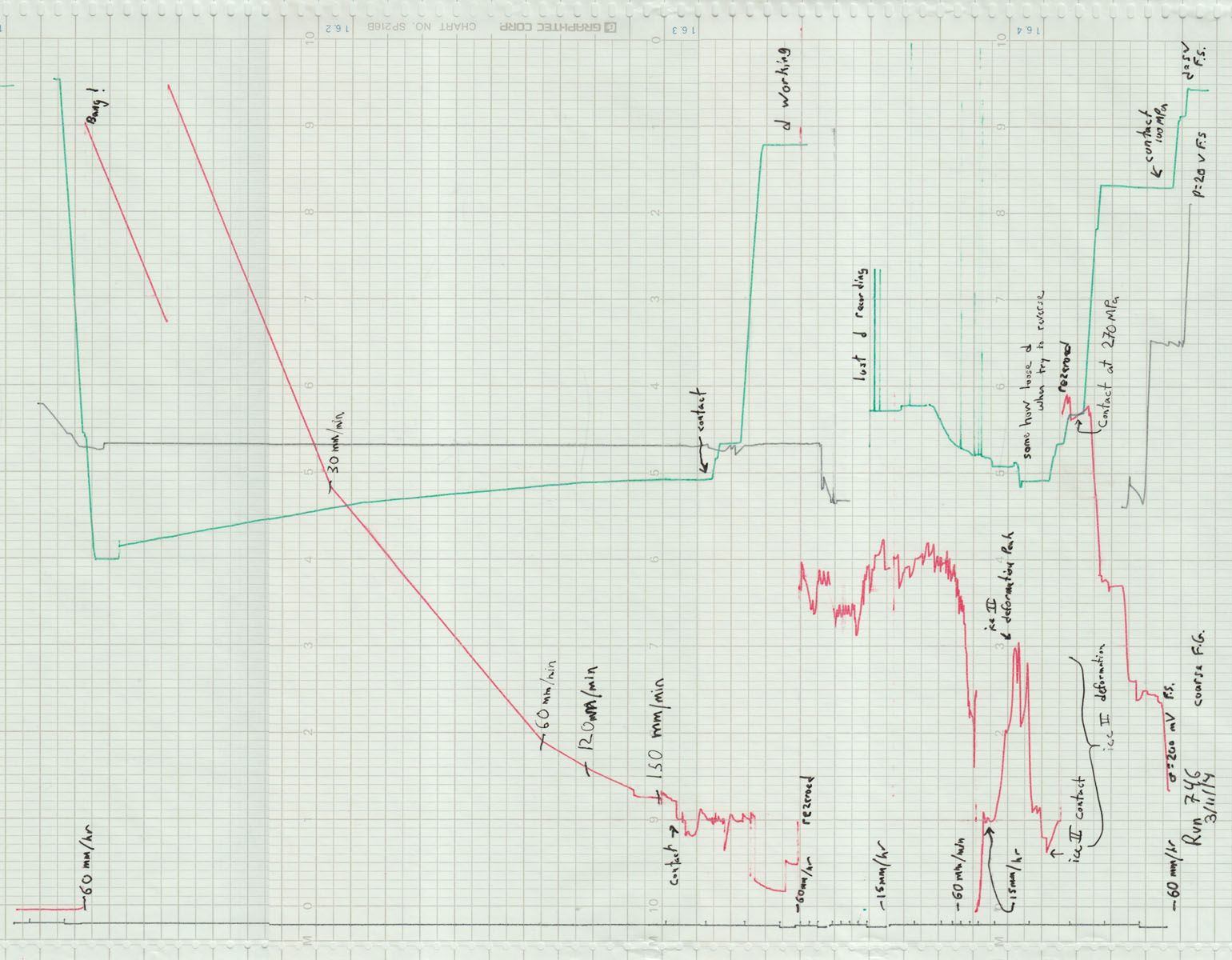

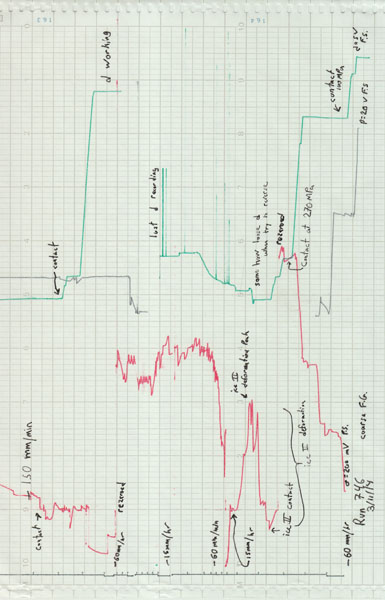

chart record

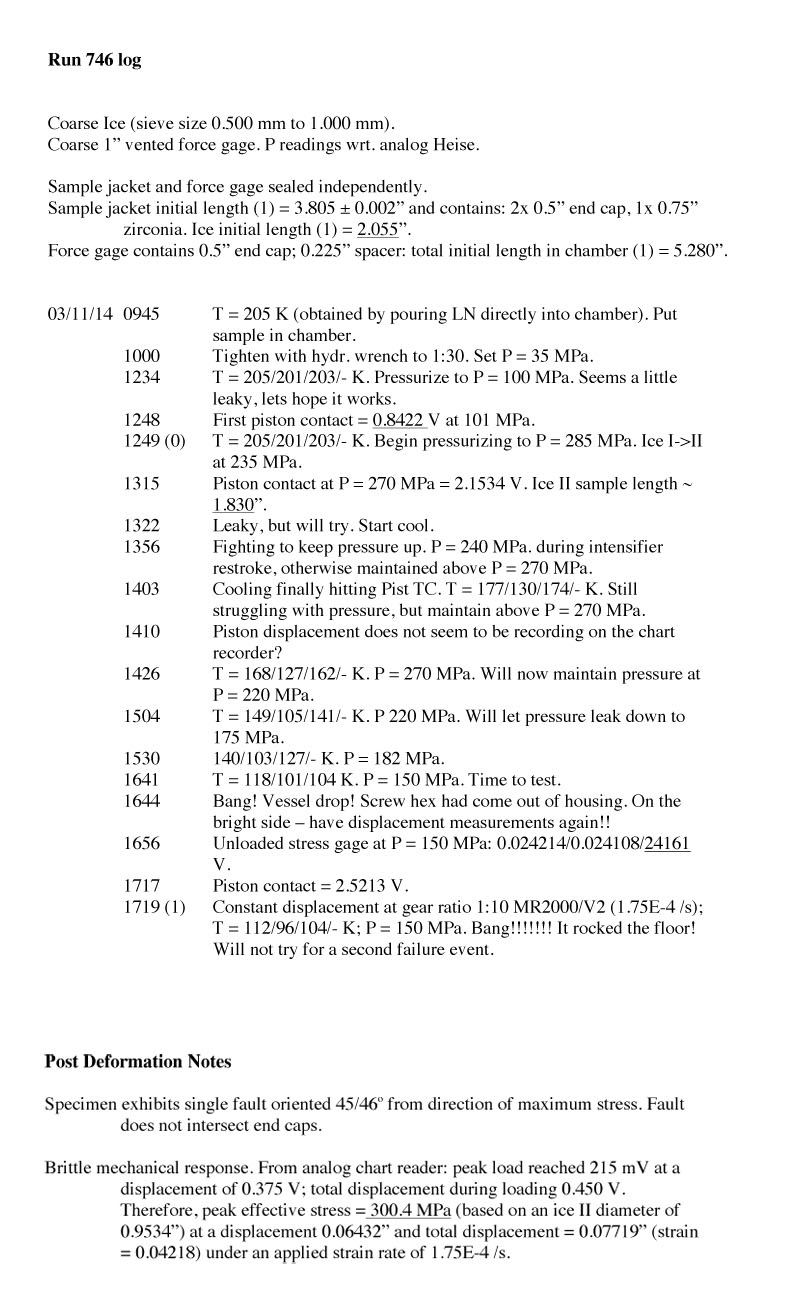

run log
