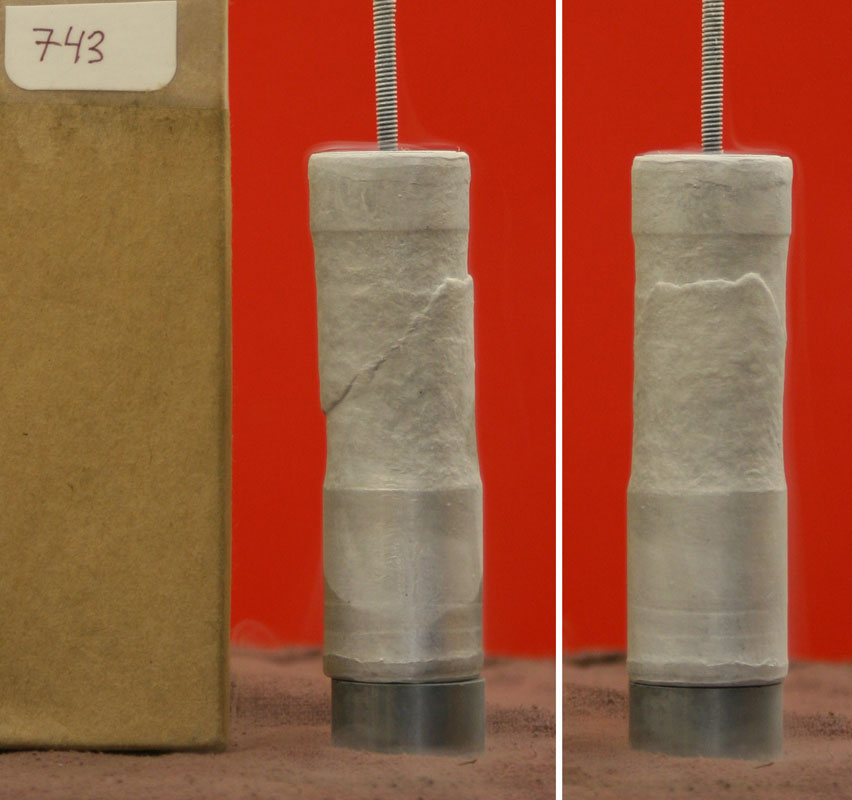

after_failure
micrographs
Categories |
| Prev in faulting series (742) | Next in faulting series (746) |
Ice743 (NG63): Ice II, from coarse-grained ice I (sieve size 0.5 - 1 mm)
| T ≈ 205-210 K, P to 270 MPa to form ice II | |
| T ≈ 110-120 K, P = 150.0 MPa, 1:1 gearing, udot=MR2000/V2.0; edot = 1.66e-3/s; | (1) s max= 137.2 MPa |
|
|

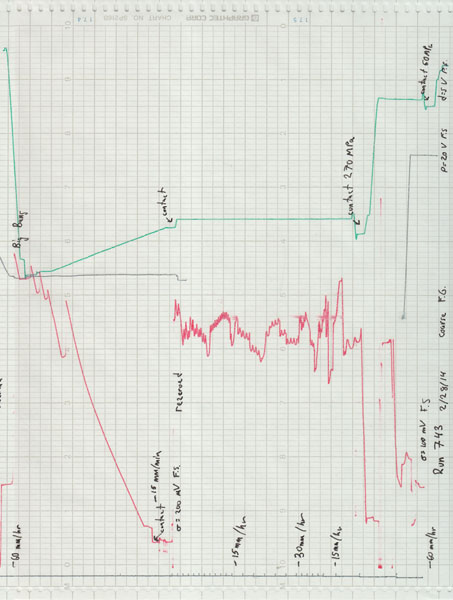

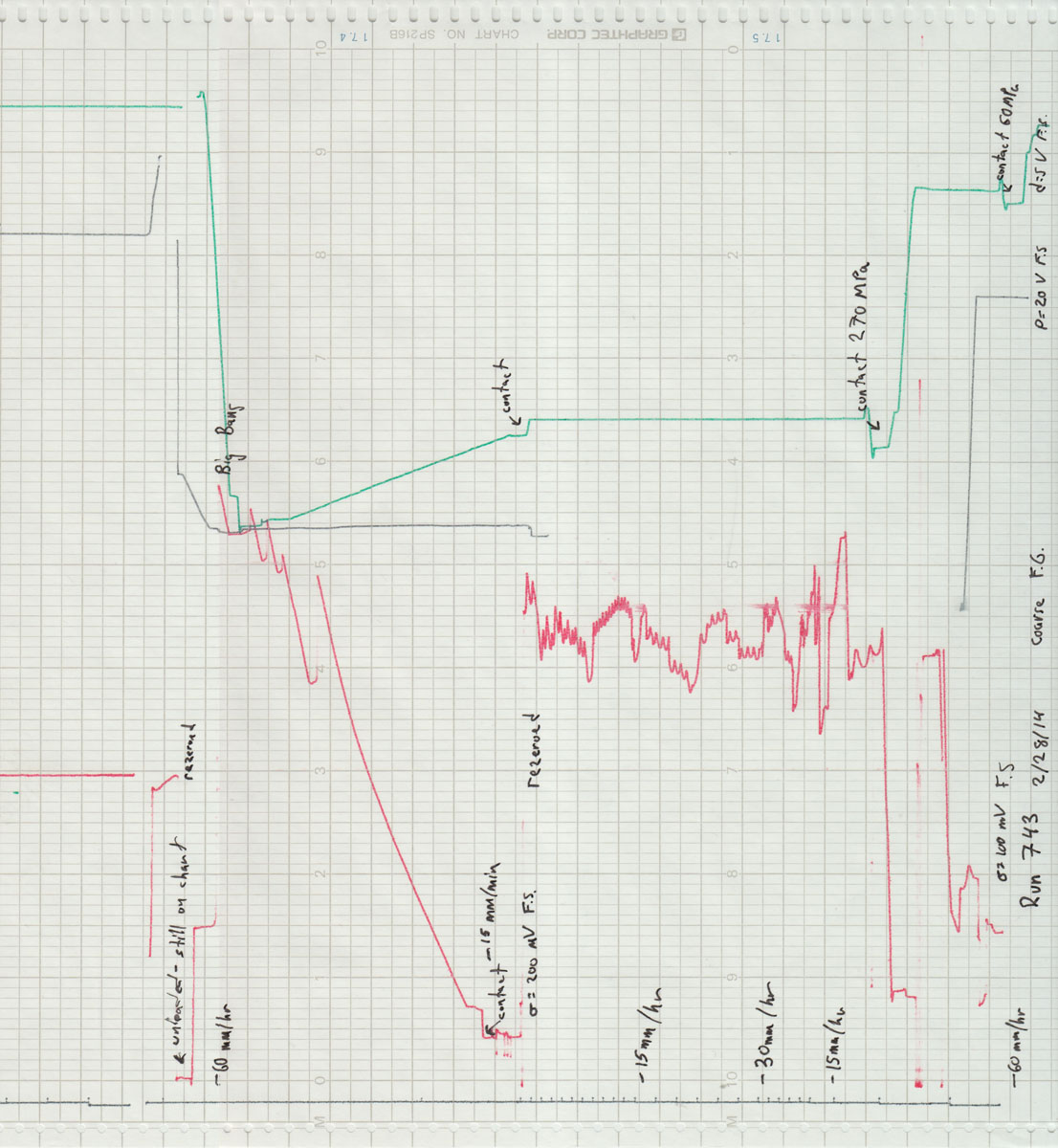

chart record

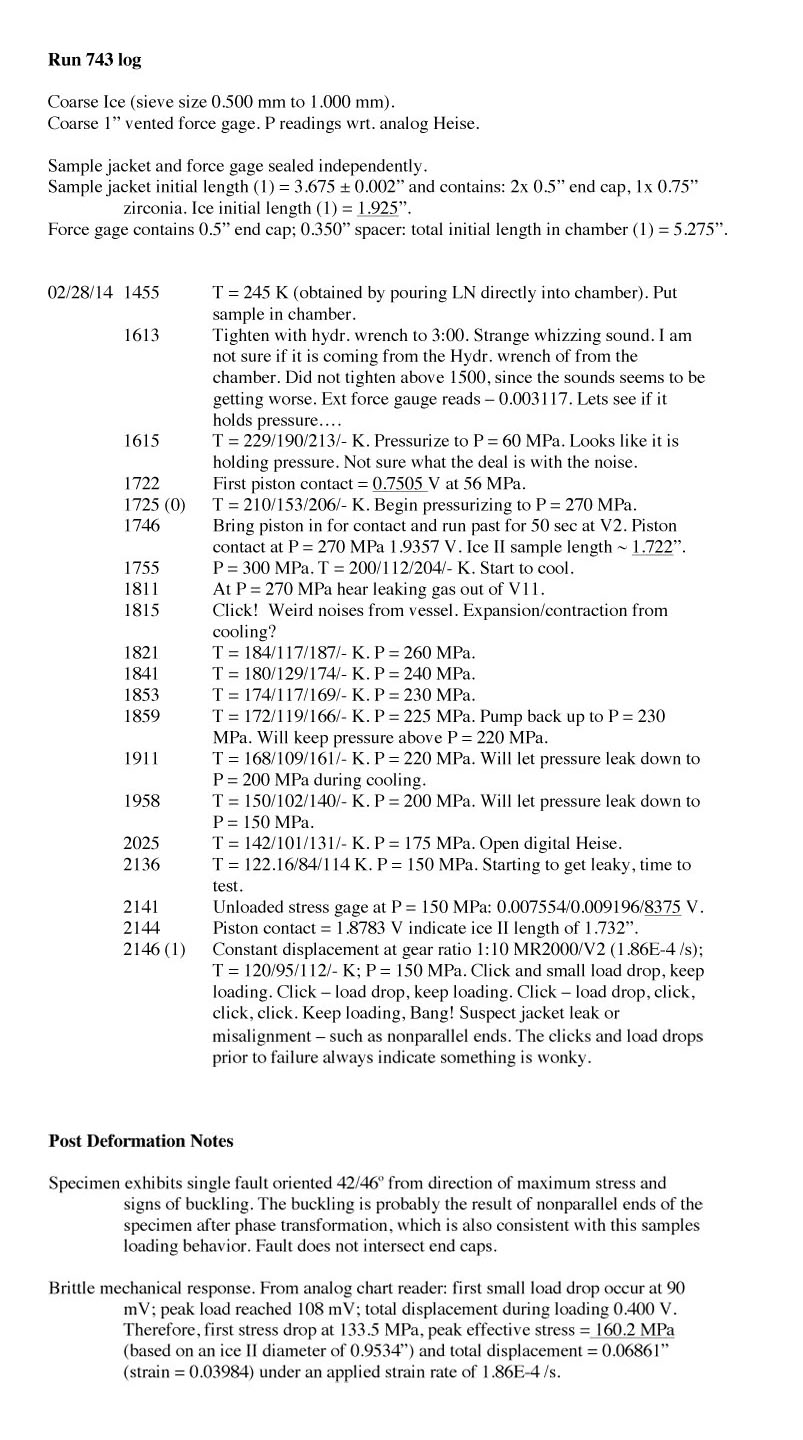

run log
