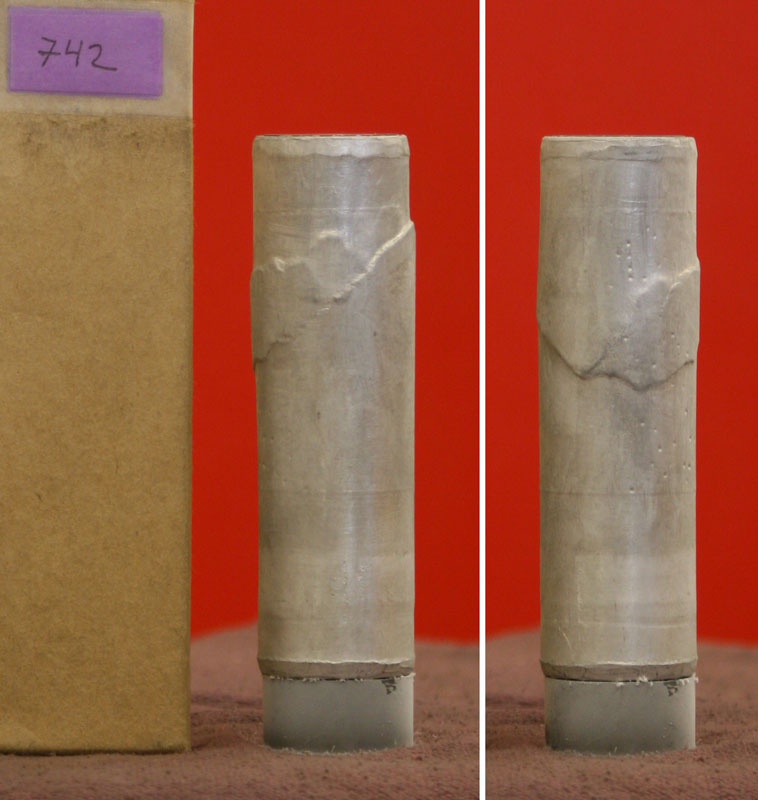

 after.jpg)
after_failure
micrographs
Categories |
| Prev in faulting series (741) | Next in faulting series (743) |
Ice742 (NG62): coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V0.7; edot = 5.87e-4/s | (1) pre-load to s = 100.3 MPa; e = 0.0006 |
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V0.7; edot = 5.87e-4/s | (2) brittle; s max=109.2 MPa |
|
|

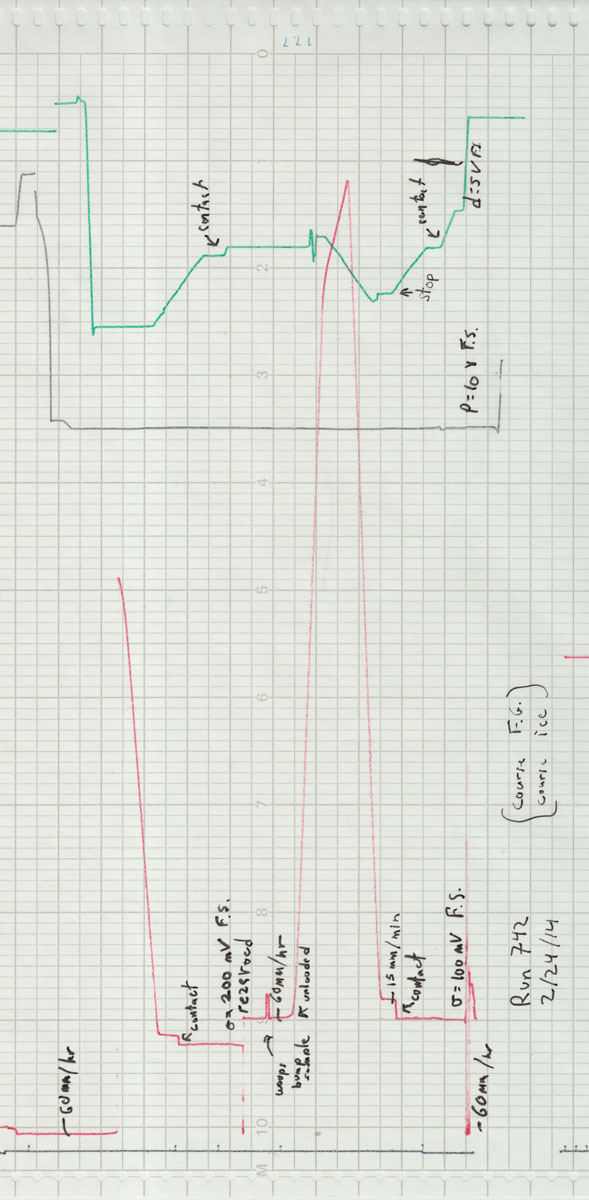

chart record

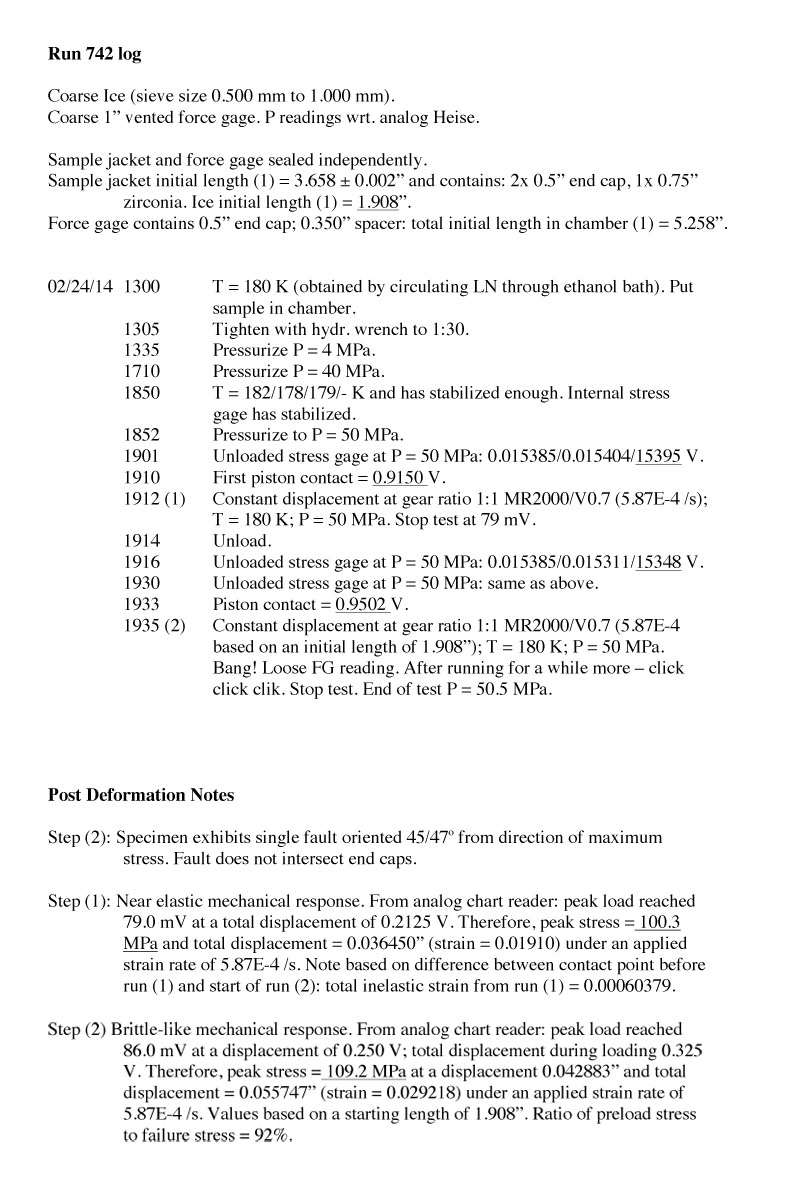

run log
