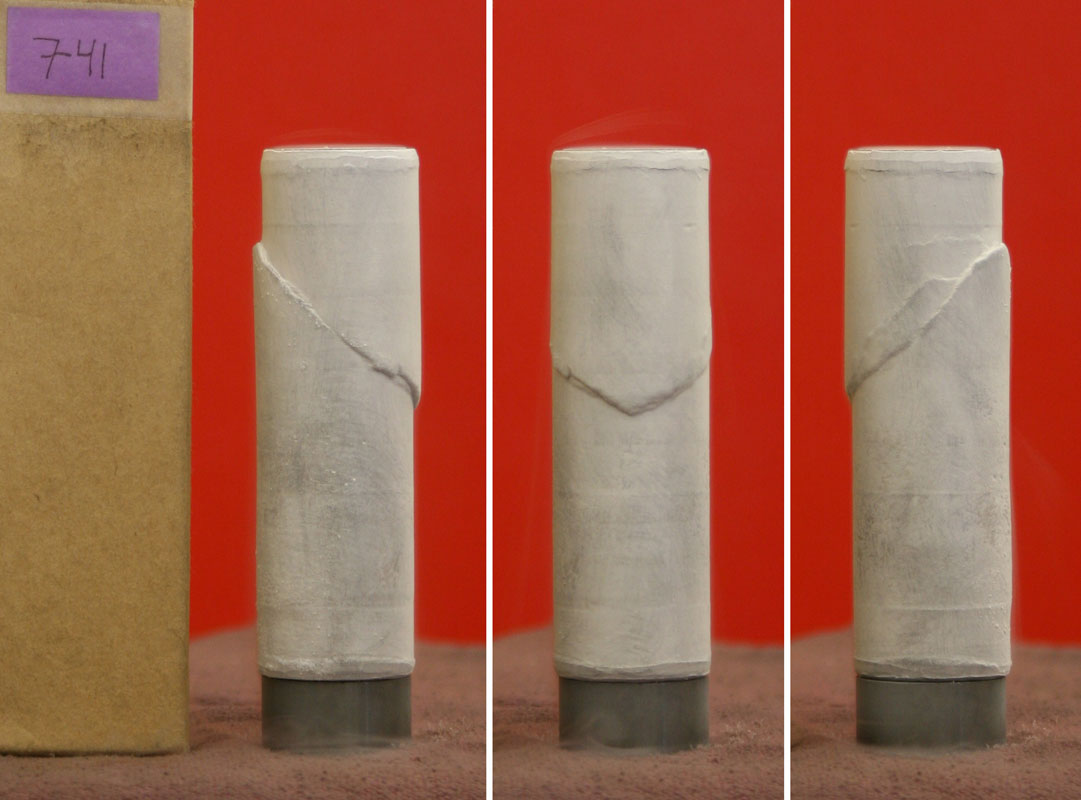

 after.jpg)
after_failure
micrographs
chart record
run logCategories |
| Prev in faulting series (740) | Next in faulting series (742) |
Ice741 (NG61): coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V0.7; edot = 6.08e-4/s | (1) pre-load to s = 95.3 MPa; unload ~30 s after peak; e = 0.039 |
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V0.7; edot = 6.08e-4/s | (2) brittle; s max=108.6 MPa |
|
|

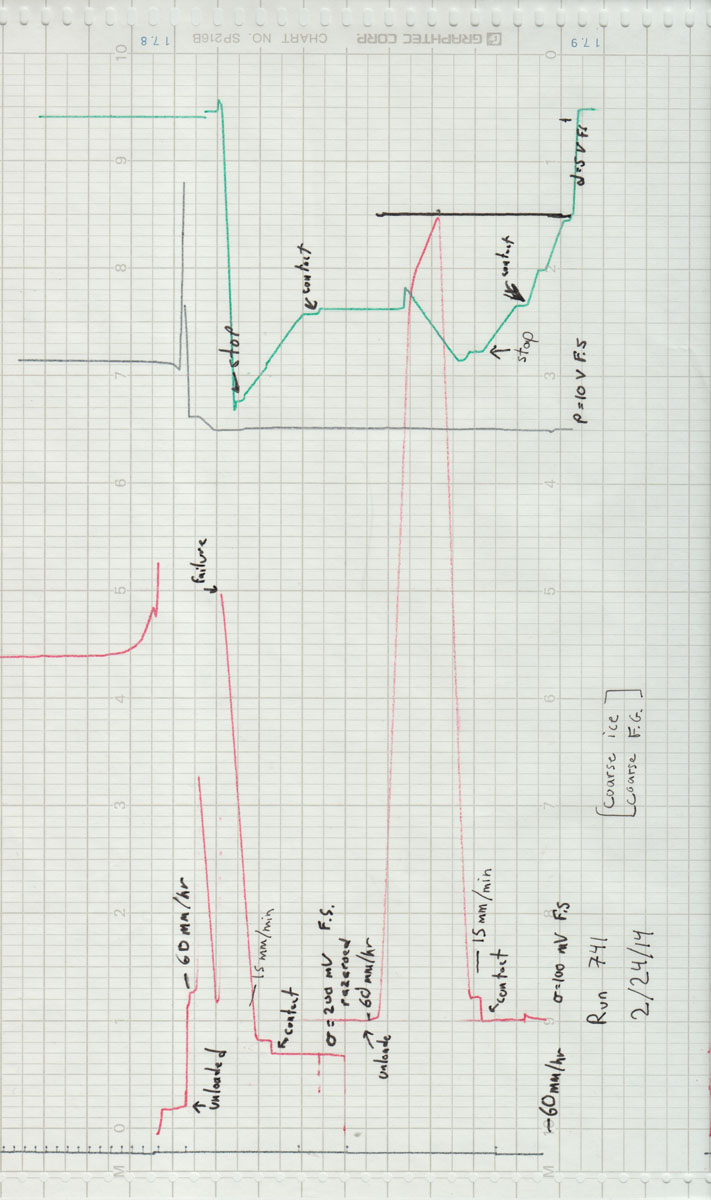

chart record |

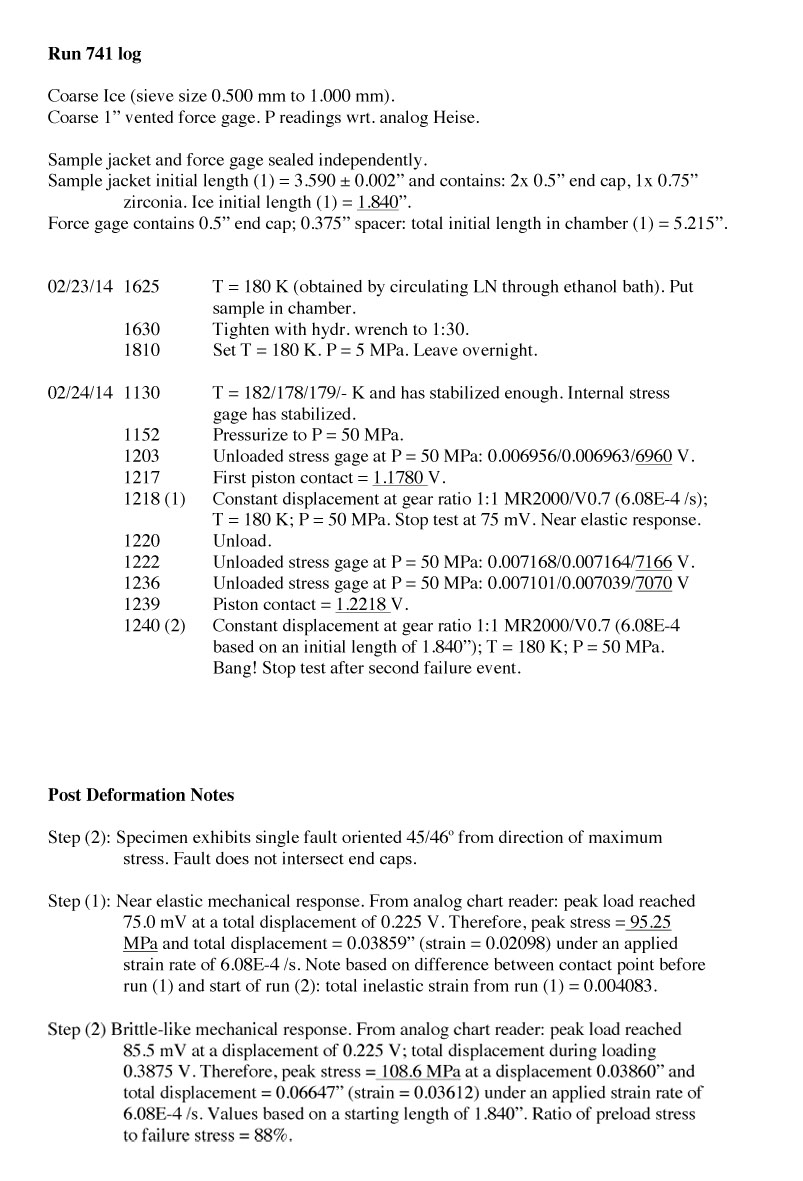

run log |
