 after.jpg)

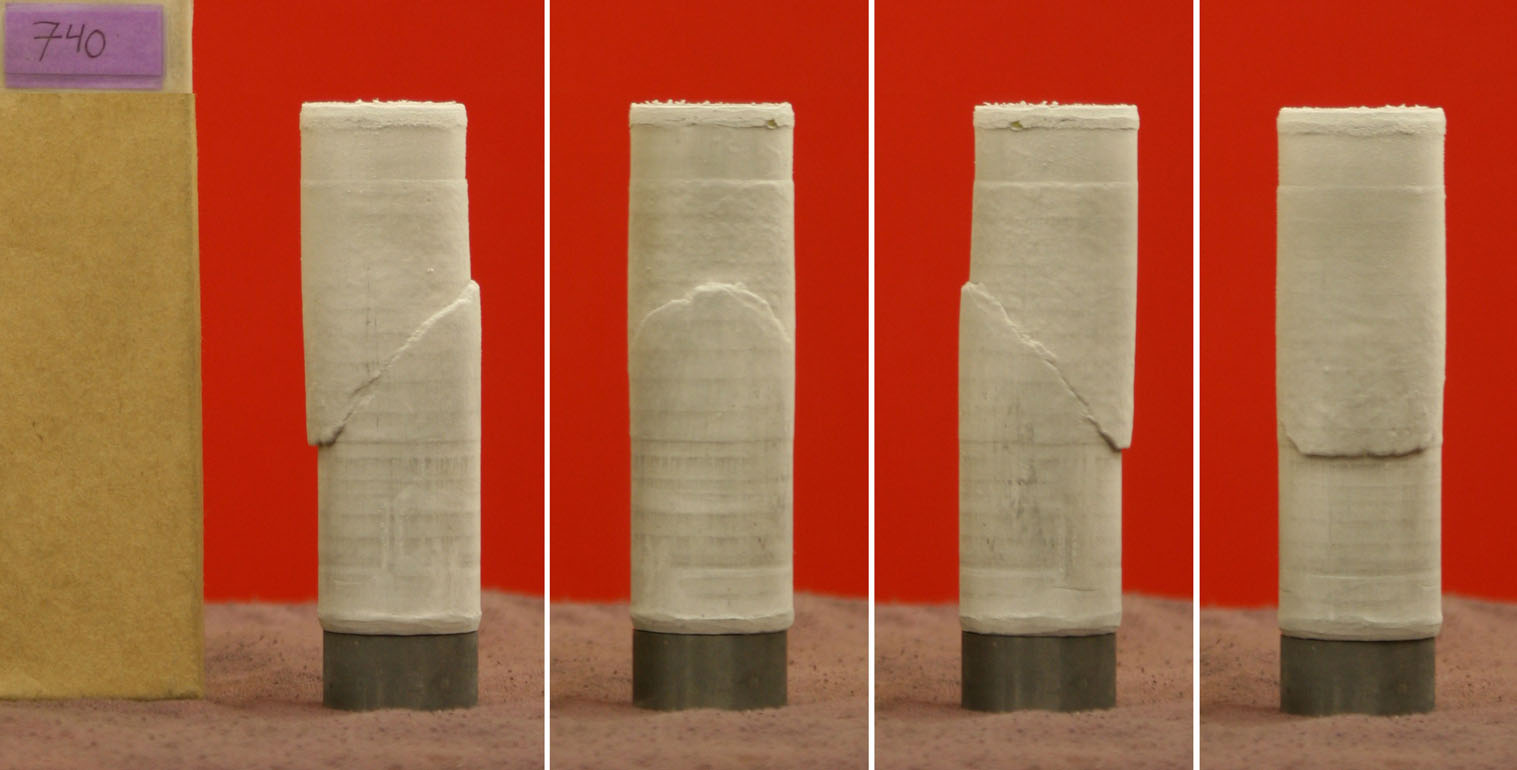

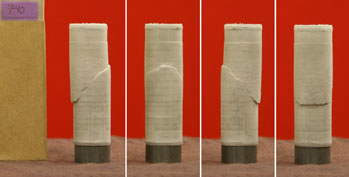

after failure
(not yet)
micrographs
Categories |
| Prev in faulting series (739) | Next in faulting series (741) |
Ice740 (NG60): coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V0.14; edot = 1.25e-4/s | (1) ductile; s max=99.1 MPa, s ss=78.3 MPa; e = 0.065 |
| T = 180 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V3.5; edot = 3.36e-3/s | (2) brittle; s max=102.0 MPa |
|
(not yet) micrographs
|

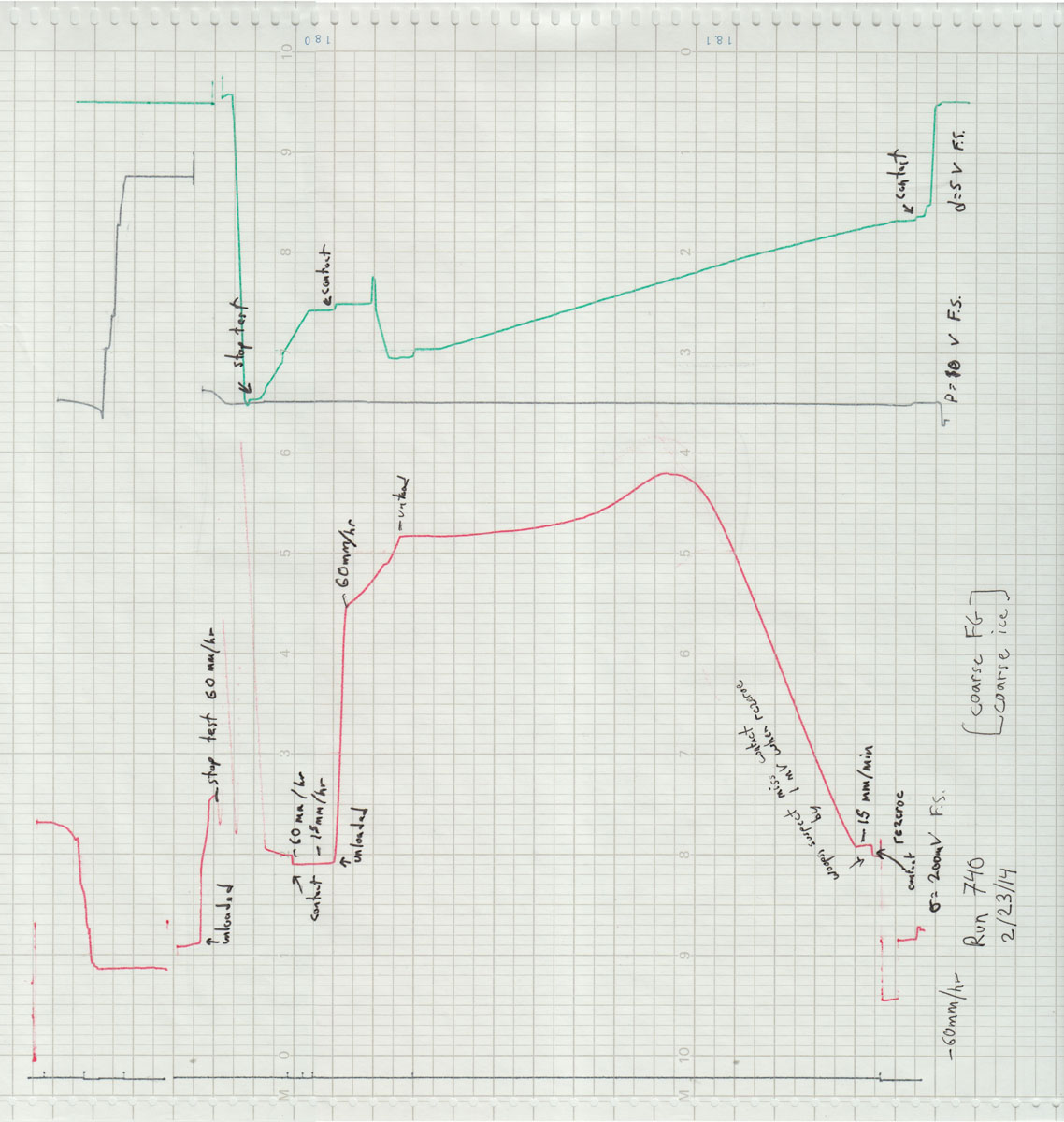

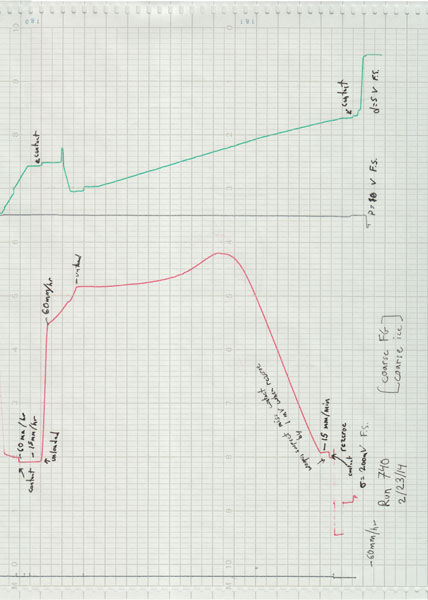

chart record

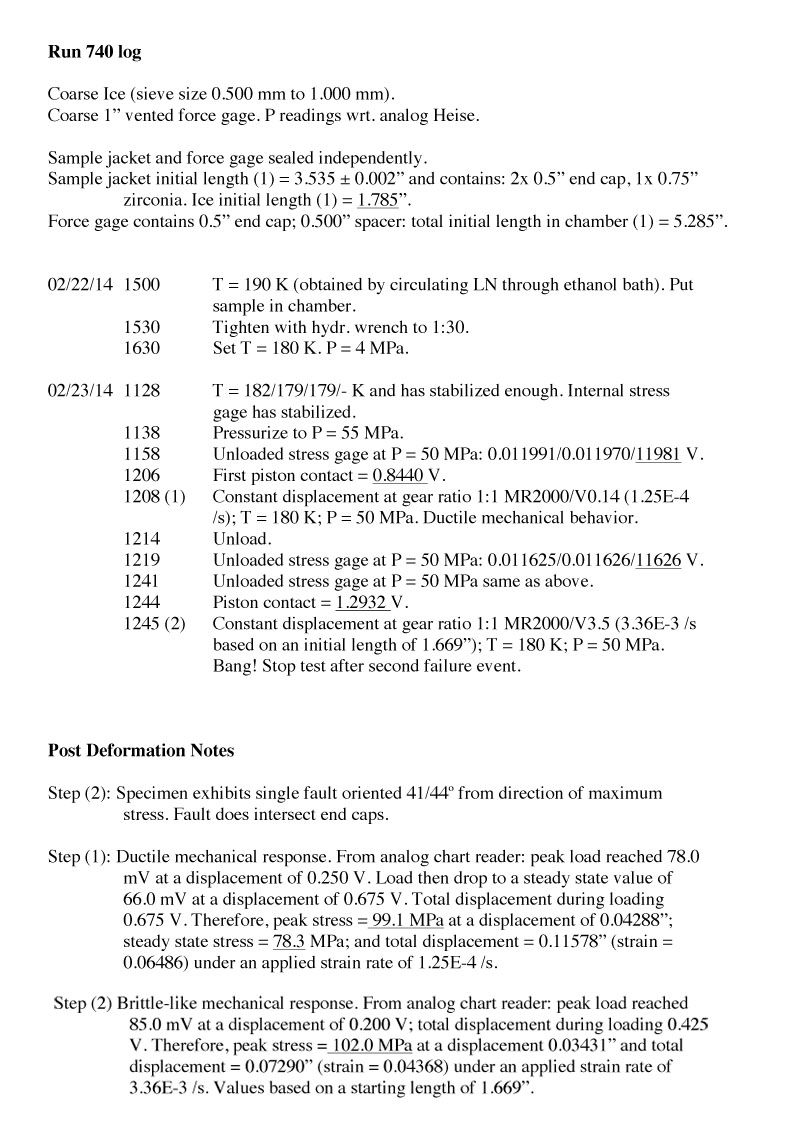

run log
