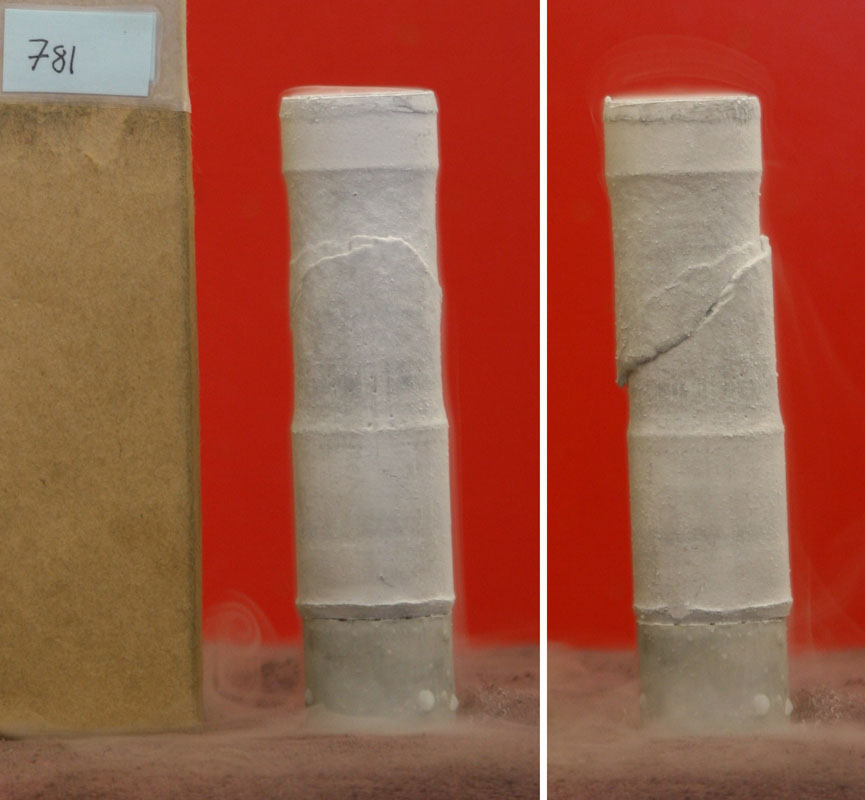

after_failure
(not yet)
micrographs
Categories |
| Prev in faulting series (746) | Next in faulting series (782) |
Ice781 (NG70): Ice II, from coarse-grained ice I (sieve size 0.5 - 1 mm)
| T ≈ 195-200 K, P to 280 MPa to form ice II | (0) ice I->II at P ~240 MPa |
| T ≈ 110-105 K, P = 250.0 MPa, 1:10 gearing, udot=MR2000/V2.0; edot = 1.77e-4/s | (1) s max= 286.5 MPa |
|
(not yet) micrographs
|

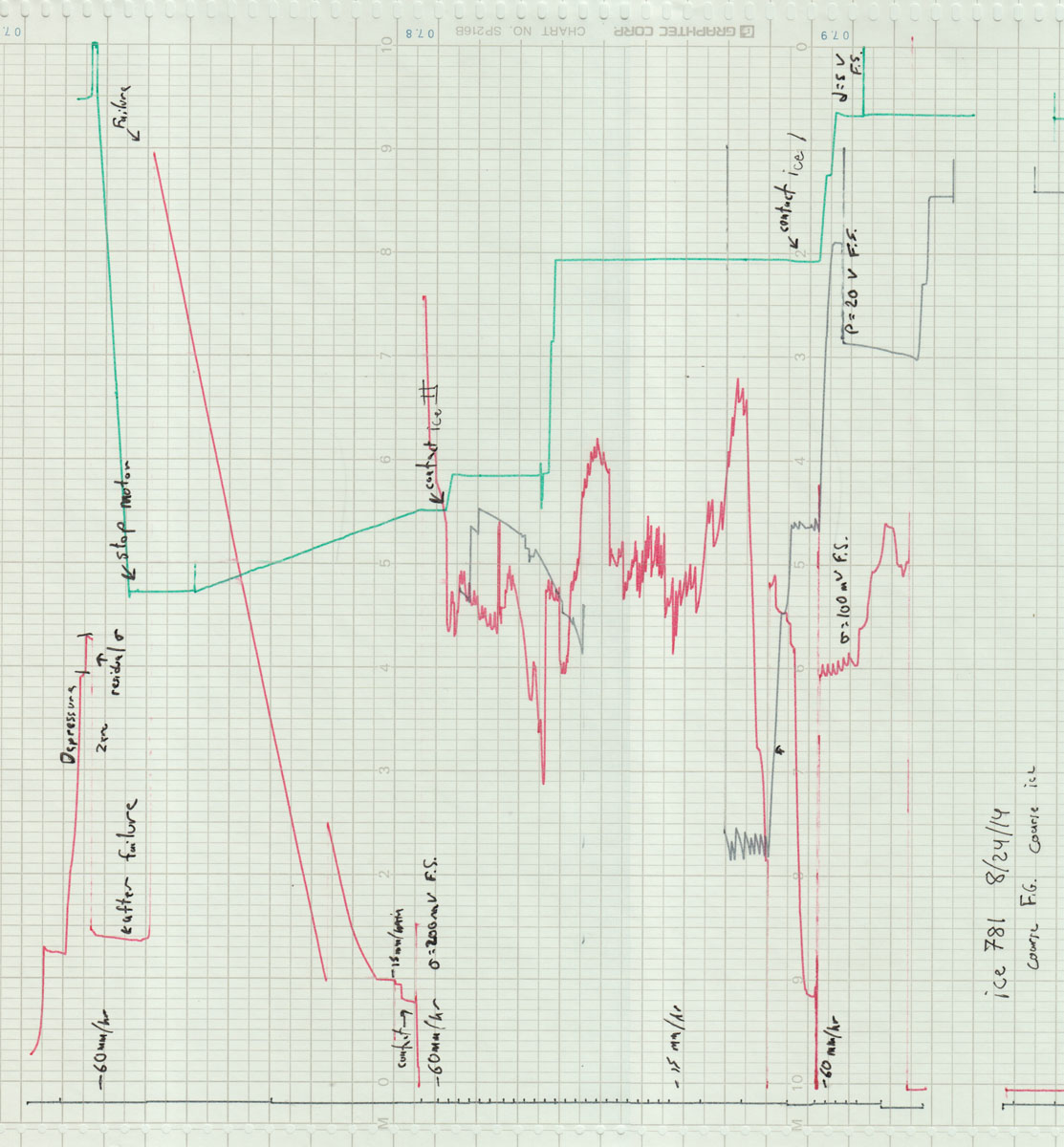

chart record

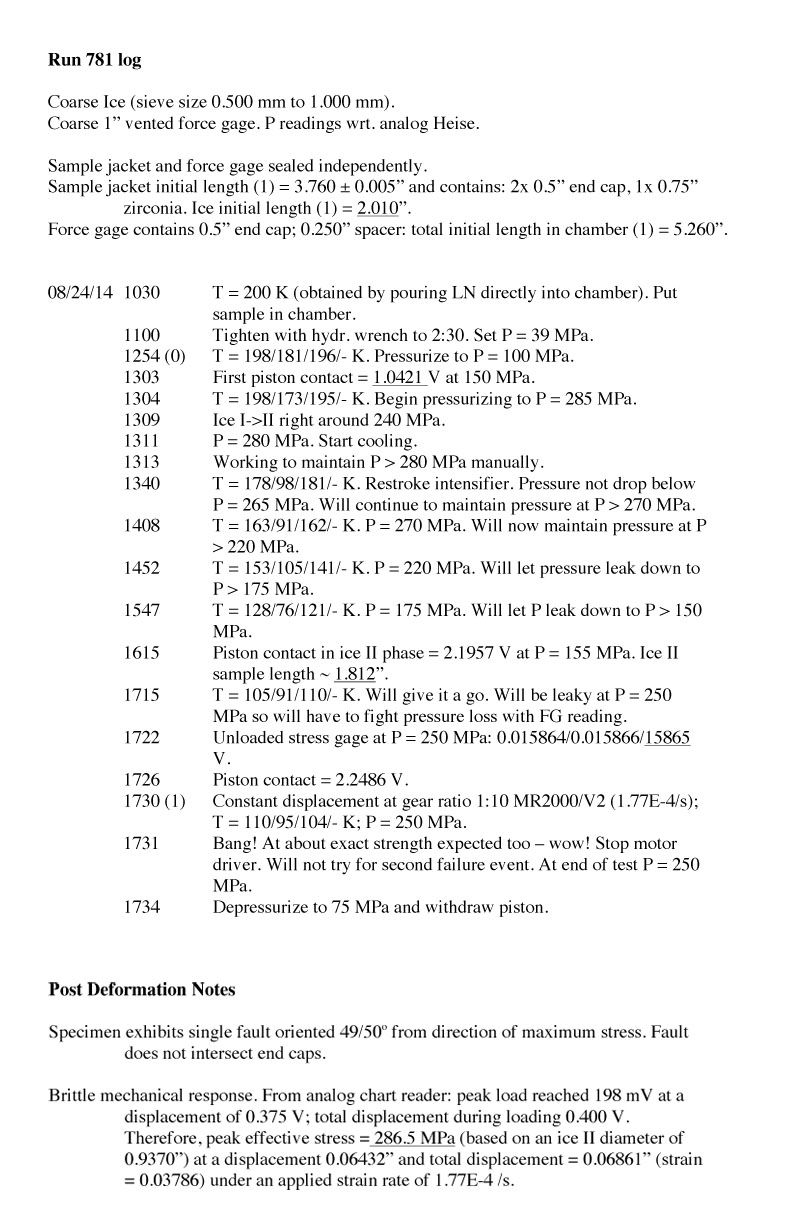

run log
