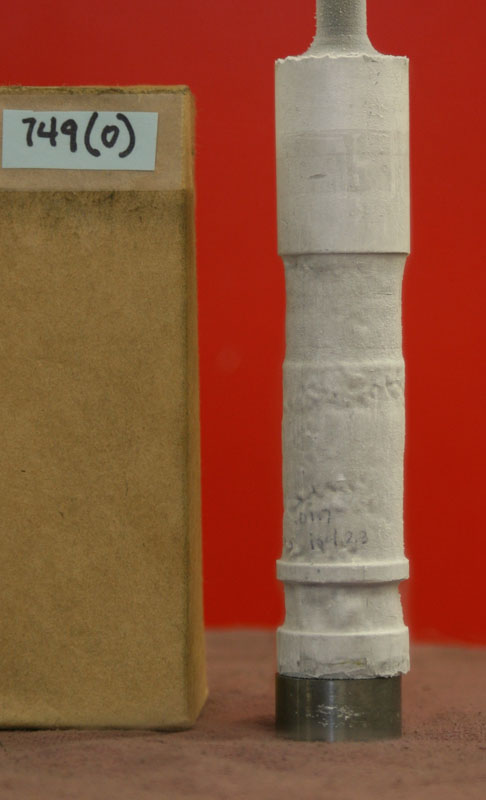

after compactionafter deformation (no photos)

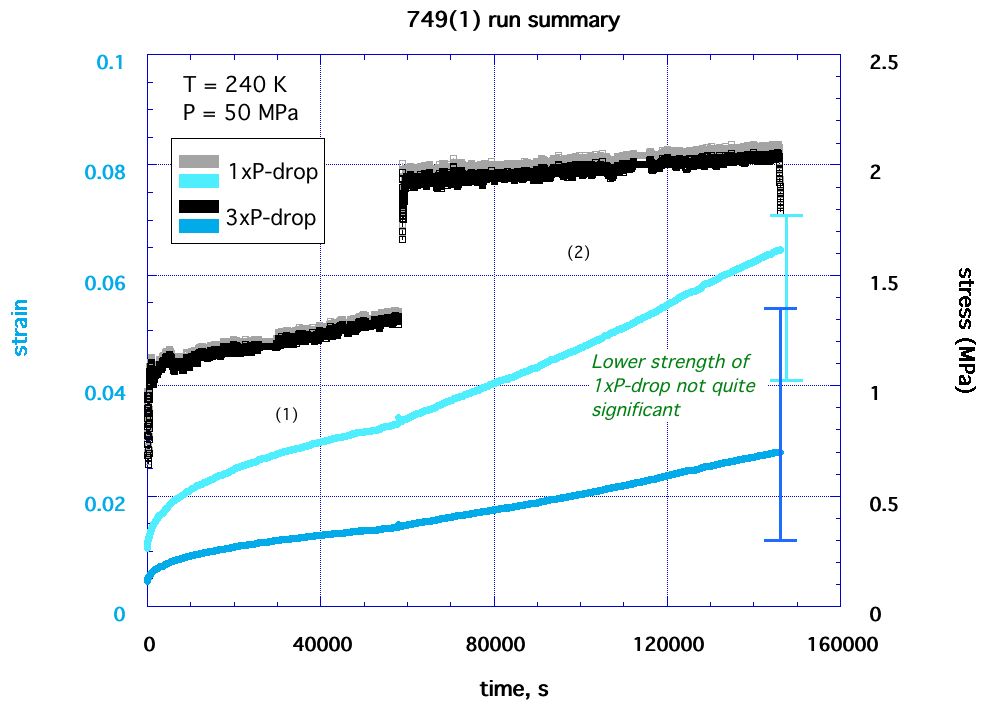

run summary
micrographs

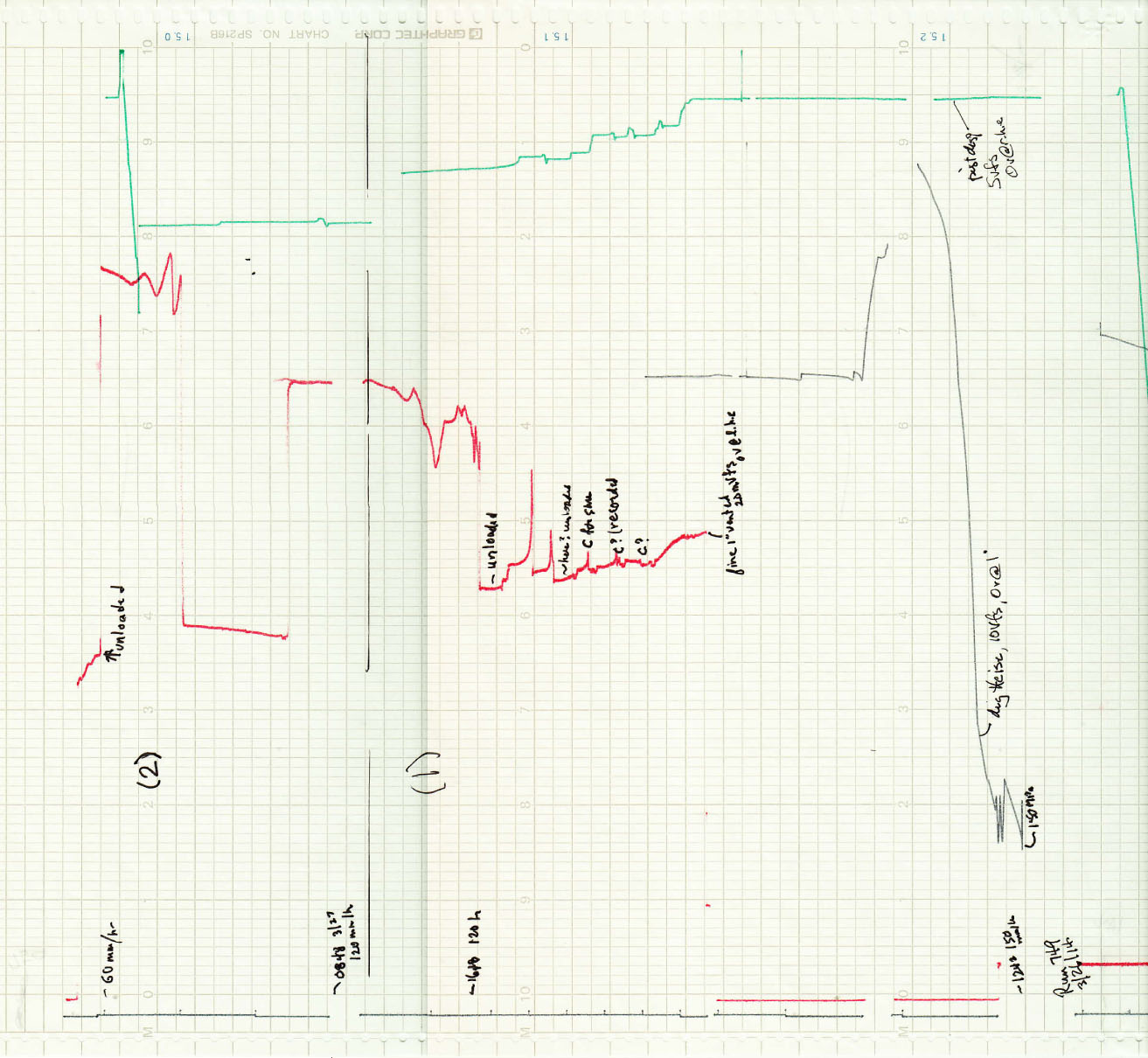

chart record

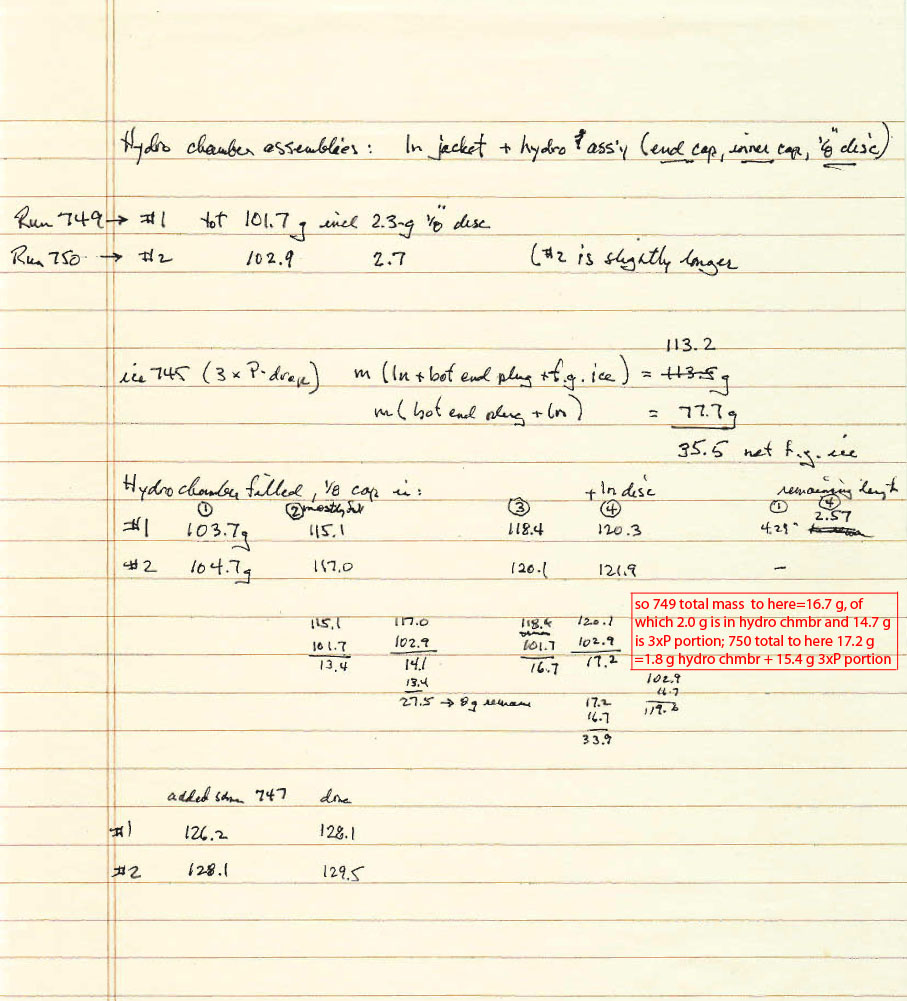

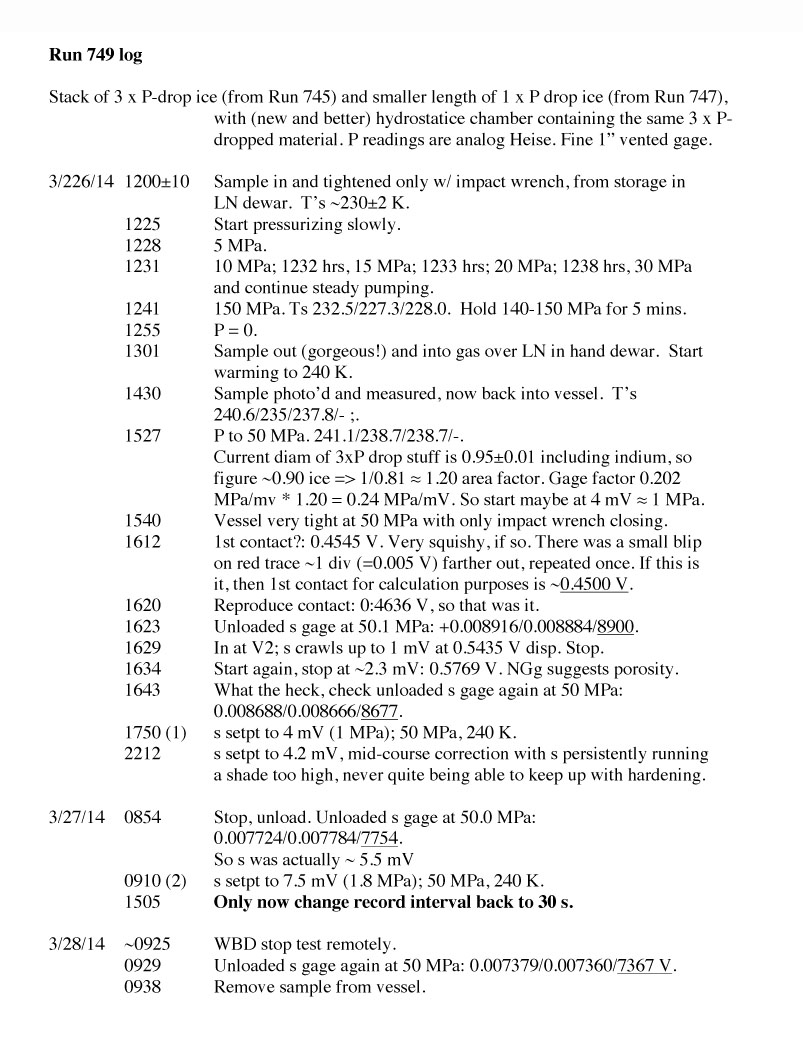

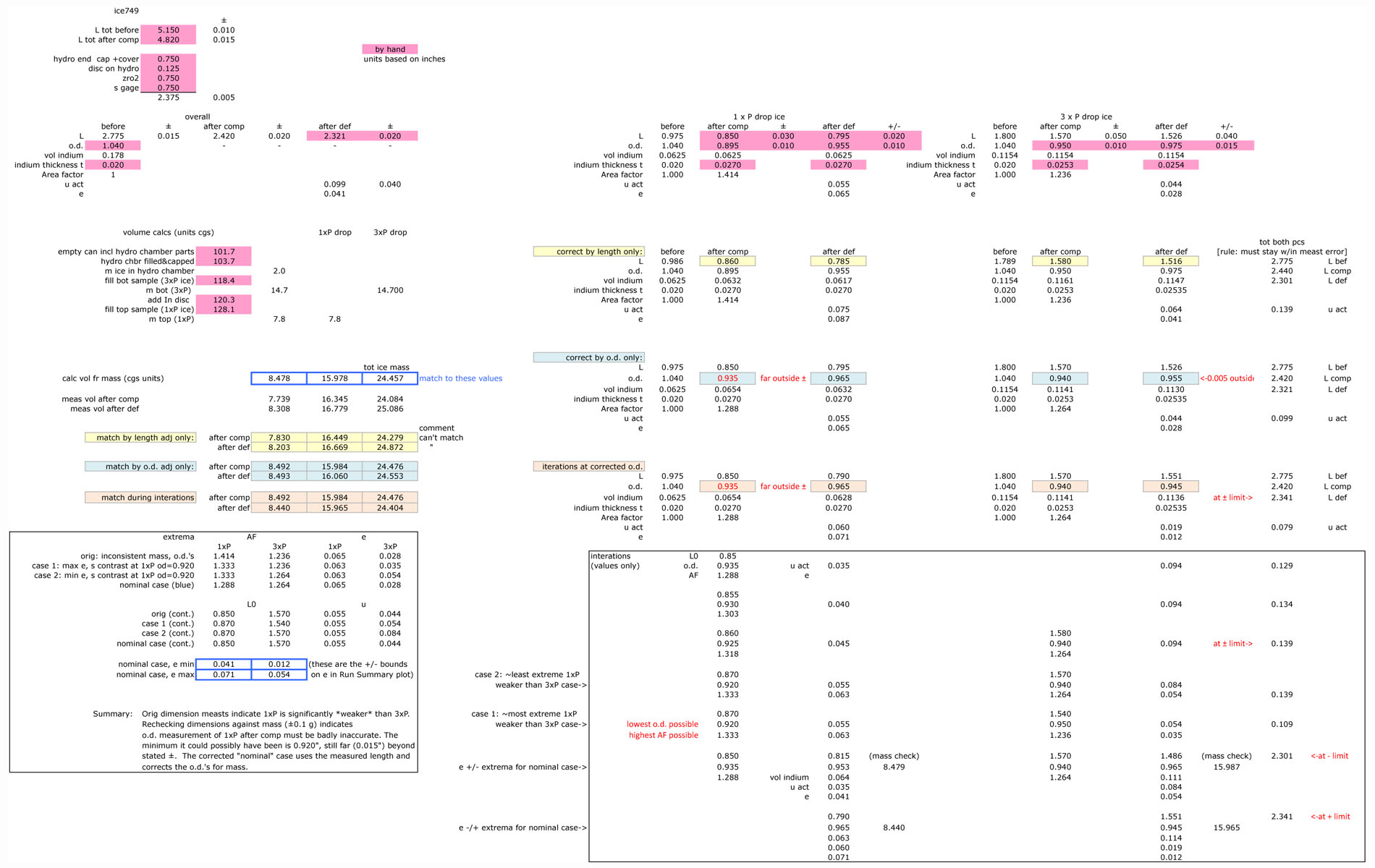

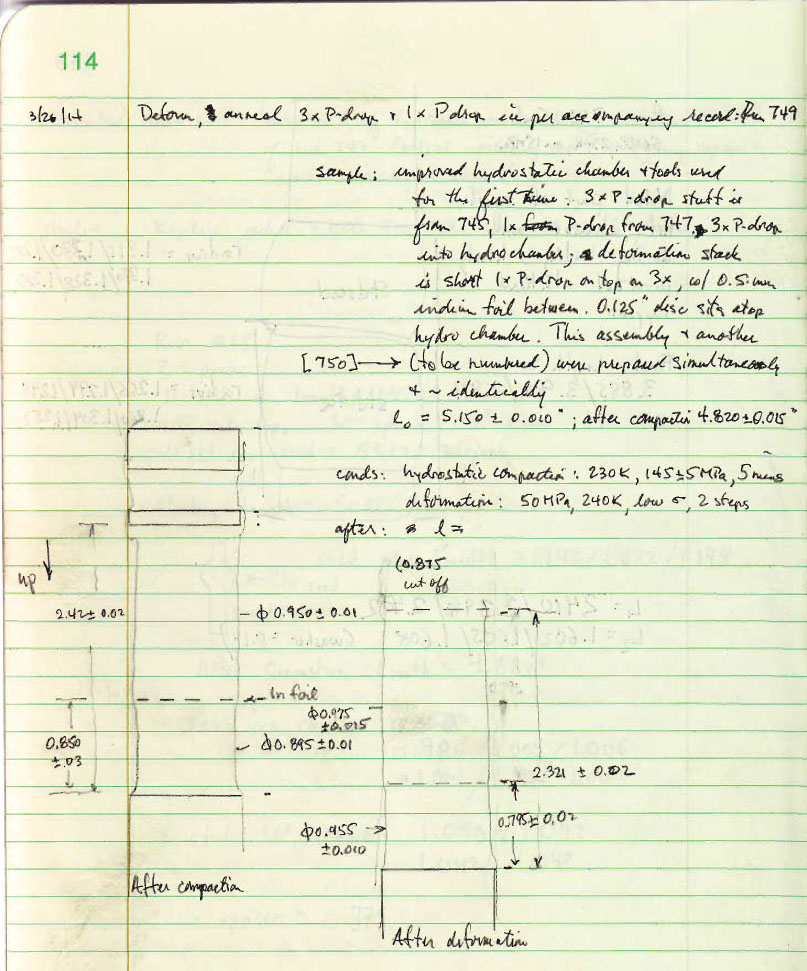

other resources: run log, live updates (archived), lab book page, sample prep notes, ice749 calcs
Categories |
| Prev in series (748) | Next in series (750) |
| Ice749: Stack 1 x P-drop, 3 x P-drop f.g. ice; with hydrostatic chamber | |
| Top: 1 x P-drop f.g. ice from Ice747 | |
| Bot: 3 x P-drop f.g. ice from Ice745 | |
| Hydrostatic chamber: same 3 x P drop ice | |
| (twin of Ice750) | |
| T= 230 K, 150 MPa, 5 mins | hydrostatic compaction |
| T = 240 K, P = 50 MPa, s = 1.0->1.4 MPa | step (1) |
| T = 240 K, P = 50 MPa, s = 1.9 MPa | step (2) |
after deformation (no photos) |
|
|
|||
other resources: run log, live updates (archived), lab book page, sample prep notes, ice749 calcs |
|||||

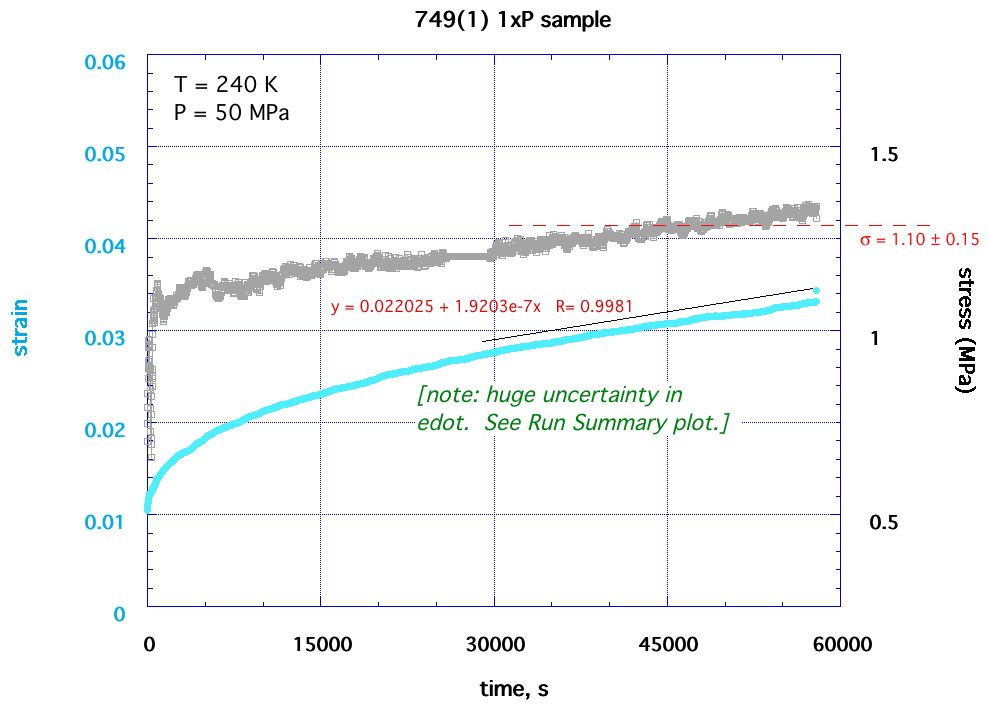

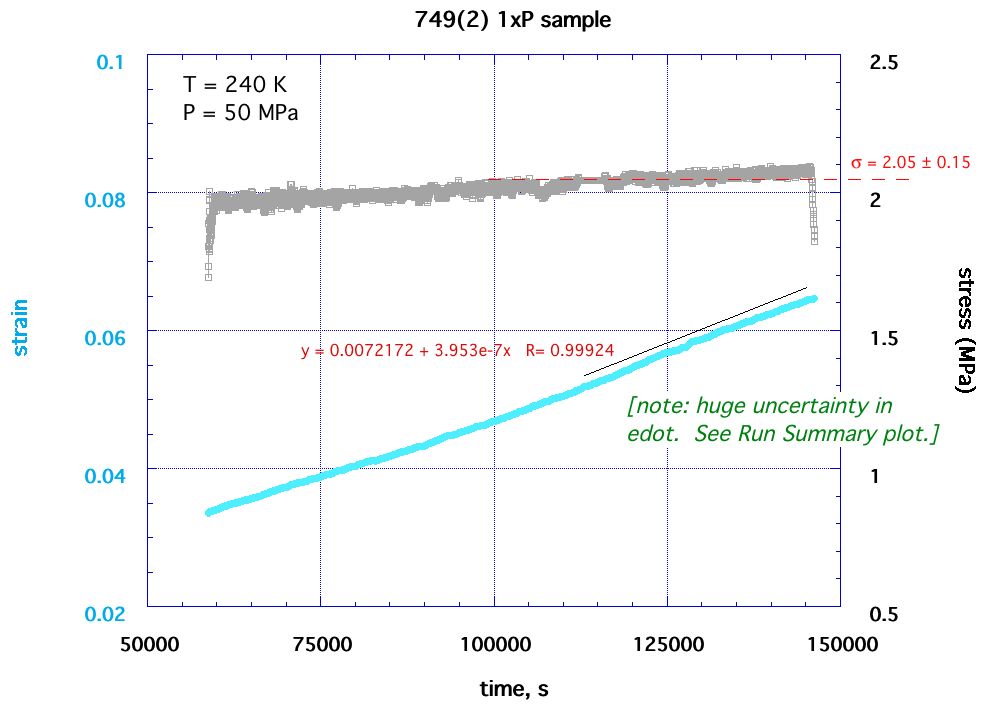

 1xP-drop sample.jpg) |
 1xP-drop sample.jpg) |
|

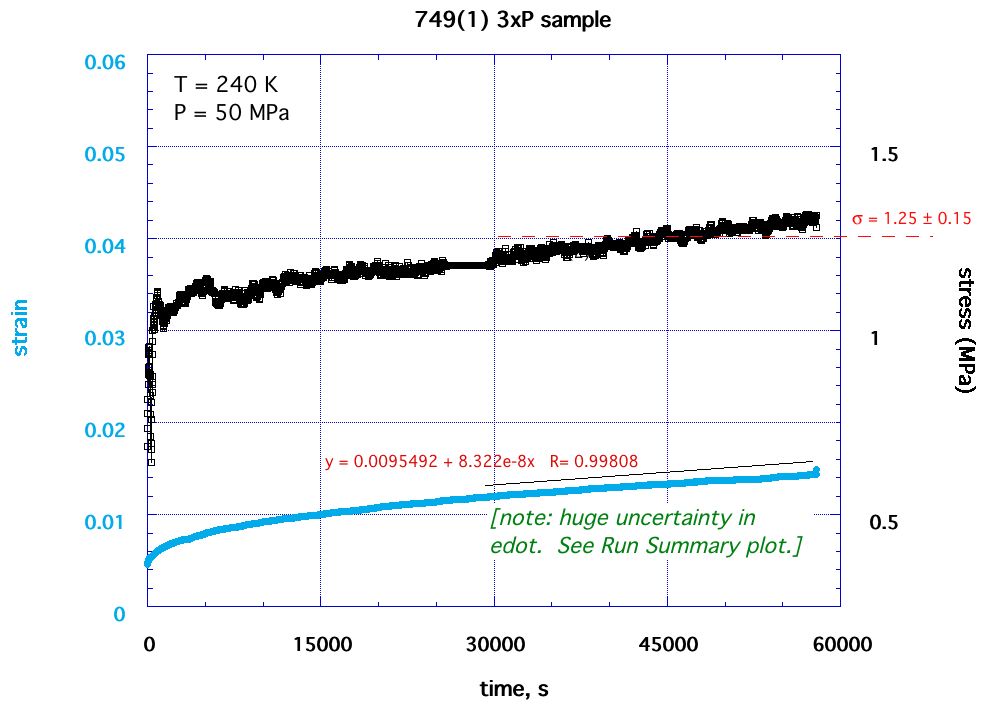

 3xP sample.jpg) |

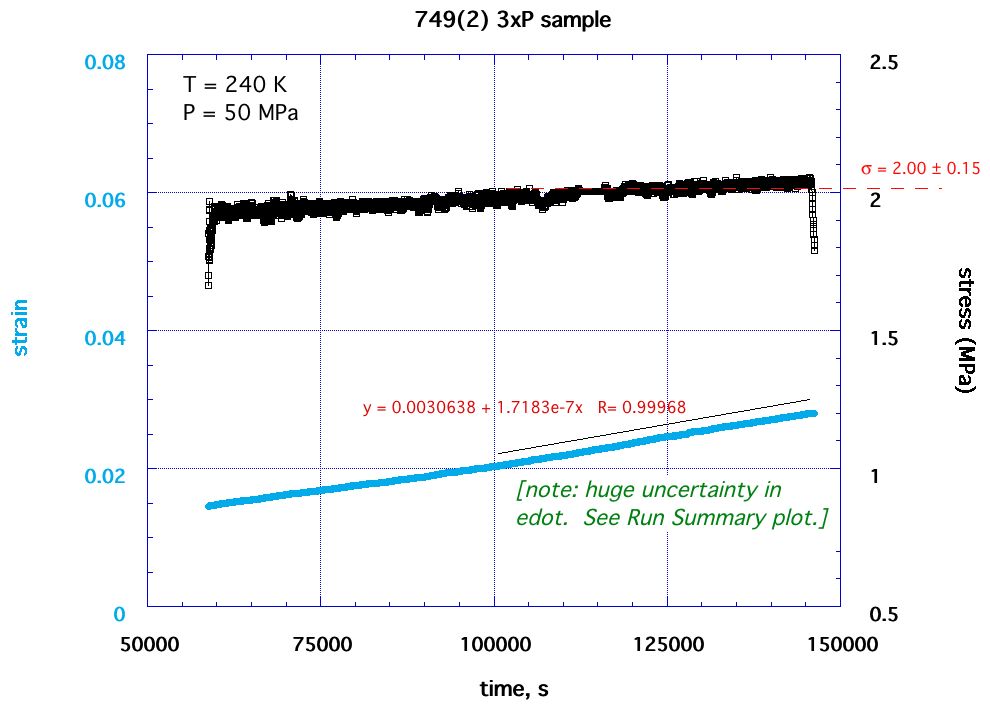

 3xP sample.jpg) |
