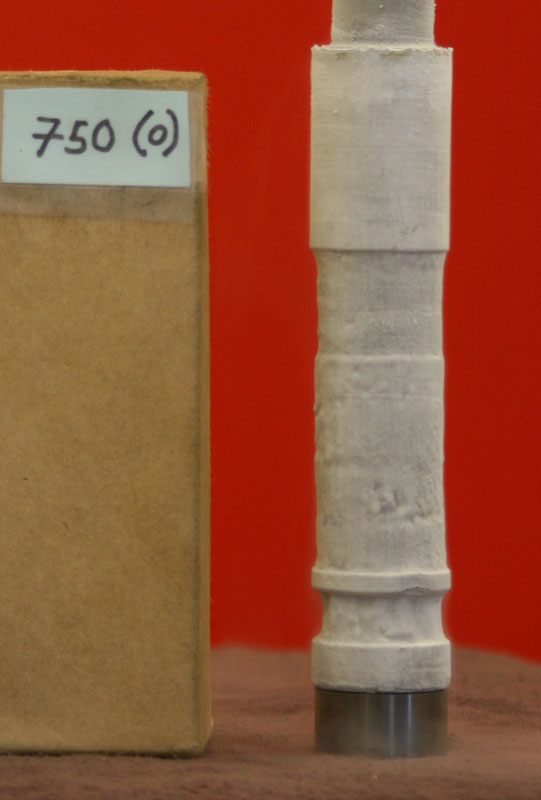

after compactionafter deformation
(no photos)

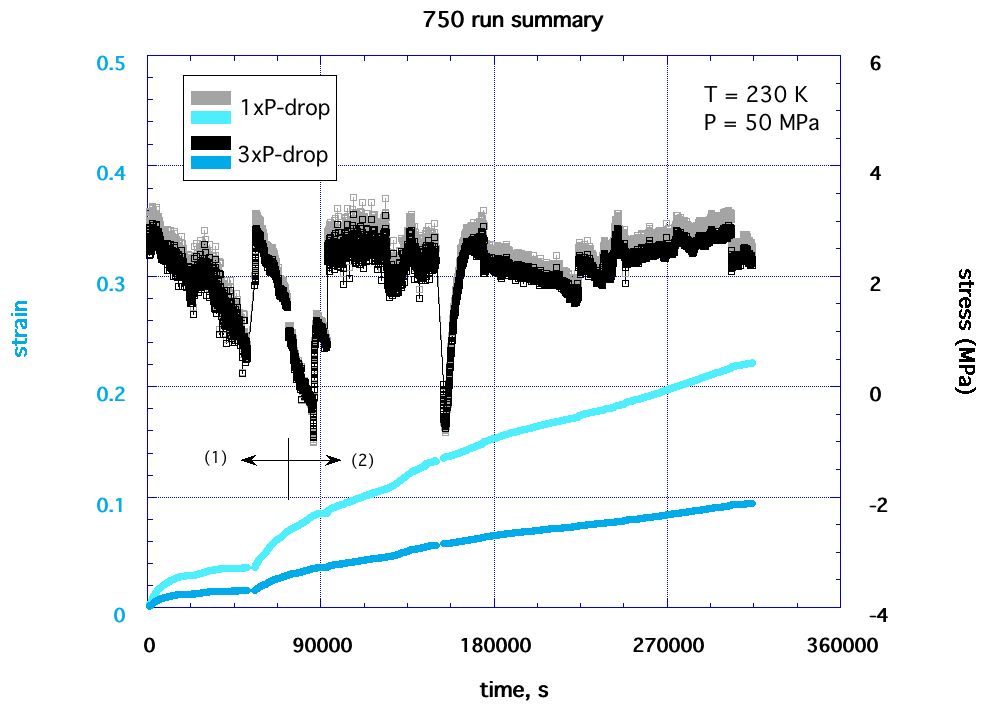

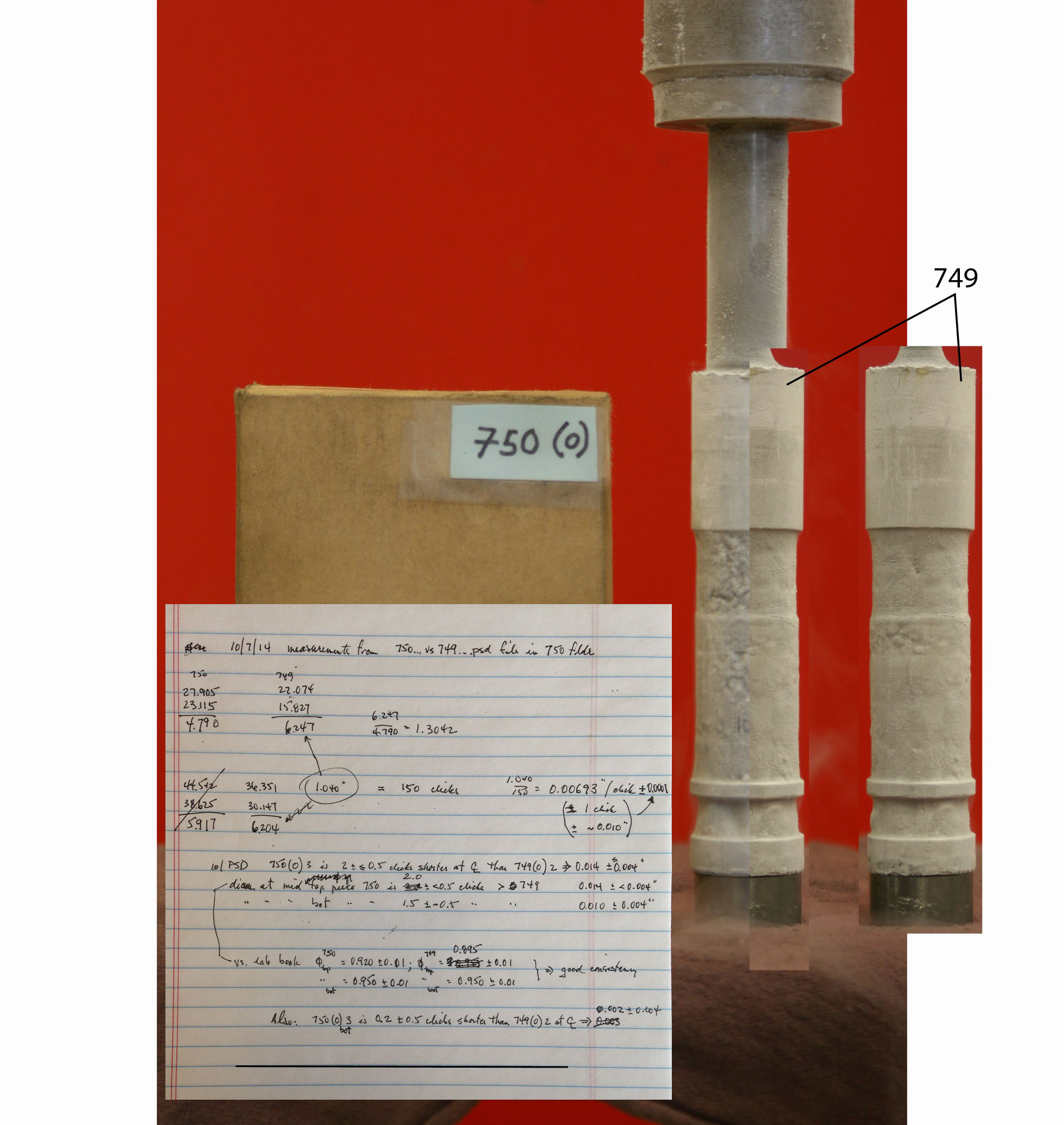

run summary , both pieces.jpg)

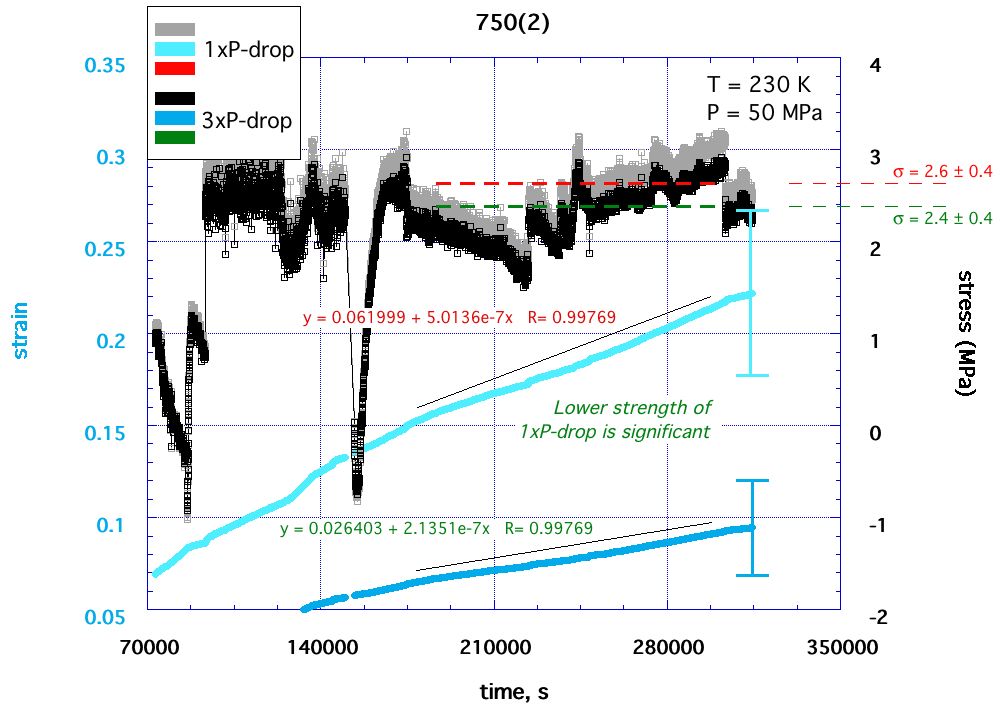

step (2) detail
micrographs

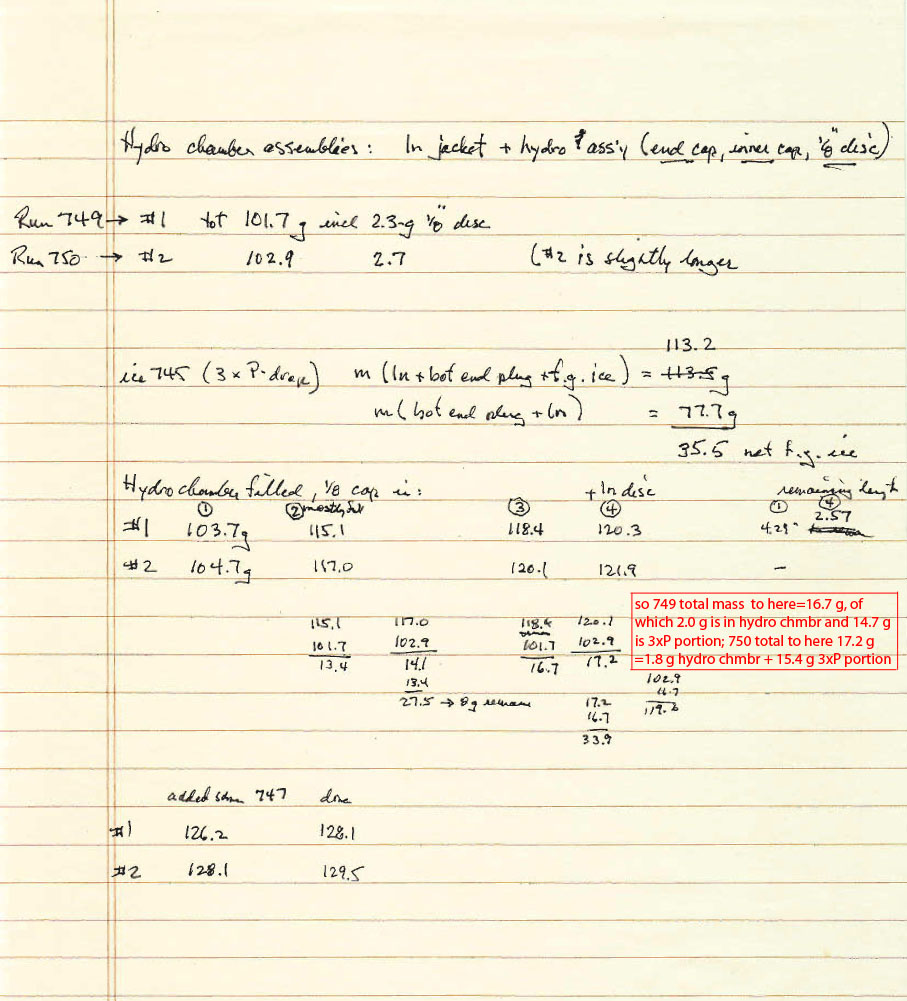

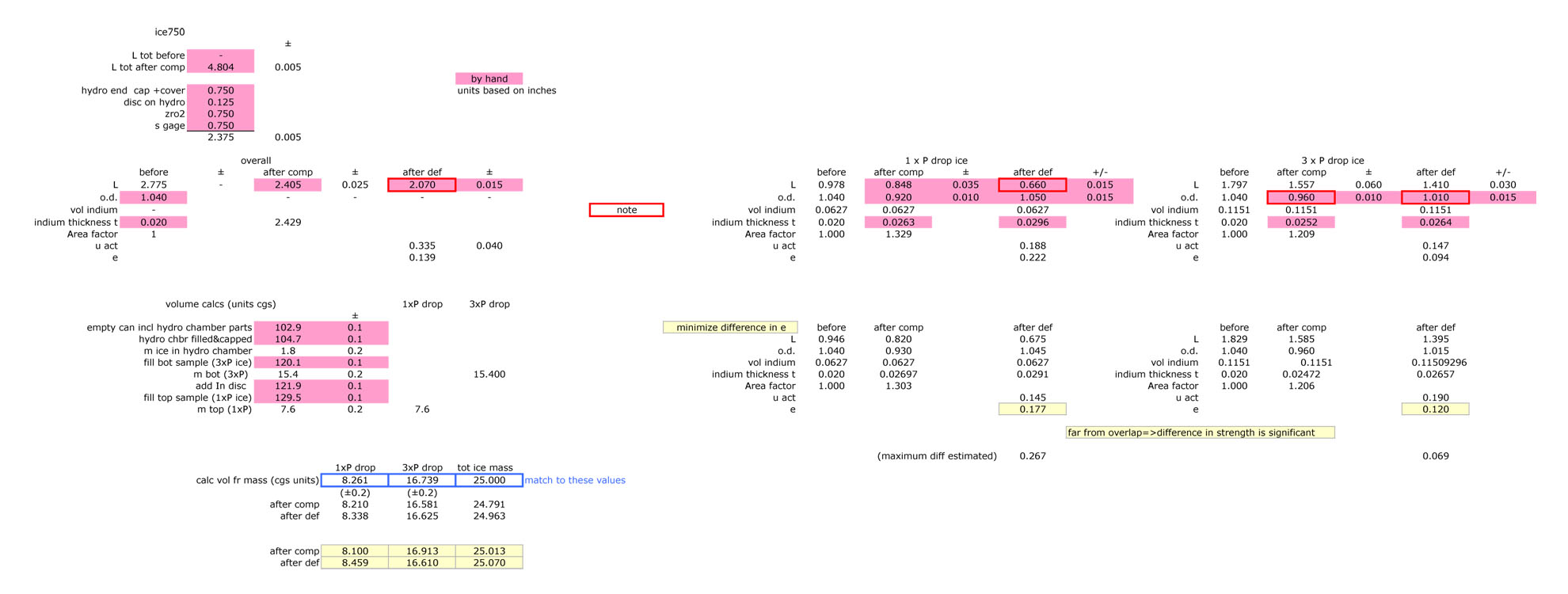

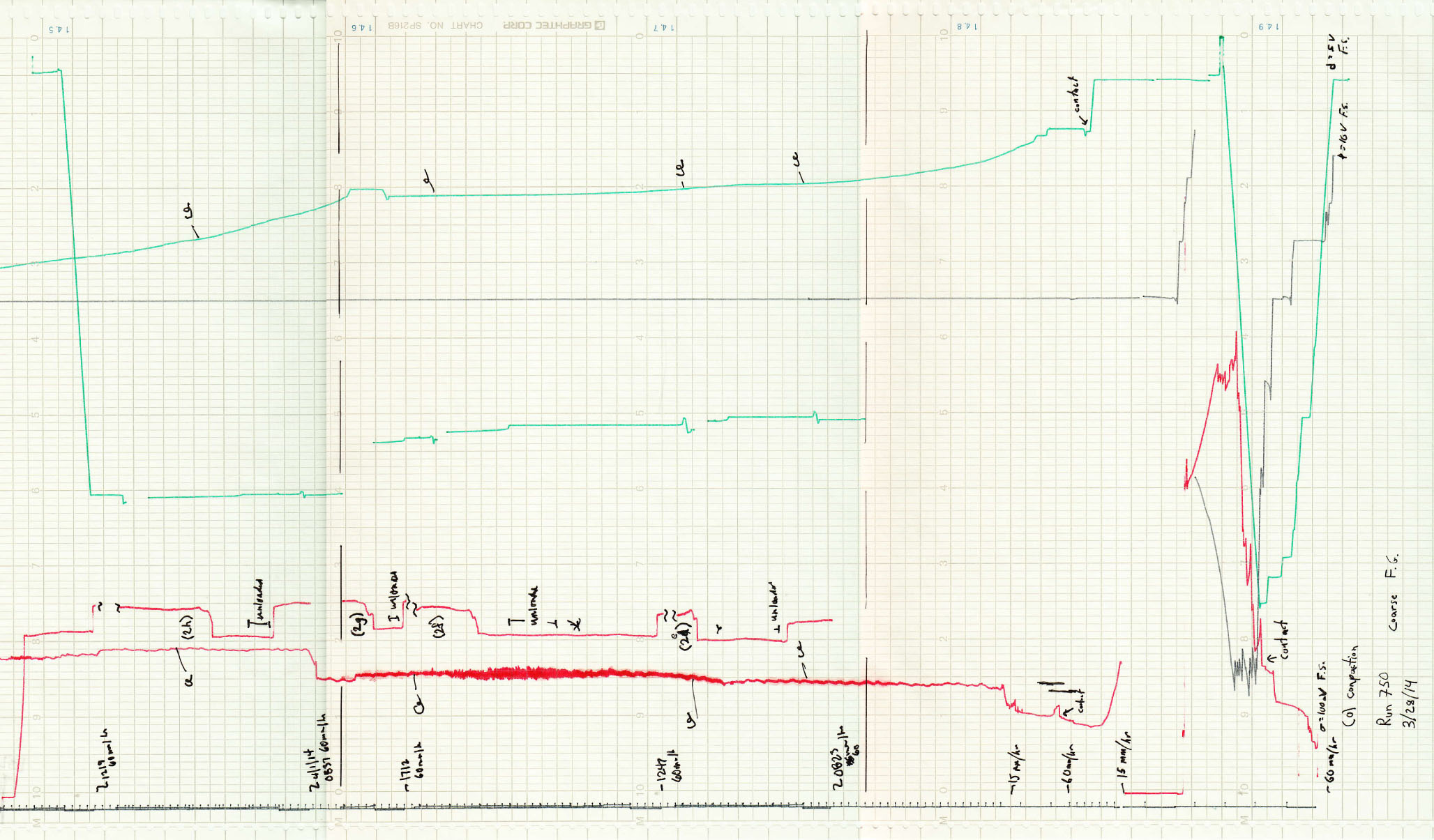

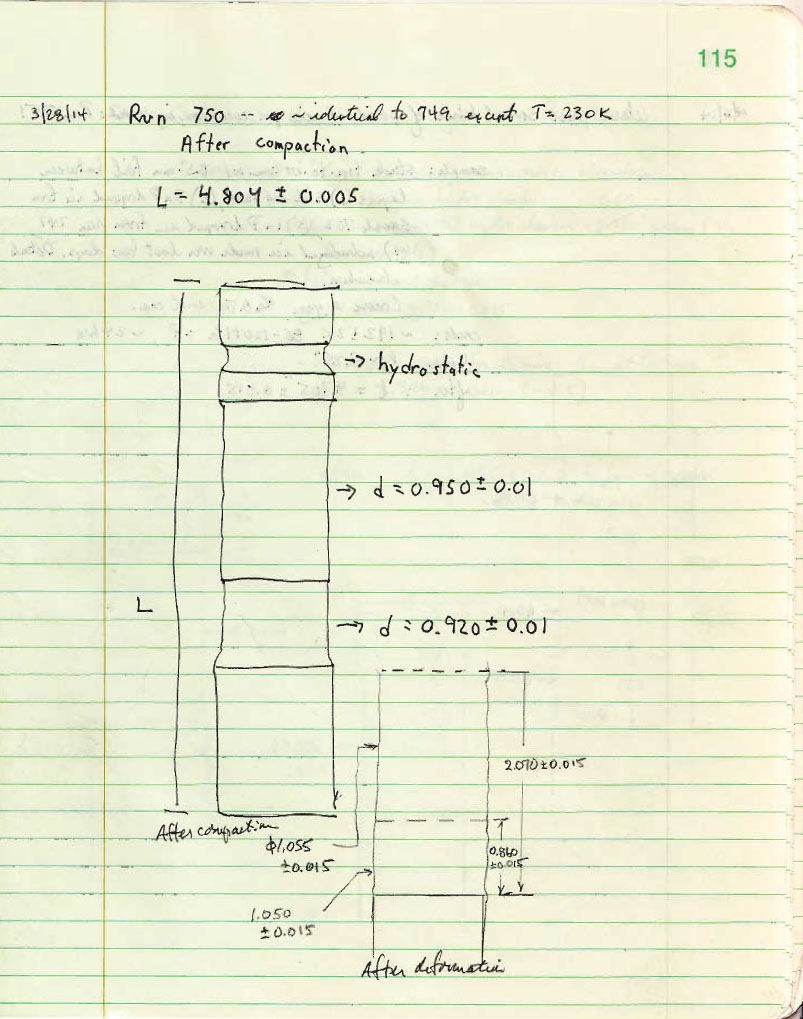

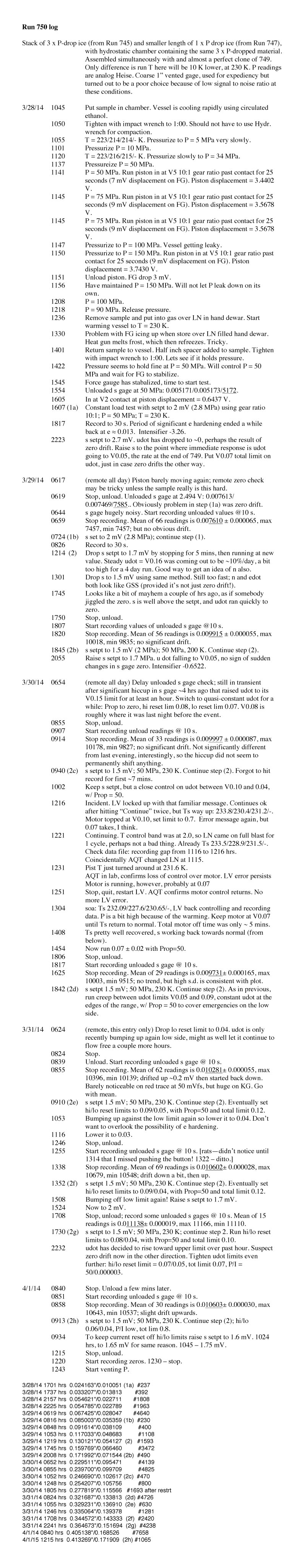

chart recordother resources: run log, live updates (archived), lab book page, sample prep notes, ice750 calcs/psd measurement
Categories |
| Prev in series (749) | Next in series (752) |
| Ice750: Stack 1 x P-drop, 3 x P-drop f.g. ice; with hydrostatic chamber | |
| Top: 1 x P-drop f.g. ice from Ice747 | |
| Bot: 3 x P-drop f.g. ice from Ice745 | |
| Hydrostatic chamber: same 3 x P drop ice | |
| (twin of Ice749) | |
| T= 220 K, 150 MPa, 5 mins | hydrostatic compaction |
| T = 230 K, P = 50 MPa, s = 2.8 MPa | step (1) |
| T = 230 K, P = 50 MPa, s = 2 MPa | steps (2a-h) |
after deformation (no photos) |
|
link to 749-752 summary plot | ||||
other resources: run log, live updates (archived), lab book page, sample prep notes, ice750 calcs/psd measurement |
||||||
