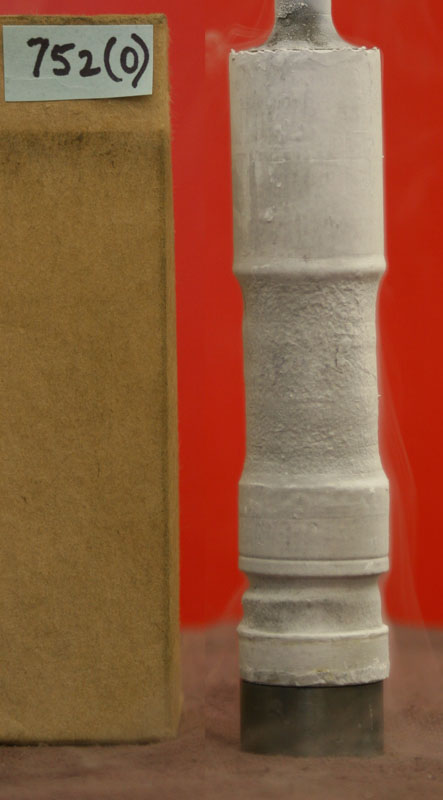

after compaction

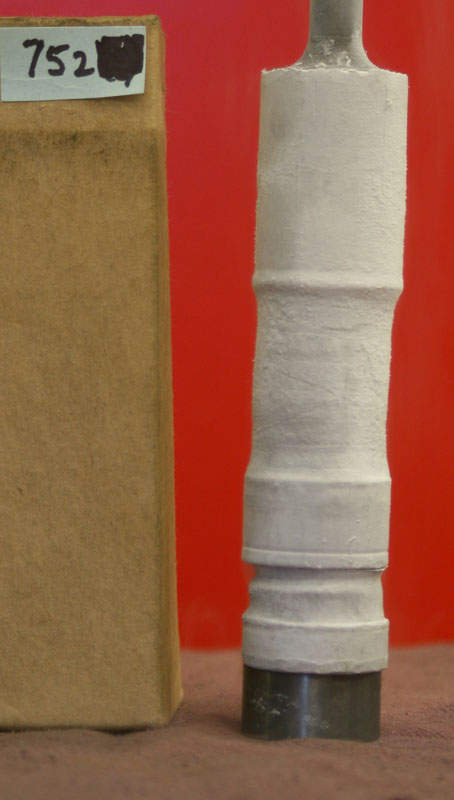

after deformation

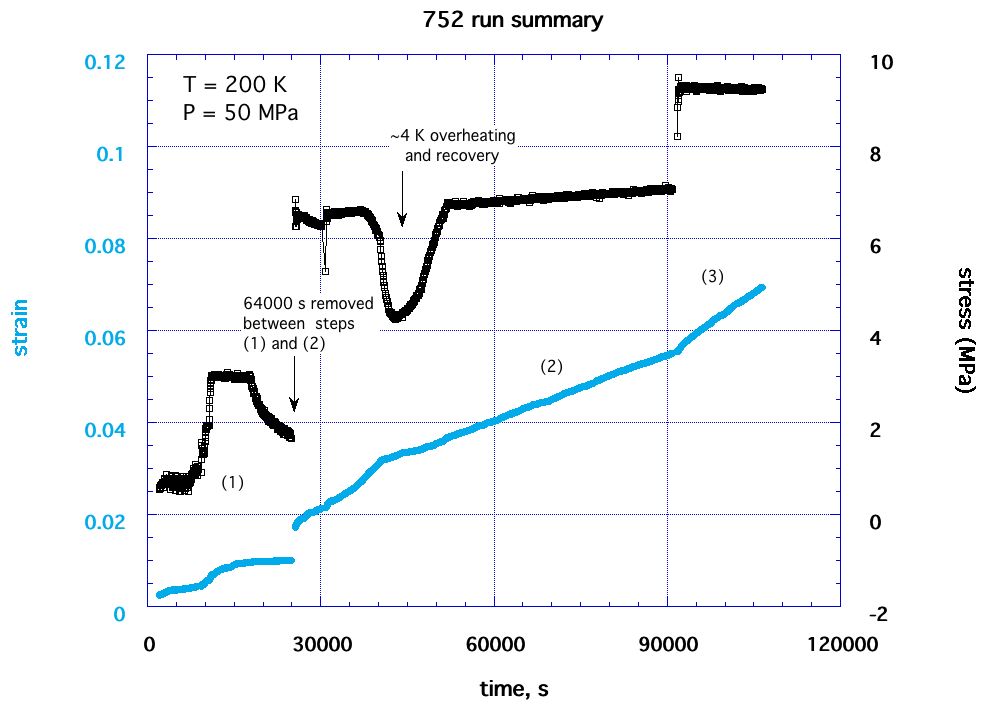

run summary micrographs
(not yet)

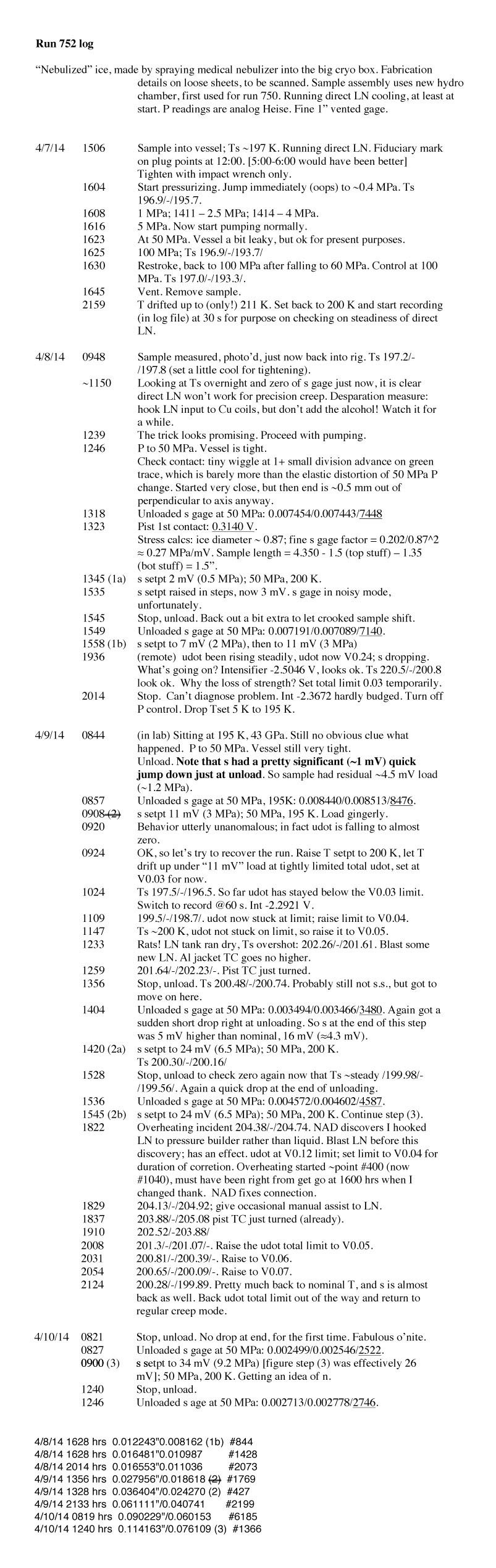

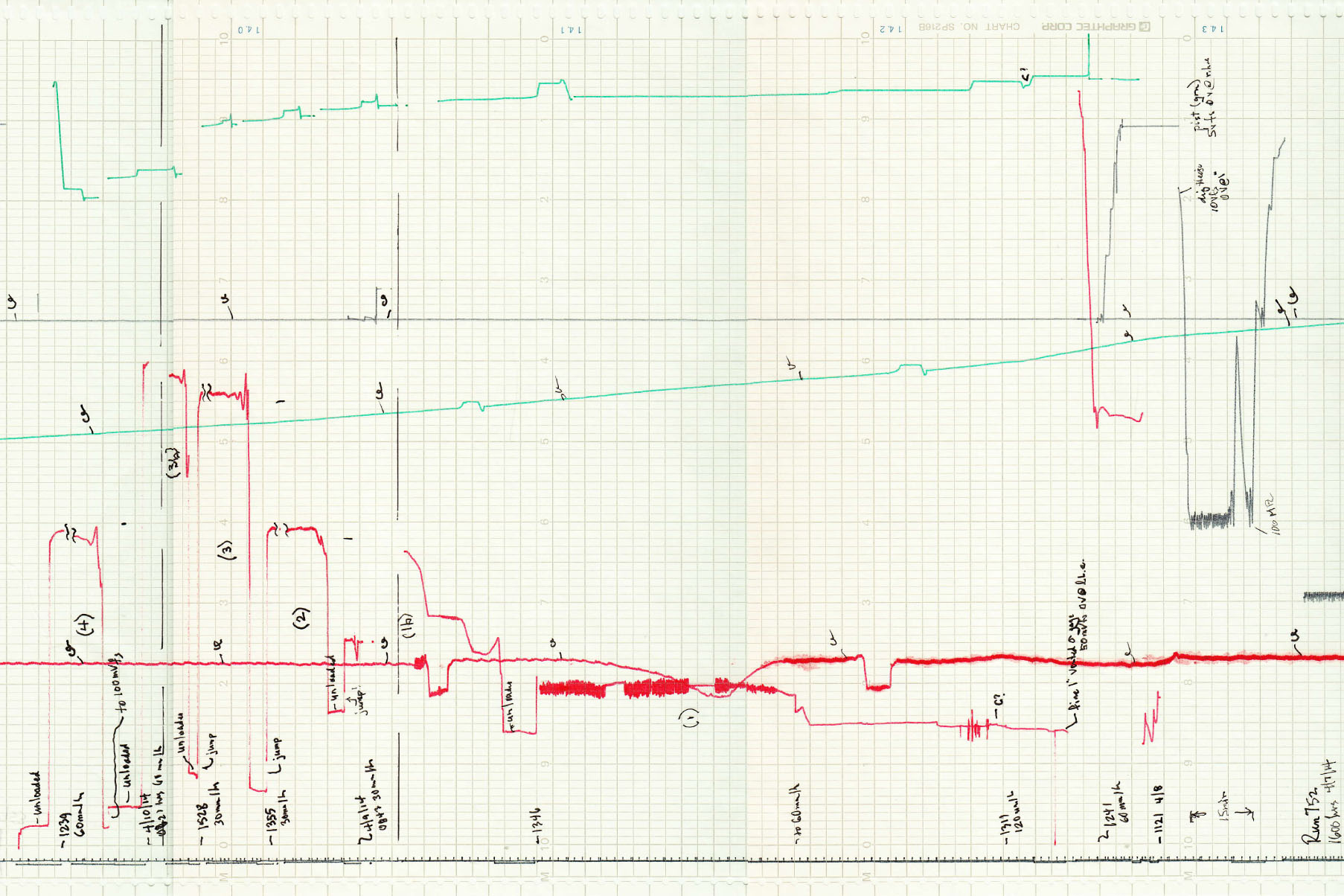

chart record

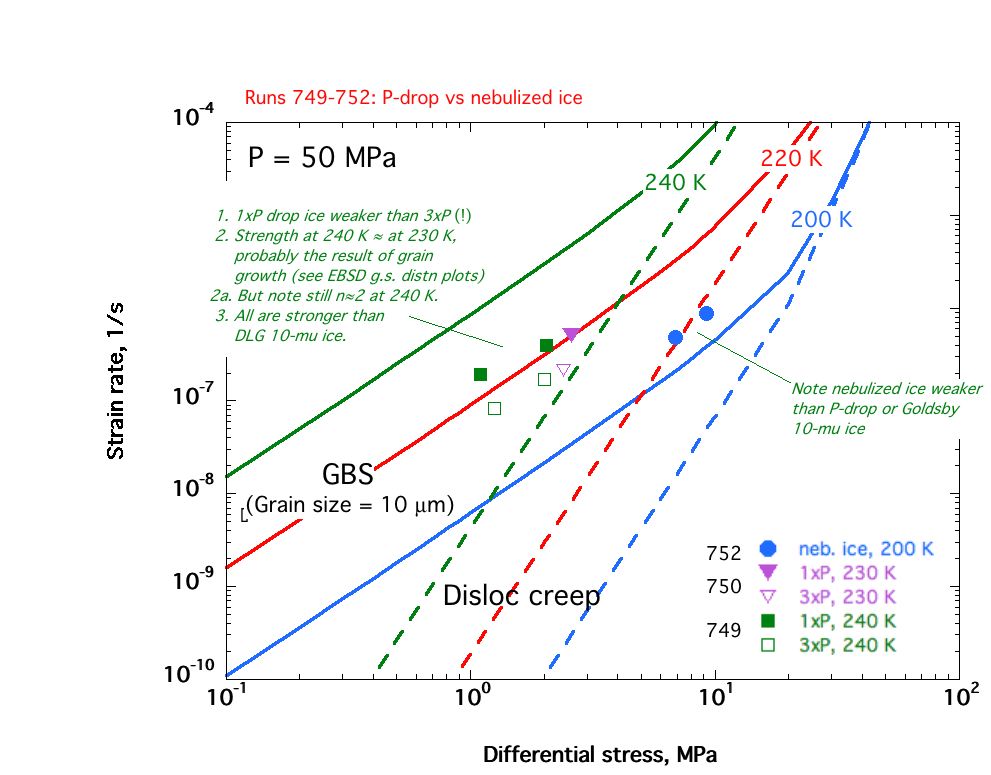

749-752 summary plot
Categories |
| Prev in series (751) | Next in series (761) |
Ice752: Nebulized f.g ice; with hydrostatic chamber
| T= 195 K, 100 MPa, 20 mins | step (0) hydrostatic compaction |

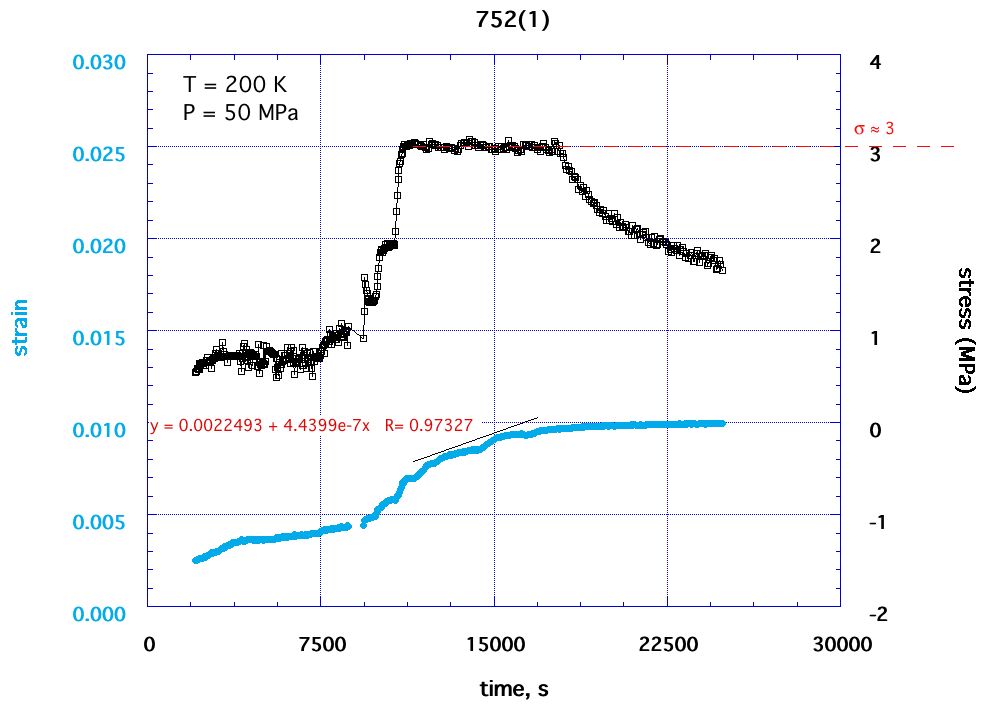

| T = 200 K, P = 50 MPa, s = ~3 MPa | step (1) |

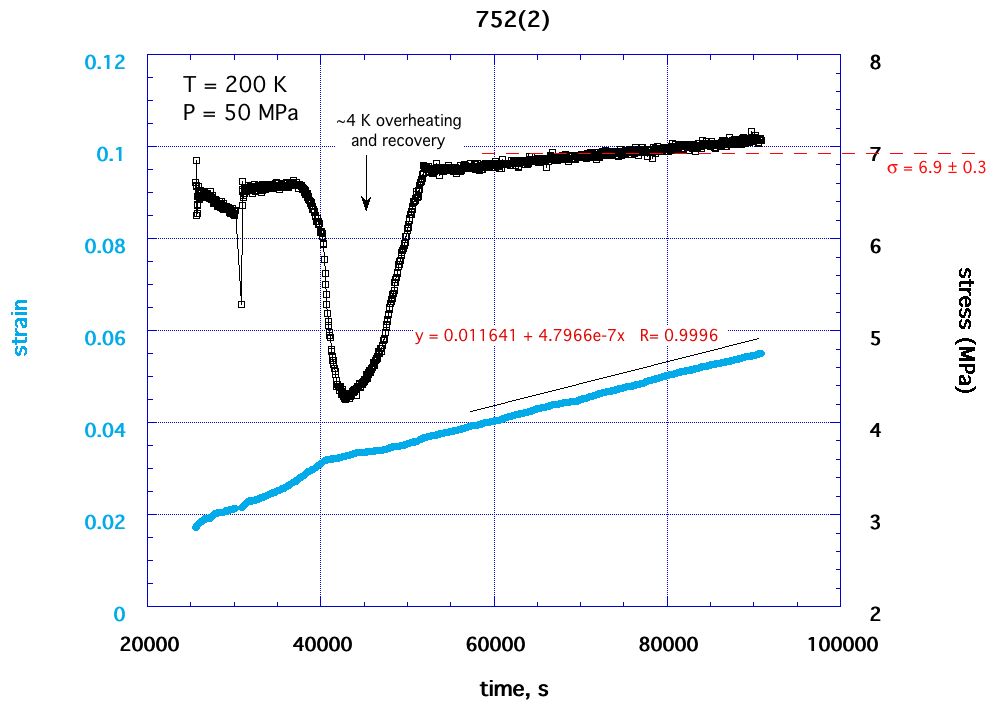

| T = 200 K, P = 50 MPa, s = 6.5 MPa | step (2) |

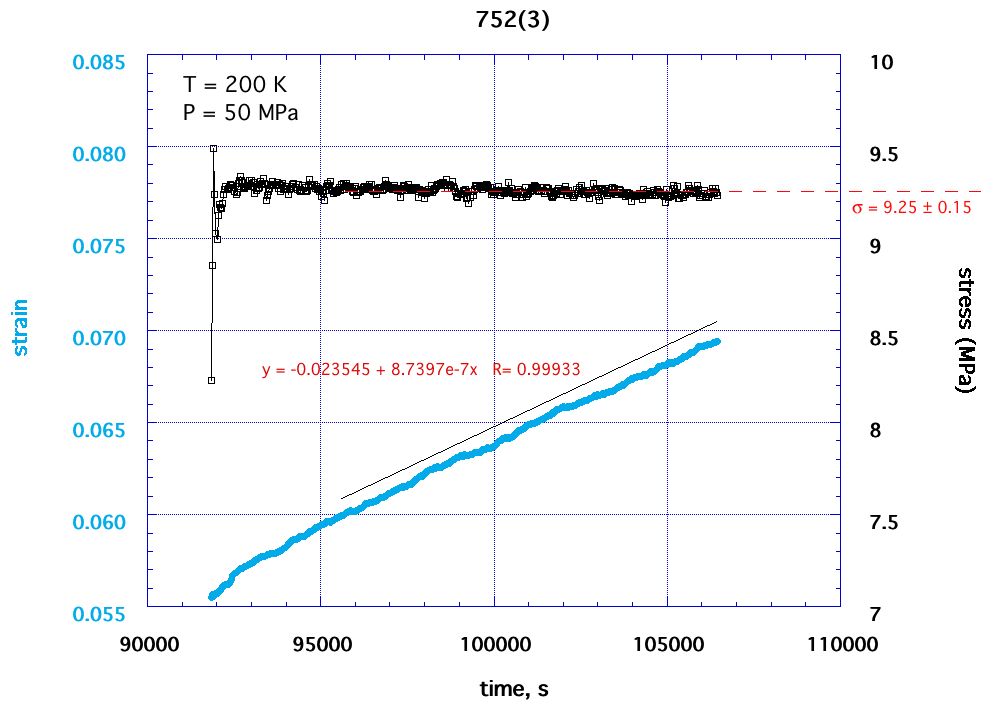

| T = 200 K, P = 50 MPa, s = 9.2 MPa | step (3) |
micrographs (not yet) |
|
||||
|
|
|||||
.jpg) |
.jpg) |
.jpg) |
