micrographs

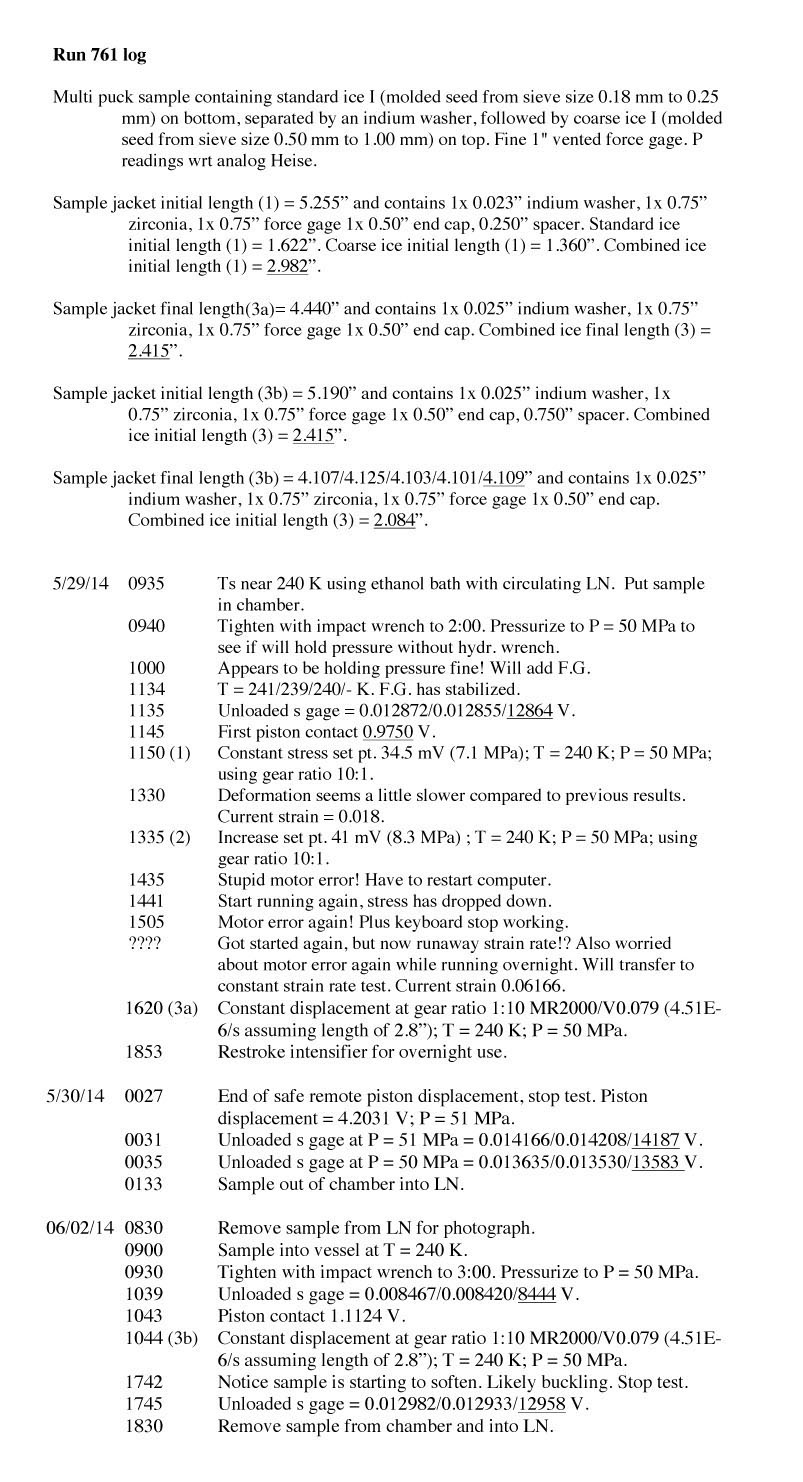

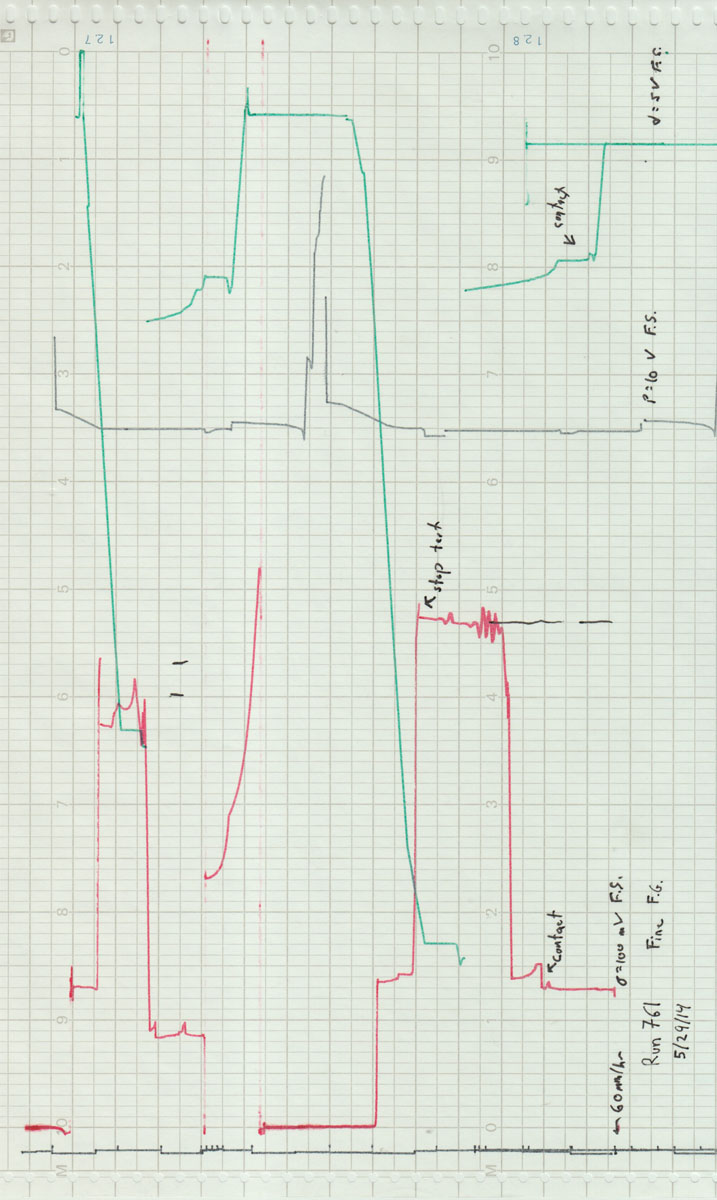

other resources: run log, live updates (archived), lab book page, chart record (start)
Categories |
| Prev in series (752) | Next in series (762) |
| Ice761 (NG67): double sample, std ice vs. coarse-grained ice | |
| Top piece: standard ice I (molded with 0.18-0.25-mm seed) | |
| Bottom piece: coarse-grained ice I (molded with 0.50-1.00 mm seed) | |
| T = 240 K, P = 50 MPa, s = 7 MPa | step (1) |
| T = 240 K, P = 50 MPa, s = 8.3 MPa | step (2) |
| T = 240 K, P = 50 MPa, edot = 4.5e-6/s | step (3) |

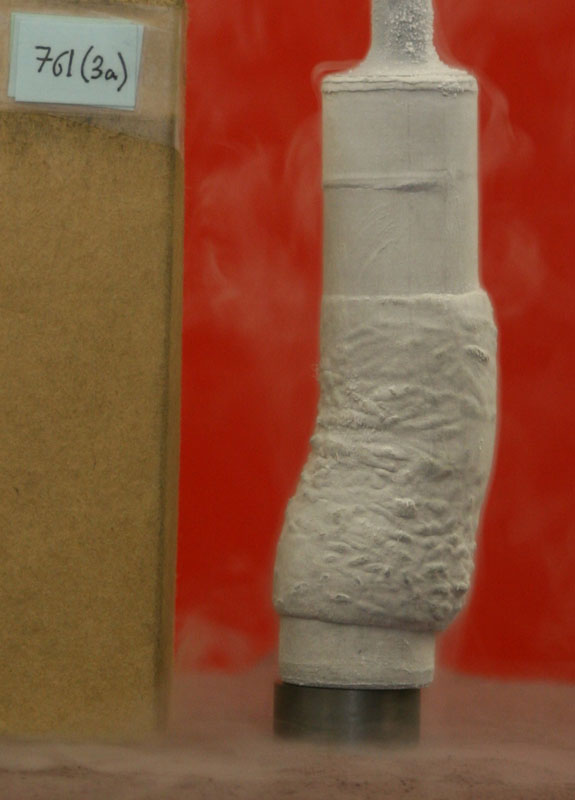

| T = 240 K, P = 50 MPa, edot = 4.5e-6/s | step (3a) |
|
|
|
|||
other resources: run log, live updates (archived), lab book page, chart record (start) |
|||||
-(2).jpg) |
-(3).jpg) |
