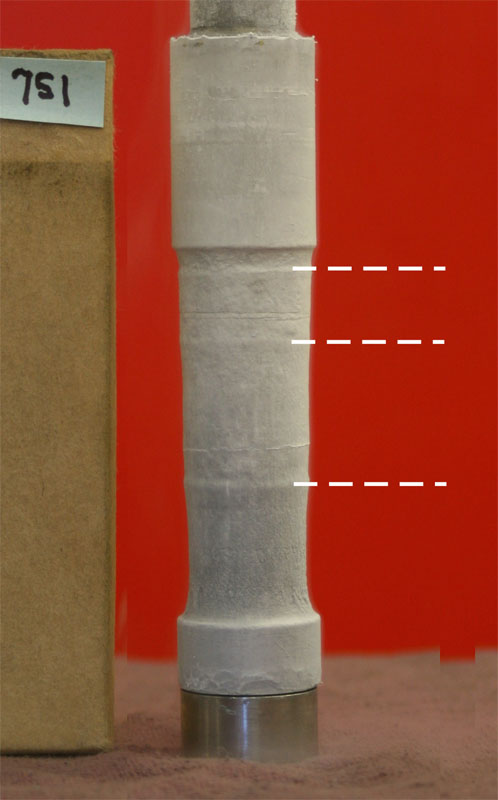

after compaction
micrographschart record

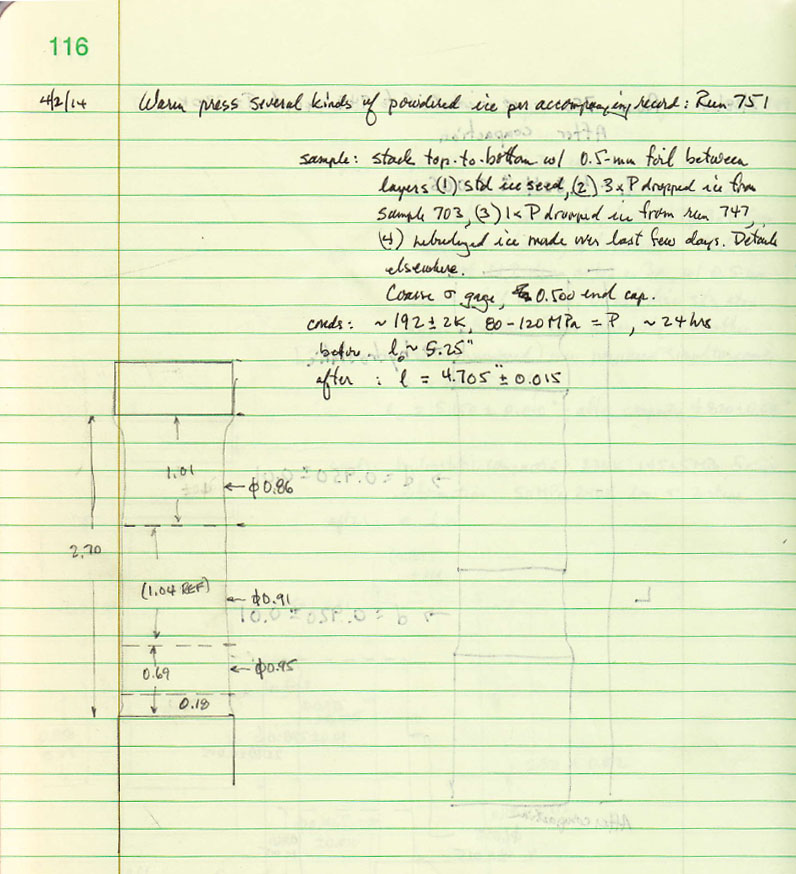

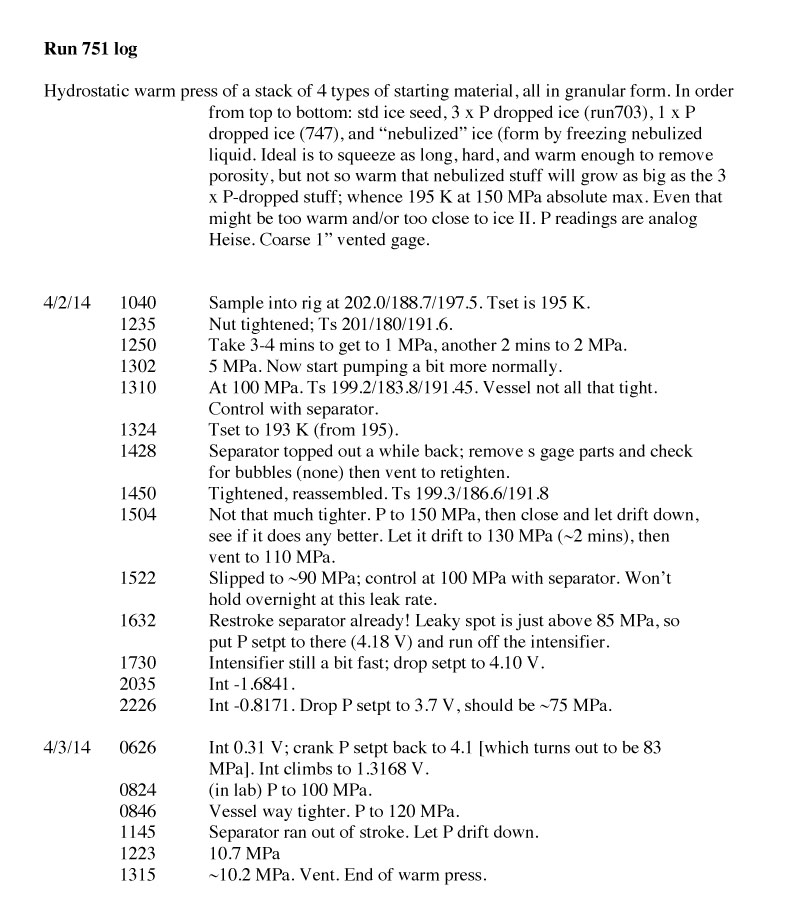

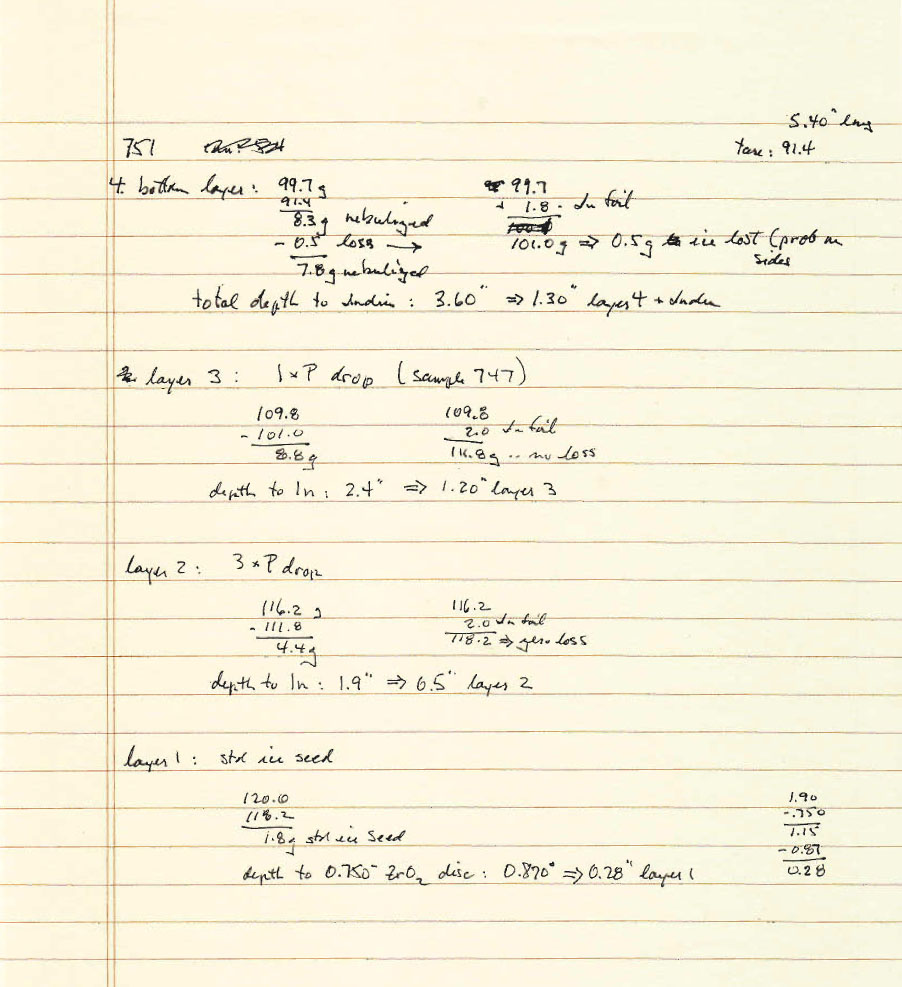

other resources: run log, live updates (archived), lab book page, sample prep notes
Categories |
| Prev in series (750) | Next in series (752) |
| Ice751: Stack 4 layers of granulated ice I | |
| Layer 1 (top): std ice seed (0.18 - 0.25 mm) [1.8 g; 7 mm starting thickness] | |
| Layer 2: 1 x P-drop ice from Ice747 [4.4 g; 13 mm starting thickness] | |
| Layer 3: 3 x P-drop ice from Ice703 [8.8 g; 30 mm starting thickness] | |
| Layer 4 (bot): nebulized ice 97.8 g; 33 mm starting thickness] | |
| T= 192 K, briefly 150 MPa, then 80-120 MPa ~21 hrs | hydrostatic compaction |
chart record |
|
|||
other resources: run log, live updates (archived), lab book page, sample prep notes |
||||
