Ice730: coarse-grained ice I (sieve size 0.5 - 1 mm)
T = 195 K, P = 50.0 MPa, 1:1 gearing, udot=MR2000/V4.0
edot = 2.92e-3/s;
s
max= 99.1 MPa

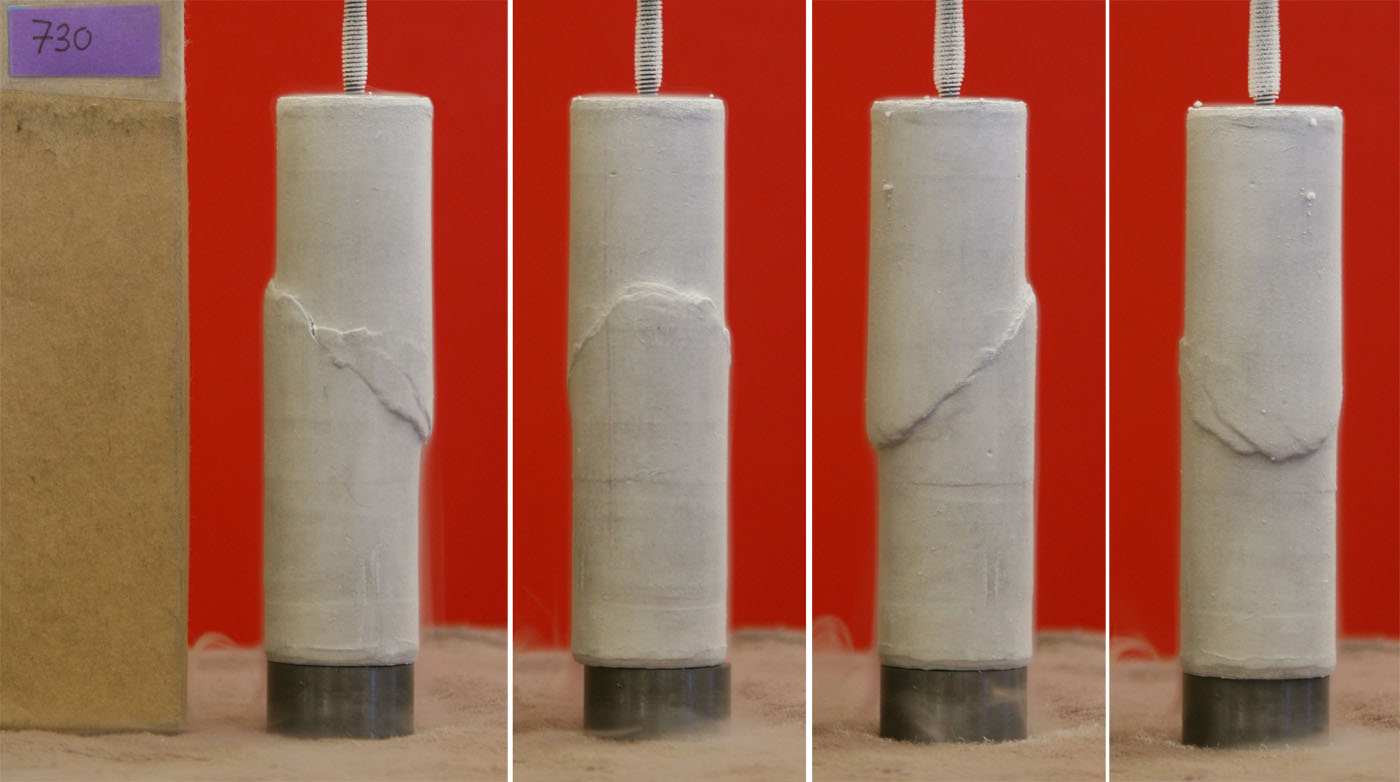

after failure
micrographs

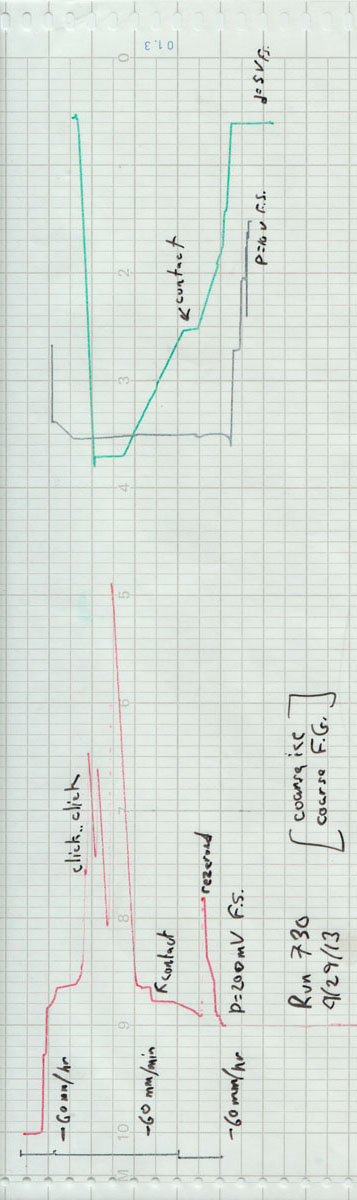

chart record
run log
after failure
micrographs
chart record
run log
