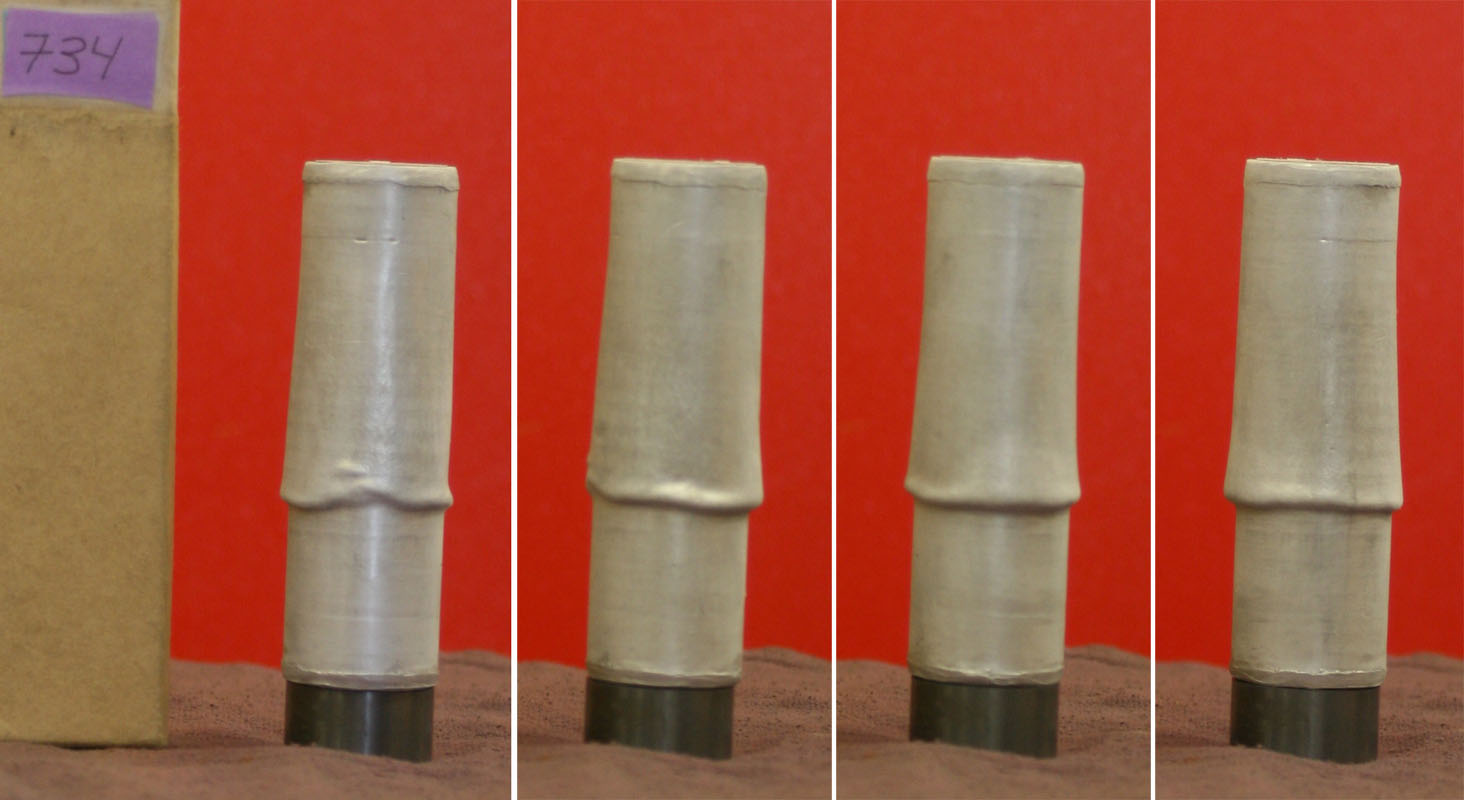

after failure
(not yet)
micrographs
Categories |
| Prev in faulting series (730) | Next in faulting series (735) |
Ice734 (NG55): coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 195 K, P = 75.0 MPa, 1:1 gearing, udot=MR2000/V4.0 | edot = 4.00e-3/s; s max= 52.1 MPa (probably jacket leak) |
|
(not yet) micrographs
|

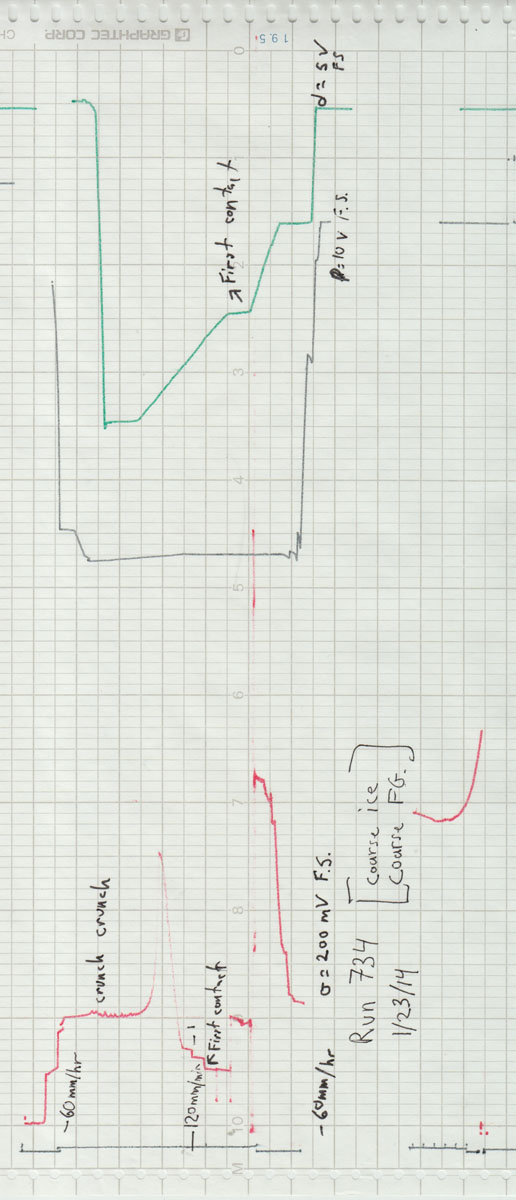

chart record

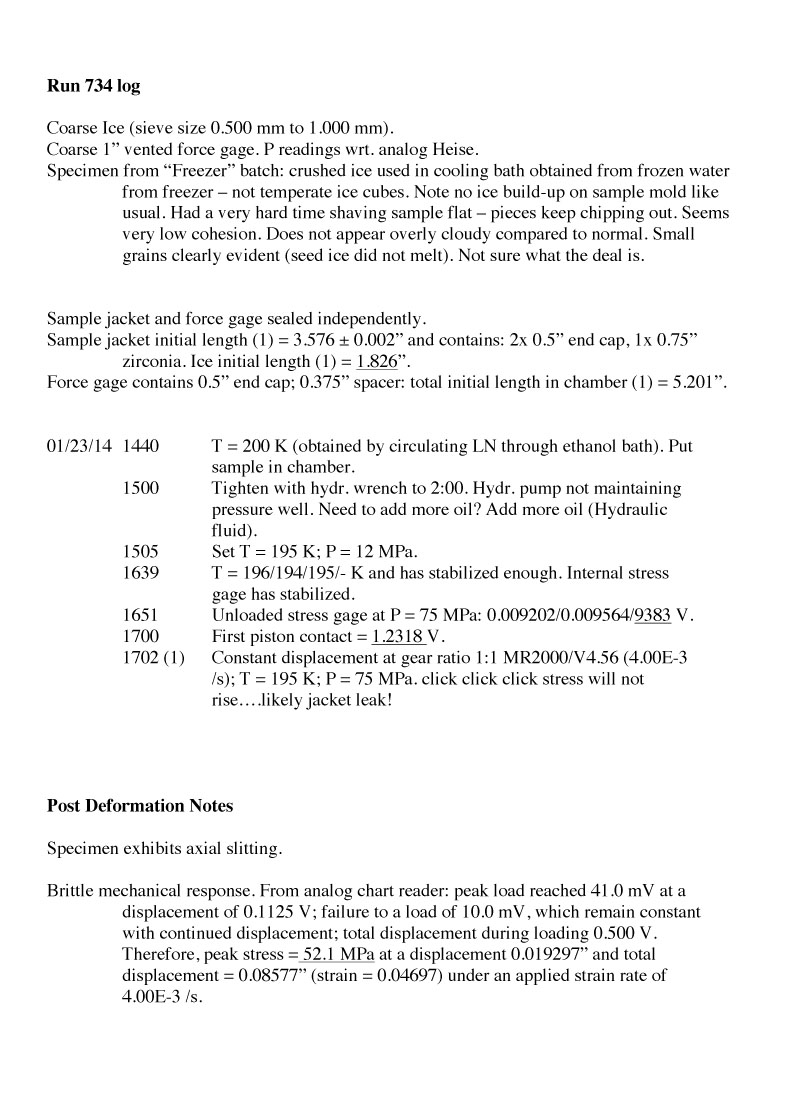

run log
