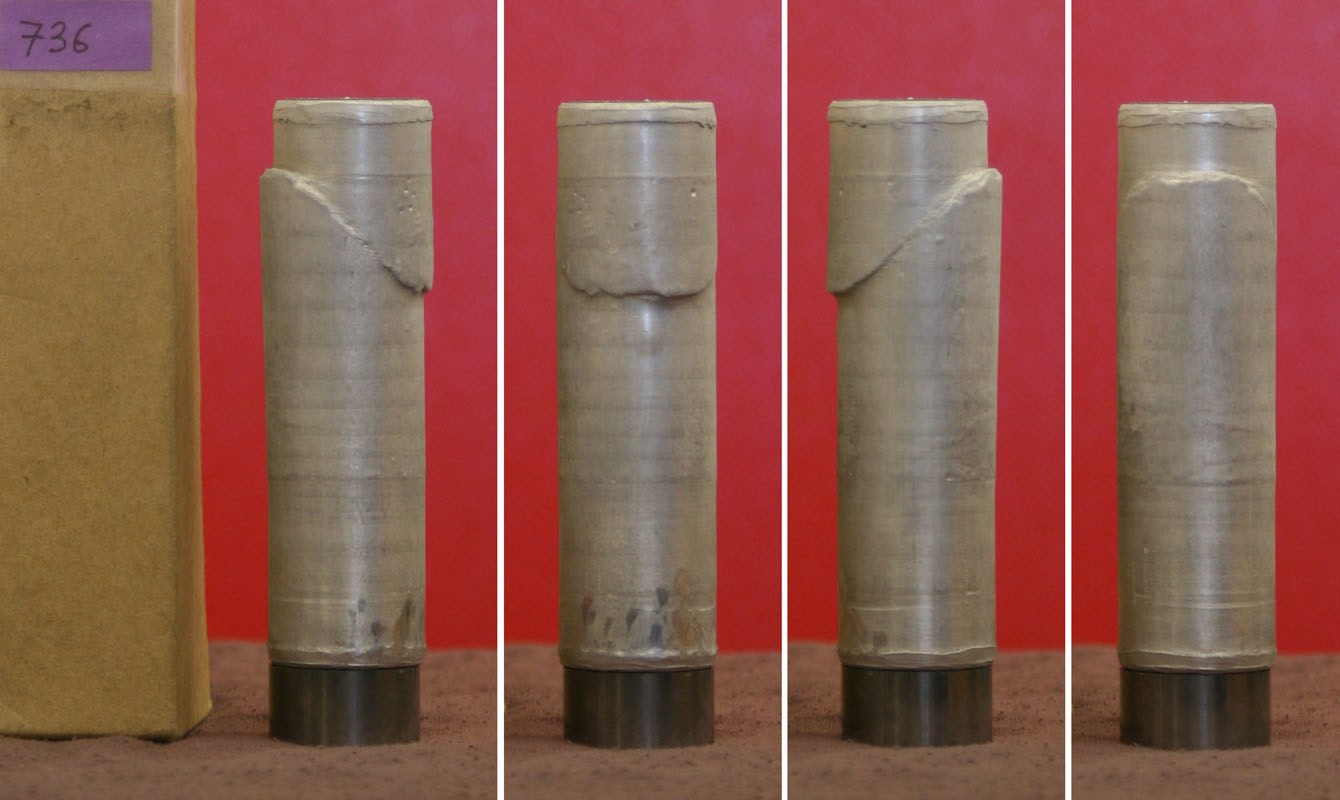

after failure
micrographs

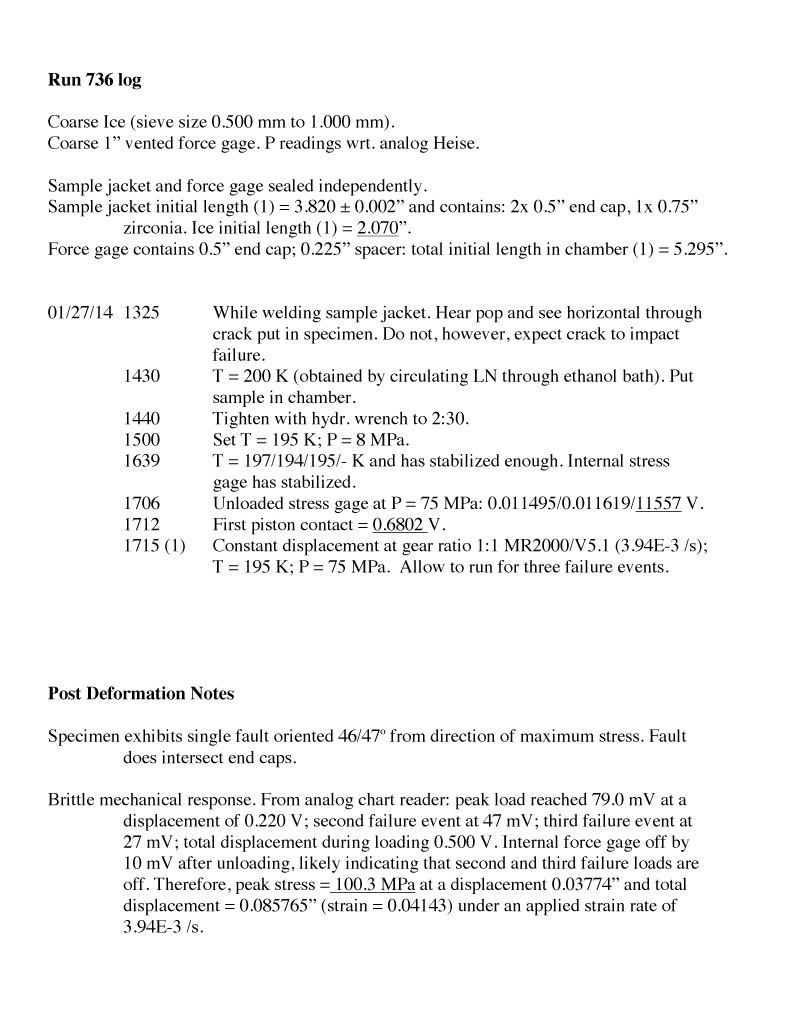

run logCategories |
| Prev in faulting series (735) | Next in faulting series (737) |
Ice736 (NG57): coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 195 K, P = 75.0 MPa, 1:1 gearing, udot=MR2000/V4.0 | edot = 3.94e-3/s; s max= 100.3 MPa |
|
|
run log |
