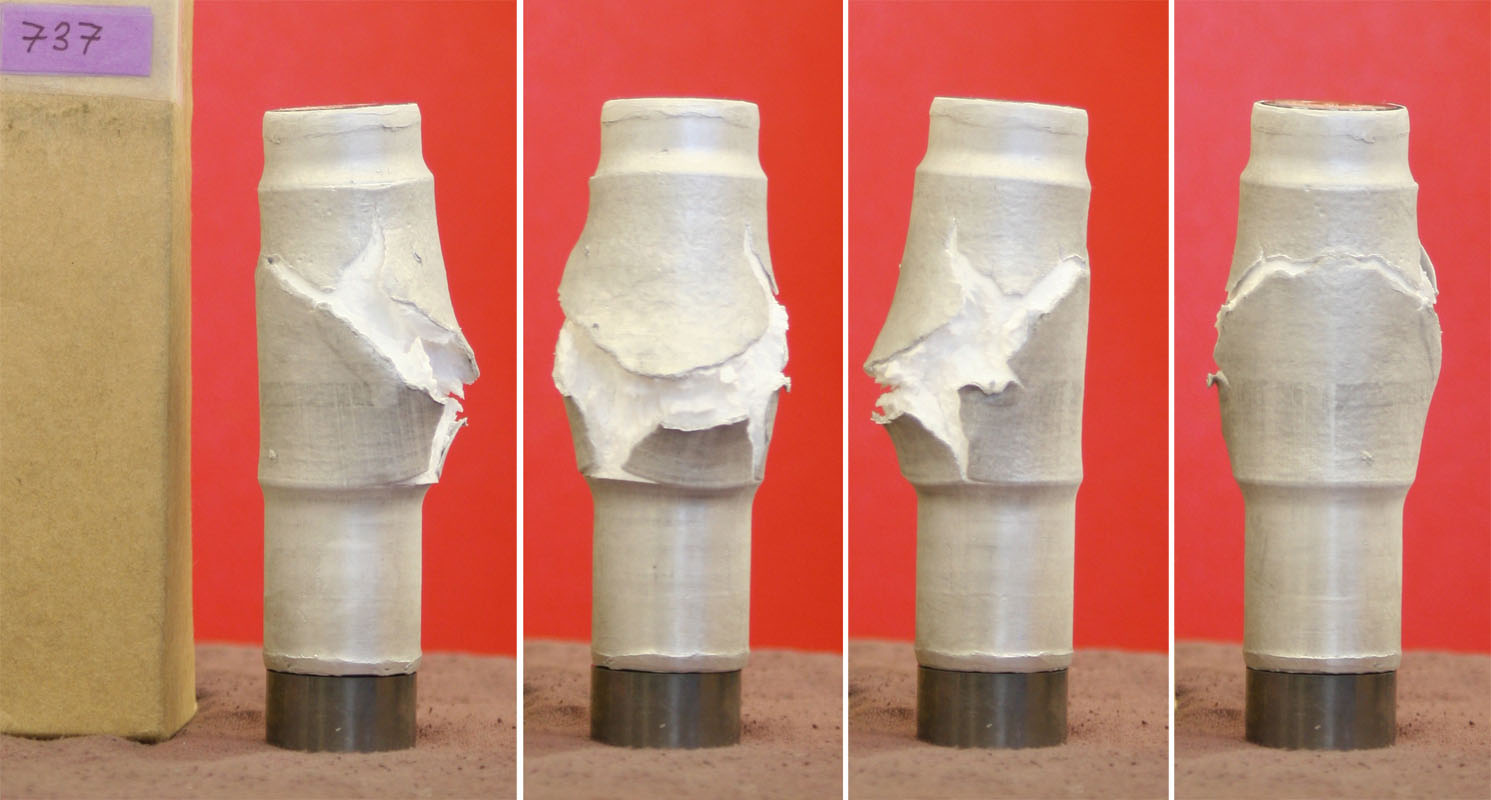

after failure
jacket after
micrographsCategories |
| Prev in faulting series (736) | Next in faulting series (739) |
Ice737 (NG58): Ice II, from coarse-grained ice I (sieve size 0.5 - 1 mm)
| T = 195 K, P to 280 MPa to form ice II | |
| T ≈ 110 K, P = 150.0 MPa, 1:10 gearing, udot=MR2000/V2.0, s to 230.7 MPa | (1) no failure |
| T ≈ 110 K, P = 100.0 MPa, s to 216.2 MPa | (2) no failure |
| T ≈ 110 K, P = 100.0 MPa, s to 213.4 MPa | (3) no failure |
| T ≈ 110 K, P = 50.0 MPa, s to 201.9 MPa | (4) (bang!) failure after 10 s |
| Remove as ice I (vessel frozen closed, warming necessary) |
| micrographs |

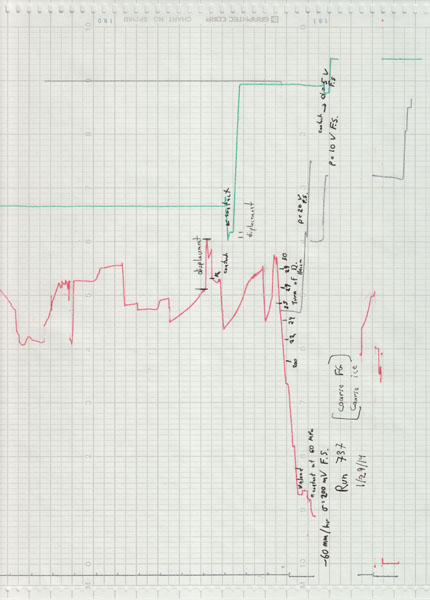

chart record
run log
