display - display an image on any workstation running X


• Synopsis
• Description
• Examples
• Options
• Mouse Buttons
• Command Widget
• Keyboard Accelerators
• X Resources
• Image Loading
• Visual Image Directory
• Image Cutting
• Image Copying
• Image Pasting
• Image Cropping
• Image Chopping
• Image Rotation
• Image Segmentation
• Image Annotation
• Image Compositing
• Color Editing
• Matte (Transparent Channel) Editing
• Image Drawing
• Region of Interest
• Image Panning
• User Preferences
• Environment
• Configuration Files
• Acknowledgement
• Authors
• Copyright

display [ options ...] file [options...]file

Display is a machine architecture independent image processing and display program. It can display an image on any workstation screen running an X server. Display can read and write many of the more popular image formats (e.g. JPEG, TIFF, PNM, Photo CD, etc.).

With display, you can perform these functions on an image:

load an image from a file

display the next image

display the former image

display a sequence of images as a slide show

write the image to a file

print the image to a PostScript printer

delete the image file

create a Visual Image Directory

select the image to display by its thumbnail rather than name

undo last image transformation

copy a region of the image

paste a region to the image

restore the image to its original size

refresh the image

half the image size

double the image size

resize the image

crop the image

cut the image

flop image in the horizontal direction

flip image in the vertical direction

rotate the image 90 degrees clockwise

rotate the image 90 degrees counter-clockwise

rotate the image

shear the image

roll the image

trim the image edges

invert the colors of the image

vary the color brightness

vary the color saturation

vary the image hue

gamma correct the image

sharpen the image contrast

dull the image contrast

perform histogram equalization on the image

perform histogram normalization on the image

negate the image colors

convert the image to grayscale

set the maximum number of unique colors in the image

reduce the speckles within an image

eliminate peak noise from an image

detect edges within the image

emboss an image

segment the image by color

simulate an oil painting

simulate a charcoal drawing

annotate the image with text

draw on the image

edit an image pixel color

edit the image matte information

composite an image with another

add a border to the image

surround image with an ornamental border

apply image processing techniques to a region of interest

display information about the image

zoom a portion of the image

show a histogram of the image

display image to background of a window

set user preferences

display information about this program

discard all images and exit program

change the level of magnification

display images specified by a World Wide Web (WWW) uniform resource locator (URL)

To scale an image of a cockatoo to exactly 640 pixels in width and 480 pixels in height and position the window at location (200,200), use:

    display -geometry 640x480+200+200! cockatoo.miff

To display an image of a cockatoo without a border centered on a backdrop, use:

    display +borderwidth -backdrop cockatoo.miff

To tile a slate texture onto the root window, use:

    display -size 1280x1024 -window root slate.png

To display a visual image directory of all your JPEG images, use:

    display 'vid:*.jpg'

To display a MAP image that is 640 pixels in width and 480 pixels in height with 256 colors, use:

    display -size 640x480+256 cockatoo.map

To display an image of a cockatoo specified with a World Wide Web (WWW) uniform resource locator (URL), use:

    display ftp://wizards.dupont.com/images/cockatoo.jpg

To display histogram of an image, use:

    convert file.jpg HISTOGRAM:- | display -

Options are processed in command line order. Any option you specify on the command line remains in effect until it is explicitly changed by specifying the option again with a different effect. For example to display three images, the first with 32 colors, the second with an unlimited number of colors, and the third with only 16 colors, use:

      display -colors 32 cockatoo.miff -noop duck.miff -colors 16 macaw.miff

Display options can appear on the command line or in your X resources file. See X(1). Options on the command line supersede values specified in your X resources file.

For a more detailed description of each option, see Options, above. ImageMagick(1).


-authenticate <string>

-backdrop <color>

-background <color>

-border <width>x<height>

-bordercolor <color>

-borderwidth <geometry>

-cache <threshold>

-colormap <type>

-colors <value>

-colorspace <value>

-comment <string>

-compress <type>

-contrast

-crop <width>x<height>{+-}<x>{+-} <y>{%}

-debug <events>

-define <key>{=<value>},...

-delay <1/100ths of a second>

-density <width>x<height>

-depth <value>

-despeckle

-display <host:display[.screen]>

-dispose <method>

-dither

-edge <radius>

-endian <type>

-enhance

-filter <type>

-flip

-flop

-font <name>

-foreground <color>

-frame <width>x<height>+<outer bevel width>+<inner bevel width>

-gamma <value>

-geometry <width>x<height>{+-}<x>{+-} <y>{%}{@} {!}{<}{>}

-help

-iconGeometry <geometry>

-iconic

-immutable

-interlace <type>

-label <name>

-limit <type> <value>

-log <string>

-magnify <level>

-map <type>

-matte

-mattecolor <color>

-monochrome

-name

-negate

-page <width>x<height>{+-}<x>{+-} <y>{%}{!}{<}{>}

-quality <value>

-raise <width>x<height>

-remote

-roll {+-}<x>{+-}<y>

-rotate <degrees>{<}{>}

-sample <geometry>

-sampling-factor <horizontal_factor>x<vertical_factor>

-scenes <value-value>

-segment <cluster threshold>x<smoothing threshold>

-shared-memory

-sharpen <radius>{x<sigma>}

-size <width>x<height>{+offset}

-strip

-text-font <name>

-texture <filename>

-title <string>

-treedepth <value>

-trim

-update <seconds>

-use-pixmap

-verbose

-version

-visual <type>

-window <id>

-window-group

-write <filename>

For a more detailed description of each option, see Options, above. ImageMagick(1).


The effects of each button press is described below. Three buttons are required. If you have a two button mouse, button 1 and 3 are returned. Press ALT and button 3 to simulate button 2.

1

2

3

• Open
• Next
• Former
• Delete
• Update

If you choose Open, the image represented by the tile is displayed. To return to the visual image directory, choose Next from the Command widget (refer to Command Widget). Next and Former moves to the next or former image respectively. Choose Delete to delete a particular image tile. Finally, choose Update to synchronize all the image tiles with their respective images. See montage and miff for more details.

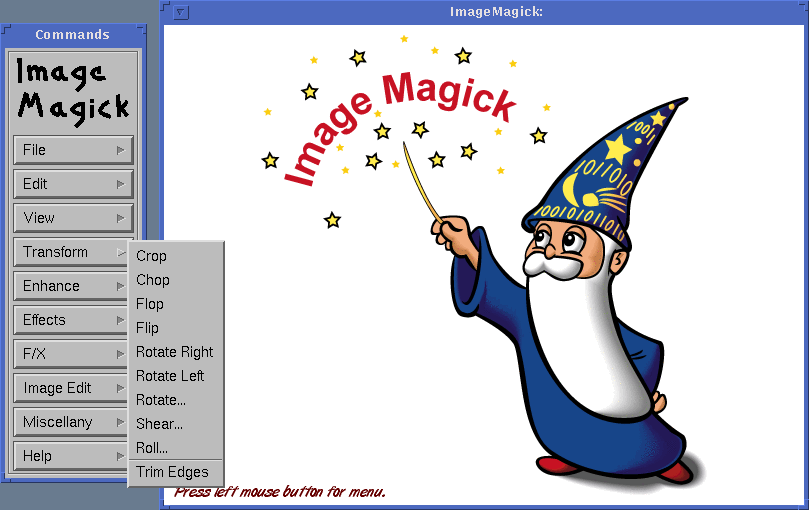

The Command widget lists a number of sub-menus and commands. They are

• File
  • Open...
  • Next
  • Former
  • Select...
  • Save...
  • Print...
  • Delete...
  • Canvas...
  • Visual Directory...
  • Quit

• Edit
  • Undo
  • Redo
  • Cut
  • Copy
  • Paste

• View
  • Half Size
  • Original Size
  • Double Size
  • Resize...
  • Apply
  • Refresh
  • Restore

• Transform
  • Crop
  • Chop
  • Flop
  • Flip
  • Rotate Right
  • Rotate Left
  • Rotate...
  • Shear...
  • Roll...
  • Trim Edges

• Enhance
  • Hue...
  • Saturation...
  • Brightness...
  • Gamma...
  • Spiff...
  • Dull
  • Equalize
  • Normalize
  • Negate
  • GRAYscale
  • Quantize...

• Effects
  • Despeckle
  • Emboss
  • Reduce Noise
  • Add Noise
  • Sharpen...
  • Blur...
  • Threshold...
  • Edge Detect...
  • Spread...
  • Shade...
  • Raise...
  • Segment...

• F/X
  • Solarize...
  • Swirl...
  • Implode...
  • Wave...
  • Oil Paint...
  • Charcoal Draw...

• Image Edit
  • Annotate...
  • Draw...
  • Color...
  • Matte...
  • Composite...
  • Add Border...
  • Add Frame...
  • Comment...
  • Launch...
  • Region of Interest...

• Miscellany
  • Image Info
  • Zoom Image
  • Show Preview...
  • Show Histogram
  • Show Matte
  • Background...
  • Slide Show
  • Preferences...

• Help
  • Overview
  • Browse Documentation
  • About Display

Menu items with a indented triangle have a sub-menu. They are represented above as the indented items. To access a sub-menu item, move the pointer to the appropriate menu and press button 1 and drag. When you find the desired sub-menu item, release the button and the command is executed. Move the pointer away from the sub-menu if you decide not to execute a particular command.

Accelerators are one or two key presses that effect a particular command. The keyboard accelerators that display understands is:

    Ctl+O     Press to load an image from a file.
    space     Press to display the next image.

If the image is a multi-paged document such as a PostScript document, you can skip ahead several pages by preceding this command with a number. For example to display the fourth page beyond the current page, press 4space.

    backspace Press to display the former image.

If the image is a multi-paged document such as a PostScript document, you can skip behind several pages by preceding this command with a number. For example to display the fourth page preceding the current page, press 4n.

    Ctl-S    Press to save the image to a file.
    Ctl-P    Press to print the image to a
PostScript printer.
    Ctl-D    Press to delete an image file.
    Ctl-N    Press to create a blank canvas.
    Ctl-Q    Press to discard all images and exit program.
    Ctl+Z    Press to undo last image transformation.
    Ctl+R    Press to redo last image transformation.
    Ctl-X    Press to cut a region of
             the image.
    Ctl-C    Press to copy a region of
             the image.
    Ctl-V    Press to paste a region to
             the image.
    <        Press to halve the image size.
    .        Press to return to the original image size.
    >        Press to double the image size.
    %        Press to resize the image to a width and height
             you specify.
    Cmd-A    Press to make any image transformations permanent.
             By default, any image size transformations are
             applied to the original image to create the image
             displayed on the X server.  However, the
             transformations are not permanent (i.e. the original
             image does not change size only the X image does).
             For example, if you press ">" the X image will
             appear to double in size, but the original image
             will in fact remain the same size.  To force the
             original image to double in size, press ">" followed
             by "Cmd-A".
    @        Press to refresh the image window.
    C        Press to crop the image.
    [        Press to chop the image.
    H        Press to flop image in the horizontal direction.
    V        Press to flip image in the vertical direction.
    /        Press to rotate the image 90 degrees clockwise.
    \        Press to rotate the image 90 degrees
             counter-clockwise.
    *        Press to rotate the image
             the number of degrees you specify.
    S        Press to shear the image the number of degrees
             you specify.
    R        Press to roll the image.
    T        Press to trim the image edges.
    Shft-H   Press to vary the color hue.
    Shft-S   Press to vary the color saturation.
    Shft-L   Press to vary the image brightness.
    Shft-G   Press to gamma correct the image.
    Shft-C   Press to spiff up the image contrast.
    Shft-Z   Press to dull the image contrast.
    =        Press to perform histogram equalization on
             the image.
    Shft-N   Press to perform histogram normalization on
             the image.
    Shft-~   Press to negate the colors of the image.
    .        Press to convert the image colors to gray.
    Shft-#   Press to set the maximum number of unique
             colors in the image.
    F2       Press to reduce the speckles in an image.
    F2       Press to emboss an image.
    F4       Press to eliminate peak noise from an image.
    F5       Press to add noise to an image.
    F6       Press to sharpen an image.
    F7       Press to blur image an image.
    F8       Press to threshold the image.
    F9       Press to detect edges within an image.
    F10      Press to displace pixels by a random amount.
    F11      Press to shade the image using a distant light
             source.
    F12      Press to lighten or darken image edges to create
             a 3-D effect.
    F13      Press to segment the image by color.
    Meta-S   Press to swirl image pixels about the center.
    Meta-I   Press to implode image pixels about the center.
    Meta-W   Press to alter an image along a sine wave.
    Meta-P   Press to simulate an oil painting.
    Meta-C   Press to simulate a charcoal drawing.
    Alt-X    Press to composite the image
             with another.
    Alt-A    Press to annotate the image with text.
    Alt-D    Press to draw a line on the image.
    Alt-P    Press to edit an image pixel color.
    Alt-M    Press to edit the image matte information.
    Alt-X    Press to composite the image with another.
    Alt-A    Press to add a border to the image.
    Alt-F    Press to add a ornamental frame to the image.
    Alt-Shft-!   Press to add an image comment.
    Ctl-A    Press to apply image processing techniques to a
             region of interest.
    Shft-?   Press to display information about the image.
    Shft-+   Press to map the zoom image window.
    Shft-P   Press to preview an image enhancement, effect,
             or f/x.
    F1       Press to display helpful information about
             the "display" utility.
    Find     Press to browse documentation about ImageMagick.
    1-9      Press to change the level of magnification.

Use the arrow keys to move the image one pixel up, down, left, or right within the magnify window. Be sure to first map the magnify window by pressing button 2.

Press ALT and one of the arrow keys to trim off one pixel from any side of the image.

Display options can appear on the command line or in your X resource file. Options on the command line supersede values specified in your X resource file. See X(1) for more information on X resources.

Most display options have a corresponding X resource. In addition, display uses the following X resources:

background (class Background)

borderColor (class BorderColor)

borderWidth (class BorderWidth)

browseCommand (class browseCommand)

confirmExit (class ConfirmExit)

displayGamma (class DisplayGamma)

displayWarnings (class DisplayWarnings)

font (class FontList)

font[1-9] (class Font[1-9])

foreground (class Foreground)

gammaCorrect (class gammaCorrect)

geometry (class Geometry)

iconGeometry (class IconGeometry)

iconic (class Iconic)

magnify (class Magnify)

matteColor (class MatteColor)

name (class Name)

pen[1-9] (class Pen[1-9])

printCommand (class PrintCommand)

sharedMemory (class SharedMemory)

textFont (class textFont)

title (class Title)

undoCache (class UndoCache)

usePixmap (class UsePixmap)

To set the geometry of the Magnify or Pan or window, use the geometry resource. For example, to set the Pan window geometry to 256x256, use:

    display.pan.geometry: 256x256

To select an image to display, choose Open of the File sub-menu from the Command widget. A file browser is displayed. To choose a particular image file, move the pointer to the filename and press any button. The filename is copied to the text window. Next, press Open or press the RETURN key. Alternatively, you can type the image file name directly into the text window. To descend directories, choose a directory name and press the button twice quickly. A scrollbar allows a large list of filenames to be moved through the viewing area if it exceeds the size of the list area.

You can trim the list of file names by using shell globbing characters. For example, type *.jpg to list only files that end with .jpg.

To select your image from the X server screen instead of from a file, Choose Grab of the Open widget.

To create a Visual Image Directory, choose Visual Directory of the File sub-menu from the Command widget . A file browser is displayed. To create a Visual Image Directory from all the images in the current directory, press Directory or press the RETURN key. Alternatively, you can select a set of image names by using shell globbing characters. For example, type *.jpg to include only files that end with .jpg. To descend directories, choose a directory name and press the button twice quickly. A scrollbar allows a large list of filenames to be moved through the viewing area if it exceeds the size of the list area.

After you select a set of files, they are turned into thumbnails and tiled onto a single image. Now move the pointer to a particular thumbnail and press button 3 and drag. Finally, select Open. The image represented by the thumbnail is displayed at its full size. Choose Next from the File sub-menu of the Command widget to return to the Visual Image Directory.

Note that cut information for image window is not retained for colormapped X server visuals (e.g. StaticColor, StaticColor, GRAYScale, PseudoColor). Correct cutting behavior may require a TrueColor or DirectColor visual or a Standard Colormap.

To begin, press choose Cut of the Edit sub-menu from the Command widget. Alternatively, press F3 in the image window.

A small window appears showing the location of the cursor in the image window. You are now in cut mode. In cut mode, the Command widget has these options:

• Help
• Dismiss

To define a cut region, press button 1 and drag. The cut region is defined by a highlighted rectangle that expands or contracts as it follows the pointer. Once you are satisfied with the cut region, release the button. You are now in rectify mode. In rectify mode, the Command widget has these options:

• Cut
• Help
• Dismiss

You can make adjustments by moving the pointer to one of the cut rectangle corners, pressing a button, and dragging. Finally, press Cut to commit your copy region. To exit without cutting the image, press Dismiss.

To begin, press choose Copy of the Edit sub-menu from the Command widget. Alternatively, press F4 in the image window.

A small window appears showing the location of the cursor in the image window. You are now in copy mode. In copy mode, the Command widget has these options:

• Help
• Dismiss

To define a copy region, press button 1 and drag. The copy region is defined by a highlighted rectangle that expands or contracts as it follows the pointer. Once you are satisfied with the copy region, release the button. You are now in rectify mode. In rectify mode, the Command widget has these options:

• Copy
• Help
• Dismiss

You can make adjustments by moving the pointer to one of the copy rectangle corners, pressing a button, and dragging. Finally, press Copy to commit your copy region. To exit without copying the image, press Dismiss.

To begin, press choose Paste of the Edit sub-menu from the Command widget. Alternatively, press F5 in the image window.

A small window appears showing the location of the cursor in the image window. You are now in Paste mode. To exit immediately, press Dismiss. In Paste mode, the Command widget has these options:

• Operators
  • over
  • in
  • out
  • atop
  • xor
  • plus
  • minus
  • add
  • subtract
  • difference
  • multiply
  • bumpmap
  • replace
• Help
• Dismiss

Choose a composite operation from the Operators sub-menu of the Command widget. How each operator behaves is described below. image window is the image currently displayed on your X server and image is the image obtained with the File Browser widget.

over

in

out

atop

xor

plus

minus

add

subtract

difference

multiply

bumpmap

replace

The image compositor requires a matte, or alpha channel in the image for some operations. This extra channel usually defines a mask which represents a sort of a cookie-cutter for the image. This is the case when matte is 255 (full coverage) for pixels inside the shape, zero outside, and between zero and 255 on the boundary. If image does not have a matte channel, it is initialized with 0 for any pixel matching in color to pixel location (0,0), otherwise 255. See Matte Editing for a method of defining a matte channel.

Note that matte information for image window is not retained for colormapped X server visuals (e.g. StaticColor, StaticColor, GrayScale, PseudoColor). Correct compositing behavior may require a TrueColor or DirectColor visual or a Standard Colormap.

Choosing a composite operator is optional. The default operator is replace. However, you must choose a location to composite your image and press button 1. Press and hold the button before releasing and an outline of the image will appear to help you identify your location.

The actual colors of the pasted image is saved. However, the color that appears in image window may be different. For example, on a monochrome screen image window will appear black or white even though your pasted image may have many colors. If the image is saved to a file it is written with the correct colors. To assure the correct colors are saved in the final image, any PseudoClass image is promoted to DirectClass. To force a PseudoClass image to remain PseudoClass, use -colors.

To begin, press choose Crop of the Transform submenu from the Command widget. Alternatively, press [ in the image window.

A small window appears showing the location of the cursor in the image window. You are now in crop mode. In crop mode, the Command widget has these options:

• Help
• Dismiss

To define a cropping region, press button 1 and drag. The cropping region is defined by a highlighted rectangle that expands or contracts as it follows the pointer. Once you are satisfied with the cropping region, release the button. You are now in rectify mode. In rectify mode, the Command widget has these options:

• Crop
• Help
• Dismiss

You can make adjustments by moving the pointer to one of the cropping rectangle corners, pressing a button, and dragging. Finally, press Crop to commit your cropping region. To exit without cropping the image, press Dismiss.

An image is chopped interactively. There is no command line argument to chop an image. To begin, choose Chop of the Transform sub-menu from the Command widget. Alternatively, press ] in the Image window.

You are now in Chop mode. To exit immediately, press Dismiss. In Chop mode, the Command widget has these options:

• Direction
  • horizontal
  • vertical
• Help
• Dismiss

If the you choose the horizontal direction (this is the default), the area of the image between the two horizontal endpoints of the chop line is removed. Otherwise, the area of the image between the two vertical endpoints of the chop line is removed.

Select a location within the image window to begin your chop, press and hold any button. Next, move the pointer to another location in the image. As you move a line will connect the initial location and the pointer. When you release the button, the area within the image to chop is determined by which direction you choose from the Command widget.

To cancel the image chopping, move the pointer back to the starting point of the line and release the button.

Press the / key to rotate the image 90 degrees or \ to rotate -90 degrees. To interactively choose the degree of rotation, choose Rotate... of the Transform submenu from the Command Widget. Alternatively, press * in the image window.

A small horizontal line is drawn next to the pointer. You are now in rotate mode. To exit immediately, press Dismiss. In rotate mode, the Command widget has these options:

• Pixel Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • Browser...
• Direction
  • horizontal
  • vertical
• Help
• Dismiss

Choose a background color from the Pixel Color sub-menu. Additional background colors can be specified with the color browser. You can change the menu colors by setting the X resources pen1 through pen9.

If you choose the color browser and press Grab, you can select the background color by moving the pointer to the desired color on the screen and press any button.

Choose a point in the image window and press this button and hold. Next, move the pointer to another location in the image. As you move a line connects the initial location and the pointer. When you release the button, the degree of image rotation is determined by the slope of the line you just drew. The slope is relative to the direction you choose from the Direction sub-menu of the Command widget.

To cancel the image rotation, move the pointer back to the starting point of the line and release the button.

Choose Effects->Segment to segment an image by analyzing the histograms of the color components and identifying units that are homogeneous with the fuzzy c-means technique. The scale-space filter analyzes the histograms of the three color components of the image and identifies a set of classes. The extents of each class is used to coarsely segment the image with thresholding. The color associated with each class is determined by the mean color of all pixels within the extents of a particular class. Finally, any unclassified pixels are assigned to the closest class with the fuzzy c-means technique.

The fuzzy c-Means algorithm can be summarized as follows:

• Build a histogram, one for each color component of the image.
• For each histogram, successively apply the scale-space filter and build an interval tree of zero crossings in the second derivative at each scale. Analyze this scale-space "fingerprint" to determine which peaks or valleys in the histogram are most predominant.
• The fingerprint defines intervals on the axis of the histogram. Each interval contains either a minima or a maxima in the original signal. If each color component lies within the maxima interval, that pixel is considered "classified" and is assigned an unique class number.
• Any pixel that fails to be classified in the above thresholding pass is classified using the fuzzy c-Means technique. It is assigned to one of the classes discovered in the histogram analysis phase.

The fuzzy c-Means technique attempts to cluster a pixel by finding the local minima of the generalized within group sum of squared error objective function. A pixel is assigned to the closest class of which the fuzzy membership has a maximum value.

For additional information see:

Young Won Lim, Sang Uk Lee, "On The Color Image Segmentation Algorithm Based on the Thresholding and the Fuzzy c-Means Techniques", Pattern Recognition, Volume 23, Number 9, pages 935-952, 1990.

An image is annotated interactively. There is no command line argument to annotate an image. To begin, choose Annotate of the Image Edit sub-menu from the Command widget. Alternatively, press a in the image window.

A small window appears showing the location of the cursor in the image window. You are now in annotate mode. To exit immediately, press Dismiss. In annotate mode, the Command widget has these options:

• Font Name
  • fixed
  • variable
  • 5x8
  • 6x10
  • 7x13bold
  • 8x13bold
  • 9x15bold
  • 10x20
  • 12x24
  • Browser...
• Font Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • transparent
  • Browser...
• Box Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • transparent
  • Browser...
• Rotate Text
  • -90
  • -45
  • -30
  • 0
  • 30
  • 45
  • 90
  • 180
  • Dialog...
• Help
• Dismiss

Choose a font name from the Font Name sub-menu. Additional font names can be specified with the font browser. You can change the menu names by setting the X resources font1 through font9.

Choose a font color from the Font Color sub-menu. Additional font colors can be specified with the color browser. You can change the menu colors by setting the X resources pen1 through pen9.

If you select the color browser and press Grab, you can choose the font color by moving the pointer to the desired color on the screen and press any button.

If you choose to rotate the text, choose Rotate Text from the menu and select an angle. Typically you will only want to rotate one line of text at a time. Depending on the angle you choose, subsequent lines may end up overwriting each other.

Choosing a font and its color is optional. The default font is fixed and the default color is black. However, you must choose a location to begin entering text and press a button. An underscore character will appear at the location of the pointer. The cursor changes to a pencil to indicate you are in text mode. To exit immediately, press Dismiss.

In text mode, any key presses will display the character at the location of the underscore and advance the underscore cursor. Enter your text and once completed press Apply to finish your image annotation. To correct errors press BACK SPACE. To delete an entire line of text, press DELETE. Any text that exceeds the boundaries of the image window is automatically continued onto the next line.

The actual color you request for the font is saved in the image. However, the color that appears in your Image window may be different. For example, on a monochrome screen the text will appear black or white even if you choose the color red as the font color. However, the image saved to a file with -write is written with red lettering. To assure the correct color text in the final image, any PseudoClass image is promoted to DirectClass (see miff(5)). To force a PseudoClass image to remain PseudoClass, use -colors.

An image composite is created interactively. There is no command line argument to composite an image. To begin, choose Composite of the Image Edit from the Command widget. Alternatively, press x in the Image window.

First a popup window is displayed requesting you to enter an image name. Press Composite, Grab or type a file name. Press Cancel if you choose not to create a composite image. When you choose Grab, move the pointer to the desired window and press any button.

If the Composite image does not have any matte information, you are informed and the file browser is displayed again. Enter the name of a mask image. The image is typically grayscale and the same size as the composite image. If the image is not grayscale, it is converted to grayscale and the resulting intensities are used as matte information.

A small window appears showing the location of the cursor in the image window. You are now in composite mode. To exit immediately, press Dismiss. In composite mode, the Command widget has these options:

• Operators
  • over
  • in
  • out
  • atop
  • xor
  • plus
  • minus
  • add
  • subtract
  • difference
  • bumpmap
  • replace
• Blend
• Displace
• Help
• Dismiss

Choose a composite operation from the Operators sub-menu of the Command widget. How each operator behaves is described below. image window is the image currently displayed on your X server and image is the image obtained

over

in

out

atop

xor

plus

minus

add

subtract

difference

bumpmap

replace

The image compositor requires a matte, or alpha channel in the image for some operations. This extra channel usually defines a mask which represents a sort of a cookie-cutter for the image. This is the case when matte is 255 (full coverage) for pixels inside the shape, zero outside, and between zero and 255 on the boundary. If image does not have a matte channel, it is initialized with 0 for any pixel matching in color to pixel location (0,0), otherwise 255. See Matte Editing for a method of defining a matte channel.

If you choose blend, the composite operator becomes over. The image matte channel percent transparency is initialized to factor. The image window is initialized to (100-factor). Where factor is the value you specify in the Dialog widget.

Displace shifts the image pixels as defined by a displacement map. With this option, image is used as a displacement map. Black, within the displacement map, is a maximum positive displacement. White is a maximum negative displacement and middle gray is neutral. The displacement is scaled to determine the pixel shift. By default, the displacement applies in both the horizontal and vertical directions. However, if you specify mask, image is the horizontal X displacement and mask the vertical Y displacement.

Note that matte information for image window is not retained for colormapped X server visuals (e.g. StaticColor, StaticColor, GrayScale, PseudoColor). Correct compositing behavior may require a TrueColor or DirectColor visual or a Standard Colormap.

Choosing a composite operator is optional. The default operator is replace. However, you must choose a location to composite your image and press button 1. Press and hold the button before releasing and an outline of the image will appear to help you identify your location.

The actual colors of the composite image is saved. However, the color that appears in image window may be different. For example, on a monochrome screen Image window will appear black or white even though your composited image may have many colors. If the image is saved to a file it is written with the correct colors. To assure the correct colors are saved in the final image, any PseudoClass image is promoted to DirectClass (see miff). To force a PseudoClass image to remain PseudoClass, use -colors.

Changing the the color of a set of pixels is performed interactively. There is no command line argument to edit a pixel. To begin, choose Color from the Image Edit submenu of the Command widget. Alternatively, press c in the image window.

A small window appears showing the location of the cursor in the image window. You are now in color edit mode. To exit immediately, press Dismiss. In color edit mode, the Command widget has these options:

• Method
  • point
  • replace
  • floodfill
  • reset
• Pixel Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • Browser...
• Border Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • Browser...
• Fuzz
  • 0
  • 2
  • 4
  • 8
  • 16
  • Dialog...
• Undo
• Help
• Dismiss

Choose a color editing method from the Method sub-menu of the Command widget. The point method recolors any pixel selected with the pointer unless the button is released. The replace method recolors any pixel that matches the color of the pixel you select with a button press. Floodfill recolors any pixel that matches the color of the pixel you select with a button press and is a neighbor. Whereas filltoborder changes the matte value of any neighbor pixel that is not the border color. Finally reset changes the entire image to the designated color.

Next, choose a pixel color from the Pixel Color sub-menu. Additional pixel colors can be specified with the color browser. You can change the menu colors by setting the X resources pen1 through pen9.

Now press button 1 to select a pixel within the Image window to change its color. Additional pixels may be recolored as prescribed by the method you choose. additional pixels by increasing the Delta value.

If the Magnify widget is mapped, it can be helpful in positioning your pointer within the image (refer to button 2). Alternatively you can select a pixel to recolor from within the Magnify widget. Move the pointer to the Magnify widget and position the pixel with the cursor control keys. Finally, press a button to recolor the selected pixel (or pixels).

The actual color you request for the pixels is saved in the image. However, the color that appears in your Image window may be different. For example, on a monochrome screen the pixel will appear black or white even if you choose the color red as the pixel color. However, the image saved to a file with -write is written with red pixels. To assure the correct color text in the final image, any PseudoClass image is promoted to DirectClass To force a PseudoClass image to remain PseudoClass, use -colors.

Matte information within an image is useful for some operations such as image compositing. This extra channel usually defines a mask which represents a sort of a cookie-cutter for the image. This is the case when matte is 255 (full coverage) for pixels inside the shape, zero outside, and between zero and 255 on the boundary.

Setting the matte information in an image is done interactively. There is no command line argument to edit a pixel. To begin, and choose Matte of the Image Edit sub-menu from the Command widget.

Alternatively, press m in the image window.

A small window appears showing the location of the cursor in the image window. You are now in matte edit mode. To exit immediately, press Dismiss. In matte edit mode, the Command widget has these options:

• Method
  • point
  • replace
  • floodfill
  • reset
• Border Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • Browser...
• Fuzz
  • 0
  • 2
  • 4
  • 8
  • 16
  • Dialog...
• Matte
• Undo
• Help
• Dismiss

Choose Matte Value and a dialog appears requesting a matte value. Enter a value between 0 and 255. This value is assigned as the matte value of the selected pixel or pixels.

Now, press any button to select a pixel within the Image window to change its matte value. You can change the matte value of additional pixels by increasing the Delta value. The Delta value is first added then subtracted from the red, green, and blue of the target color. Any pixels within the range also have their matte value updated.

If the Magnify widget is mapped, it can be helpful in positioning your pointer within the image (refer to button 2). Alternatively you can select a pixel to change the matte value from within the Magnify widget. Move the pointer to the Magnify widget and position the pixel with the cursor control keys. Finally, press a button to change the matte value of the selected pixel (or pixels).

Matte information is only valid in a DirectClass image. Therefore, any PseudoClass image is promoted to DirectClass. Note that matte information for PseudoClass is not retained for colormapped X server visuals (e.g. StaticColor, StaticColor, GrayScale, PseudoColor) unless you immediately save your image to a file (refer to Write). Correct matte editing behavior may require a TrueColor or DirectColor visual or a Standard Colormap.

An image is drawn upon interactively. There is no command line argument to draw on an image. To begin, choose Draw of the Image Edit sub-menu from the Command widget. Alternatively, press d in the image window.

The cursor changes to a crosshair to indicate you are in draw mode. To exit immediately, press Dismiss. In draw mode, the Command widget has these options:

• Primitive
  • point
  • line
  • rectangle
  • fill rectangle
  • circle
  • fill circle
  • ellipse
  • fill ellipse
  • polygon
  • fill polygon
• Color
  • black
  • blue
  • cyan
  • green
  • gray
  • red
  • magenta
  • yellow
  • white
  • transparent
  • Browser...
• Stipple
  • Brick
  • Diagonal
  • Scales
  • Vertical
  • Wavy
  • Translucent
  • Opaque
  • Open...
• Width
  • 1
  • 2
  • 4
  • 8
  • 16
  • Dialog...
• Undo
• Help
• Dismiss

Next, choose a color from the Color sub-menu. Additional colors can be specified with the color browser. You can change the menu colors by setting the X resources pen1 through pen9. The transparent color updates the image matte channel and is useful for image compositing.

If you choose the color browser and press Grab, you can select the primitive color by moving the pointer to the desired color on the screen and press any button. The transparent color updates the image matte channel and is useful for image compositing.

Choose a stipple, if appropriate, from the Stipple sub-menu. Additional stipples can be specified with the file browser. Stipples obtained from the file browser must be on disk in the X11 bitmap format.

Choose a line width, if appropriate, from the Width sub-menu. To choose a specific width select the Dialog widget.

Choose a point in the image window and press button 1 and hold. Next, move the pointer to another location in the image. As you move, a line connects the initial location and the pointer. When you release the button, the image is updated with the primitive you just drew. For polygons, the image is updated when you press and release the button without moving the pointer.

To cancel image drawing, move the pointer back to the starting point of the line and release the button.

To begin, press choose Region of Interest of the Pixel Transform sub-menu from the Command widget. Alternatively, press R in the image window.

A small window appears showing the location of the cursor in the image window. You are now in region of interest mode. In region of interest mode, the Command widget has these options:

• Help
• Dismiss

To define a region of interest, press button 1 and drag. The region of interest is defined by a highlighted rectangle that expands or contracts as it follows the pointer. Once you are satisfied with the region of interest, release the button. You are now in apply mode. In apply mode the Command widget has these options:

• File
  • Save...
  • Print...
• Edit
  • Undo
  • Redo
• Transform
  • Flip
  • Flop
  • Rotate Right
  • Rotate Left
• Enhance
  • Hue...
  • Saturation...
  • Brightness...
  • Gamma...
  • Spiff
  • Dull
  • Equalize
  • Normalize
  • Negate
  • GRAYscale
  • Quantize...
• Effects
  • Despeckle
  • Emboss
  • Reduce Noise
  • Add Noise
  • Sharpen...
  • Blur...
  • Threshold...
  • Edge Detect...
  • Spread...
  • Shade...
  • Raise...
  • Segment...

• F/X
  • Solarize...
  • Swirl...
  • Implode...
  • Wave...
  • Oil Paint
  • Charcoal Draw...

• Miscellany
  • Image Info
  • Zoom Image
  • Show Preview...
  • Show Histogram
  • Show Matte
• Help
• Dismiss

You can make adjustments to the region of interest by moving the pointer to one of the rectangle corners, pressing a button, and dragging. Finally, choose an image processing technique from the Command widget. You can choose more than one image processing technique to apply to an area. Alternatively, you can move the region of interest before applying another image processing technique. To exit, press Dismiss.

When an image exceeds the width or height of the X server screen, display maps a small panning icon. The rectangle within the panning icon shows the area that is currently displayed in the the image window. To pan about the image, press any button and drag the pointer within the panning icon. The pan rectangle moves with the pointer and the image window is updated to reflect the location of the rectangle within the panning icon. When you have selected the area of the image you wish to view, release the button.

Use the arrow keys to pan the image one pixel up, down, left, or right within the image window.

The panning icon is withdrawn if the image becomes smaller than the dimensions of the X server screen.

Preferences affect the default behavior of display(1). The preferences are either true or false and are stored in your home directory as .displayrc:

display image centered on a backdrop

This backdrop covers the entire workstation screen and is useful for hiding other X window activity while viewing the image. The color of the backdrop is specified as the background color. Refer to X Resources for details.

confirm on program exit

Ask for a confirmation before exiting the display(1) program.

correct image for display gamma

If the image has a known gamma, the gamma is corrected to match that of the X server (see the X Resource displayGamma).

display warning messages

Display any warning messages.

apply Floyd/Steinberg error diffusion to image

The basic strategy of dithering is to trade intensity resolution for spatial resolution by averaging the intensities of several neighboring pixels. Images which suffer from severe contouring when reducing colors can be improved with this preference.

use a shared colormap for colormapped X visuals

This option only applies when the default X server visual is PseudoColor or GRAYScale. Refer to -visual for more details. By default, a shared colormap is allocated. The image shares colors with other X clients. Some image colors could be approximated, therefore your image may look very different than intended. Otherwise the image colors appear exactly as they are defined. However, other clients may go technicolor when the image colormap is installed.

display images as an X server pixmap

Images are maintained as a XImage by default. Set this resource to True to utilize a server Pixmap instead. This option is useful if your image exceeds the dimensions of your server screen and you intend to pan the image. Panning is much faster with Pixmaps than with a XImage. Pixmaps are considered a precious resource, use them with discretion.

ImageMagick uses a number of XML format configuration files:

colors.mgk

  <?xml version="1.0"?>
  <colormap>
    <color name="AliceBlue" red="240" green="248" blue="255"
           compliance="SVG, X11, XPM" />
  </colormap>

delegates.mgk

log.mgk

  <?xml version="1.0"?>
  <magicklog>
    <log events="None" />
    <log output="stdout" />
    <log filename="Magick-%d.log" />
    <log generations="3" />
    <log limit="2000" />
    <log format="%t %r %u %p %m/%f/%l/%d:\n  %e"  />
  </magicklog>

magic.mgk

  <?xml version="1.0"?>
  <magicmap>
    <magic name="AVI" offset="0" target="RIFF" />
  </magicmap>

coder.mgk

  <?xml version="1.0"?>
  <modulemap>
    <module magick="8BIM" name="META" />
  </modulemap>

type.mgk

  <?xml version="1.0"?>
  <typemap>
    <include file="type-windows.mgk" />
    <type
      name="AvantGarde-Book"
      fullname="AvantGarde Book"
      family="AvantGarde"
      foundry="URW"
      weight="400"
      style="normal"
      stretch="normal"
      format="type1"
      metrics="/usr/local/share/ghostscript/fonts/a010013l.afm"
      glyphs="/usr/local/share/ghostscript/fonts/a010013l.pfb"
    />
  </typemap>

The MIT X Consortium for making network transparent graphics a reality.

Peder Langlo, Hewlett Packard, Norway, made hundreds of suggestions and bug reports. Without Peder, ImageMagick would not be nearly as useful as it is today.

Rod Bogart and John W. Peterson, University of Utah. Image compositing is loosely based on rlecomp of the Utah Raster Toolkit.

Michael Halle, Spatial Imaging Group at MIT, for the initial implementation of Alan Paeth's image rotation algorithm.

David Pensak, E. I. du Pont de Nemours and Company, for providing a computing environment that made this program possible.

Paul Raveling, USC Information Sciences Institute. The spatial subdivision color reduction algorithm is based on his Img software.

Copyright (C) 1999-2004 ImageMagick Studio LLC. Additional copyrights and licenses apply to this software, see http://www.imagemagick.org/www/Copyright.html
